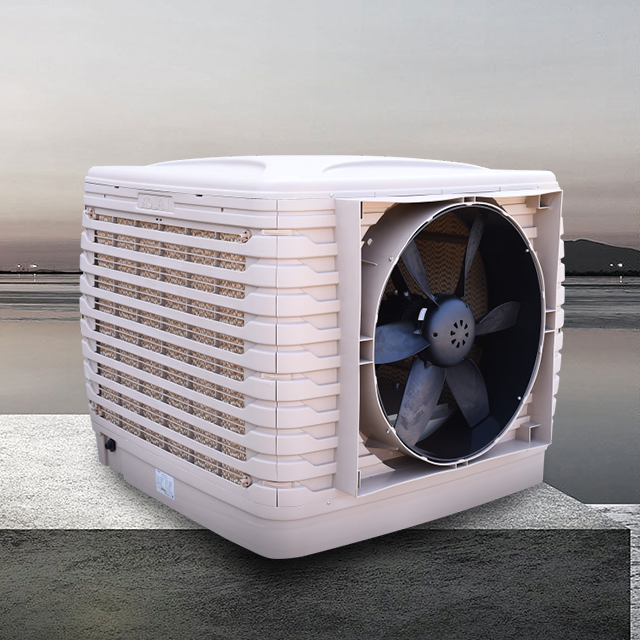

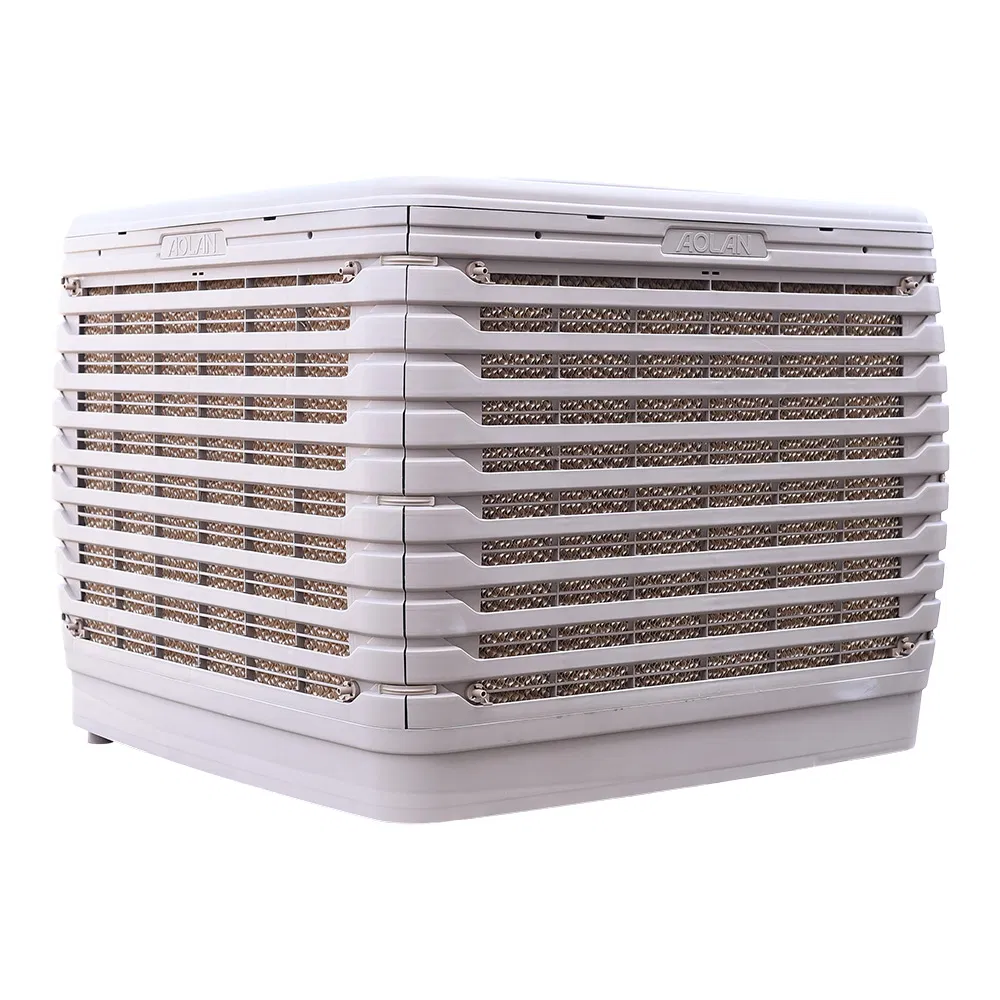

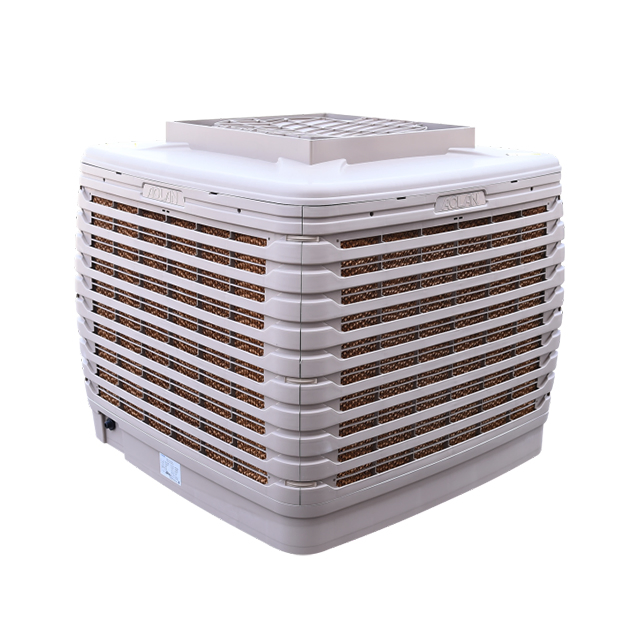

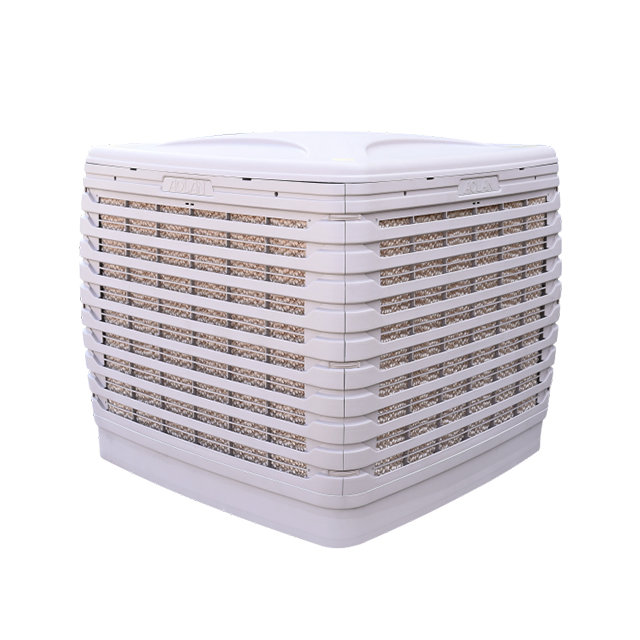

18000m3/H Aiflow Axial Fan Down Discharge Workshop Ventilation Cooling System Azl18-Zx10e
18000m3/H Aiflow Axial Fan Down Discharge Workshop Ventilation Cooling System Azl18-Zx10e
18000m3/H Aiflow Axial Fan Down Discharge Workshop Ventilation Cooling System Azl18-Zx10e
18000m3/H Aiflow Axial Fan Down Discharge Workshop Ventilation Cooling System Azl18-Zx10e
18000m3/H Aiflow Axial Fan Down Discharge Workshop Ventilation Cooling System Azl18-Zx10e
1 / 5
18000m3/H Aiflow Axial Fan Down Discharge Workshop Ventilation Cooling System Azl18-Zx10e
18000m3/H Aiflow Axial Fan Down Discharge Workshop Ventilation Cooling System Azl18-Zx10e
18000m3/H Aiflow Axial Fan Down Discharge Workshop Ventilation Cooling System Azl18-Zx10e
18000m3/H Aiflow Axial Fan Down Discharge Workshop Ventilation Cooling System Azl18-Zx10e
18000m3/H Aiflow Axial Fan Down Discharge Workshop Ventilation Cooling System Azl18-Zx10e

18000m3/H Aiflow Axial Fan Down Discharge Workshop Ventilation Cooling System Azl18-Zx10e

Customization: Available
After-sales Service: Free Spare Parts, Video Technical Support, Online
Warranty: 1 Year
Send Inquiry

Product Description

Product Overview & Basic Info
Model NO.
AZL18-ZX10E
Type
Evaporative Air Cooler
Airflow
18000m3/H
Output
1.1kw
Fan Type
Axial
Operating Voltage
220/50
Pressure
170 Pa
Water Tank
30L
Noise Level
≤76 dBA
Mounting
Wall/Window Mount
Application
Factory, Workshop, Restaurant, Supermarket
Certification
RoHS, UR, ISO, CE, CCC
Product Characteristics
✓
Robust Engineering: Reasonable design with a strong structure for industrial durability.
✓
Self-Cleaning Design: Slant water tank with a drain valve at the lowest point, allowing water flow to wash the tank during drainage.
✓
Leak-Proof System: Integrated water distributor with only one built-in pipe significantly reduces the risk of water leakage.
✓
Weather Control: Equipped with an air damper to prevent hot air outlet during winter months.
✓
High Efficiency: Cooling pads offer up to 90% efficiency; motors are moisture-proof and waterproof with low temperature rise.
✓
Premium Casing: Anti-UV, anti-corrosion, and anti-aging materials ensure no deformation over 10-15 years of lifetime.
Technical Parameters
Model/Specs AZL18-ZX10E AZL18-ZX10G AZL18-ZX32E
Electrical Source 220V/50Hz (1-phase) 220V/50Hz (1-phase) 380-415V/50-60Hz (3-phase)
Power (kW) 1.1 1.1 1.1 / 0.37
Airflow (m³/h) 18000 18000 18000 / 11000
Fan Speed Multi-speed Inverter 2-speed

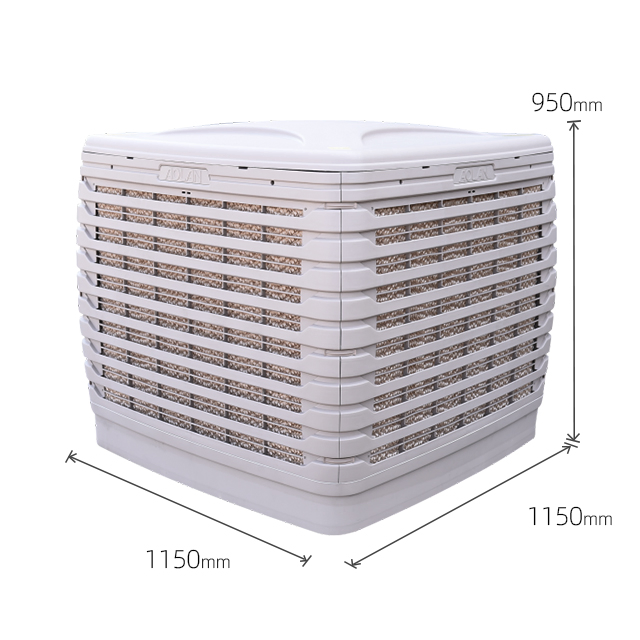

Dimensions (mm) 1150*1150*950 1150*1150*950 1150*1150*950
Net Weight (kg) 80 80 80
Detailed Gallery
Air Cooler View 1

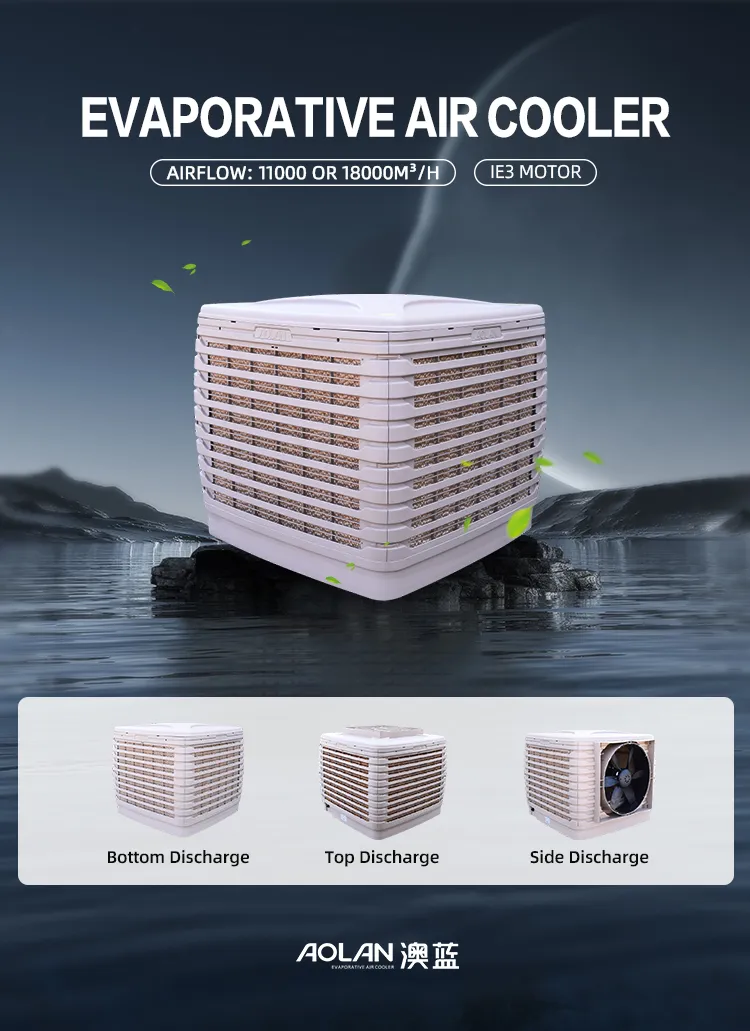

Air Cooler View 2

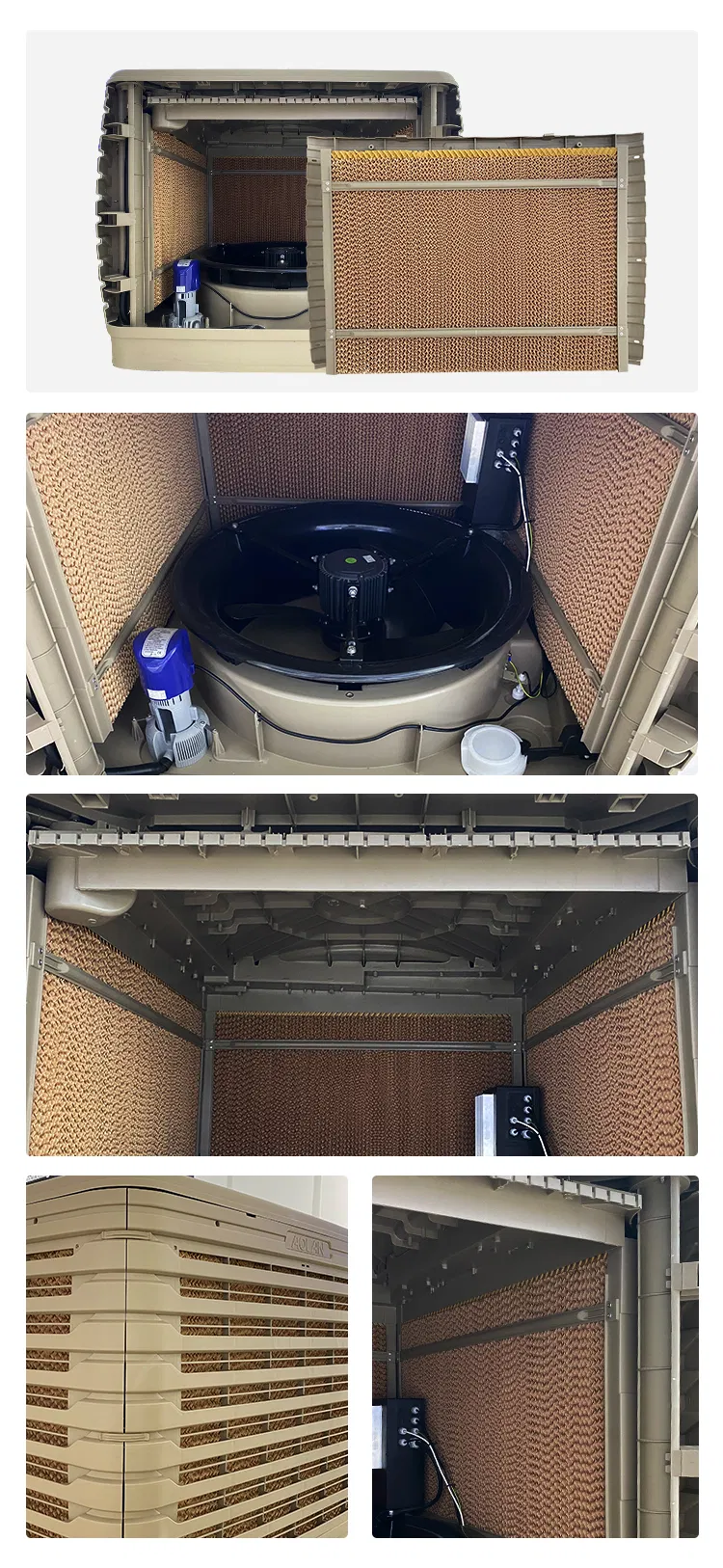

Air Cooler View 3

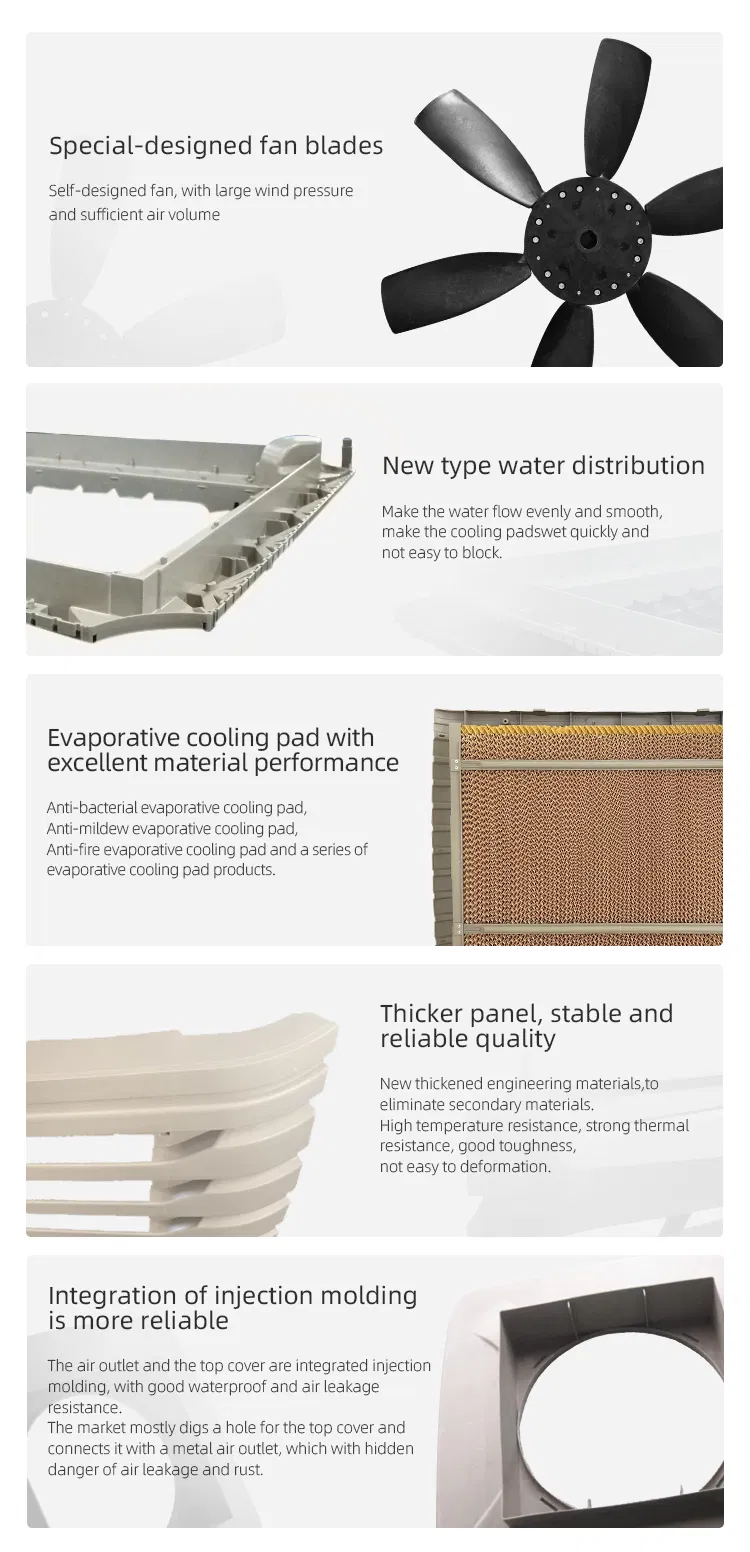

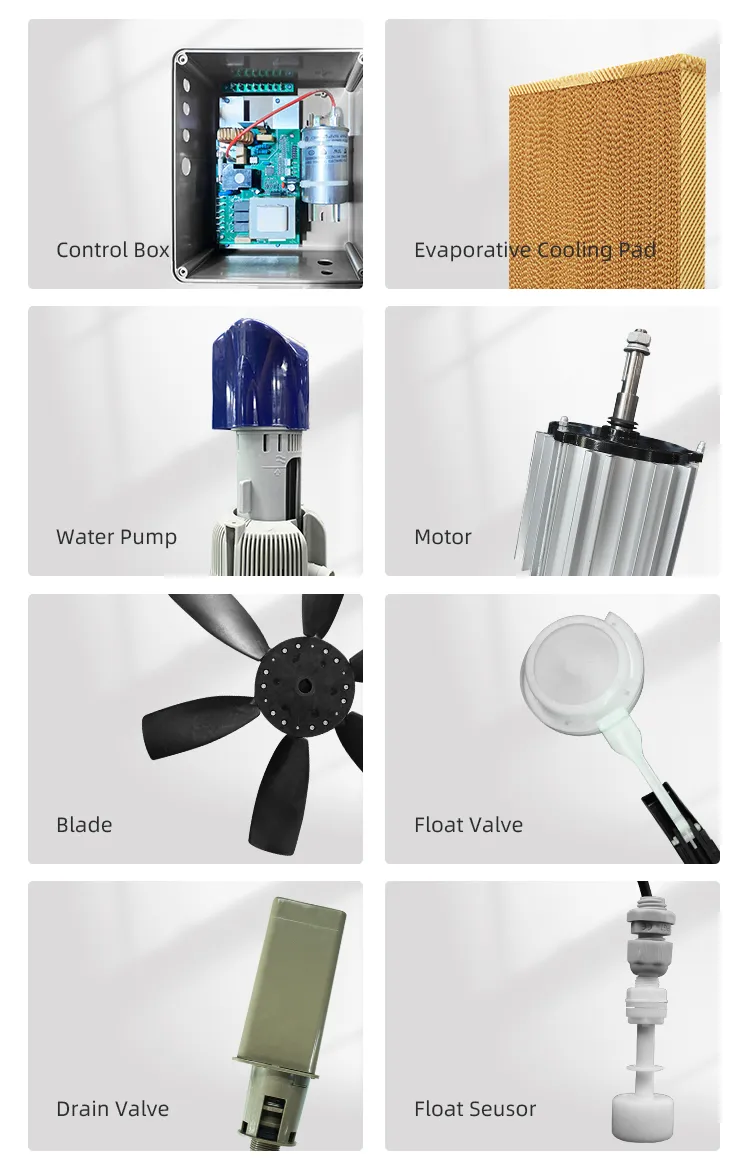

Internal Components

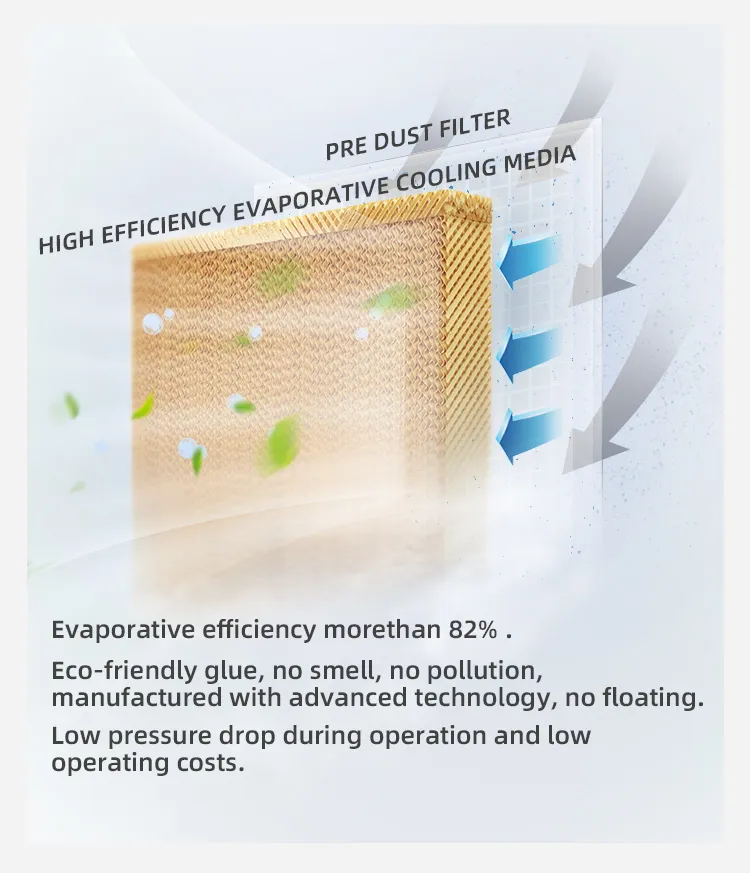

Cooling Pad
Fan Blade Design
Water Distribution
Control System

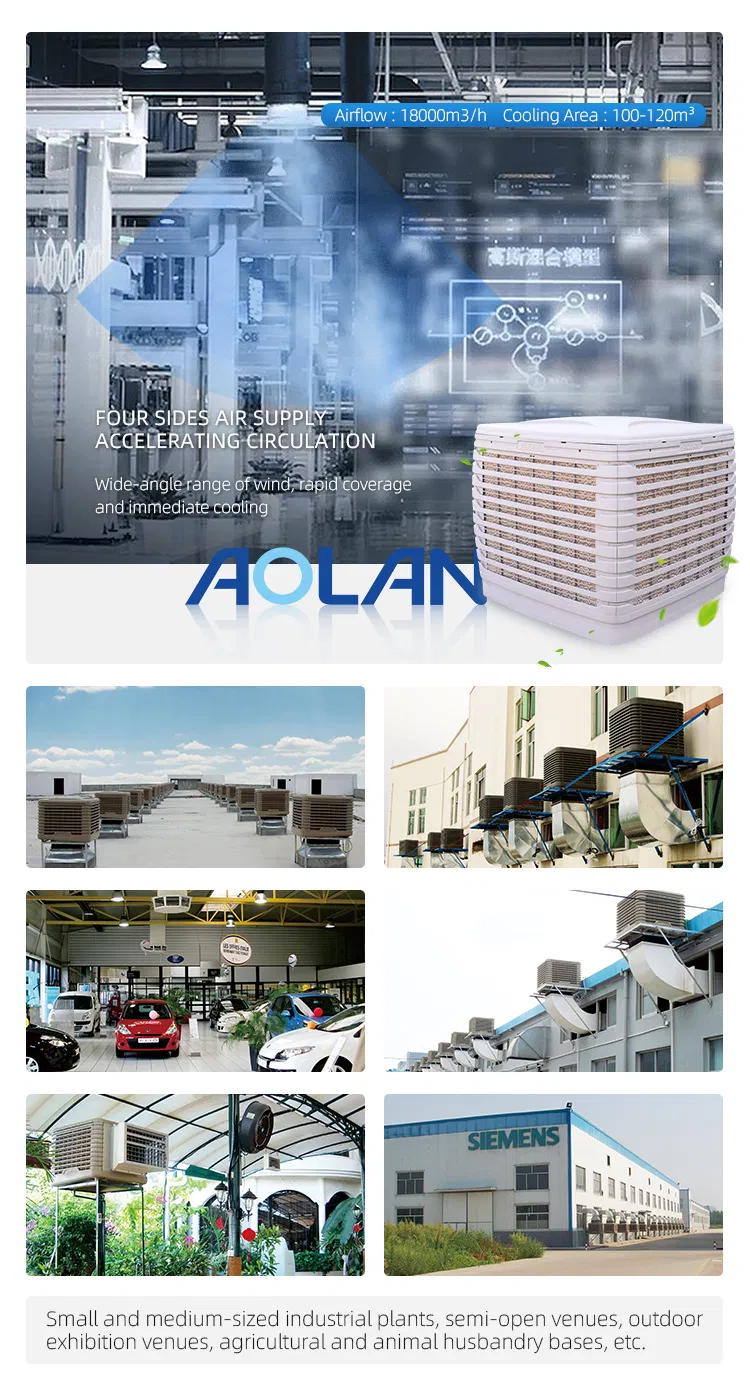

Installation Example
Product Structure Diagram
Frequently Asked Questions
1. What is the main benefit of using this evaporative air cooler?
The system provides a large airflow of 18000m3/h with low maintenance costs. It can reduce the supply air temperature by 5-15ºC depending on the climate, making it highly efficient for large industrial spaces.
2. Is the water tank difficult to clean?
No. The cooler features a slant water tank design with a drain valve at the lowest point. This allows the water flow to naturally wash the tank during drainage. Additionally, there is a 1-99 hour auto-clean function to extend the cooler's life.
3. How durable is the outer casing?
The casing is made from high-quality materials that are anti-UV, anti-corrosion, and anti-aging. It is designed to resist deformation and has an estimated lifetime of 10 to 15 years.
4. Does the unit protect itself if water runs out?
Yes, the system is equipped with water lack protection which automatically shuts off the pump to prevent damage, ensuring a long motor and pump life.
5. Can non-professionals maintain the cooling pads?
Yes. The cooling pads are designed for easy disassembly, allowing even non-professionals to clean or replace them without specialized tools.
6. What certifications does this product hold?
The AZL18-ZX10E series is fully certified with RoHS, UR, ISO, CE, and CCC standards, ensuring it meets international safety and quality requirements.
