316L Stainless Steel Medical Parts: CNC Milling Filling Needle Solutions

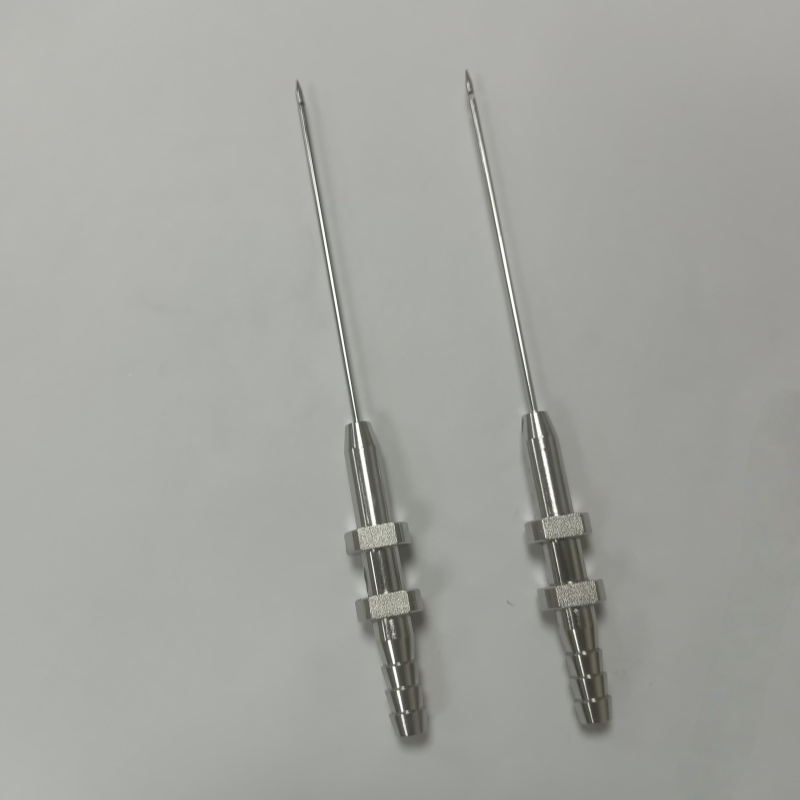

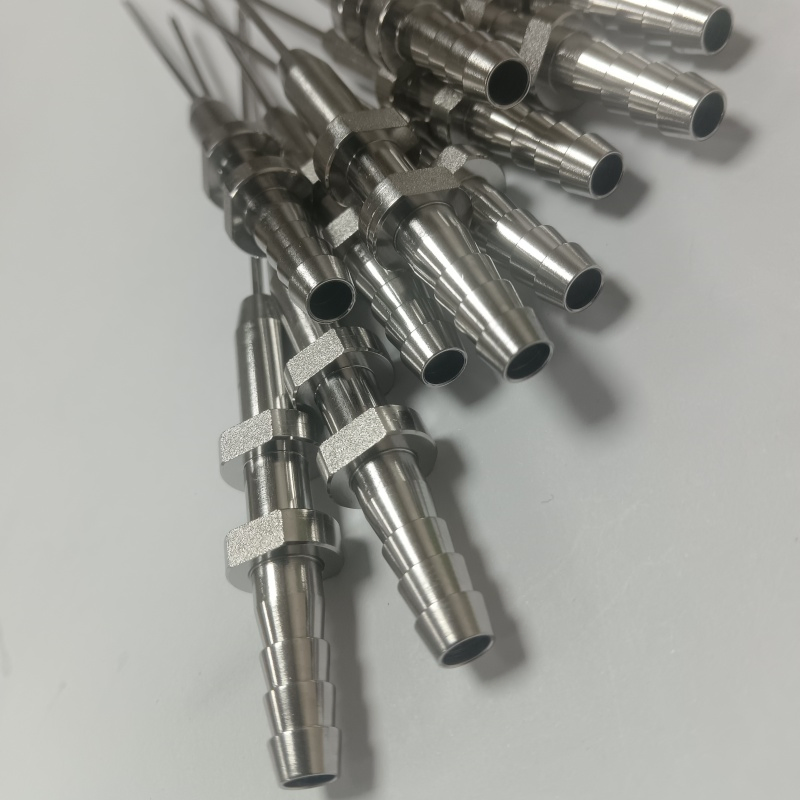

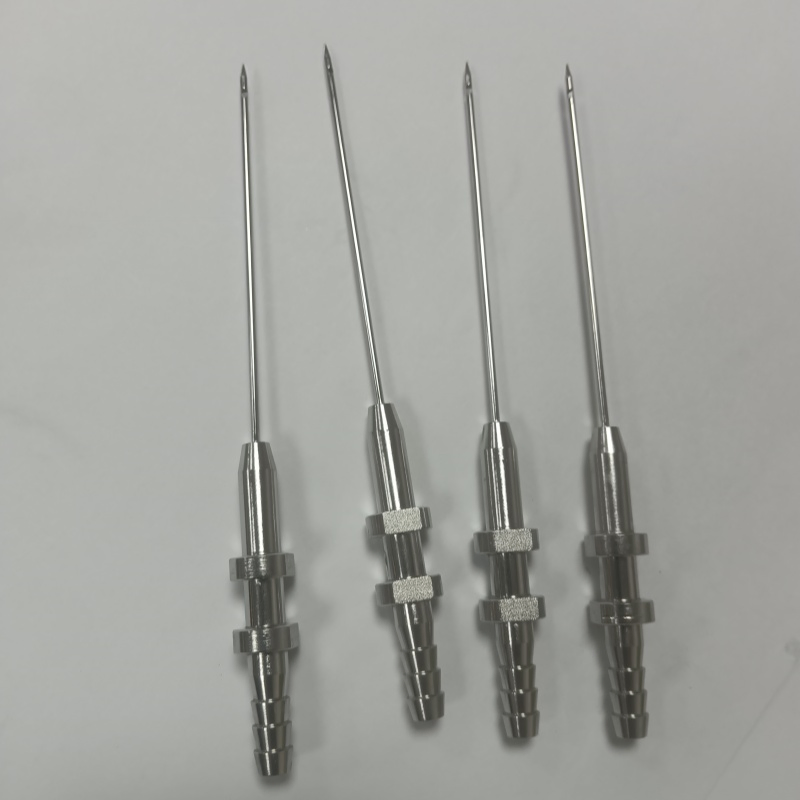

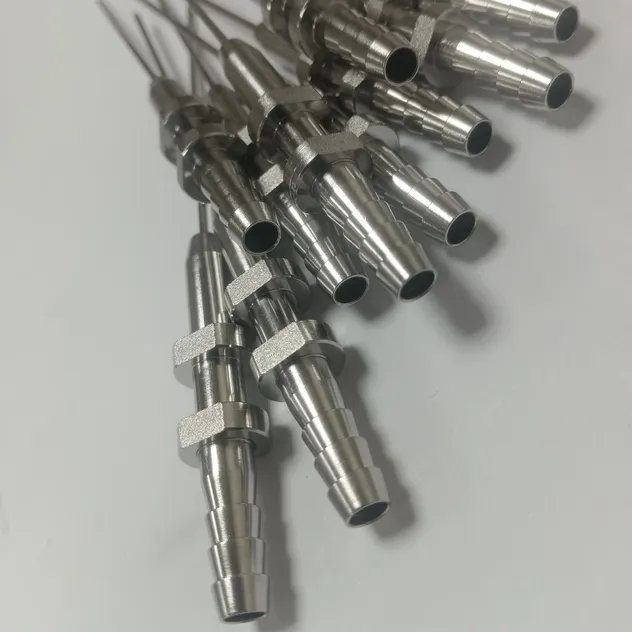

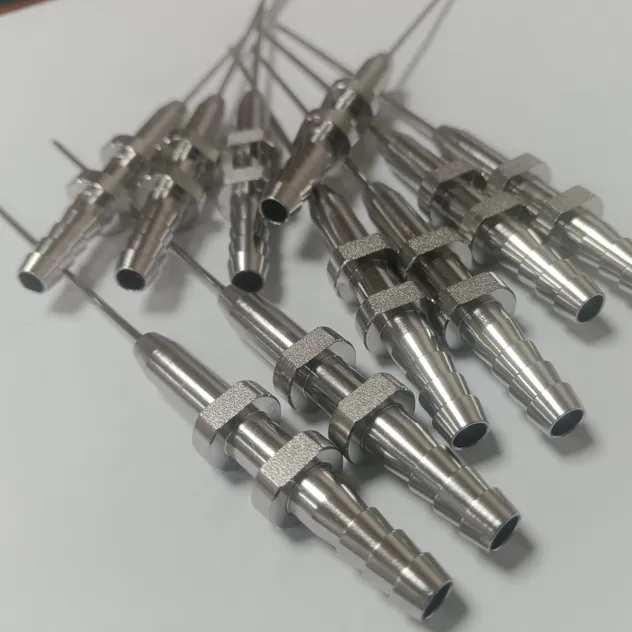

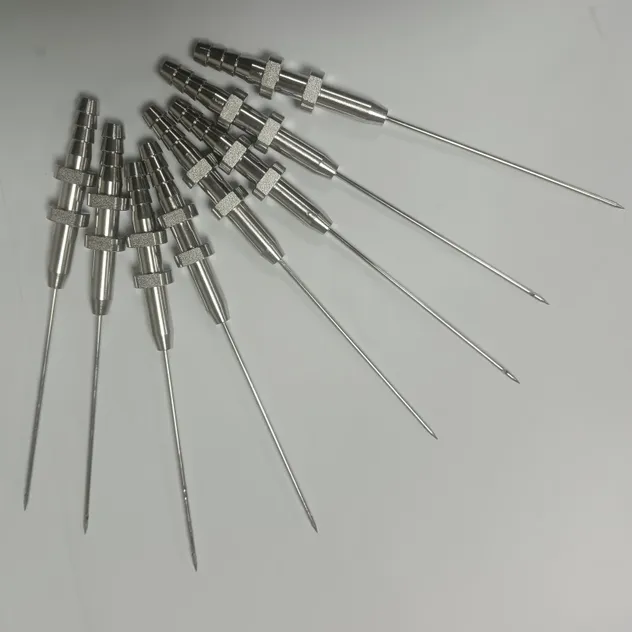

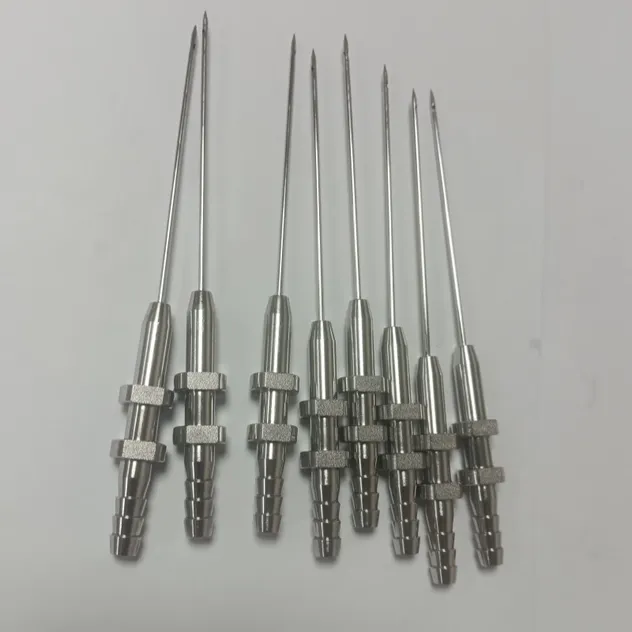

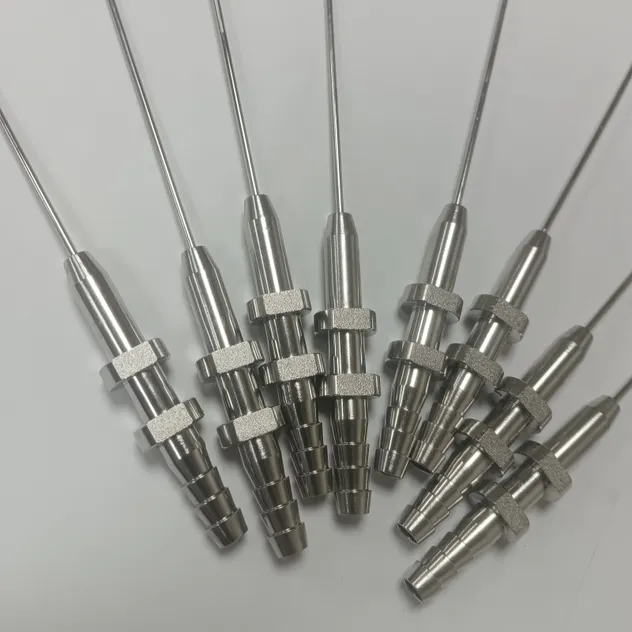

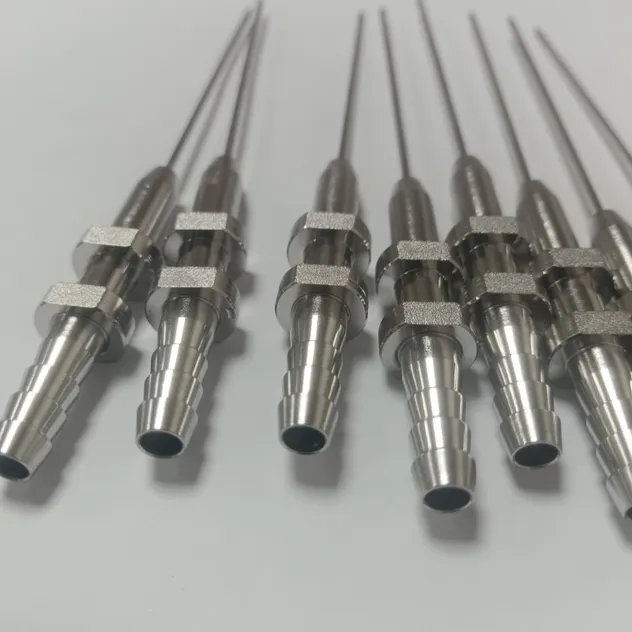

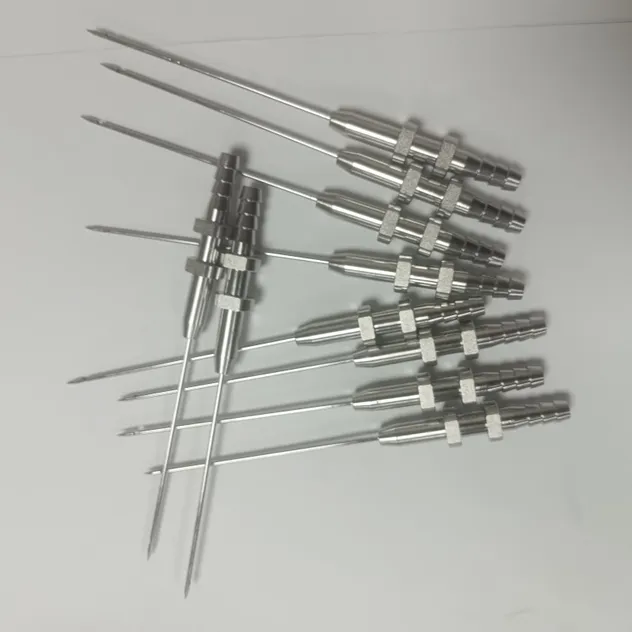

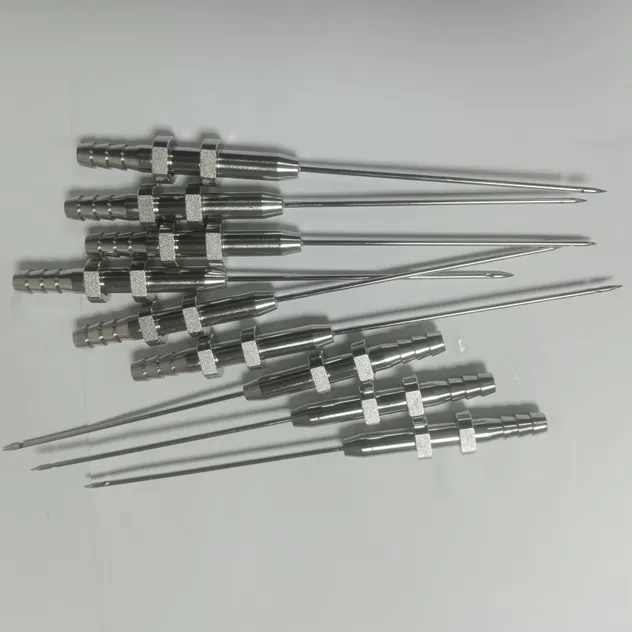

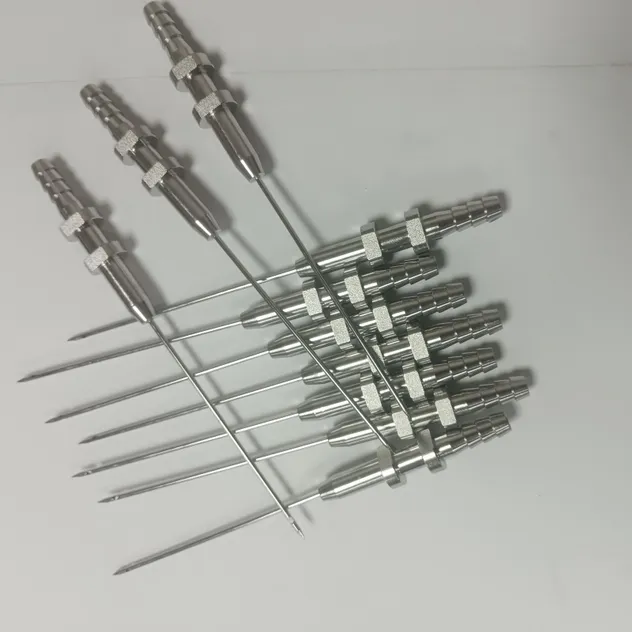

The 316L Stainless Steel Capillary Tubing Medical Component CNC Milled Filling Needle is precision-engineered for accurate, sterile liquid transfer in medical, pharmaceutical, and lab settings. Utilizing 316L stainless steel, advanced CNC milling creates a robust needle with a sharp tip, controlled lumen, and custom features, ideal for high corrosion resistance, biocompatibility, and sensitive fluid performance.
• Material Preparation: Certified 316L stainless steel capillary tubing (ASTM A269) cut to precise lengths.
• Precision Tip Machining: CNC Milling and Grinding to create sharp beveled points or blunt polished ends.
• Body Milling: CNC mills flats, grooves, and shoulders for integration with syringe barrel adaptors or Luer locks.
• Internal Lumen Polishing: Electropolish internal bore for Ra ≤ 0.2 µm smooth, non-stick surface.
• Surface Finishing: Electropolishing and passivation for maximum corrosion resistance.
| Category | Feature | Specifications |
|---|---|---|
| Material | Primary Material | 316L Stainless Steel Capillary Tubing (ASTM A269). ISO 10993 compliant. |
| Construction | Method | Hybrid: Capillary tubing with CNC milled features. |
| Needle Tip | Tip Types | Sharp Bevel, Blunt/Polished, Side-Bore/Deflected. |
| Dimensions | Outer Diameter | Standard Range: 0.5 mm (25G) to 2.0 mm (14G). |
| Surface Finish | Internal Lumen | Electropolished to Ra ≤ 0.2 µm. |
| Tolerances | Critical Dimensions | OD/ID: ±0.02 mm; Length: ±0.1 mm. |
| Sterilization | Validated Methods | Gamma Irradiation (25 kGy) and Ethylene Oxide (EtO). |
We have obtained quality system certifications in accordance with GB/T 19001-2016/ISO 9001:2015 and GB/T 42061-2022/ISO 13485:2016 for medical devices. We focus on research and production of non-standard metal medical device precision parts.

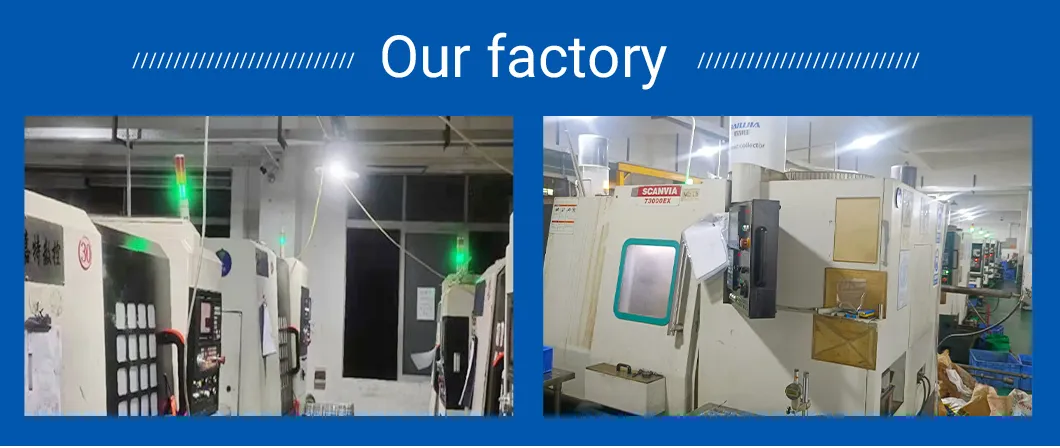

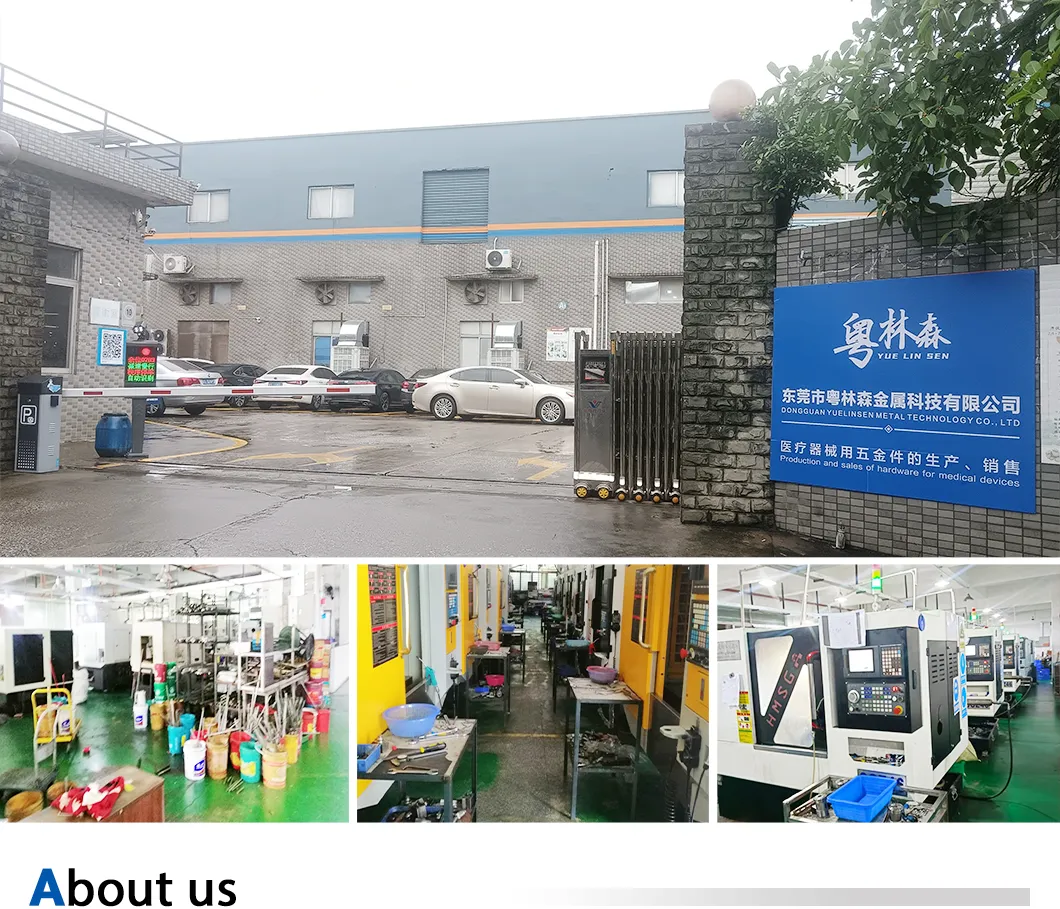

Our facility possesses dozens of high-precision engraving lathes and CNC equipment, including centering machines, automatic lathes, and turning-milling combined machines. We specialize in precision laser cutting and secondary processing of stainless steel capillary tubes.
