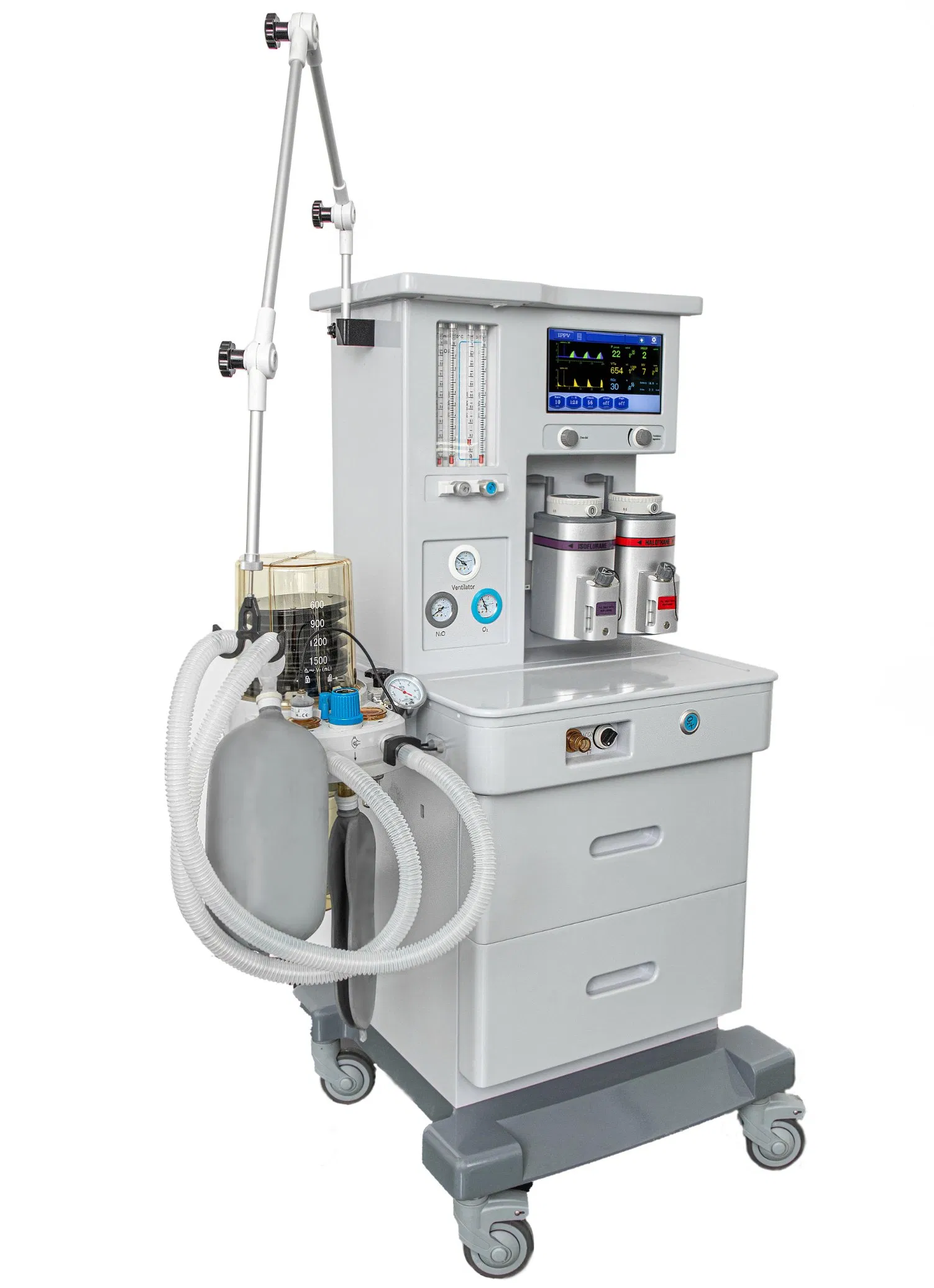

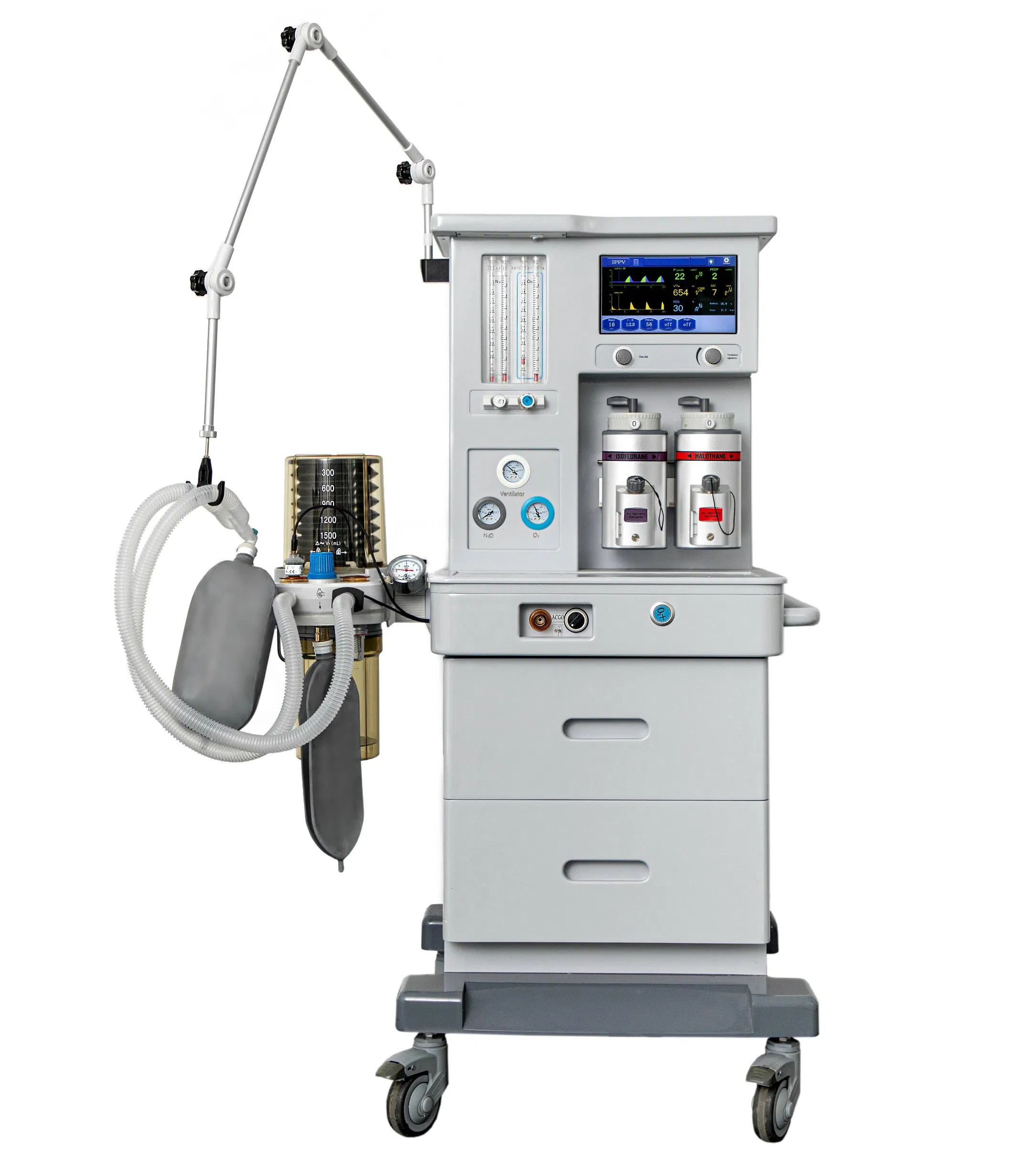

Advanced Anesthesia Machine Precision-Controlled Anesthesia Delivery System

1 / 5

Advanced Anesthesia Machine Precision-Controlled Anesthesia Delivery System

Customization:	Available
Type:	Anesthesia Machine
Application:	Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology, Burns

Send Inquiry

Product Description

Basic Specifications

Model NO.

SD-A6

Material

Plastic

Feature

Reusable

Certification

CE, ISO13485

Group

Adult, Child

Tidal Volume

0-1500 Ml

Working Mode

All-Close, Semi-Close, Semi-Open

Display

10.1inch TFT Color LCD Touch Screen

Power Supply

AC 100-240V, 50/60Hz

Origin

China

Advanced Anesthesia Delivery System

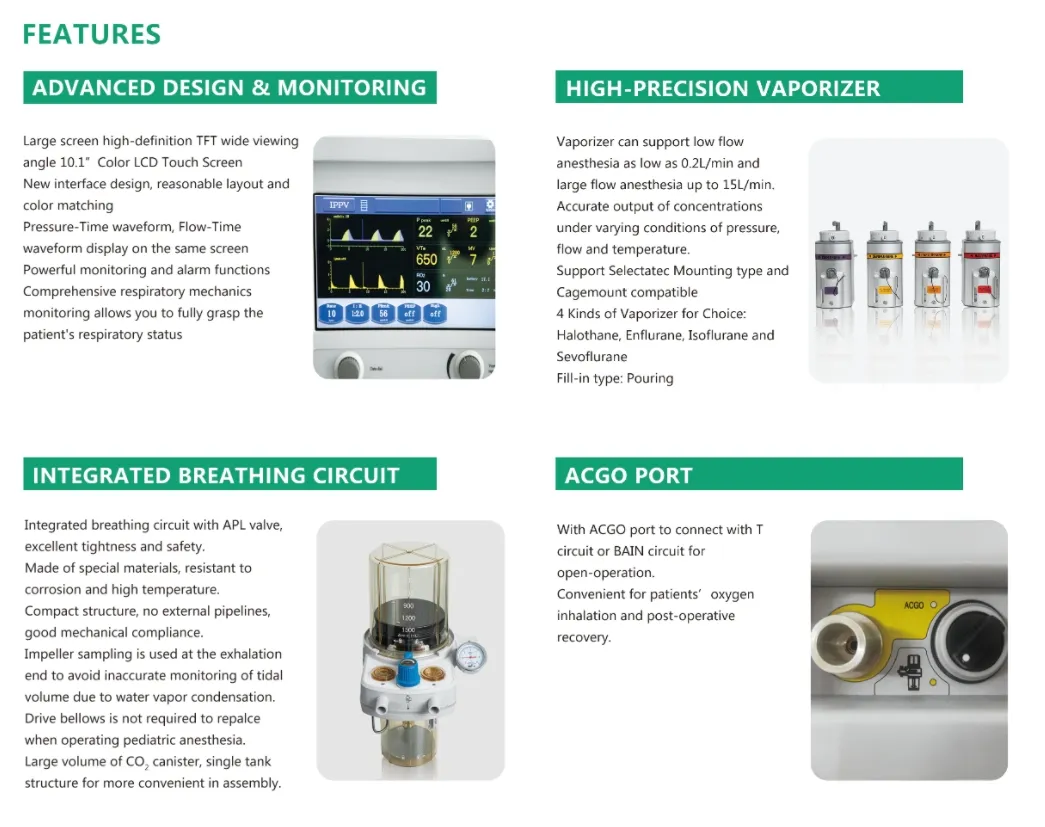

Key Features

Large screen high-definition TFT wide viewing angle 10.1" Color LCD Touch Screen
New interface design with reasonable layout and intuitive color matching
Real-time Pressure-Time and Flow-Time waveform display on a single screen
Powerful monitoring and comprehensive alarm functions for patient safety
Advanced respiratory mechanics monitoring for full patient status grasp

Technical Parameters

ANESTHESIA MACHINE SPECIFICATIONS
Main Components
Main Body	High-strength engineering plastic rack, light, beautiful and corrosion resistant.
Scope of Application	Adult, Child
Gas Source	O2: 0.28~0.6MPa, N2O: 0.28~0.6MPa
Flow Meter	O2: 0.05~10L/min; N2O: 0.05~10L/min

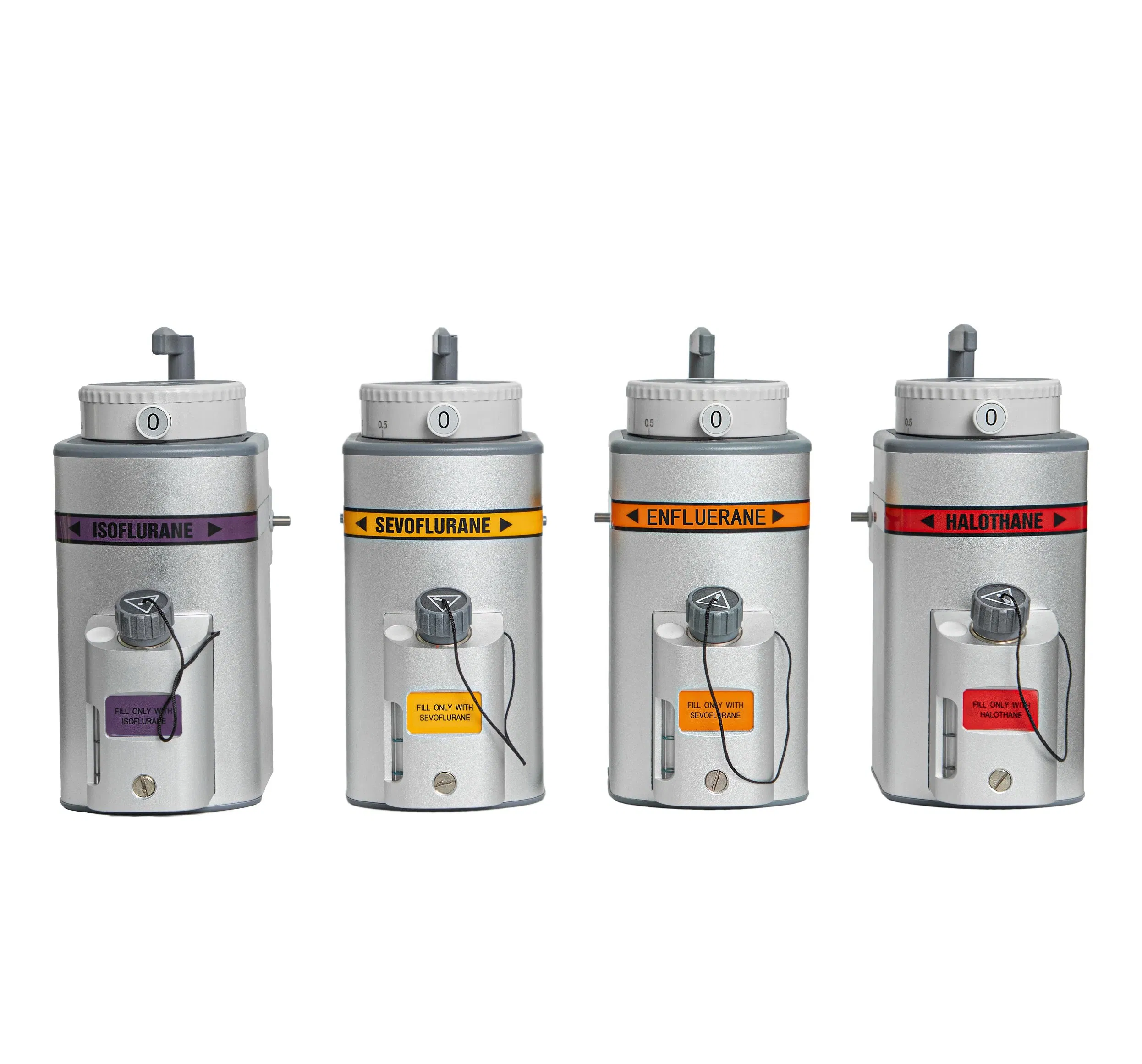

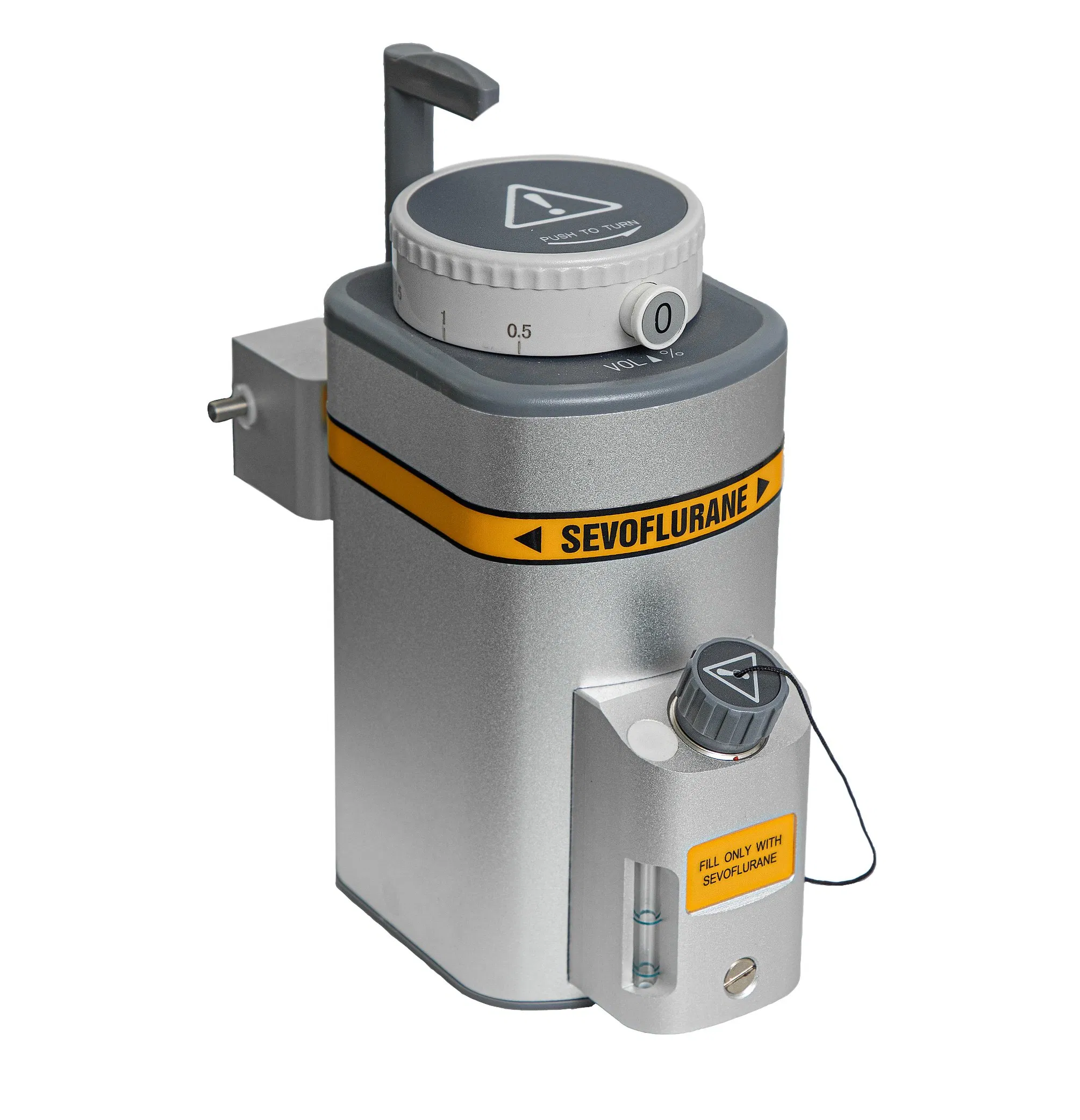

Vaporizer	Automatic compensation for pressure, temperature, and flow. Range: 0~5 vol%.
Respiratory Circuit	Working mode: All-close, Semi-close, Semi-open; APL: ≤12.5 kPa
Ventilator Performance
Display Mode	10.1" TFT color LCD touch screen
Ventilation Modes	IPPV, SIPPV, SIMV, PEEP, SIGH, MANUAL
Tidal Volume	50 ~ 1500 ml
Rate / SIMV Rate	Rate: 2~99 bpm; SIMV: 2~20 bpm
I:E Ratio	2:1 ~ 1:8
Pressure Range	5 ~ 60 cmH2O
Monitoring & Alarms
Monitoring Parameters	Tidal Volume, Ventilation Volume, Peak Pressure, PEEP, O2 Concentration, Waveforms
Security Alarms	Oxygen Concentration, Airway Pressure, Suffocation, Tube Escape, Low Battery
Battery Power	Built-in Li Battery (Work for 6-8 hours)

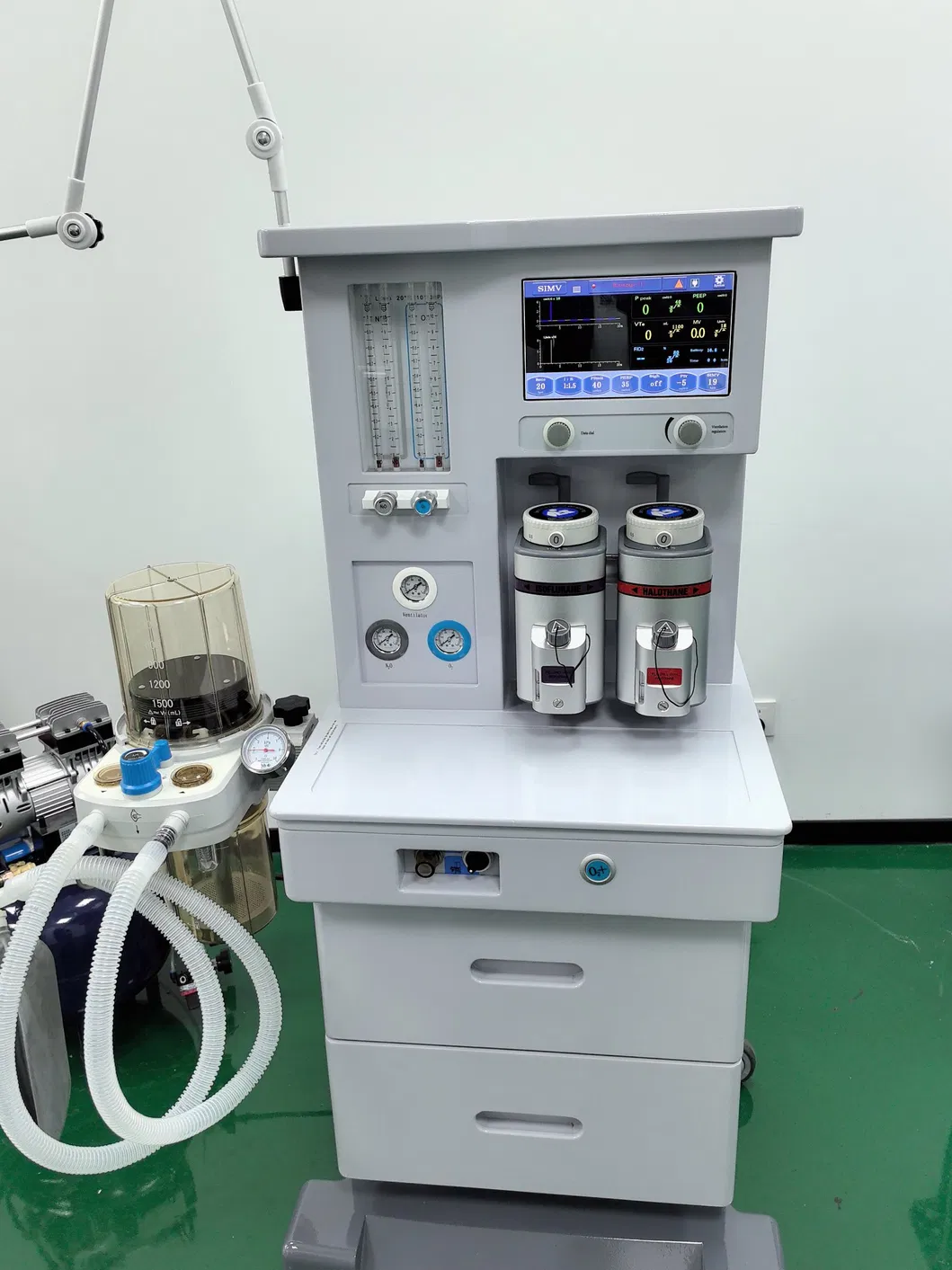

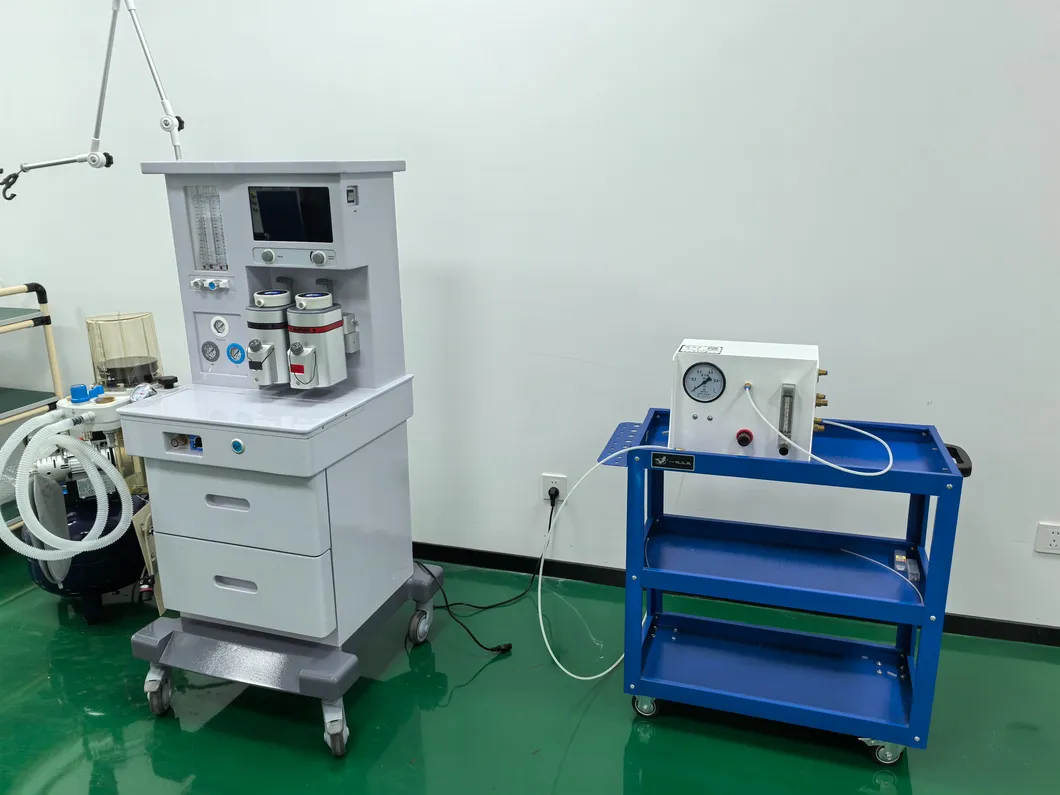

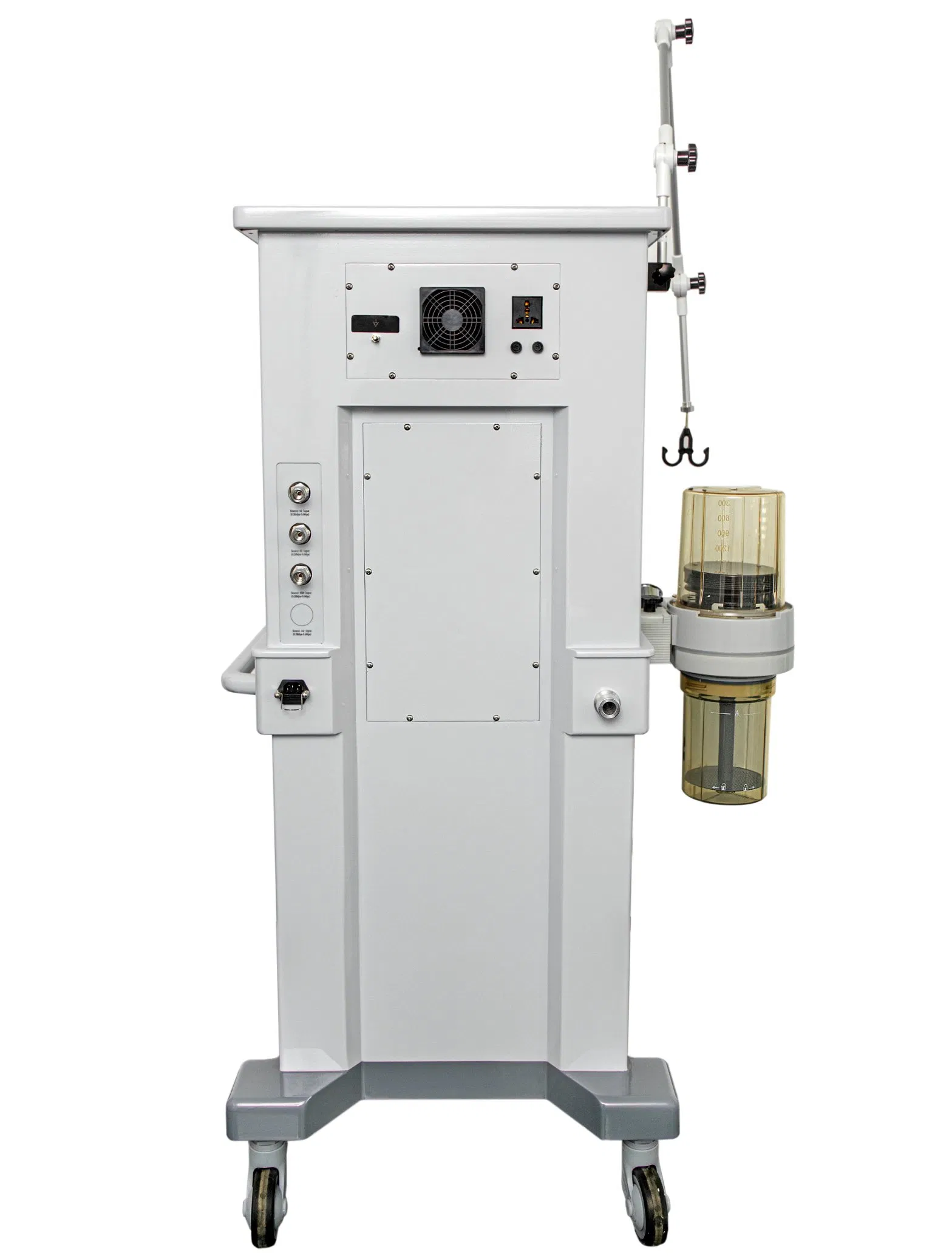

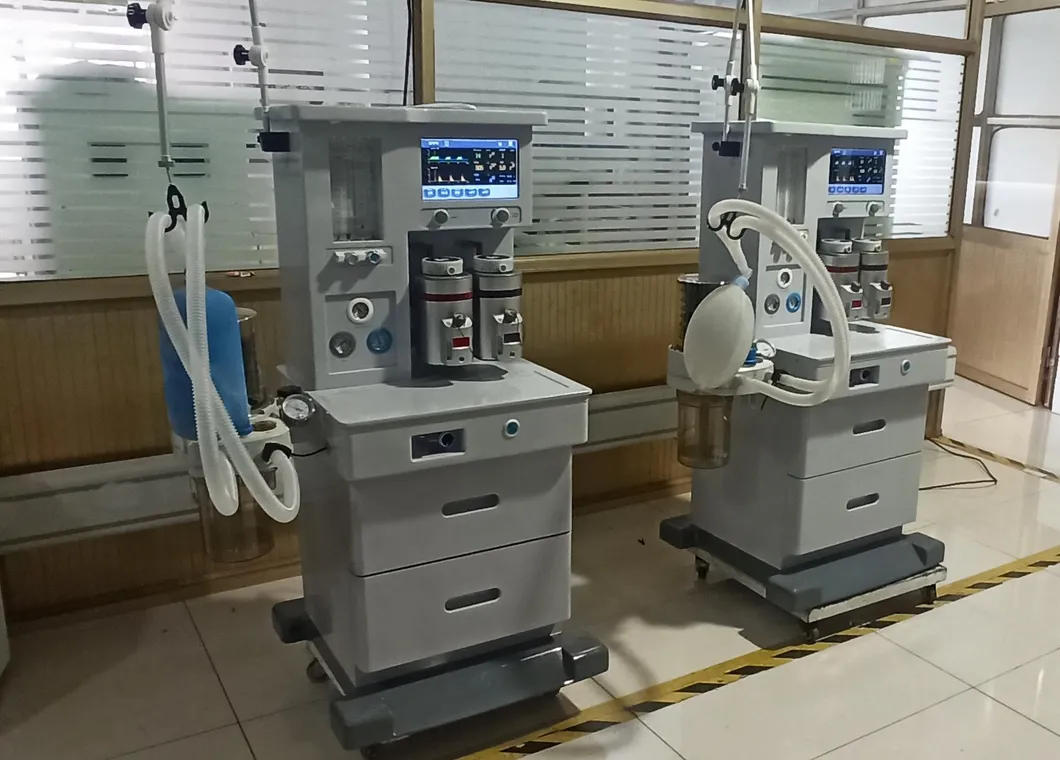

Detailed Product Display

Frequently Asked Questions

1. What are the available payment terms?

We accept various payment methods including T/T (Telegraphic Transfer), L/C (Letter of Credit), and Western Union.

2. What is the typical delivery timeframe for an order?

Delivery generally takes between 15 to 35 working days, depending on the specific order quantity.

3. Can you provide official export certifications like Form A or C/O?

Yes, we can apply for certificates such as FROM A, FROM E, or C/O and other embassy certifications as required by your local government.

4. Do you offer OEM services or custom logo placement?

Yes, we provide full OEM services. With our dedicated R&D team, we can integrate your logo and meet specific manufacturing requirements.

5. Which regions and countries do you ship to?

We deliver worldwide. Our products are currently utilized in over 70 countries across Africa, South America, Russia, the Middle East, and Southeast Asia.

6. How long does the internal battery last during a power outage?

The built-in Li-ion battery is designed to support the machine's operation for at least 6 to 8 hours under normal working conditions.
