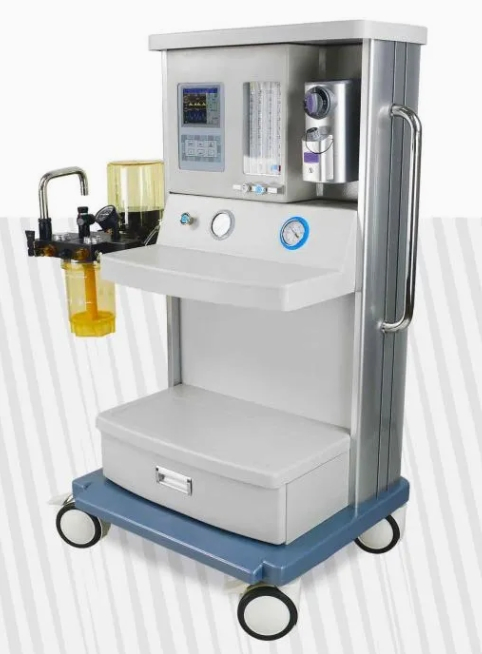

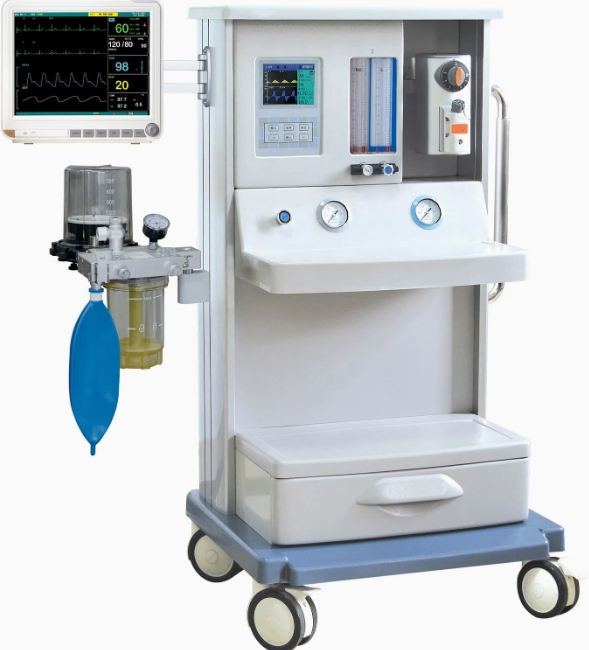

Advanced Anesthetic Delivery System for Enhanced Patient

Send Inquiry

Product Description

Basic Information

Model: JINLING 820

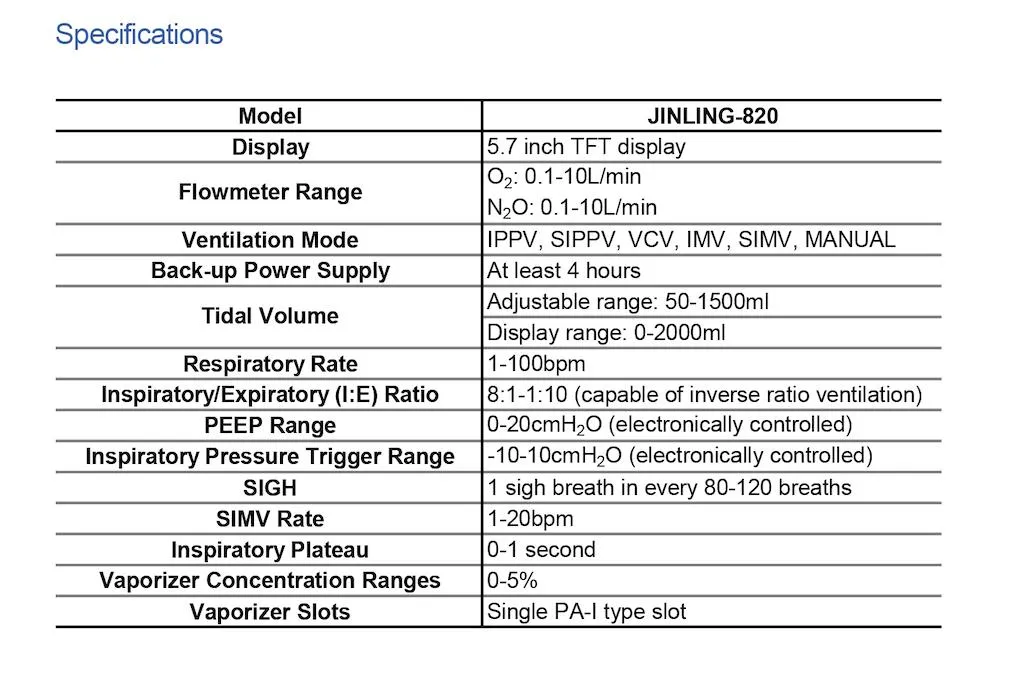

Product Specifications

Model	JINLING 820

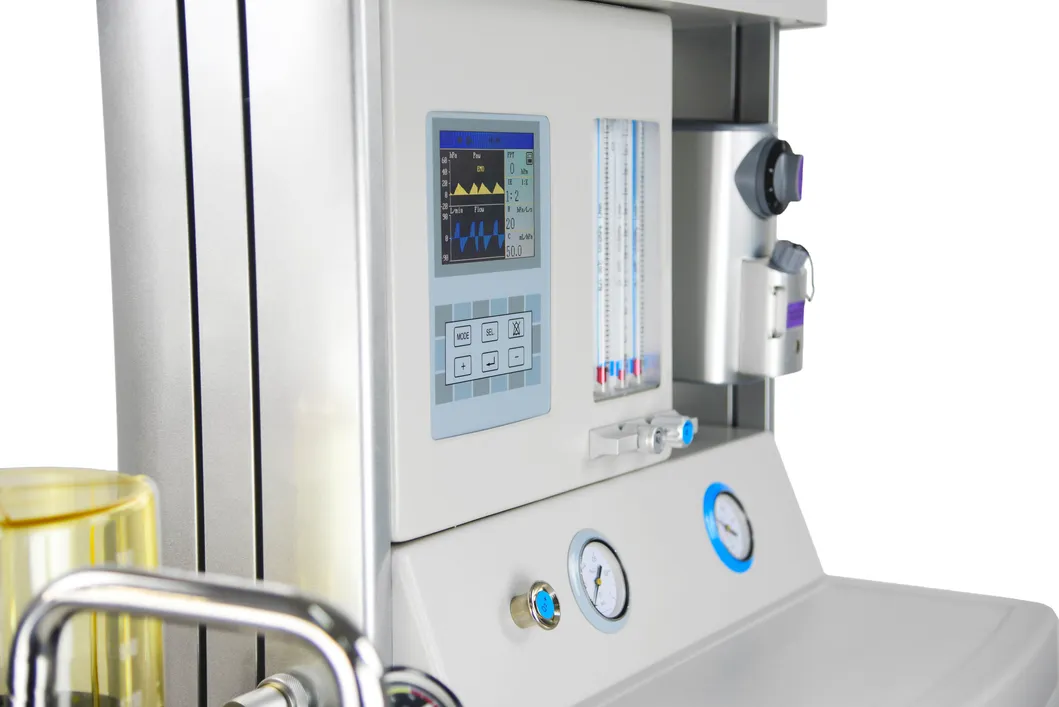

Display	5.7 inch TFT display
Flowmeter Range	O₂: 0.1-10L/min N₂O: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, VCV, IMV, SIMV, MANUAL
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml Display range: 0-2000ml
Respiratory Rate	1-100bpm
I:E Ratio	8:1-1:10 (capable of inverse ratio ventilation)
PEEP Range	0-20cmH₂O (electronically controlled)
Pressure Trigger	-10-10cmH₂O (electronically controlled)
SIGH	1 sigh breath in every 80-120 breaths
SIMV Rate	1-20bpm
Inspiratory Plateau	0-1 second
Vaporizer Range	0-5%
Vaporizer Slots	Single PA-I type slot

Main Features

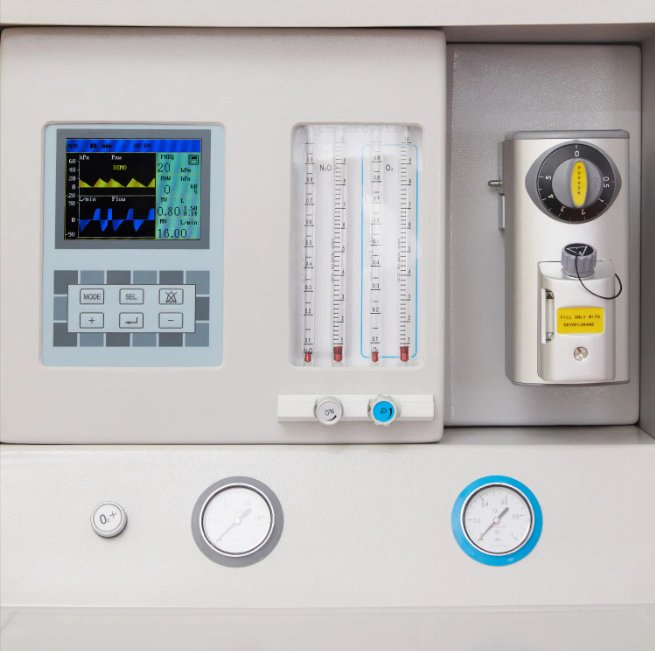

Experience unparalleled clarity with our 10.4-inch LCD display, seamlessly integrating a built-in Ventilator for optimal performance.

Precision at your fingertips with our 5-Tube Flowmeters, providing accurate measurements for O2, N2O, and AIR ranging from 0.1L to 10L per minute.

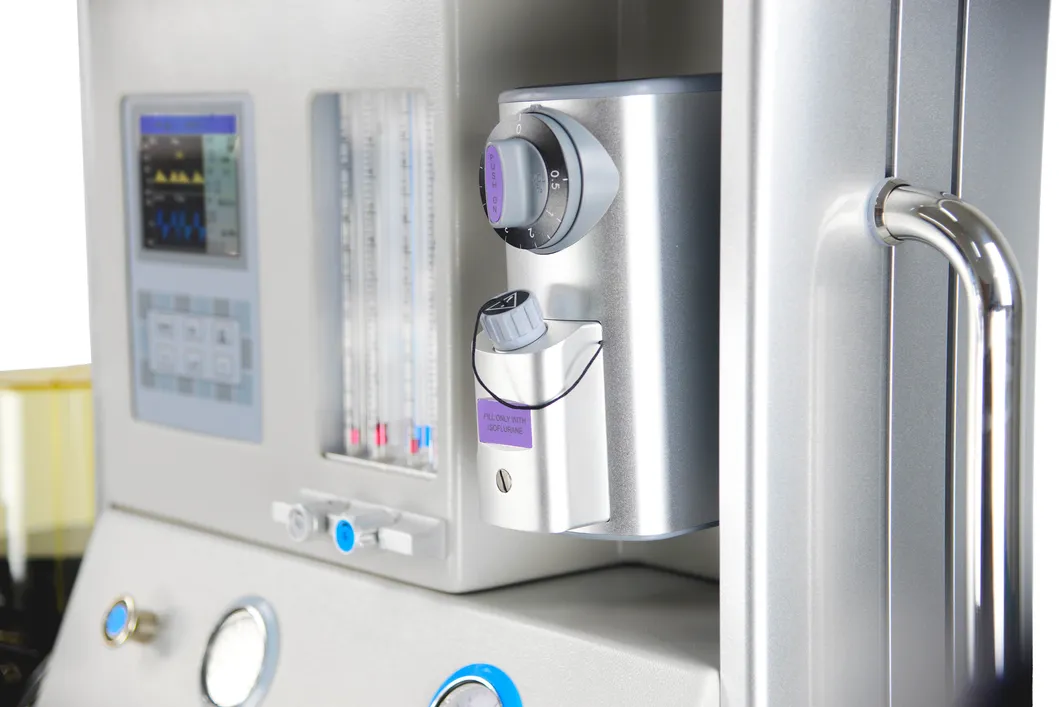

Versatility meets reliability with our dual Vaporizer system, compatible with Enflurane, Isoflurane, Sevoflurane, and Halothane.

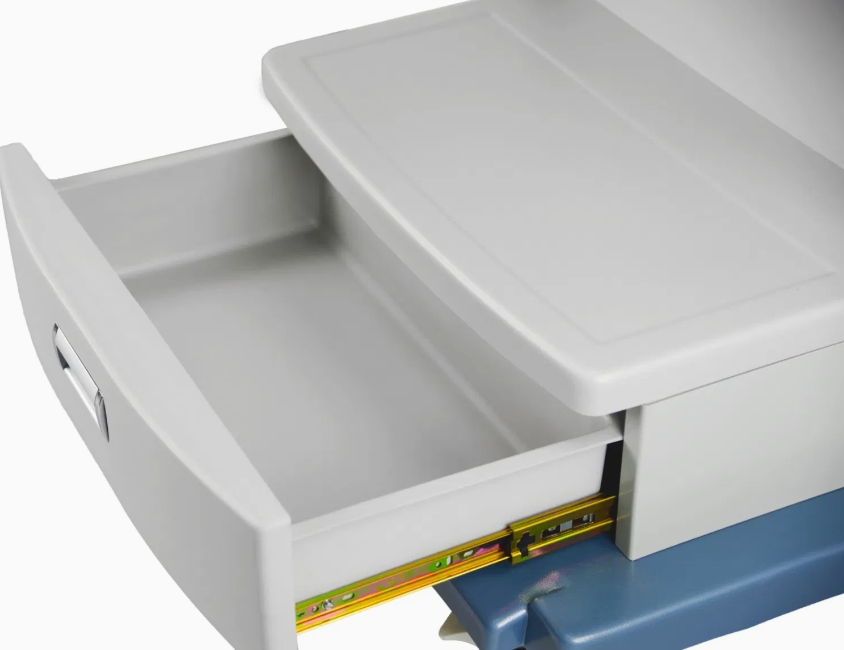

Convenience and efficiency with two spacious drawers, designed to keep essential tools and supplies within easy reach.

Advanced ventilation modes: A/C, IPPV, VCV, SIPPV, IMV, SIMV, PCV, PEEP, SIGH, and MANUAL.

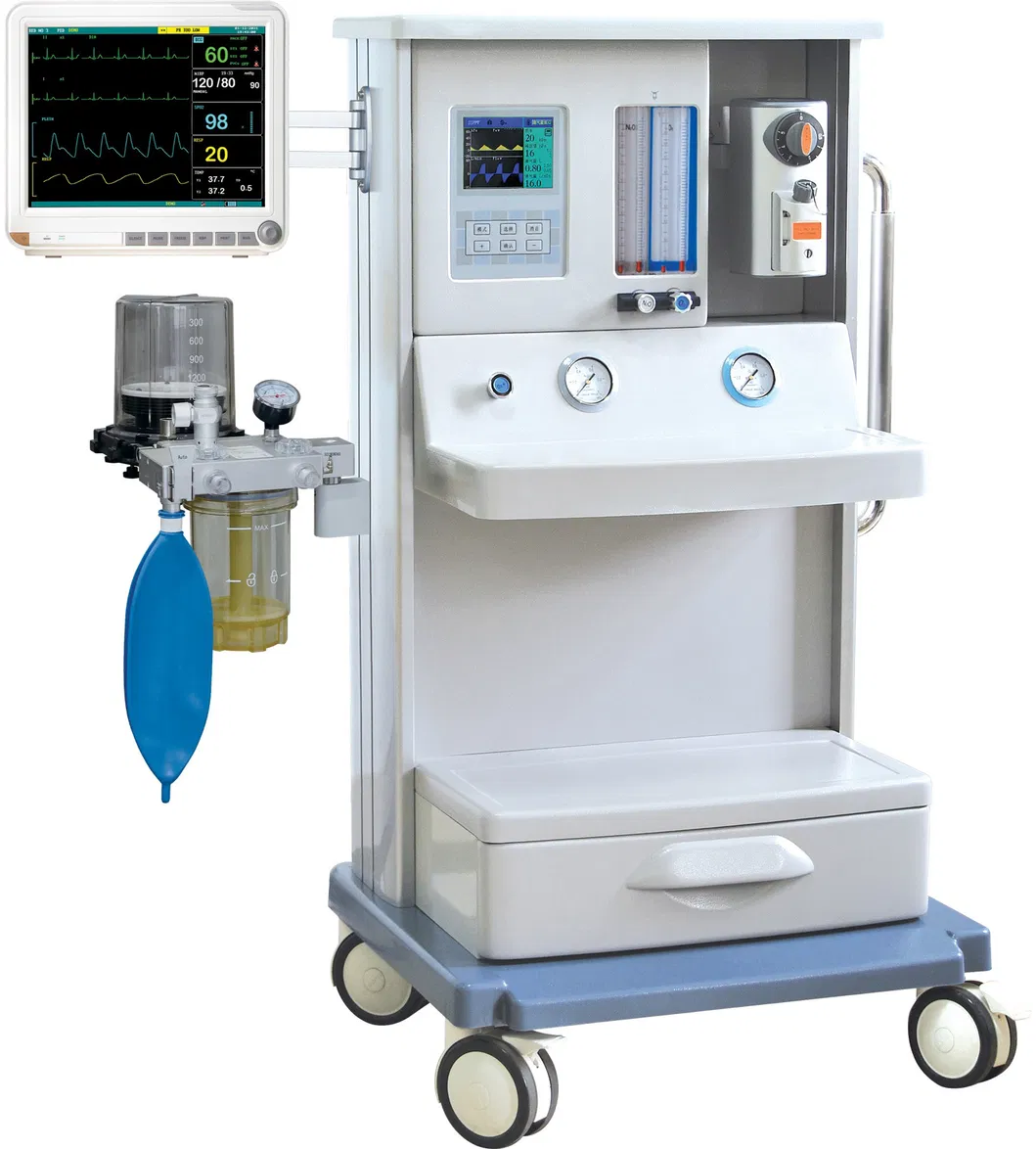

Tailor patient care with adjustable tidal volume (50-1500ml) and optional Patient Monitor for comprehensive oversight.

Product Gallery

Frequently Asked Questions

What ventilation modes are available on the JINLING 820?

The system supports multiple modes including IPPV, SIPPV, VCV, IMV, SIMV, PCV, PEEP, SIGH, and MANUAL to ensure comprehensive patient care.

What is the tidal volume range for this anesthetic system?

The tidal volume is highly adjustable, with a range of 50-1500ml and a monitoring display range of up to 2000ml.

How long can the system operate on back-up power?

The built-in back-up power supply is designed to provide at least 4 hours of operation during power interruptions.

Does the flowmeter support multiple gas types?

Yes, it features a 5-tube flowmeter system for precise measurement of O2, N2O, and AIR ranging from 0.1L to 10L per minute.

Can I use different types of anesthetic agents with this model?

The system features a dual vaporizer setup compatible with Enflurane, Isoflurane, Sevoflurane, and Halothane for diverse clinical needs.

Is the PEEP and pressure trigger electronically controlled?

Yes, both the PEEP (0-20cmH₂O) and the Inspiratory Pressure Trigger (-10-10cmH₂O) are electronically controlled for high precision.
