Basic Information
| Model NO. |
D3-009 |
Type |

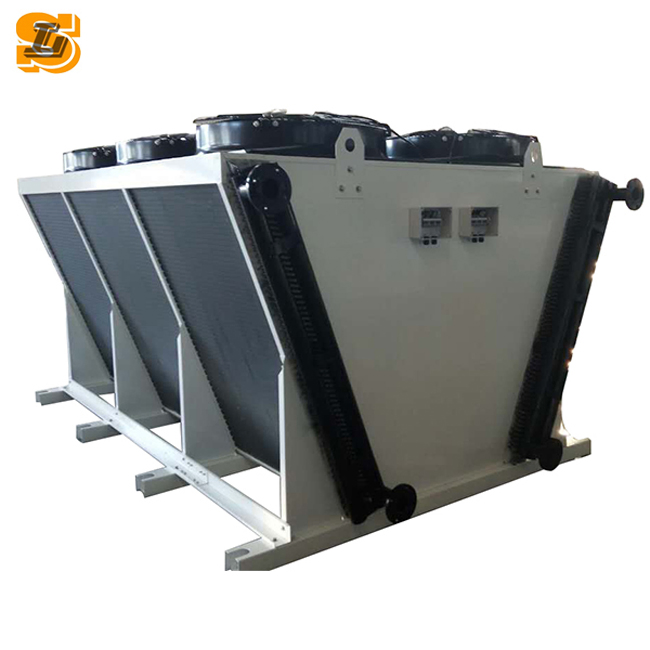

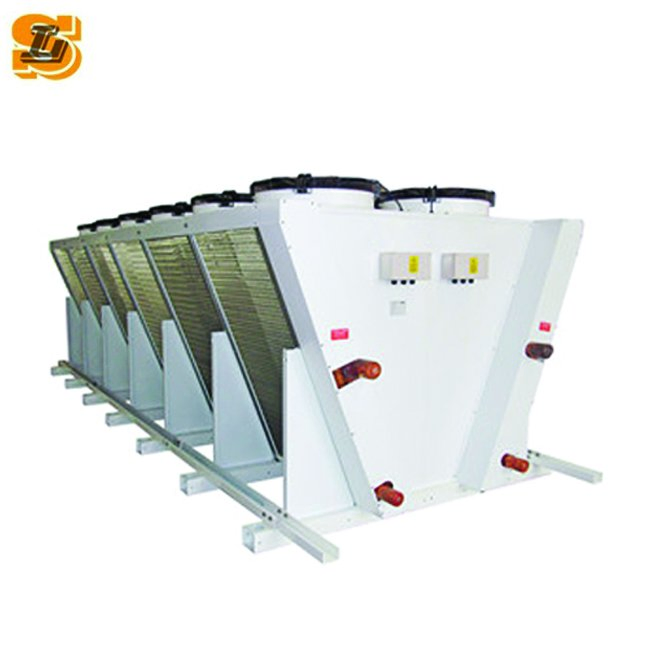

Dry Fluid Cooler |
| Air Tube Material |
Plastics |
Corrosion Durability |
Ultrahigh |
| Operating Voltage |
380/400 VAC |
Noise Level |
Ordinary |
| Application Fields |
Mechanical Engineering |
Mounting |
Floor Standing |
| Lifetime |
15~20 years |
Certification |
RoHS, CE |
| Refrigerant |
R410A/R407c /R134A |
Chilled Water Outlet |
5 °c to 20 °c |
| Production Capacity |
646 unit/Month |
Air Flow |
3700-19059m3/H |
📦
Packaging & Delivery
| Package Size |
880.00cm * 220.00cm * 224.00cm |
| Package Gross Weight |
3280.000kg |
💎
Product Description
Excellent Quality High-Performance Liquid Cooling Solution for Crypto Mining Operations
⚙️ Rooftop Air Conditioner Features
1. Air cooled rooftop design for space efficiency.
2. Wide cooling capacity range: 8kw to 90kw.
3. Engineered for high external static pressure.
4. Versatile application: Residential, commercial, scientific research, and factories.
🛠️ Component Specifications
Evaporator: Inner grooved copper tube with slotted hydrophilic aluminum fins.
Condenser: Inner grooved copper tube with rippled hydrophilic aluminum fins.
Fans: Low noise axial type for condenser; centrifugal type for supply air.
📊
Technical Specifications
| Model GT-WKR- |
10 | 15 | 18 | 20 | 25 | 30 | 35 |
| Performance |
Cooling (kW) | kW | 10.5 | 15.0 | 18.5 | 21.0 | 26.3 | 29.8 | 35.0 |
| Heating (kW) | kW | 11.5 | 15.9 | 19.5 | 22.1 | 27.6 | 32.6 | 37.1 |
| Air Flow | m3/h | 1800 | 2400 | 2900 | 3500 | 4500 | 5000 | 5800 |
| Static Pressure | Pa | 100 | 150 | 150 | 180 | 200 | 250 | 250 |
| Dimensions |
Length | mm | - | 1400 | 1400 | 1600 | 1600 | 1850 | 1850 | 2200 |
| Width | mm | - | 1050 | 1050 | 1200 | 1200 | 1400 | 1400 | 1800 |
Note:
1. Cooling condition: Indoor 29/19ºC, Outdoor 46/24ºC.
2. Heating condition: Indoor 20ºC, Outdoor 7/6ºC.
3. Air volume and static pressure are customizable.
4. Noise level measured at standard air volume.
Frequently Asked Questions
What are the primary applications for this cooling system?
The system is ideal for crypto mining operations, mechanical engineering, large-scale commercial buildings, hotels, and scientific research facilities.
How long is the expected operational lifetime of the unit?
Under standard maintenance conditions, these units are designed to last between 15 to 20 years.
Is the system compatible with different refrigerants?
Yes, the units are compatible with R410A, R407C, R134A, and R22 refrigerants depending on your specific requirements.
What kind of noise levels should be expected?
The unit utilizes low-noise axial and centrifugal fans to ensure ordinary noise levels suitable for most commercial and industrial environments.
Can the static pressure and air volume be customized?
Yes, while the table shows standard specifications, the air volume and static pressure are designable to fit specific project needs.
What certifications do these units hold?
The products are fully certified with RoHS and CE standards, ensuring safety and environmental compliance.
