Product Description

📋 Basic Info

Model NO.

BK-PR32

Certification

CE, ISO13485

Throughput

1~32

Processing Time

32 Samples/10min

Sample Type

Plasma, Serum, Whole Blood, Swab Solution

Robot Arm

1PC (Dispensation Arm)

Plate Position

2PCS

Net Weight

56kg

Capacity

3000 unit/Year

⚙️ Product Description

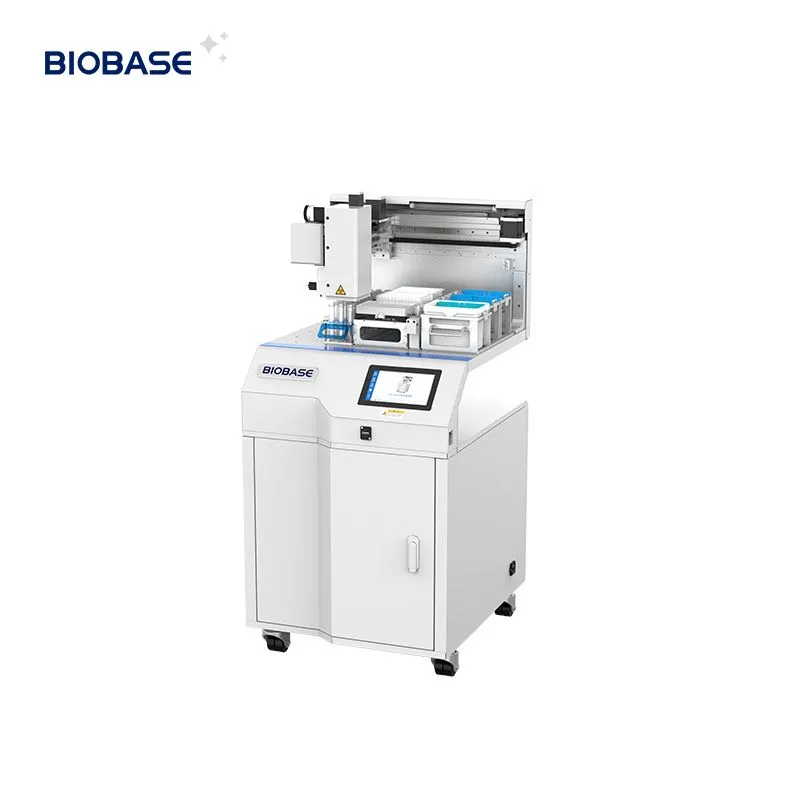

Automated Sample Processing System

The Automated Sample Processing system is designed for high-efficiency laboratory workflows. It can be used within a biological safety cabinet to complete lid opening/closing, dispensing, and proteinase K/internal control addition, significantly improving large-scale nucleic acid detection capabilities.

📍 Application:

Sample processing for clinical diagnosis, epidemic surveillance, food safety, forensic identification, and scientific research, especially for virulent infectious diseases.

✨ Key Features

01.

Safety: Built-in UV lamp; compatible with biological safety cabinets to effectively prevent aerosol pollution.

02.

Efficient: Cooperative processing with dual robotic arms.

03.

Convenient: Visual interface for easy operation.

04.

Compatibility: Compatible with various pipette tips, deep well plates, and sampling tubes.

05.

Smart: One-key operation for intelligent dispensation.

📊 Technical Parameters

Model	BK-PR32	BK-PR48
Throughput	1~32	1~48
Processing Time	32 samples/10min	48 samples/16min
Sample Type	Plasma, serum, whole blood, swab solution and others
Pipetting Volume	5~1000μl
Liquid Detection	Pneumatic liquid level detection, blocked needle detection
External Size (mm)	5406801113	8277941232

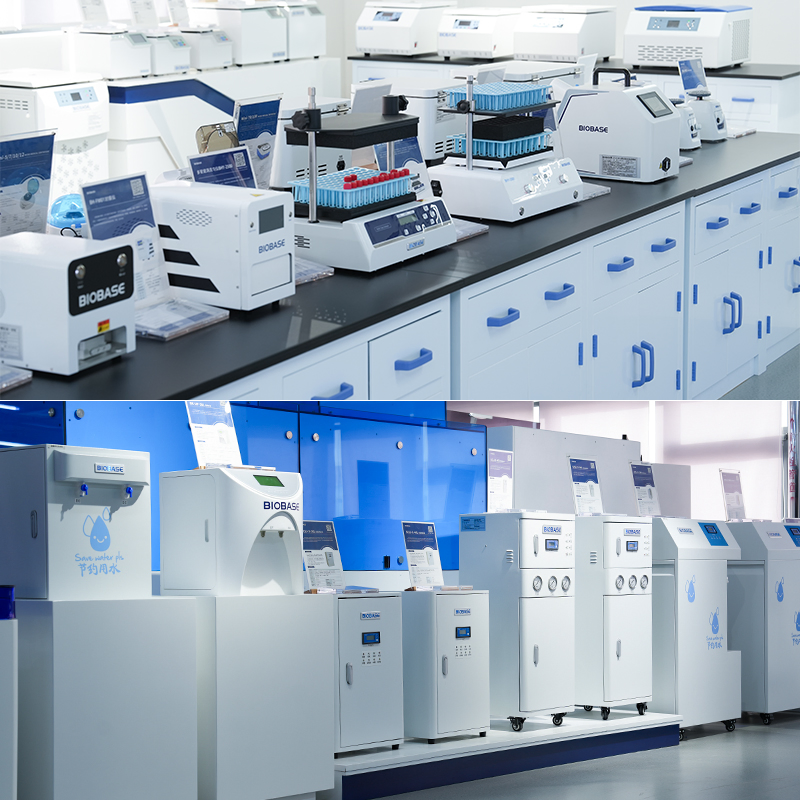

🏢 Facility & Production

🛒 One-stop Shopping

❓ Frequently Asked Questions

Q1: What is the sample throughput of the BK-PR32?

The BK-PR32 model can process between 1 to 32 samples simultaneously, completing the cycle in approximately 10 minutes.

Q2: Can this system be integrated with other safety equipment?

Yes, the system is specifically designed to be compatible with biological safety cabinets to ensure maximum protection against aerosol contamination.

Q3: What types of samples can the automated processor handle?

It is versatile and can process plasma, serum, whole blood, swab solutions, and other liquid biological samples.

Q4: How does the liquid level detection function work?

The system utilizes a pneumatic liquid level detection principle and includes intelligent detection for blocked needles to ensure accuracy and prevent spills.

Q5: What are the requirements for pipette tips and plates?

The system is highly compatible with a variety of pipette tips (50μl to 1000μl), deep well plates, and multiple specifications of sampling tubes.

Q6: Does the system include any sterilization features?

Yes, the unit features a built-in UV lamp to provide sterilization and maintain a clean environment during processing.
