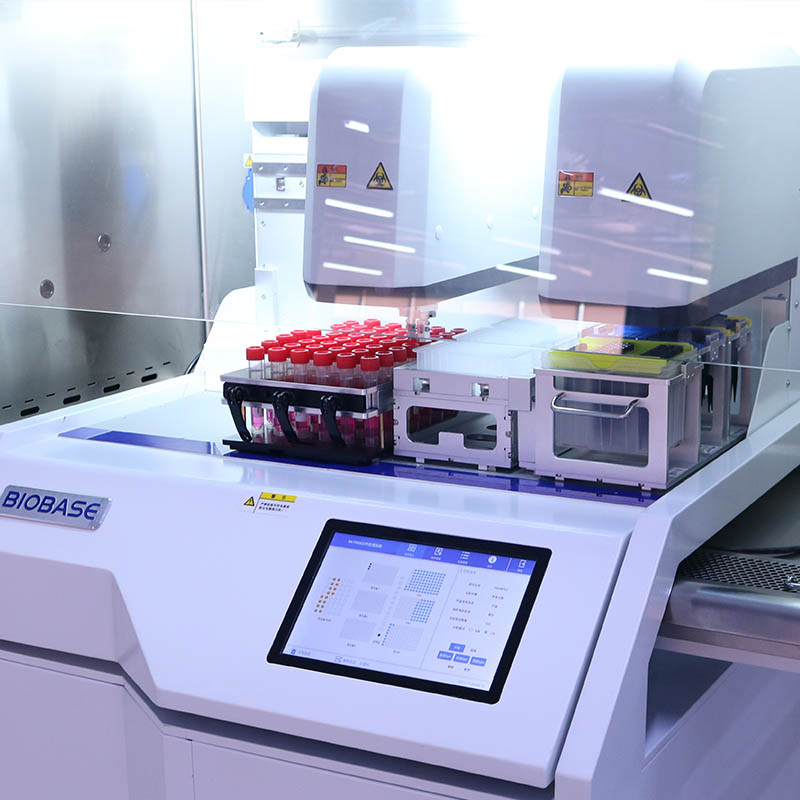

Biobase China Automated Sample Processing System Bk-Pr48

Basic Information

Model NO.

BK-PR48

Certification

CE, ISO13485

Throughput

1~48

Processing Time

48 Samples/16min

Sample Type

Plasma, Serum, Whole Blood, Swab Solution etc.

Robot Arm

2PCS (Dispensation and Screw Cap)

Net Weight

100kg

Production Capacity

3000 units/Year

Product Description

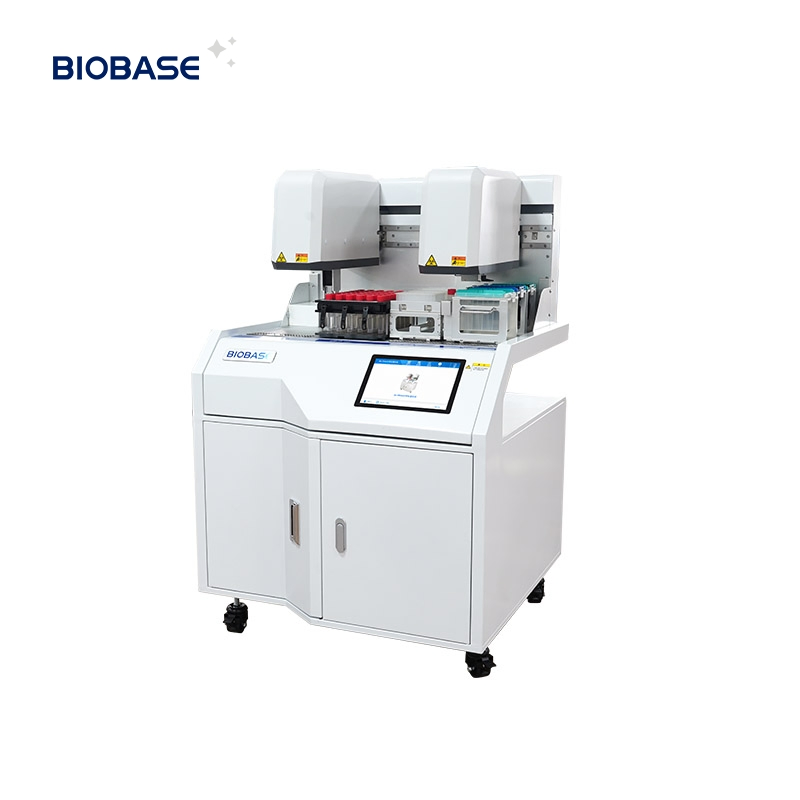

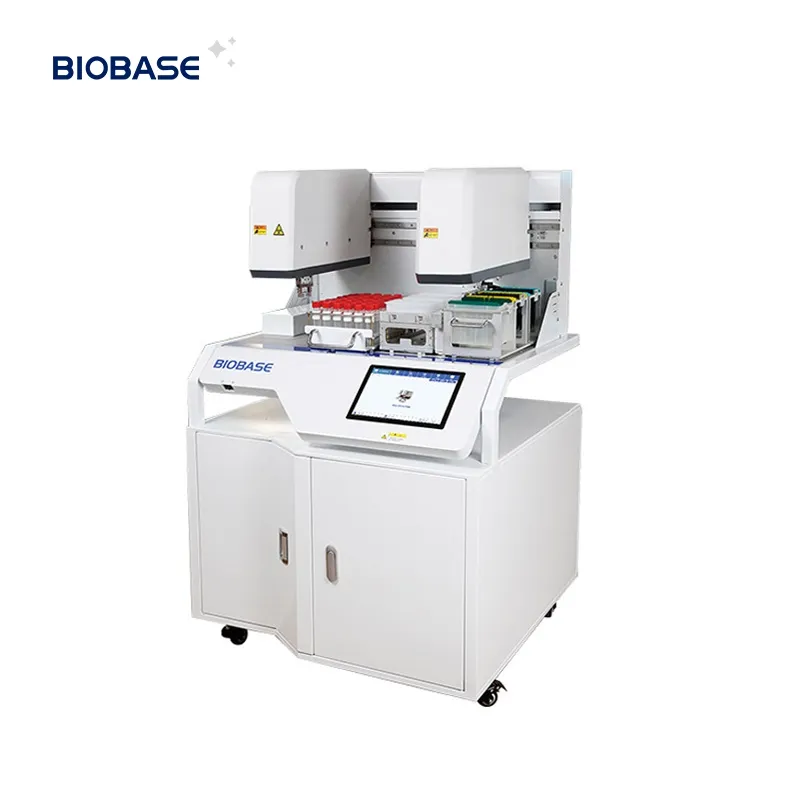

Automated Sample Processing System

Introduction

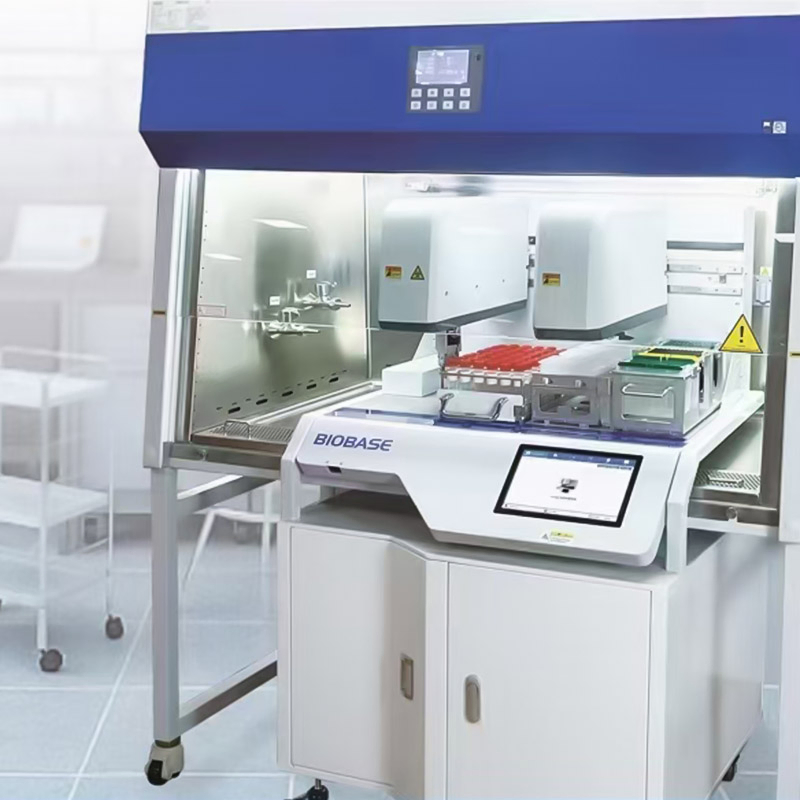

The Automated Sample Processing system can be used with a biological safety cabinet. It can complete lid opening/closing, dispensing, proteinase K/internal control addition, which helps laboratories quickly improve their large-scale nucleic acid detection capabilities.

Application

Sample processing for clinical diagnosis, epidemic surveillance, food safety, forensic identification, scientific research, etc., especially for samples of virulent infectious diseases.

Key Features

1

Safety: Built-in UV lamp; compatible with biological safety cabinets to prevent aerosol pollution.

2

Efficient: Cooperative processing with dual robotic arms.

3

Convenient: Visual interface operation, easy to operate.

4

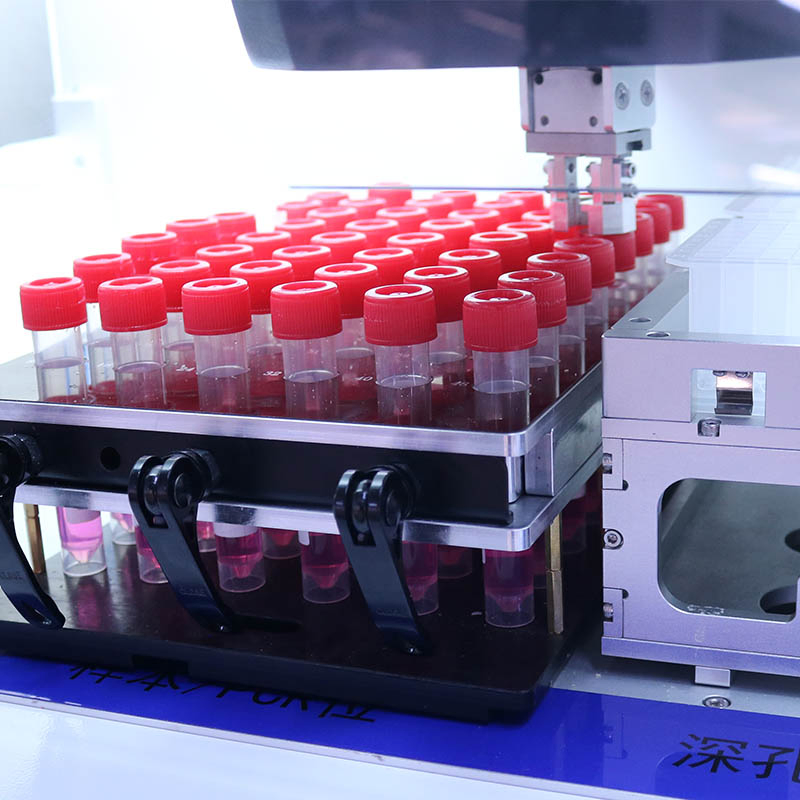

Compatibility: Compatible with various pipette tips, deep well plates, and sampling tubes.

5

Smart: One-key operation with smart dispensation technology.

Technical Parameters

Model	BK-PR32	BK-PR48
Throughput	1~32	1~48
Processing Time	32 samples/10min	48 samples/16min
Sample Type	Plasma, serum, whole blood, swab solution and other samples
Robot Arm	1pc (Dispensation arm)	2pcs (Dispensation & screw cap arm)
Plate Position	2pcs	3pcs
Pipetting Volume	5~1000μl (1000/50μl tip)
Liquid Detection	Pneumatic liquid level detection, blocked needle detection
External Size (mm)	5406801113	8277941232
