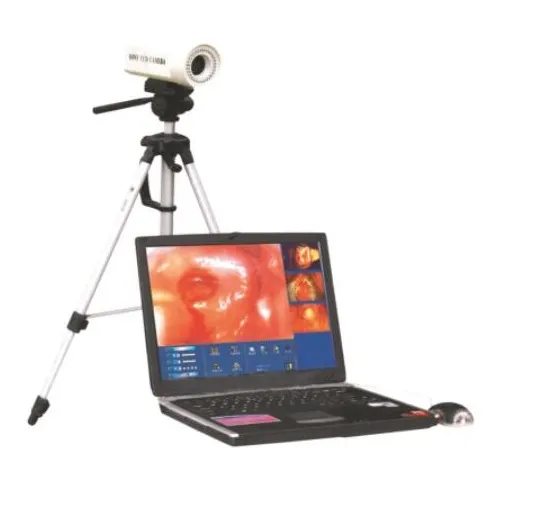

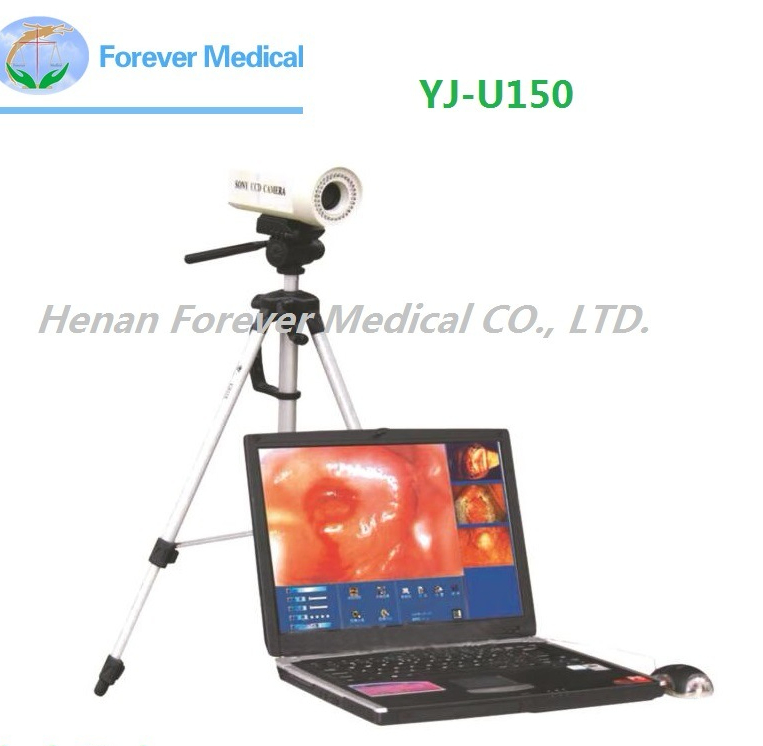

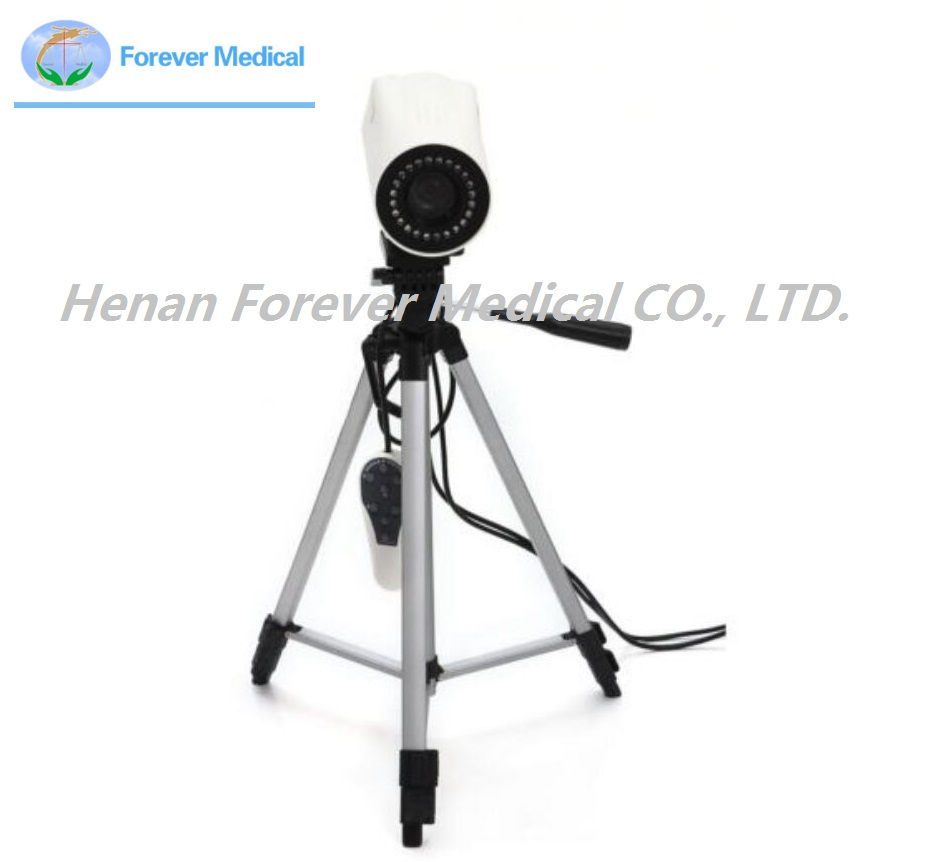

Ce Approved Portable Sony Colposcopy Systems for Gynecological (YJ-U150)

Ce Approved Portable Sony Colposcopy Systems for Gynecological (YJ-U150)

Camera Specifications

• Image Sensor: 1/4' Super Had CCD with 800,000 Pixels
• Scanner System: NTSC(525) 30frame/sec | PAL (625) 25frame/sec
• Level Clarity: 480 TV lines
• Focusing: Self-automatic focus working distance 200mm~300mm
• Optical Zoom: 18 Times Optics zoom lens, enlarges up to 12 Times of the Image
• Viewing Angle: 48°(WIDE) - 2.7°(TELE)
• Illumination: LED light source life ≥50,000 hours, illumination ≥2000Lux
• Green Filter: 3-stage electronic green filter technology
• Palm Control: Integrated zoom, white, green, time, and freezing functions

Colposcope Workstation Software

• Real-time display, capture, frozen, storage, and printing of images.
• Dynamic video and movie replay for observation.
• Database management: Storage for more than 1,000,000 pictures.
• Customizable report design with photo-quality printing.
• Supports LEEP surgery reports and RCI assessment.
• DICOM 3.0 interface for network and hospital information exchange.
• Self-automatic recovery system for operational stability.

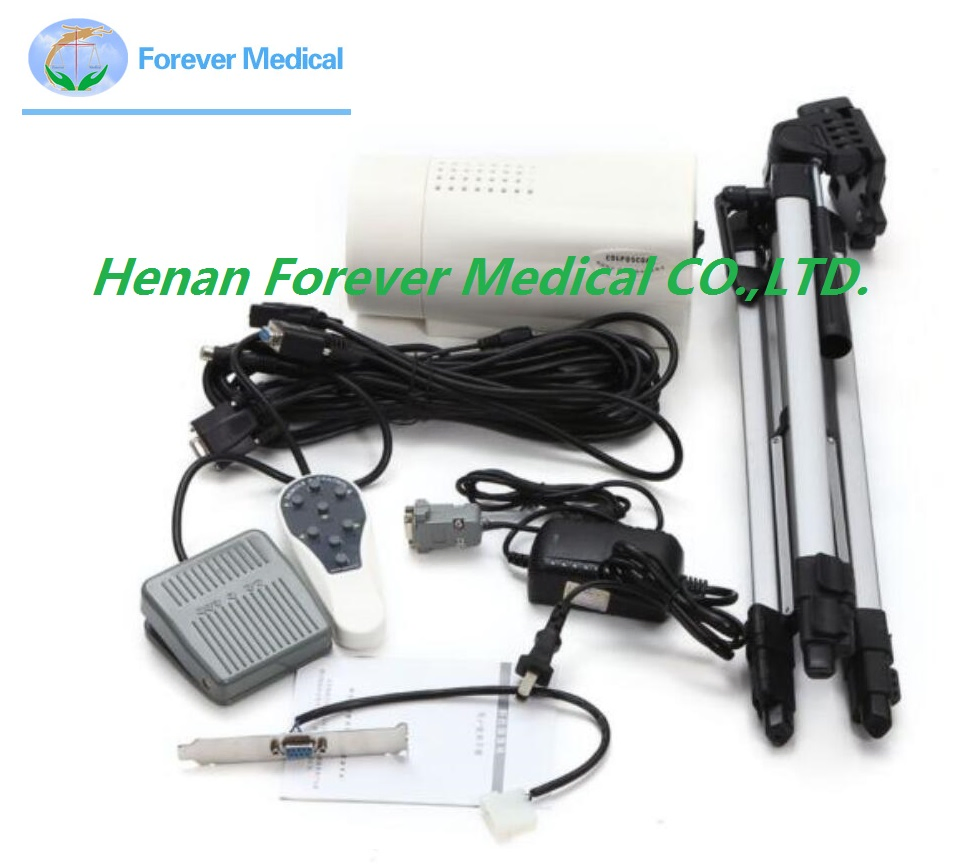

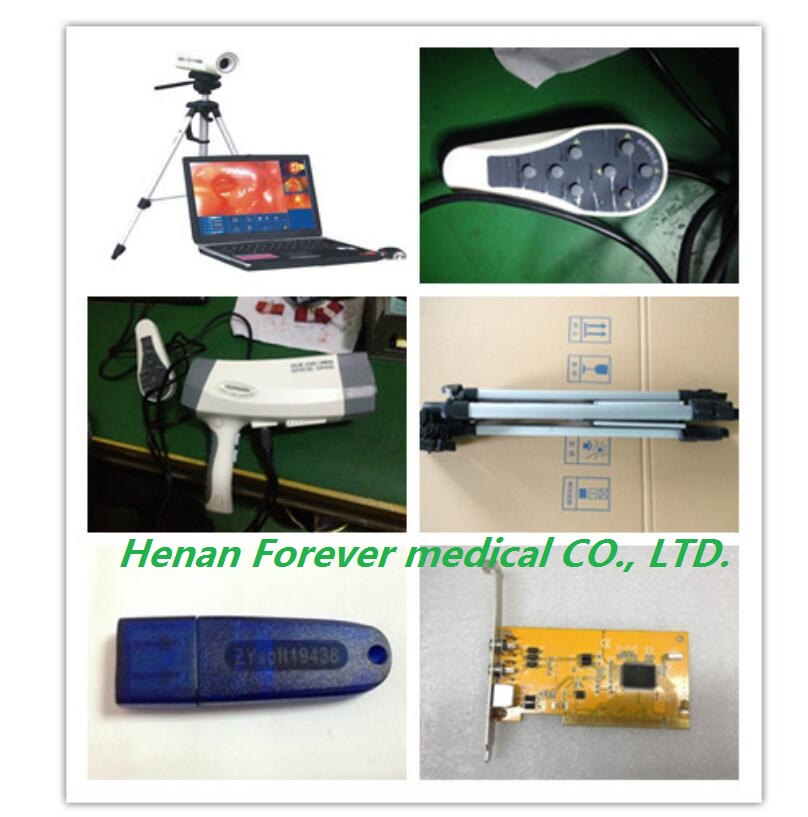

System Construction & Optional Items
