Clinical Lab Test Tube Automatic Labeling System for Hospital

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Certification

CE, FDA, EEC, MSDS, ISO13485

Group

Adult and Kids

Usage

Hospital Blood Collection

Transport Package

Wooden Box

Specification

480*480*520mm

Origin

China

HS Code

84729090

Capacity

100 Set/Month

Intelligent Blood Collection Management System

The intelligent blood collection management system is a new blood collection management mode widely used in the medical industry. It innovates the original mode—moving away from crowded queuing and manual checks—to make blood collection work simplified, efficient, and accurate.

💡 System Overview

The system consists of four subsystems: queuing, test tube automatic labeling, test tube delivery, and test tube sorting. Each subsystem can function independently or in combination, primarily serving hospital outpatient clinics and physical examination centers.

🚀 System Advantages

Modular design allows subsystems to be combined or used separately.
Parallel labeling devices at each window ensure uninterrupted workflow.
High-speed sorting: 3100 pcs/hr with ≥ 16 categories.
Fast processing speed (≤ 4s/pc) to meet peak demand.
Continuous operation: add test tubes at any time without downtime.

🔄 Operational Flow

Patient obtains a queue number by swiping a card.
Patient waits in the designated area for their number to be called.
Nurse calls the patient to the sampling window.
System performs automatic tube selection, printing, and labeling.
Finished tubes are placed on a conveyor belt for delivery.
Sorting system organizes tubes by scanning codes.

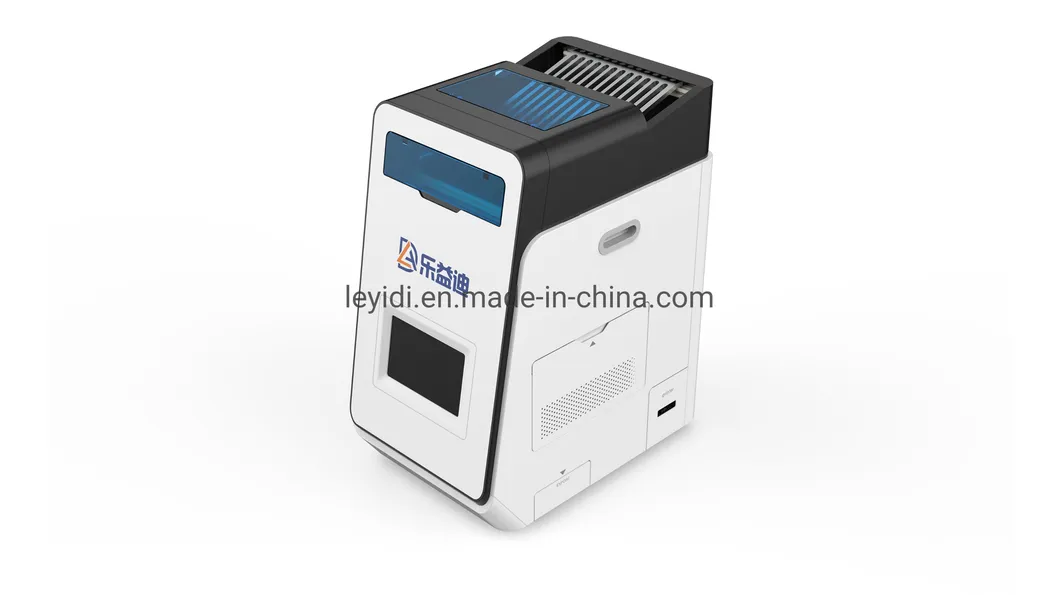

🔧 Test Tube Automatic Labeling System

This patented device features precision sticking with four key advantages: high efficiency, error-free accuracy, standard application, and intelligent management. It identifies patient identity via card scanning before automatically preparing all required tubes.

Composition: Scanning gun/card reader, control computer, labeling device.

Dimensions	480mm × 480 mm × 520mm
Weight	32KG
Tank Capacity	8 tanks, 240 tubes total (30 per tank)
Tube Sizes	Dia: 12-13mm, Length: 50-100mm
Printing Method	Dual thermal printers
Edge Searching	Automatic detection and cover-sticking
Print Accuracy	203dpi
Label Sizes	50×25mm, 30×25mm, 30×20mm (Customizable)
Barcodes	Code39, Code128, EAN, Codabar, etc.
Processing Speed	≤ 4s / pc
Data Interfaces	LIS, HIS

Frequently Asked Questions

What are the main components of the system?

The system consists of four primary modules: queuing, automatic test tube labeling, delivery conveyor, and a sorting subsystem.

How fast can the system process a single test tube?

The single device processing speed is very efficient, taking 4 seconds or less per test tube.

Can the system be integrated with hospital records?

Yes, the system is designed with data interfaces compatible with standard LIS (Laboratory Information System) and HIS (Hospital Information System).

What happens if more tubes need to be added during peak hours?

The labeling device supports adding test tubes at any time without requiring the system to be shut down or paused.

What types of test tubes are compatible?

It supports standard vacuum blood collection tubes with diameters of 12-13mm and lengths ranging from 50mm to 100mm.

How does the automatic edge searching feature work?

It detects the original label position on the tube and applies the new label precisely over it, ensuring the blood level remains visible for inspection.
