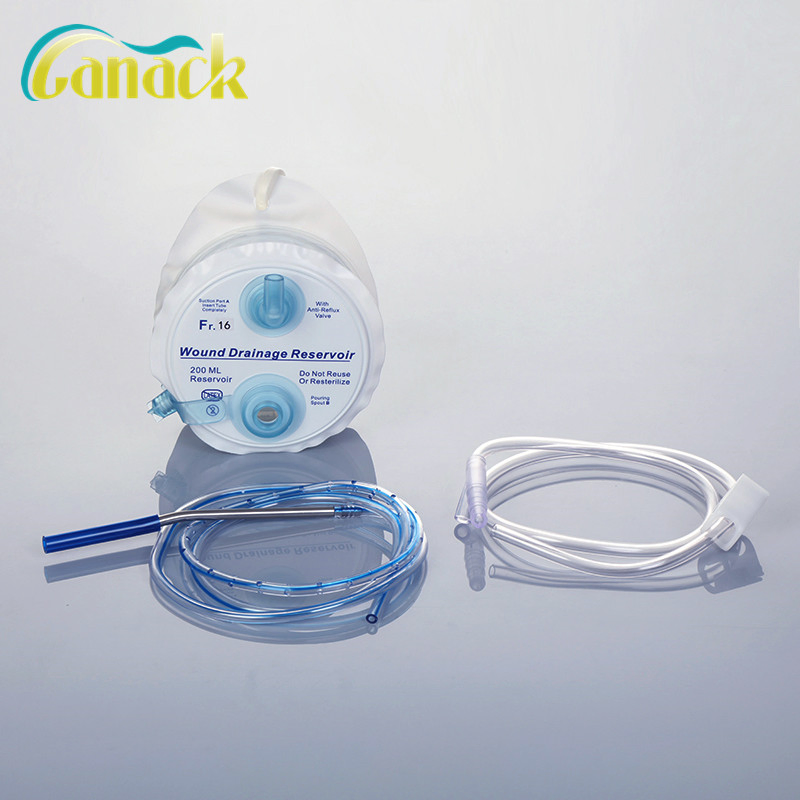

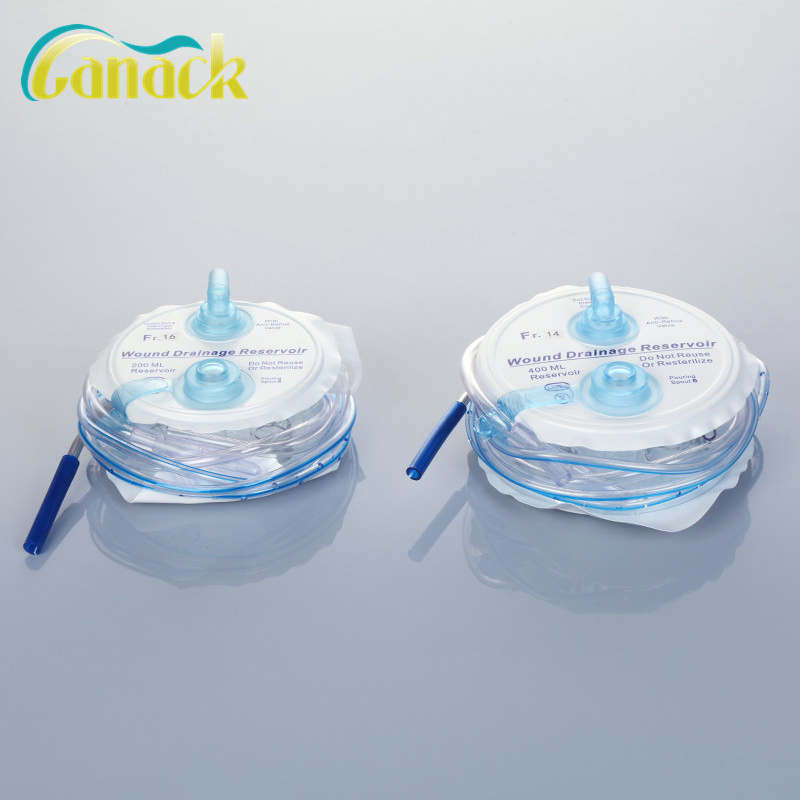

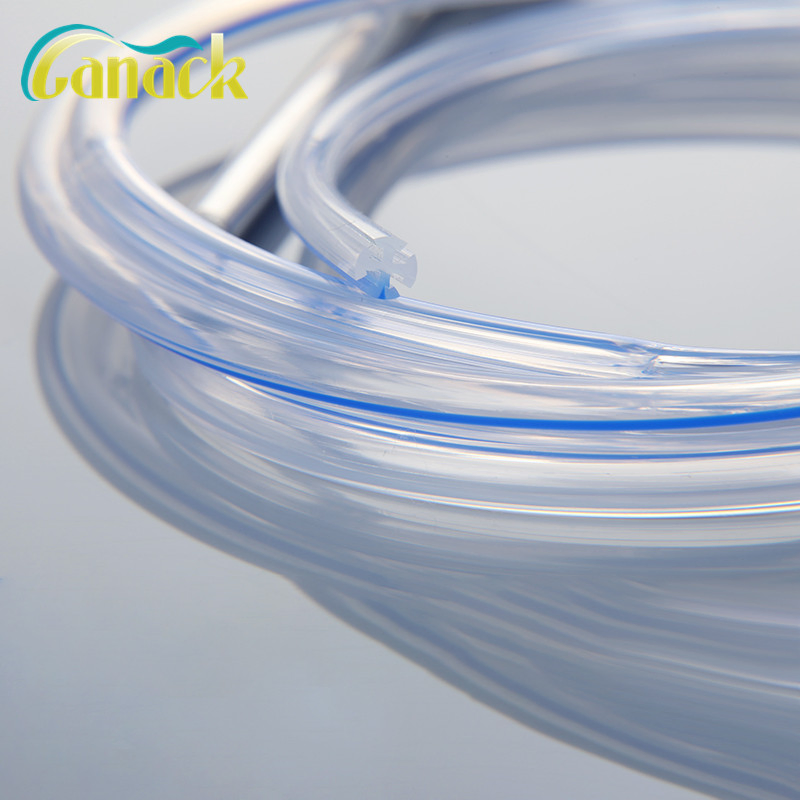

Closed Wound Drainage System with Silicone Tube
Closed Wound Drainage System with Silicone Tube
Closed Wound Drainage System with Silicone Tube
Closed Wound Drainage System with Silicone Tube
Closed Wound Drainage System with Silicone Tube
1 / 5
Closed Wound Drainage System with Silicone Tube
Closed Wound Drainage System with Silicone Tube
Closed Wound Drainage System with Silicone Tube
Closed Wound Drainage System with Silicone Tube
Closed Wound Drainage System with Silicone Tube

Closed Wound Drainage System with Silicone Tube

Customization: Available
Type: Surgical Supplies Materials
Material: Medical Grade PVC Material
Send Inquiry

Product Description

Technical Specifications

Model
Closed
Sterilization
Ethylene Oxide (EO)
Guarantee Period
Five Years
Target Group
Adult/Pediatric
Logo Printing
Available
Transport Package
Plastic Paper Pouch or Hard Blister Package
Specification
200ml+16Fr
Production Capacity
30,000 PCS/Month
Closed Wound Drainage System Banner

Closed Wound Drainage System (Spring Type)

  • ✔ Complete kit includes 3-spring evacuator, PVC tubing, Y connector, PVC drainage tube, and stainless steel trocar.
  • ✔ Superior 3-spring design significantly minimizes collapse-resistance for consistent performance.

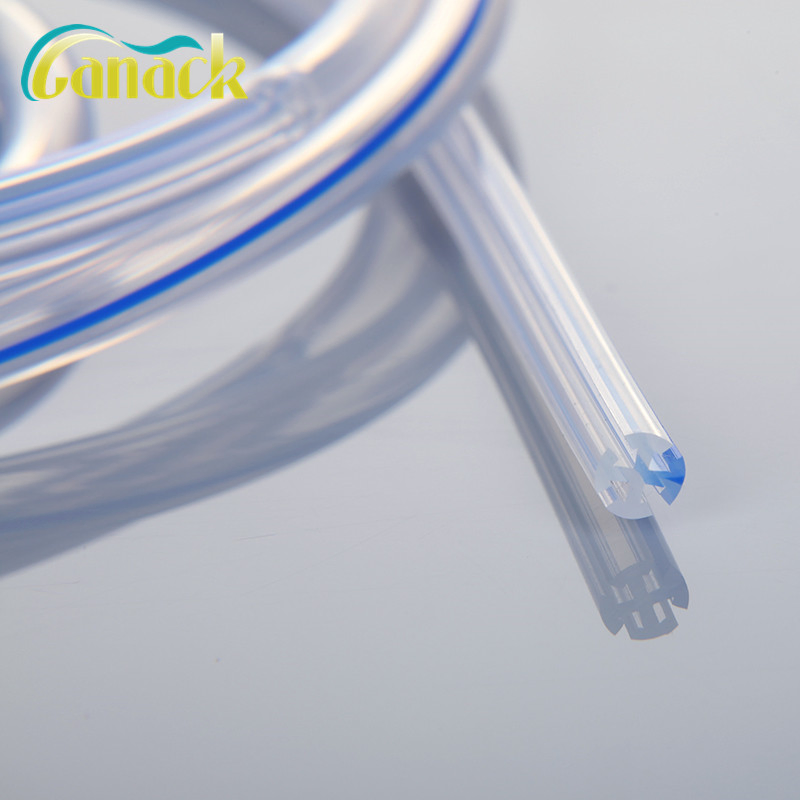

  • ✔ Versatile configuration: The internal PVC drainage tube can be substituted with silicone drains based on clinical requirements.
Item No. Size (Fr)
PDS-20007200ml+7Fr
PDS-20010200ml+10Fr
PDS-20012200ml+12Fr
PDS-20014200ml+14Fr
PDS-20016200ml+16Fr
PDS-20018200ml+18Fr
PDS-40007400ml+7Fr
PDS-40010400ml+10Fr
PDS-40012400ml+12Fr
PDS-40014400ml+14Fr
PDS-40016400ml+16Fr
PDS-40018400ml+18Fr
Drainage System Detail 1

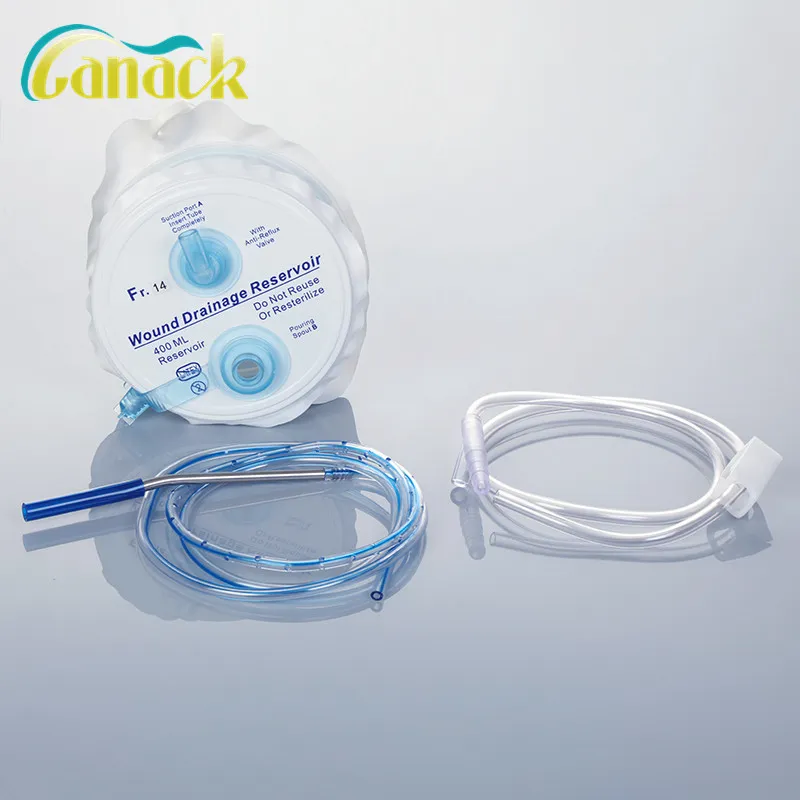

Drainage System Detail 2
Drainage System Detail 3

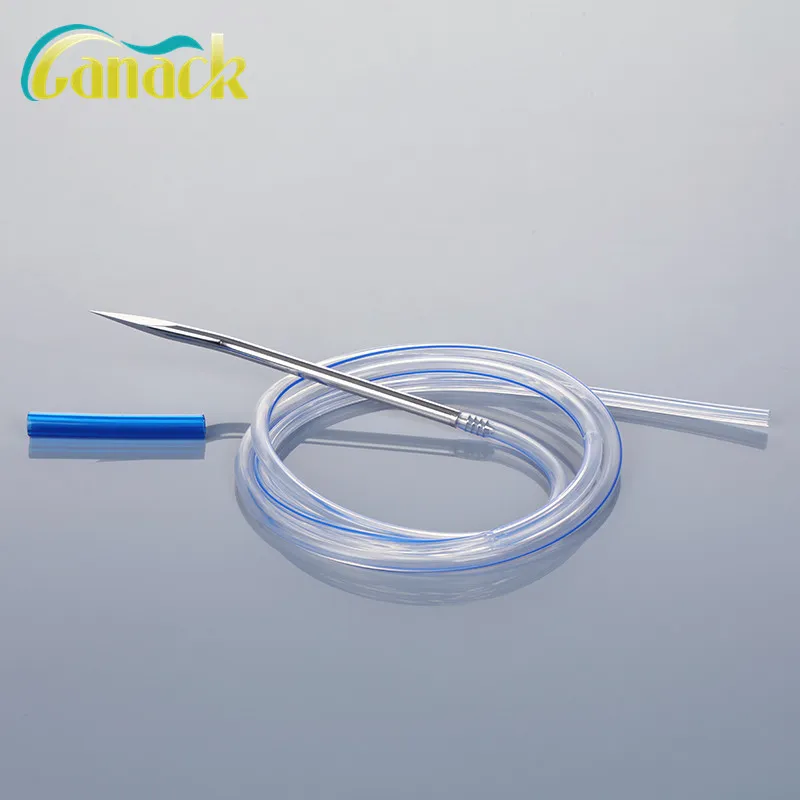

Drainage System Detail 4
Drainage System Packaging
Drainage System Components
Full Product Specification Chart

Frequently Asked Questions

What are the main components of this drainage system?
The system consists of a 3-spring evacuator, PVC tubing, a Y connector, a PVC drainage tube, and a stainless steel trocar for surgical precision.
What are the available volume capacities?
The system is available in 200ml and 400ml capacities, with tube sizes ranging from 7Fr to 18Fr to suit various surgical needs.
Is the product provided sterile?
Yes, all units are sterilized using Ethylene Oxide (EO) to ensure maximum safety and prevent post-operative infections.
What is the advantage of the 3-spring design?
The 3-spring evacuator design is specifically engineered to minimize collapse resistance, ensuring constant and reliable suction.
Can I use silicone tubes with this system?
Yes, the design allows the internal PVC drainage tube to be replaced with silicone drains if preferred for specific medical applications.
How long is the product shelf life?
The product comes with a quality guarantee period of five years from the date of manufacture.
