📋 Basic Information
| Model NO. |
Spring |
| Sterilization |
Ethylene Oxide (EO) Sterilization |
| Quality Guarantee |
Five Years |
| User Group |
Adult / Pediatric |
| Logo Printing |
Available |
| Transport Package |
Plastic Paper Pouch or Hard Blister Package |
| Specification |
200ml + 16Fr |
| Trademark |
OEM Available |
| Origin |
China |
| Production Capacity |
30,000 PCS/Month |
📦 Product Description

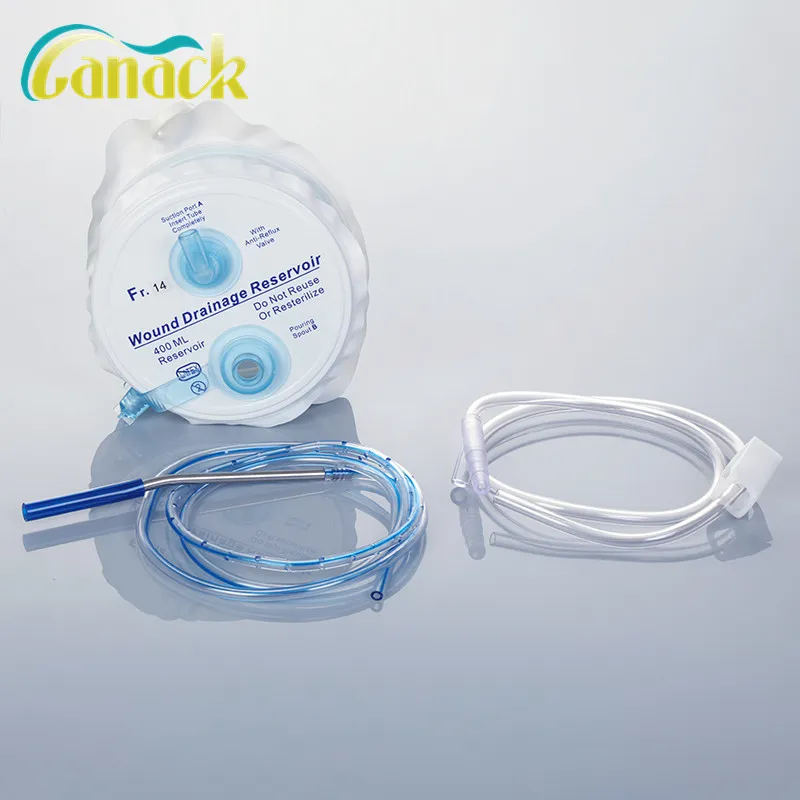

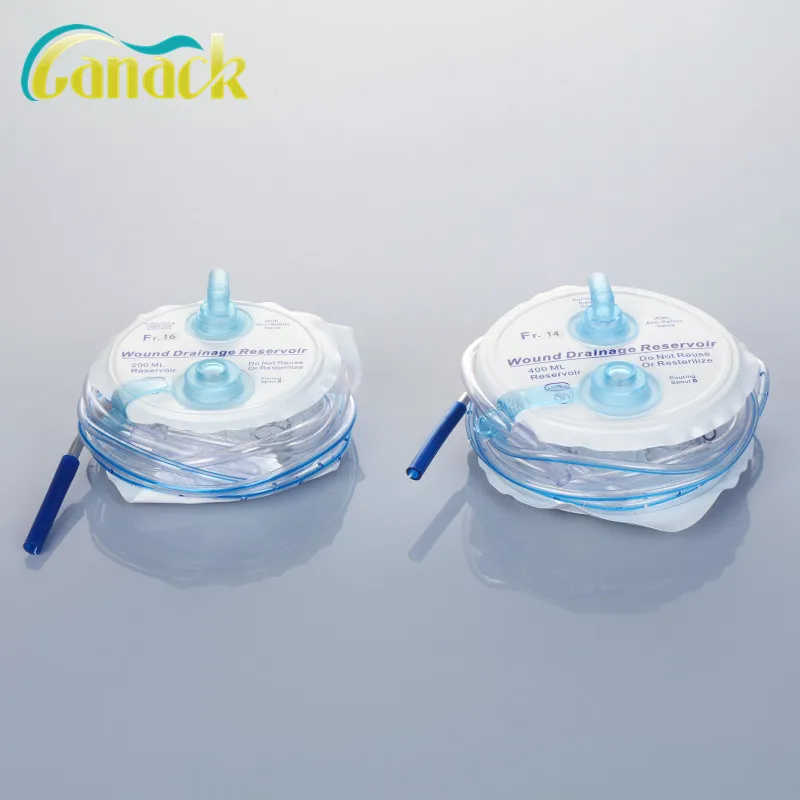

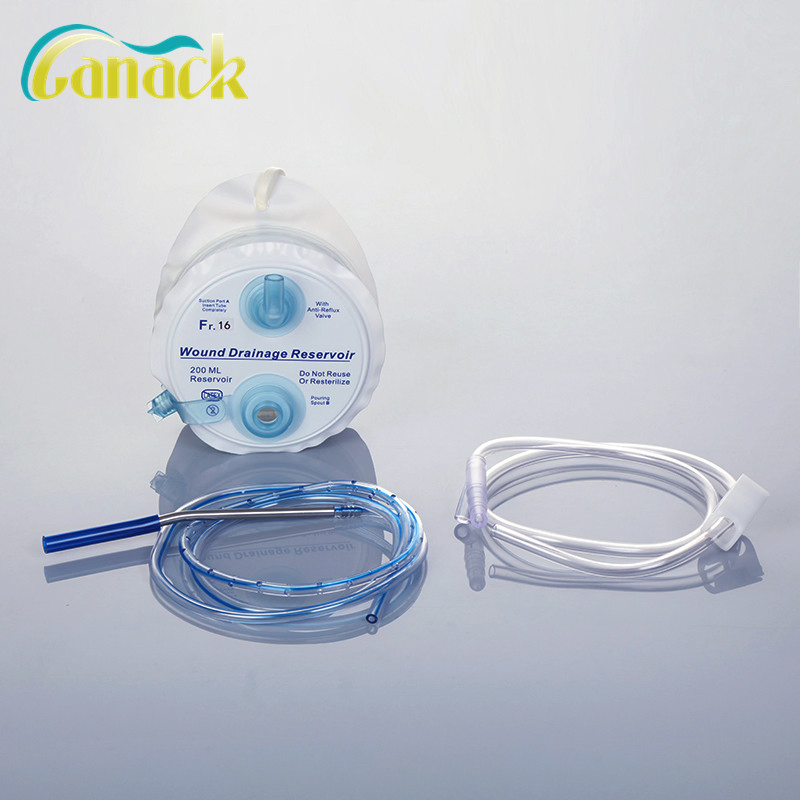

Closed Wound Drainage System (Spring Type)
1

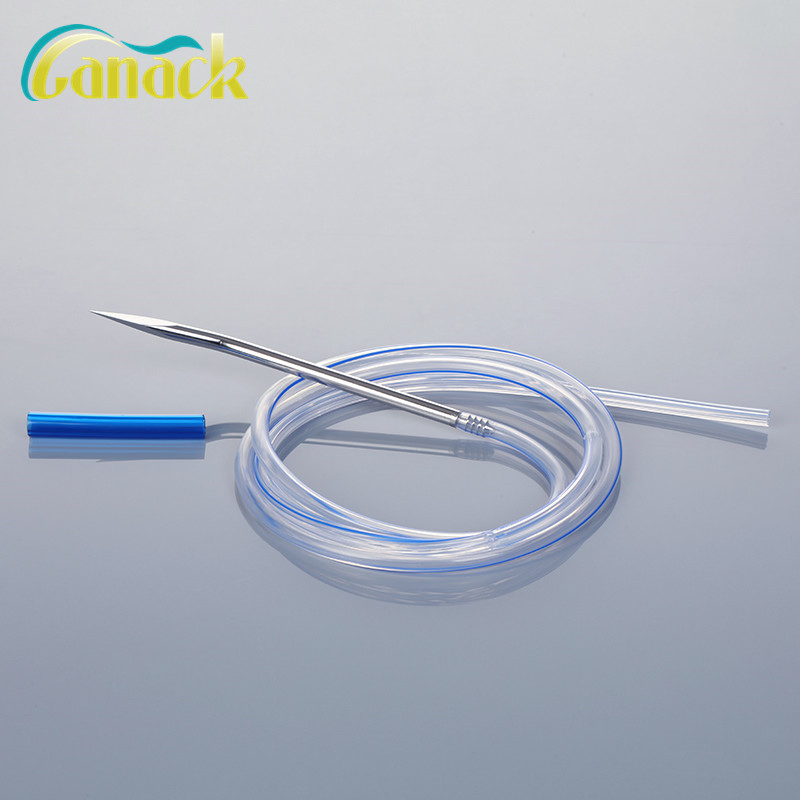

This comprehensive system includes a high-efficiency 3-spring evacuator, premium PVC tubing, a Y connector, a dedicated PVC drainage tube, and a precision stainless steel trocar.
2
The advanced 3-spring evacuator design is specifically engineered to minimize collapse-resistance, ensuring consistent suction performance.
3

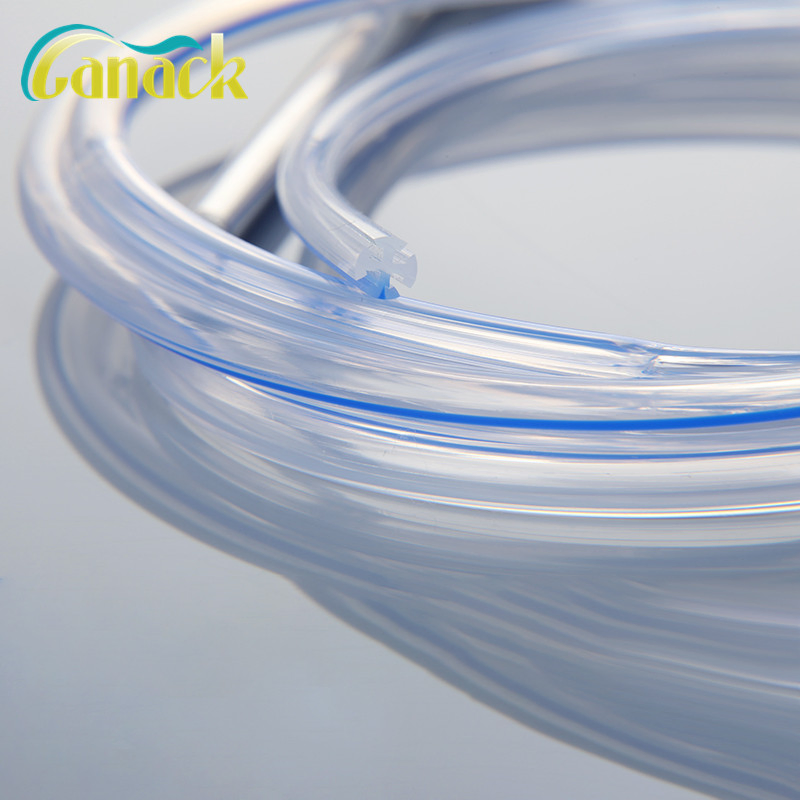

Modular design: The internal PVC drainage tube can be easily substituted with alternative silicone drains based on specific clinical requirements.
📊 Technical Specifications
| Item No. |
Size (Volume + French) |
| PDS-20007 | 200ml + 7Fr |
| PDS-20010 | 200ml + 10Fr |
| PDS-20012 | 200ml + 12Fr |
| PDS-20014 | 200ml + 14Fr |
| PDS-20016 | 200ml + 16Fr |
| PDS-20018 | 200ml + 18Fr |
| PDS-40007 | 400ml + 7Fr |
| PDS-40010 | 400ml + 10Fr |
| PDS-40012 | 400ml + 12Fr |
| PDS-40014 | 400ml + 14Fr |
| PDS-40016 | 400ml + 16Fr |
| PDS-40018 | 400ml + 18Fr |
🖼️ Product Visuals
Frequently Asked Questions
What components are included in this drainage system?
The system includes a 3-spring evacuator, PVC tubing, a Y connector, a PVC drainage tube, and a stainless steel trocar.
How does the 3-spring design benefit the patient?
The 3-spring evacuator design is specifically engineered to minimize collapse-resistance, ensuring reliable and continuous suction for effective wound drainage.
Is the drainage tube customizable?
Yes, the internal PVC drainage tube can be replaced with silicone drains if required by the medical procedure.
What is the shelf life and sterilization method?
The product has a quality guarantee period of five years and is sterilized using the Ethylene Oxide (EO) method.
What size options are available?
We offer a wide range of sizes including 200ml and 400ml capacities, with tube sizes ranging from 7Fr to 18Fr.
What type of packaging is used for transport?
The products are packed in either a plastic paper pouch or a hard blister package to ensure sterility and safety during transport.
