CNC Medical Parts: Stainless Steel Capillary Tube Filling Needle Solutions

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Y2663

Condition

New

Certification

ISO9001, ISO 13485

Standard

Material

Stainless Steel 316L

Processing

CNC Milling / Grinding

Appearance

Electropolishing Passivation

HS Code

7301200000

Package Size

30.00cm * 25.00cm * 15.00cm

Gross Weight

20.000kg

Product Description

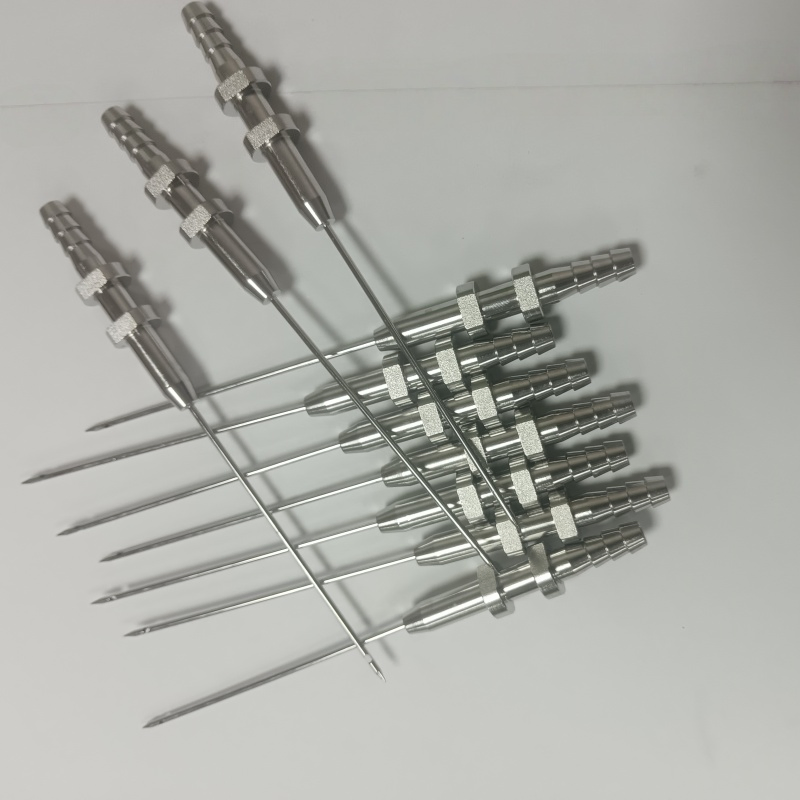

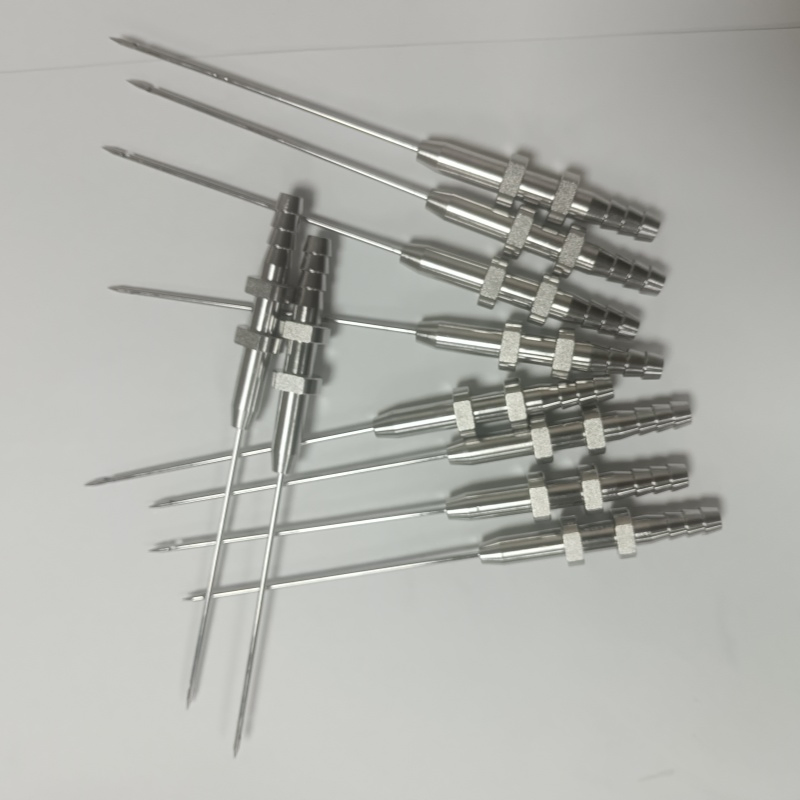

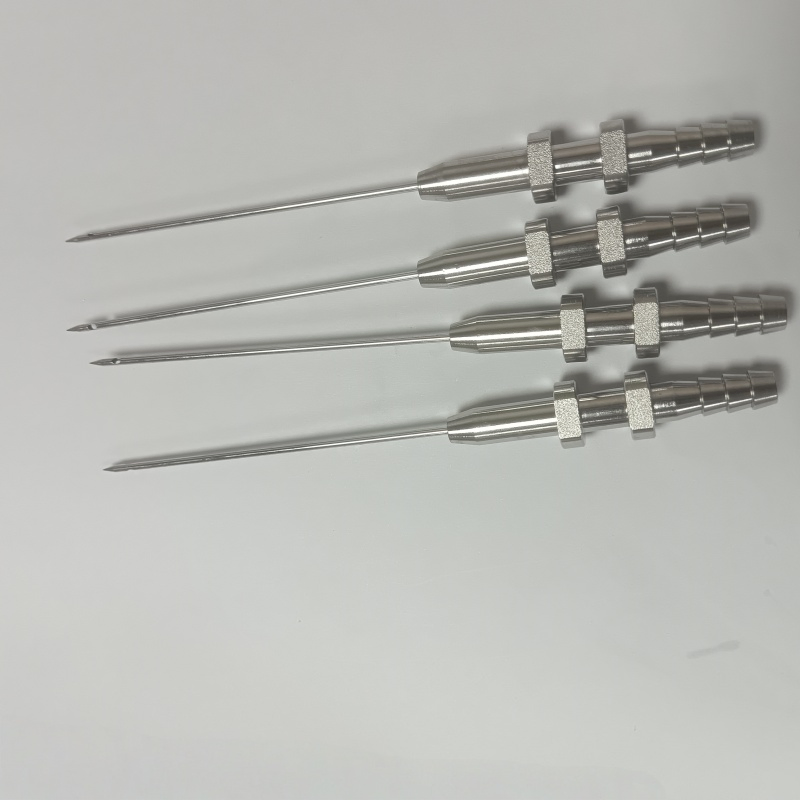

CNC Medical Parts: Stainless Steel Capillary Tube Filling Needle Solutions

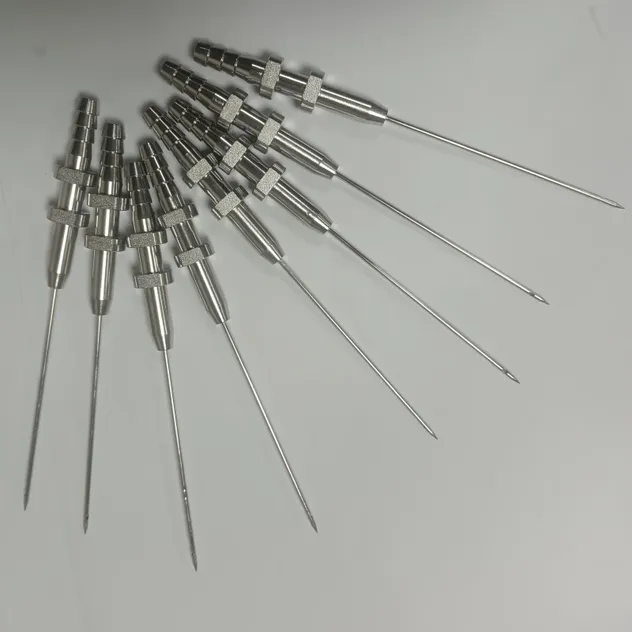

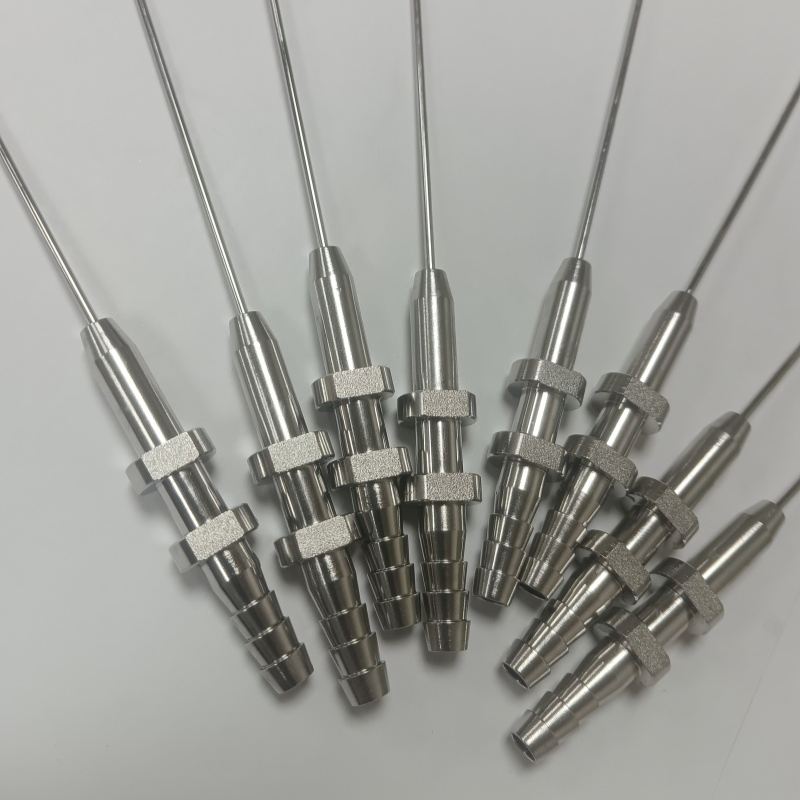

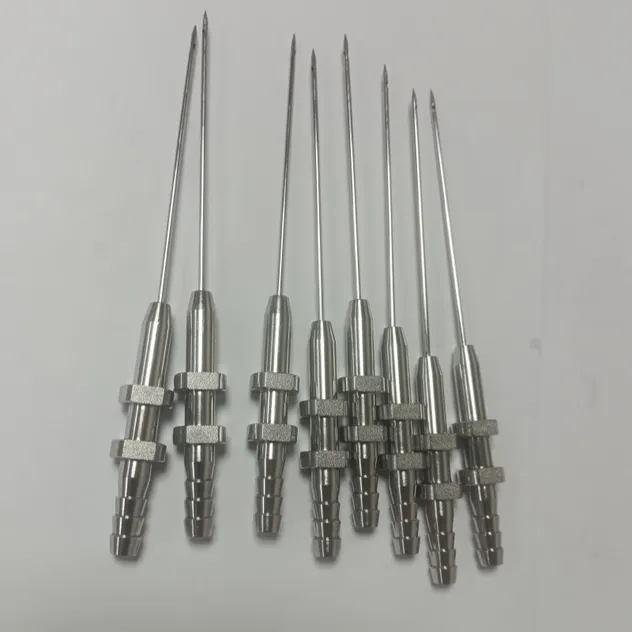

The 316L Stainless Steel Capillary Tubing Medical Component CNC Milled Filling Needle is precision-engineered for sterile liquid transfer, dispensing, or micro-dosing in medical, pharmaceutical, and lab settings. Made from 316L stainless steel capillary tubing, it undergoes advanced CNC milling to produce a robust needle with a sharp tip, controlled lumen, and custom features.

Manufacturing Process

Material Preparation: Certified 316L stainless steel capillary tubing (ASTM A269).

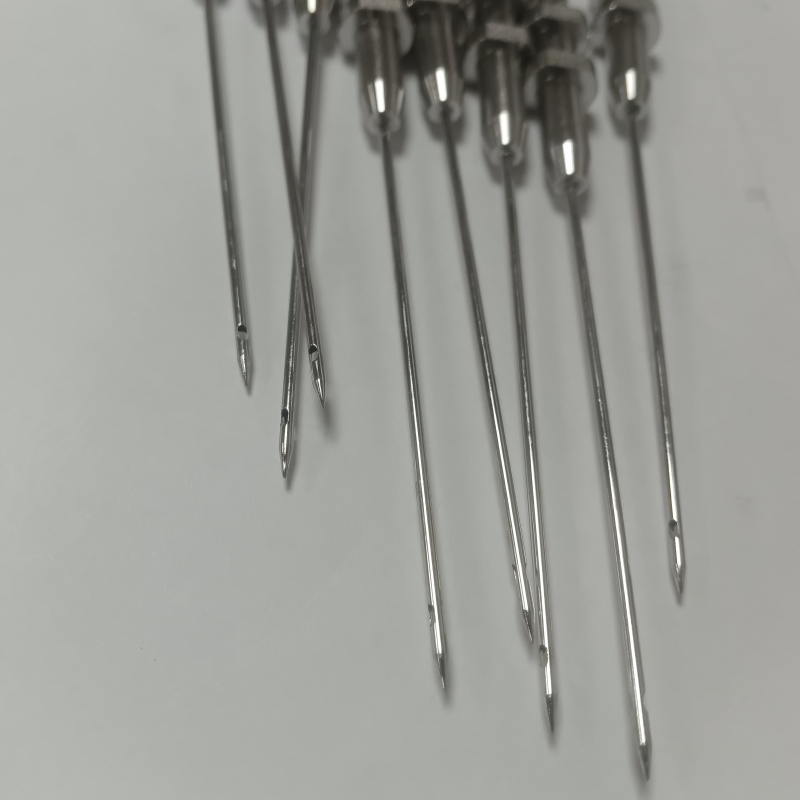

Precision Tip Machining: CNC Milling/Grinding for sharp beveled points or blunt polished ends.

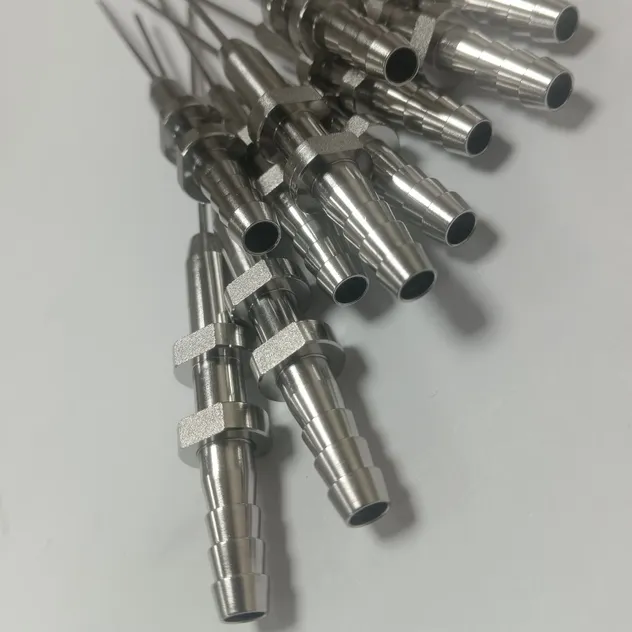

Body Feature Milling: CNC milling of flats, grooves, and shoulders for integration.
Internal Lumen Polishing: Electropolished internal bore (Ra ≤ 0.2 µm) for smooth flow.
Surface Finishing: Full electropolishing and passivation for corrosion resistance.
Cleaning & Sterilization: Ultrasonic cleaning, compatible with Gamma or EtO sterilization.

Technical Parameters

Category	Feature	Specifications
Material	Primary Material	316L Stainless Steel (ASTM A269), ISO 10993 compliant.
Needle Tip	Tip Types	Sharp Bevel, Blunt/Polished, Side-Bore/Deflected.
Tubing Specs	Outer Diameter (OD)	0.5 mm (25G) to 2.0 mm (14G).
Dimensions	Overall Length	20 mm to 150 mm (Customizable).
Surface Finish	Internal Lumen	Electropolished to Ra ≤ 0.2 µm.
Performance	Pressure Rating	Suitable for high-pressure dispensing (100+ bar).

Manufacturing Advantages

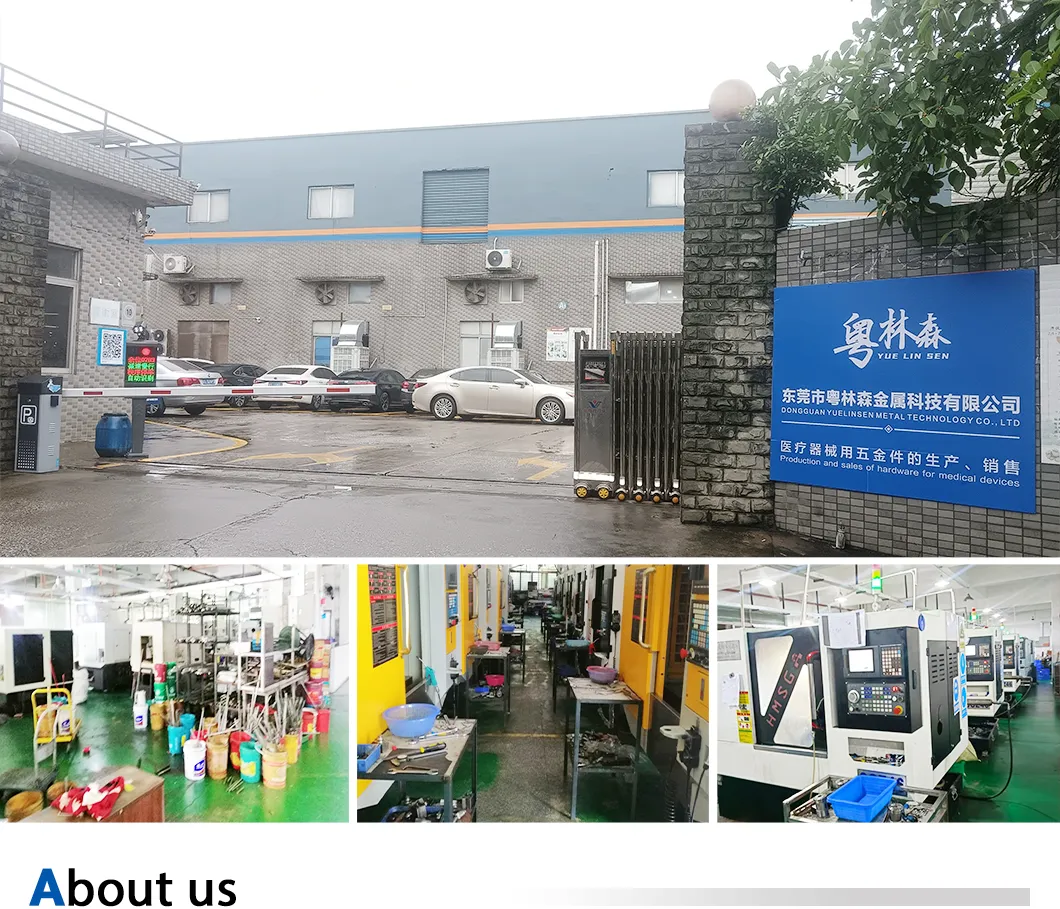

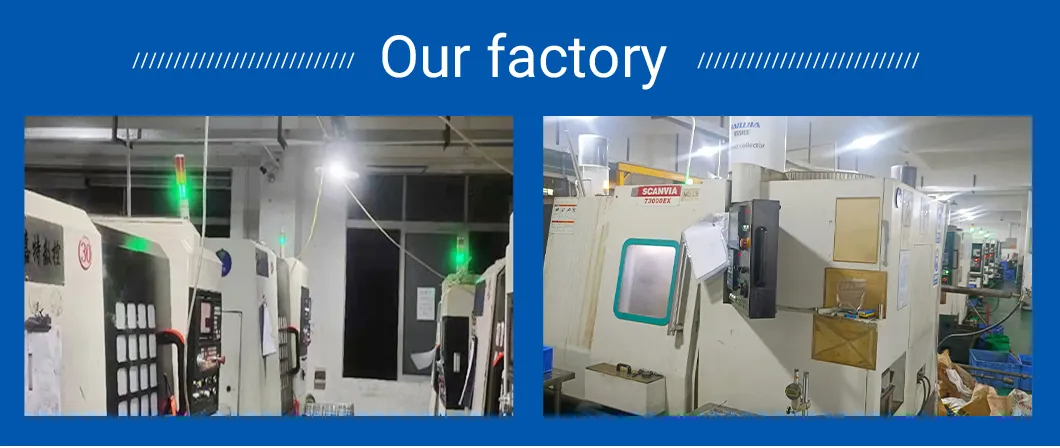

Our facility has obtained quality system certifications in accordance with GB/T 19001-2016/ISO 9001:2015 and GB/T 42061-2022/ISO 13485:2016 for medical devices. We specialize in non-standard metal precision parts, utilizing dozens of high-precision engraving lathes, CNC machines, and automatic centering machines.

We provide rapid prototyping and batch production for stainless steel capillary tubes and thin-walled tubes. Our process flow is stable and efficient, ensuring craftsmanship quality for applications in electronics, medical devices, automotive, and more.

Certifications

Frequently Asked Questions

What materials are used for the medical filling needles?

We primarily use 316L Stainless Steel (ASTM A269), which is low carbon and offers superior corrosion resistance and excellent biocompatibility compliant with ISO 10993.

Can the needle dimensions be customized?

Yes, the outer diameter (OD), inner diameter (ID), overall length, and tip geometry are fully customizable to meet specific medical or laboratory requirements.

What is the surface finish quality of the needles?

The internal lumen is electropolished to Ra ≤ 0.2 µm, and the external surface is electropolished and passivated to Ra ≤ 0.4 µm, ensuring smooth flow and easy cleaning.

What quality certifications does your production process follow?

Our production is certified under ISO 9001:2015 and ISO 13485:2016, specifically for medical device hardware and precision components.

Are these needles suitable for high-pressure applications?

Yes, due to the high strength of 316L stainless steel, these needles are suitable for high-pressure dispensing, often exceeding 100+ bar.

What sterilization methods are compatible with these parts?

Our products are validated for both Gamma Irradiation (25 kGy) and Ethylene Oxide (EtO) sterilization methods.
