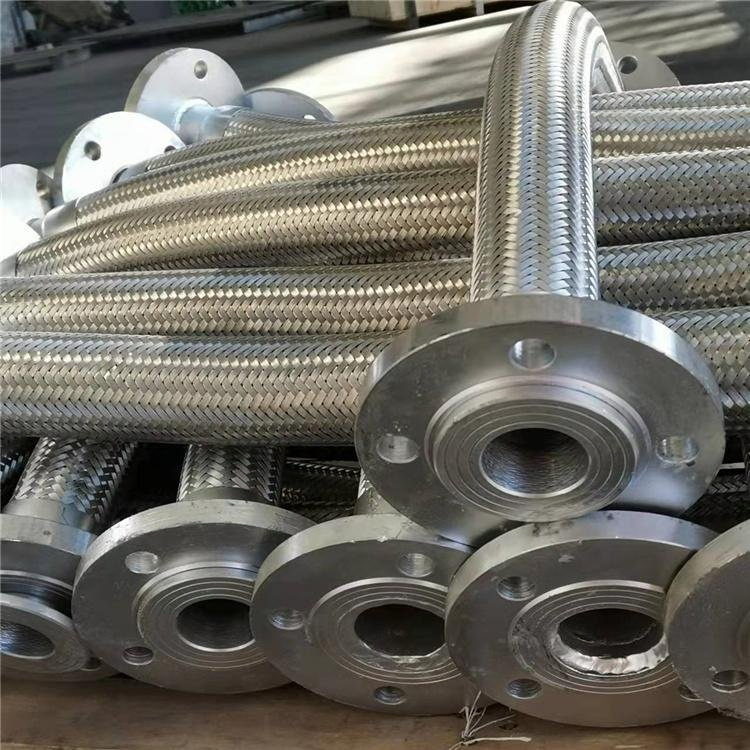

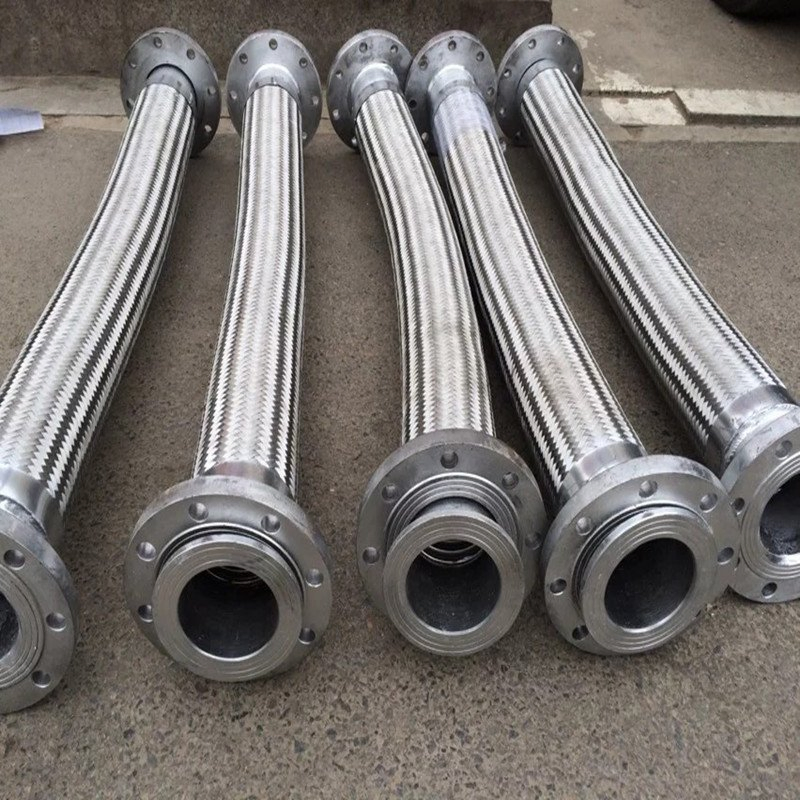

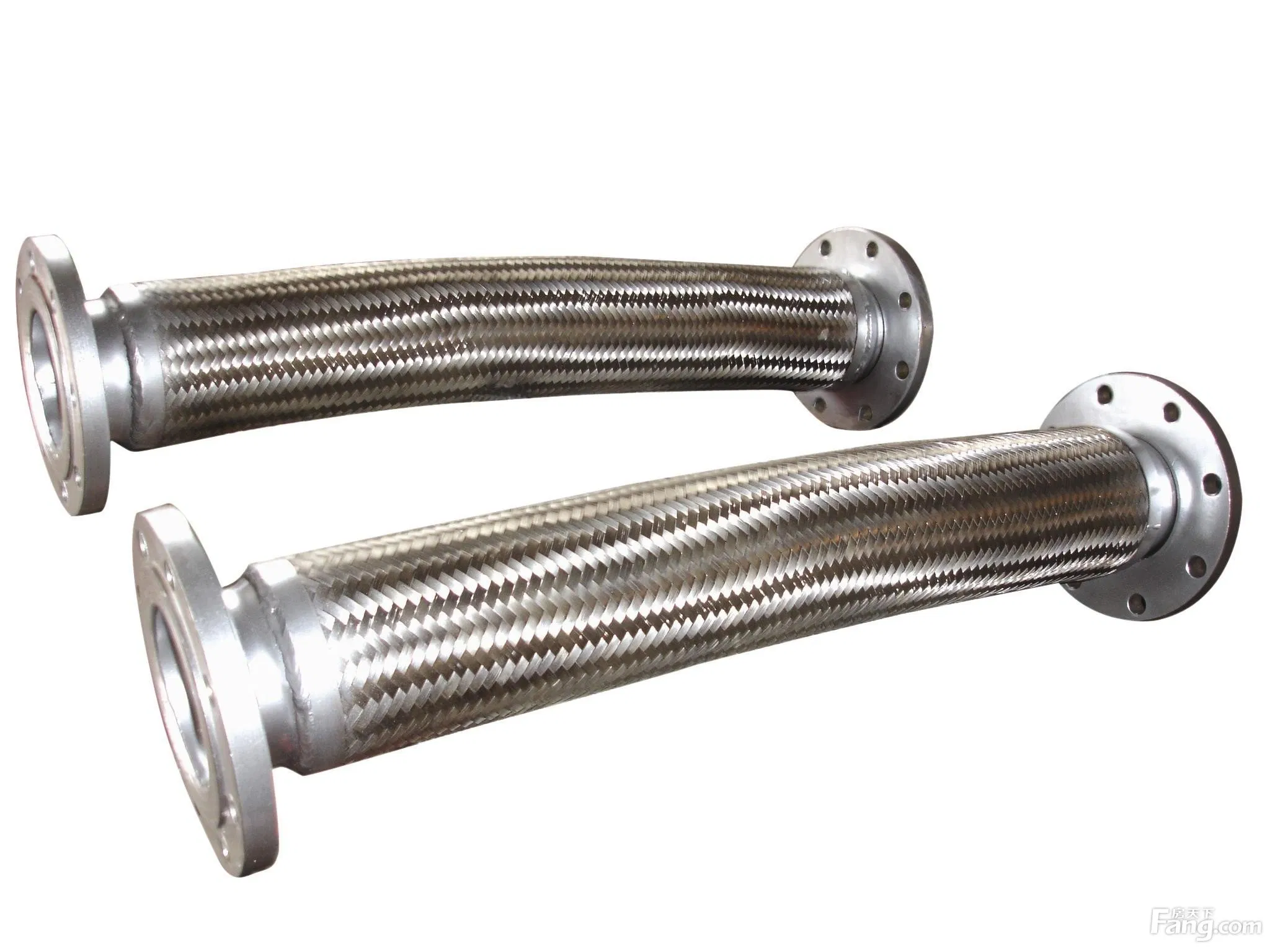

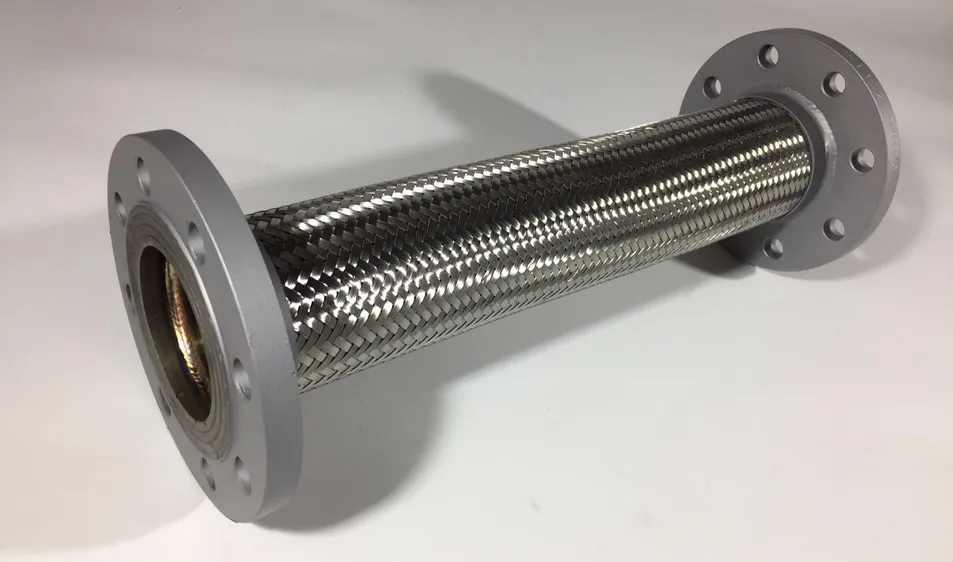

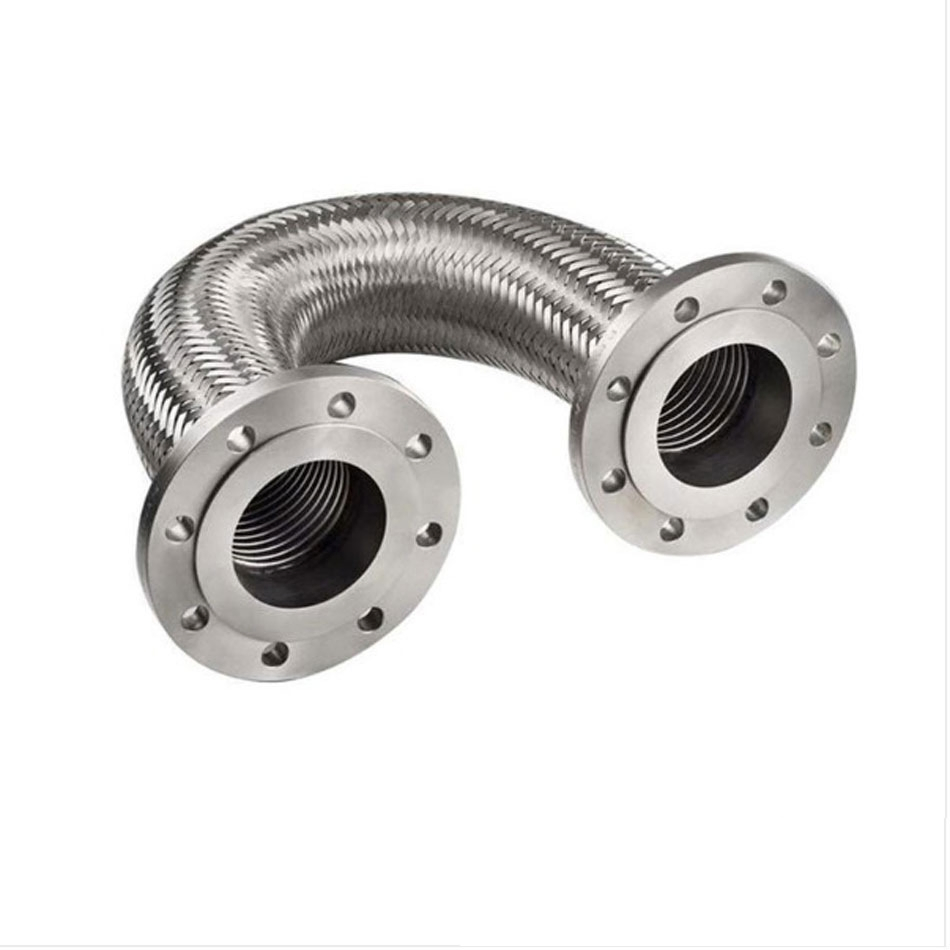

Industrial Metal Hose 316L Stainless Steel Flexible Hose with SS304 Flange for Corrosive Media Applications. Our stainless steel corrugated and braided metal hose is a top-tier choice for industrial fluid transfer, featuring robust SS304/316 construction, multi-layer braiding, and precision-engineered connections.
Designed to tackle vibration, thermal expansion, and misalignment in sectors like chemical, oil & gas, and power, it delivers reliability and longevity that outpaces industry norms.
| Item | Details |
|---|---|
| Material | Hose: SS304, SS316, SS321; Braid: SS304; Fittings: Galvanized Steel/SS304 Flange |
| Size Range | 3/4" to 12" (Custom Length: 0.5m - 20m) |
| Pressure Rating | Working: 10-25 Bar; Burst: ≥30 Bar |
| Temperature Range | -60℃ to 600℃ |
| Standards Complied | GB/T 14525, ASME B31.3 |
| I.D. (mm) | I.D. (In.) | Static MBR (mm) | Dynamic MBR (mm) | Pressure (Mpa) One Layer | Weight (kg/m) |
|---|---|---|---|---|---|
| 25 | 1" | 120 | 280 | 4.0 | 0.85 |
| 50 | 2" | 220 | 550 | 2.5 | 1.75 |
| 80 | 3" | 350 | 800 | 2.0 | 3.12 |
| 100 | 4" | 400 | 1000 | 1.6 | 3.70 |
| 150 | 6" | 600 | 1500 | 1.5 | 6.60 |
| 200 | 8" | 800 | 2000 | 1.2 | 12.00 |
Corrosion Resistance: SS316L core resists harsh chemicals, saltwater, and acidic environments.
Superior Flexibility: Minimum bending radius allows for significant movement and reduces stress.
A: We offer SS304, SS321, and SS316L. SS316L is specifically recommended for highly corrosive media applications.

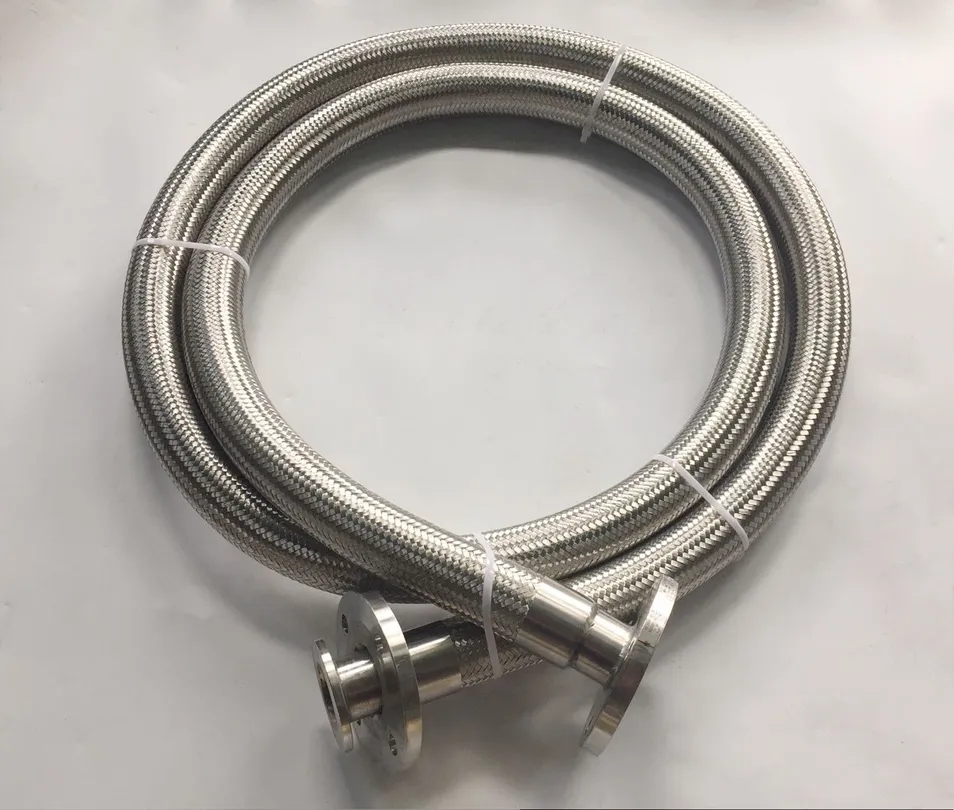

A: Yes, our hoses can handle working pressures up to 40MPa, and we offer single or double-layer braiding for reinforced structural integrity.
A: Our stainless steel metal hoses are designed to operate reliably in temperatures ranging from -60°C to +600°C.
A: Absolutely. We can customize the hose length from 0.5 meters up to 20 meters based on your specific pipeline requirements.

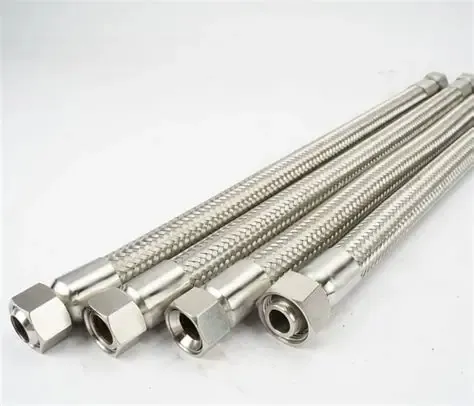

A: We support major international standards including DIN2500, ANSI B 16.5, and JIS B2210-84 for flanges, as well as NPT and BSP threads.
A: The standard lead time for production and processing is approximately 25 days, depending on order volume and customization.
