Customized Filling Needle Solutions with 316L Stainless Steel and CNC Milling

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Overview & Basic Information

Model NO.

Y2663

Condition

New

Certification

ISO9001, ISO 13485

Standard

Material

Stainless Steel 316L

Application

Metal Processing Machinery Parts

Secondary Processing

Sandblasting Scale

Processing

Grinding Machine / CNC Milling

Appearance

Electropolishing Passivation

Transport Package

Vacuum Packaging Cardboard Box

Specification

200*250*400

Production Capacity

51,000 pieces/Year

📦 Packaging & Delivery

Package Size

30.00cm * 25.00cm * 15.00cm

Gross Weight

20.000kg

🛠️ Product Description

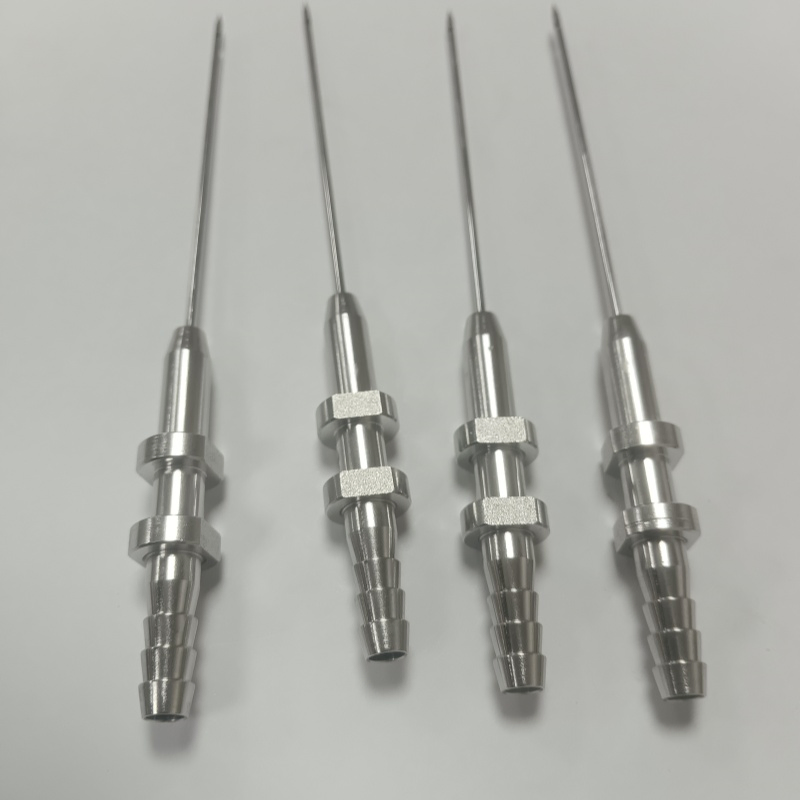

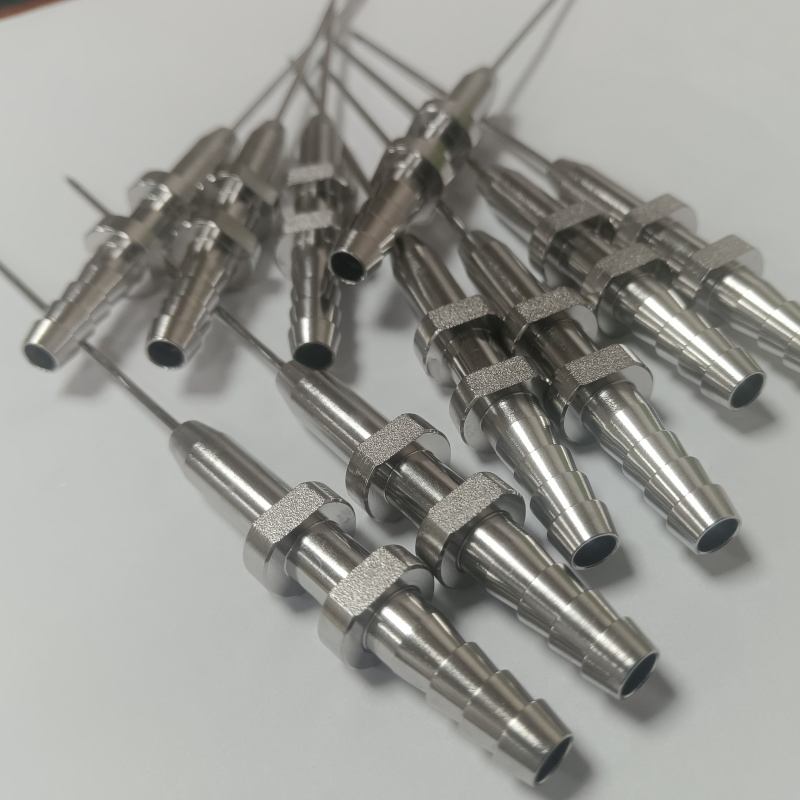

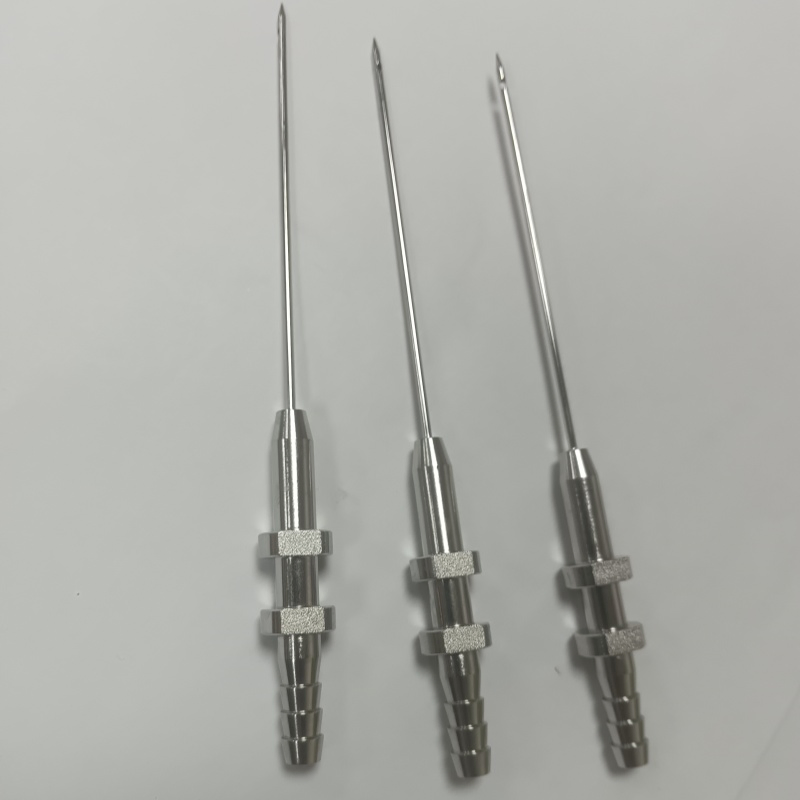

Customized Filling Needle Solutions with 316L Stainless Steel and CNC Milling

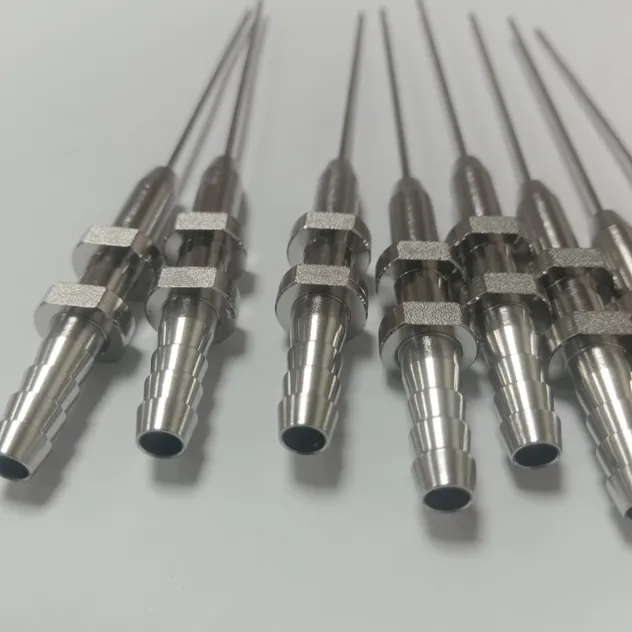

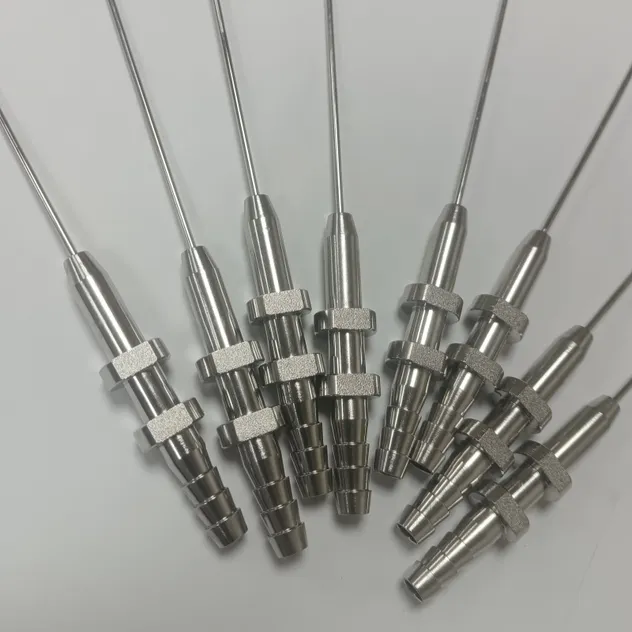

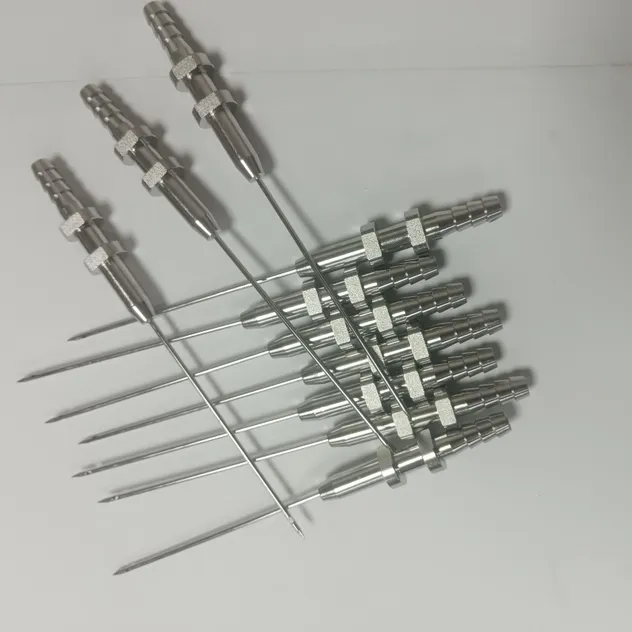

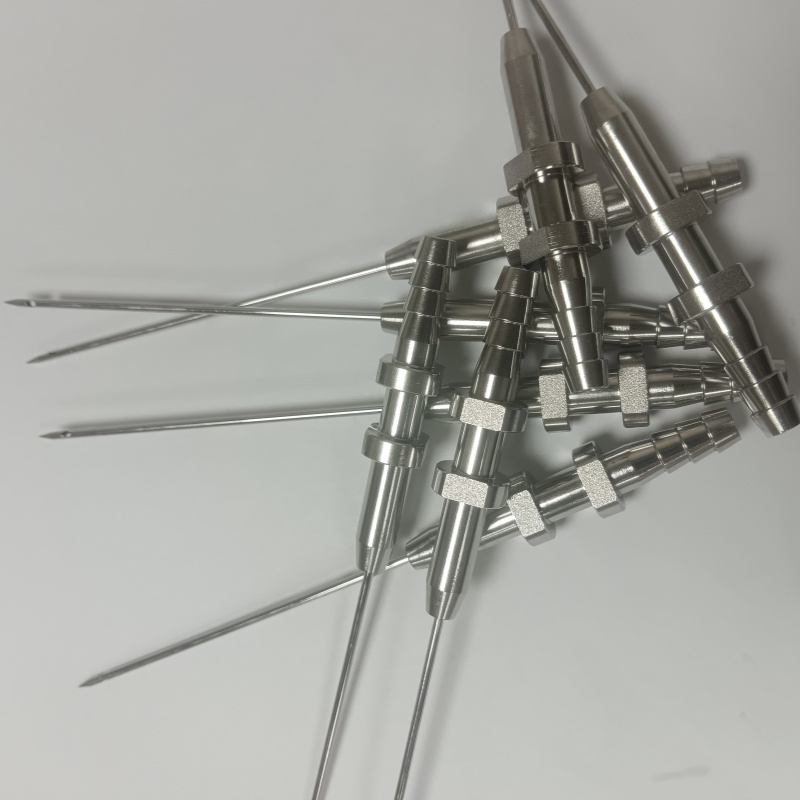

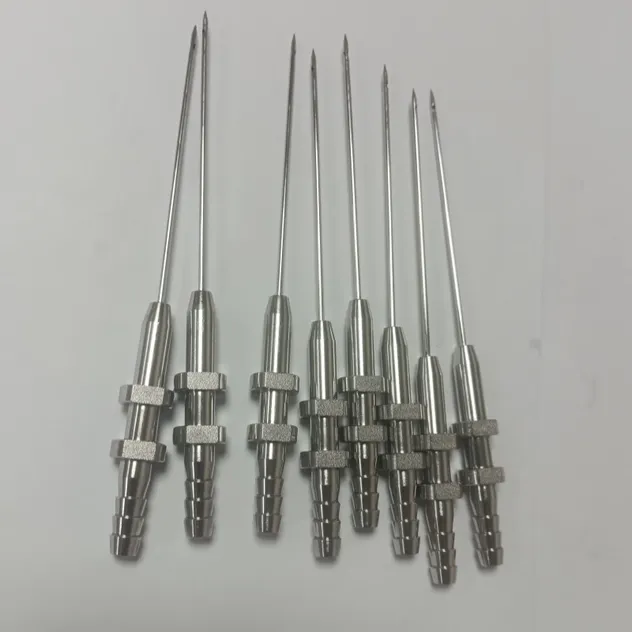

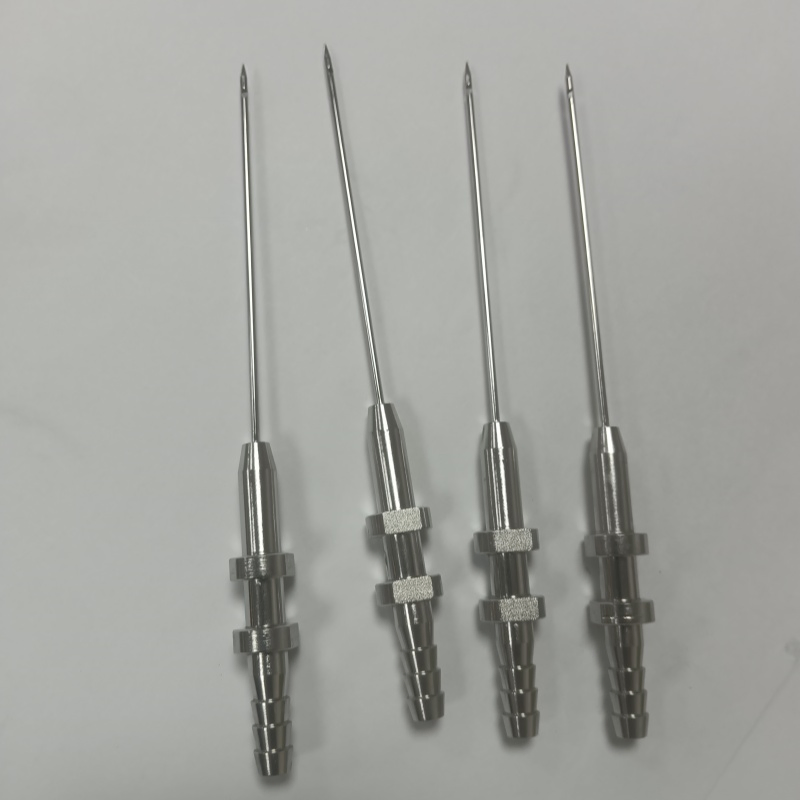

The 316L Stainless Steel Capillary Tubing Medical Component CNC Milled Filling Needle is a precision-engineered instrument for sterile transfer, dispensing, or micro-dosing of liquids in medical and lab settings. Using 316L stainless steel capillary tubing, it undergoes CNC milling for a robust needle with a precise tip, controlled lumen, and custom features. Designed for high corrosion resistance, biocompatibility, and performance with sensitive fluids.

⚙️ Product Processing Workflow

Material Preparation: Selection of certified 316L stainless steel capillary tubing.
Precision Tip Machining: CNC Milling/Grinding for sharp beveled points or blunt polished ends.

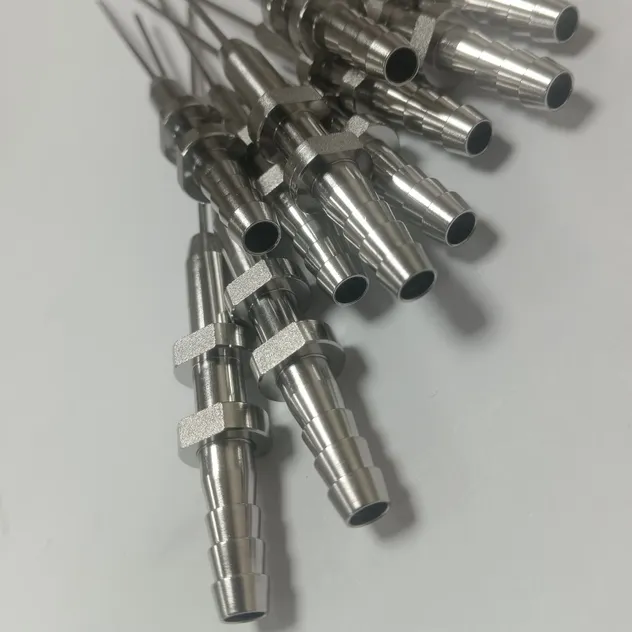

Body/Feature Milling: Machining of flats, grooves, and mounting features.
Integration: Hub fabrication and attachment via laser welding or press-fitting.
Internal Lumen Polishing: Electropolishing internal bore to Ra ≤ 0.2 µm.
Surface Finishing: Passivation for enhanced corrosion resistance.
Cleaning: Ultrasonic cleaning and sterilization validation (Gamma or EtO).

📊 Technical Parameters

Category	Feature	Specifications
Material	Primary Material	316L Stainless Steel Capillary Tubing (ASTM A269). ISO 10993 compliant.
Needle Tip	Tip Types	Sharp Bevel (Hypodermic), Blunt/Polished (Cannula), Side-Bore/Deflected.
Specifications	Outer Diameter (OD)	0.5 mm (25G) to 2.0 mm (14G).
Specifications	Inner Diameter (ID)	Customizable: 0.2 mm to 1.5 mm.
Surface Finish	Internal Lumen	Electropolished to Ra ≤ 0.2 µm. Prevents protein adhesion.
Tolerances	Critical Dimensions	OD/ID: ±0.02 mm; Length: ±0.1 mm.
Compliance	Sterilization	Validated for Gamma Irradiation and Ethylene Oxide (EtO).

🏢 Manufacturing Capabilities

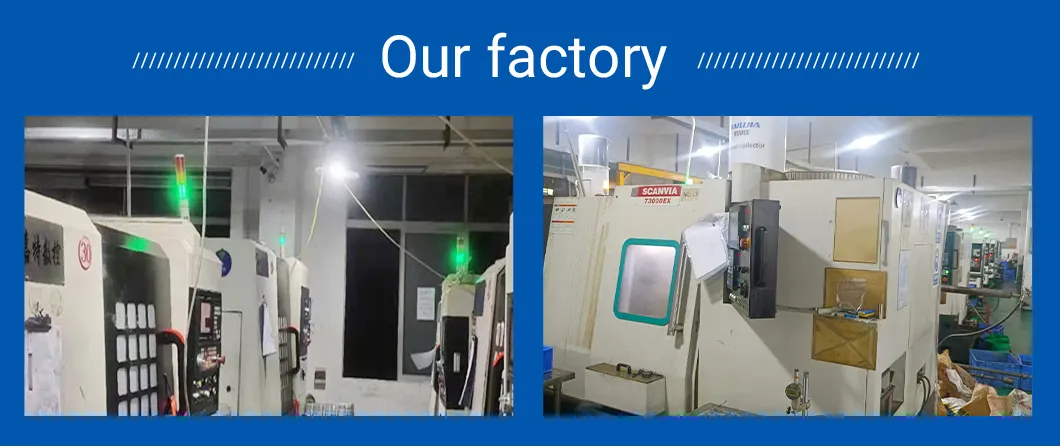

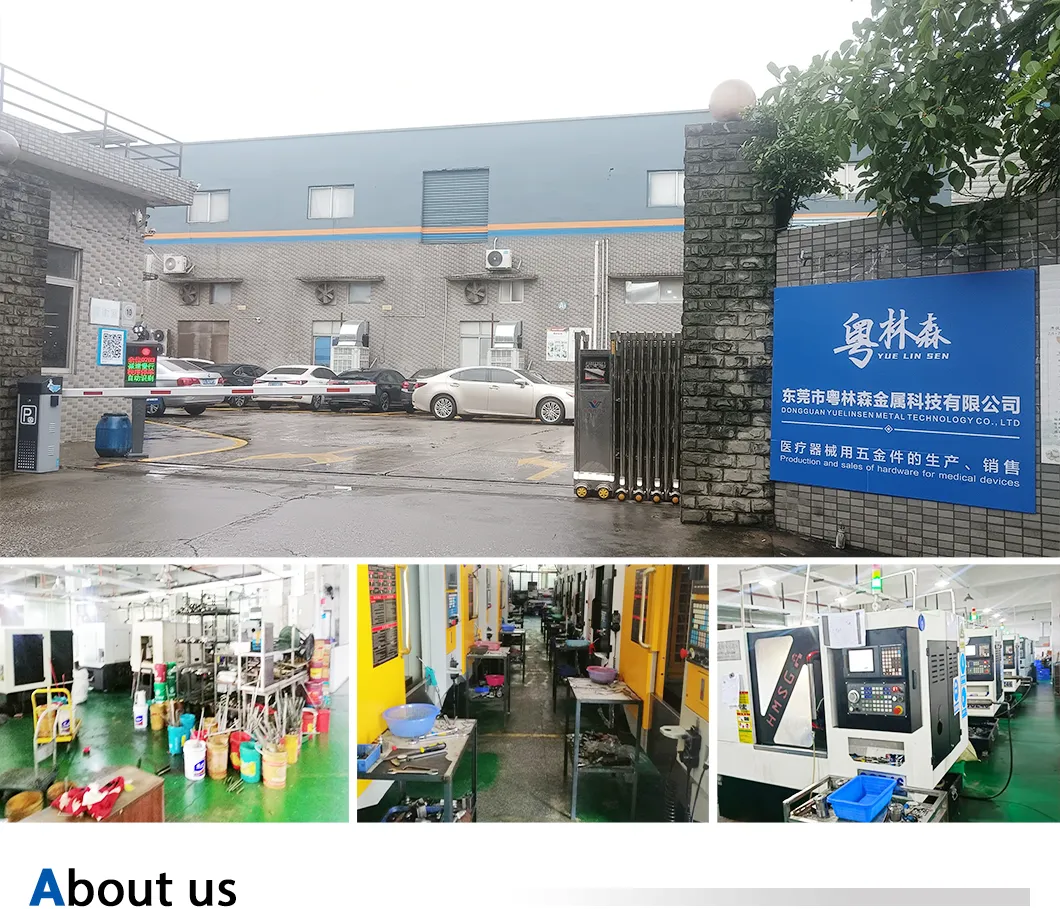

Our facility has obtained the GB/T 19001-2016/ISO 9001:2015 quality system certification and GB/T 42061-2022/ISO 13485:2016 medical device quality system certification. We focus on the research and production of non-standard metal medical device precision parts. Equipped with dozens of high-precision engraving lathes, CNC numerical control centering machines, and automatic lathes, we provide secondary processing for stainless steel capillary tubes and thin-walled tubes.

🌟 Product Advantages

Our core strength lies in the combination of medical-grade 316L material and advanced CNC milling processes. This allows for the creation of complex, integrated components beyond simple cut-and-polished needles. With a dedicated R&D team of senior engineers, we ensure each product meets the strict precision requirements of the medical device industry, providing high-precision customization for various fluid path requirements.

📜 Quality Certifications

Frequently Asked Questions

What materials are used for these medical needles?

We primarily use 316L Stainless Steel (Low Carbon, ASTM A269) for its superior corrosion resistance and ISO 10993 compliant biocompatibility.

Can the needle tips be customized for specific applications?

Yes, we offer multiple tip geometries including Sharp Bevel (Hypodermic), Blunt/Polished (Cannula), and Side-Bore or Deflected tips for specific flow directions.

What is the surface roughness of the internal lumen?

The internal lumen is electropolished to a surface finish of Ra ≤ 0.2 µm, which ensures smooth fluid flow and prevents protein adhesion.

Are these needles compatible with standard sterilization methods?

Yes, our needles are validated for both Gamma Irradiation (25 kGy) and Ethylene Oxide (EtO) sterilization processes.

What quality standards do you follow?

We are certified under ISO 9001:2015 for general quality management and ISO 13485:2016 specifically for medical device quality systems.

What is the typical lead time for custom prototypes?

As an industry-integrated manufacturer, we specialize in rapid prototyping and batch production. Please provide your drawings for a specific timeline evaluation.
