| PRODUCT INFORMATION | |
|---|---|

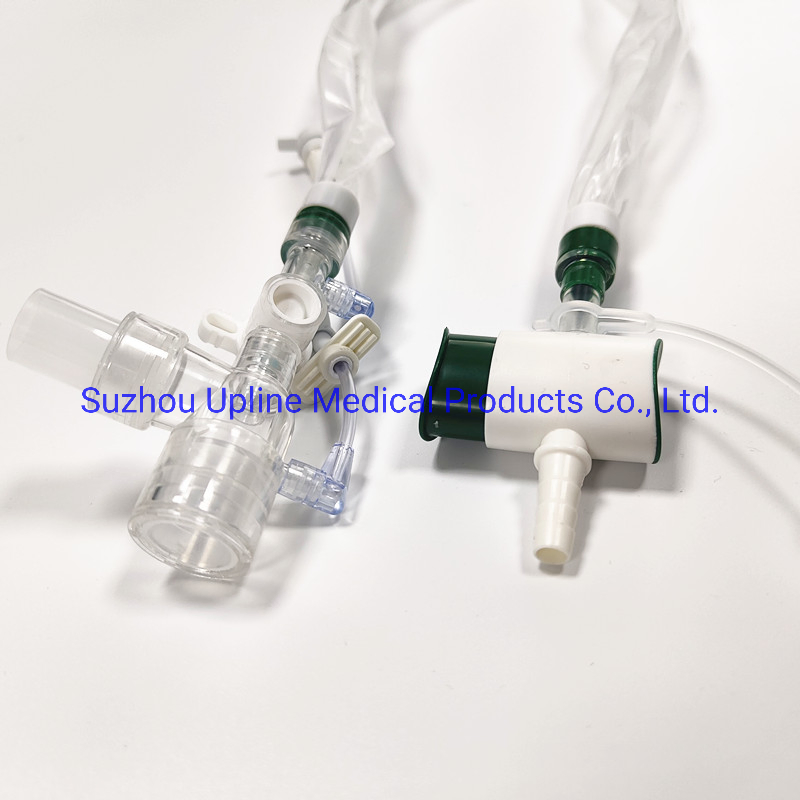

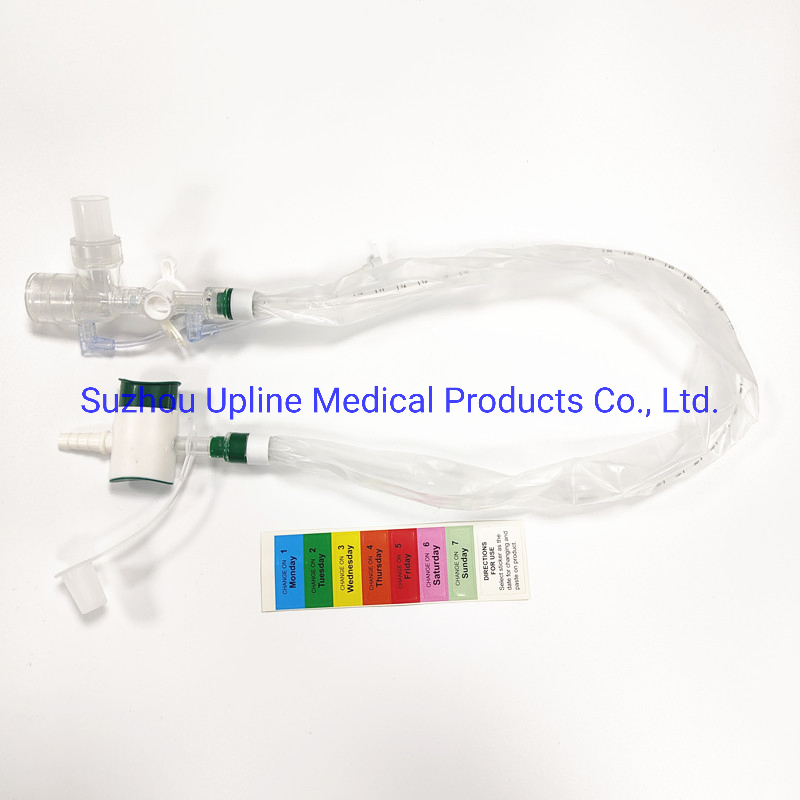

| Name | Closed Suction System with Lock/Swivel Adaptor |
| Size | 4.67mm(14F)X550mm |
| Material | PVC |

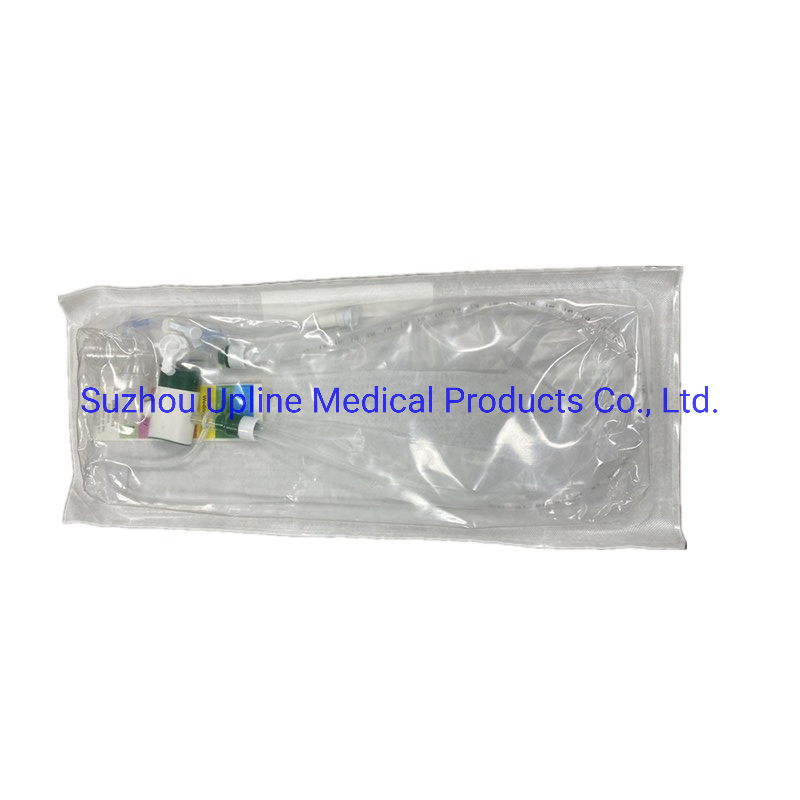

| Packing | Individual Pack |
| Certificate | CE/ISO13485 |
| Function | Suction System |
| OEM Service | Available |
1. Remove Closed Suction System from pouch.

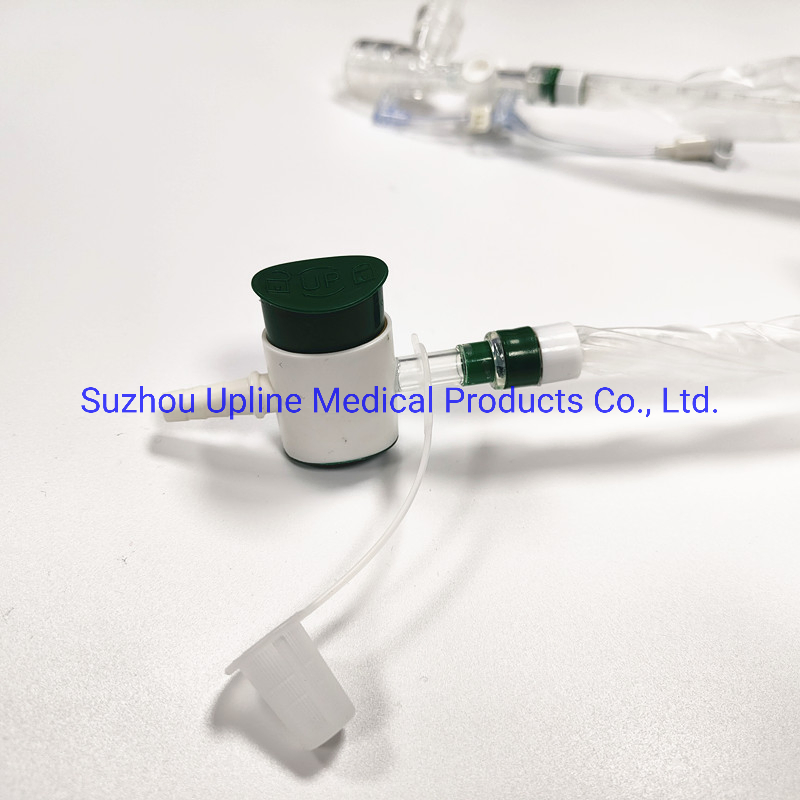

2. Attach Control Valve to vacuum source through suction tube.
3. Depress Control Valve and set the suction flow at desired level.

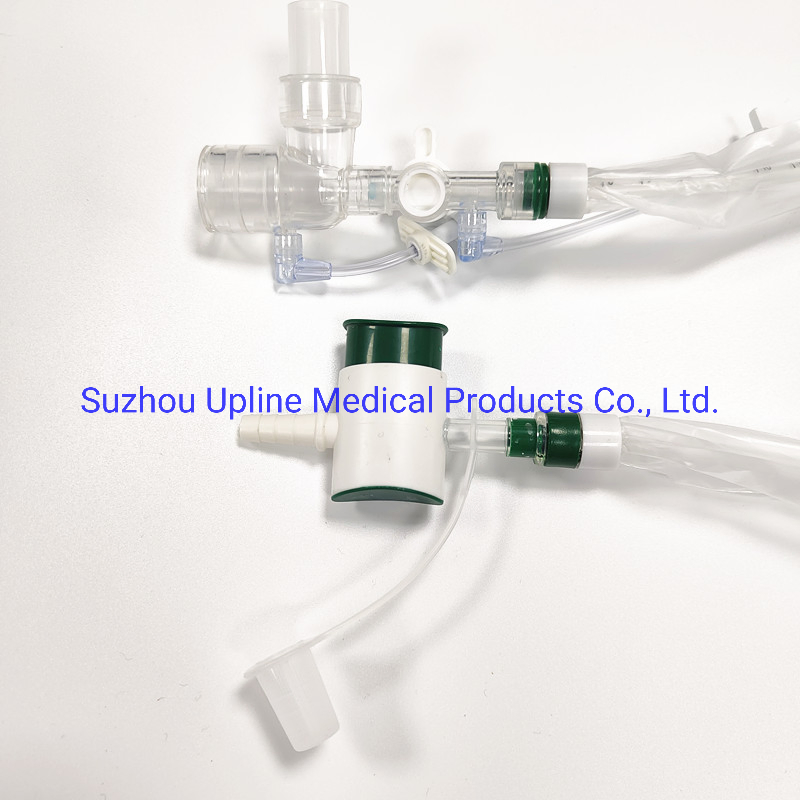

4. Connect the Swivel Adaptor to Endotracheal tube or Tracheostomy tube.
5. For patients with ventilator circuits, attach ventilator socket to the 15-Male port on the swivel adaptor, ensuring Irrigation and Lavage ports are closed.
6. Attach proper date sticker to Control Valve.
7. Dispose of Closed Suction System after 24 hours.
1. Grip Swivel Adaptor with one hand, and insert catheter into tube with thumb and forefinger to desired depth.
2. Depress Control Valve intermittently to apply suction.
3. If secretion is thick, inject distilled water or 0.9% saline through Lavage port for dilution.
4. Withdraw catheter slowly with suction activated until Black Marking is fully visible in the sleeve.
5. Flush catheter by injecting solution through Irrigation port.
6. Turn Thumb piece 180° to lock position for safety.
• Do not use more than 24 hours.
• Do not resterilize.
• Use date sticker to identify replacement date.
• If plastic sleeve is broken, replace immediately.
