Basic Specifications
Water Control
Water Storage
Anchor Method
Single and Double
Bolt Material
Carbon Steel, SUS304
Gate Panel Material
Stainless Steel, Carbon Steel
Product Information
| W.P. Range | 0.7-2 bar | Control System | Manual and Automatic |
| Key Parts | Air Bladder | Gate Panel Thickness | 16-26mm |
| Height Range | 1-6m | Outer Rubber | EPDM |
| Inflate/Deflate Time | 30-60 mins | Layers | NN and Aramid |

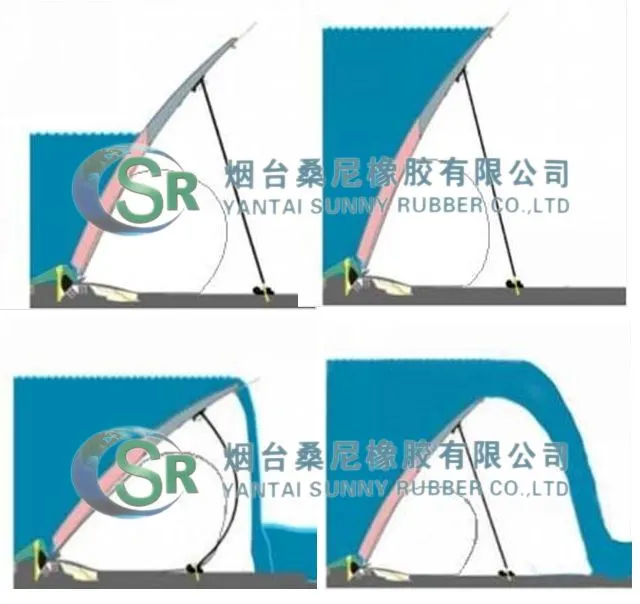

Operation Principle

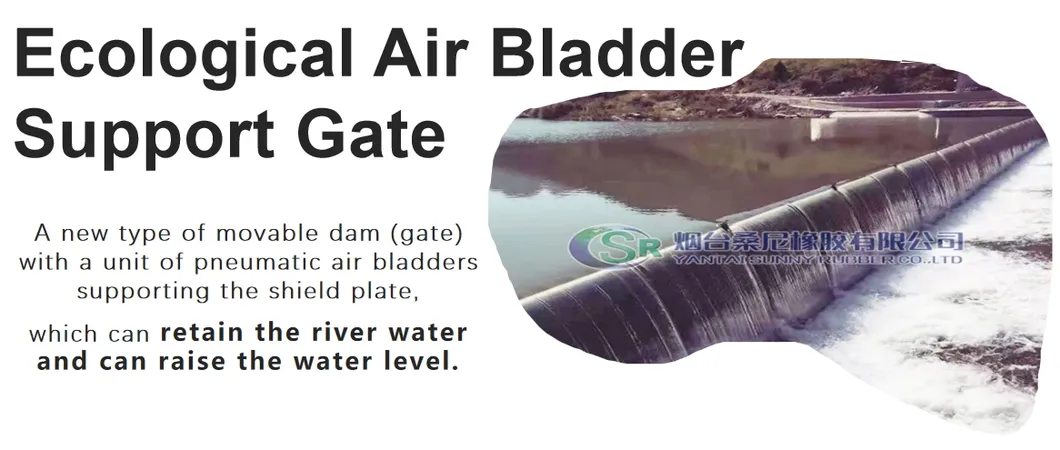

- Raising Dam: The air bag is inflated to support the water shield plate to realize the water storage operation.

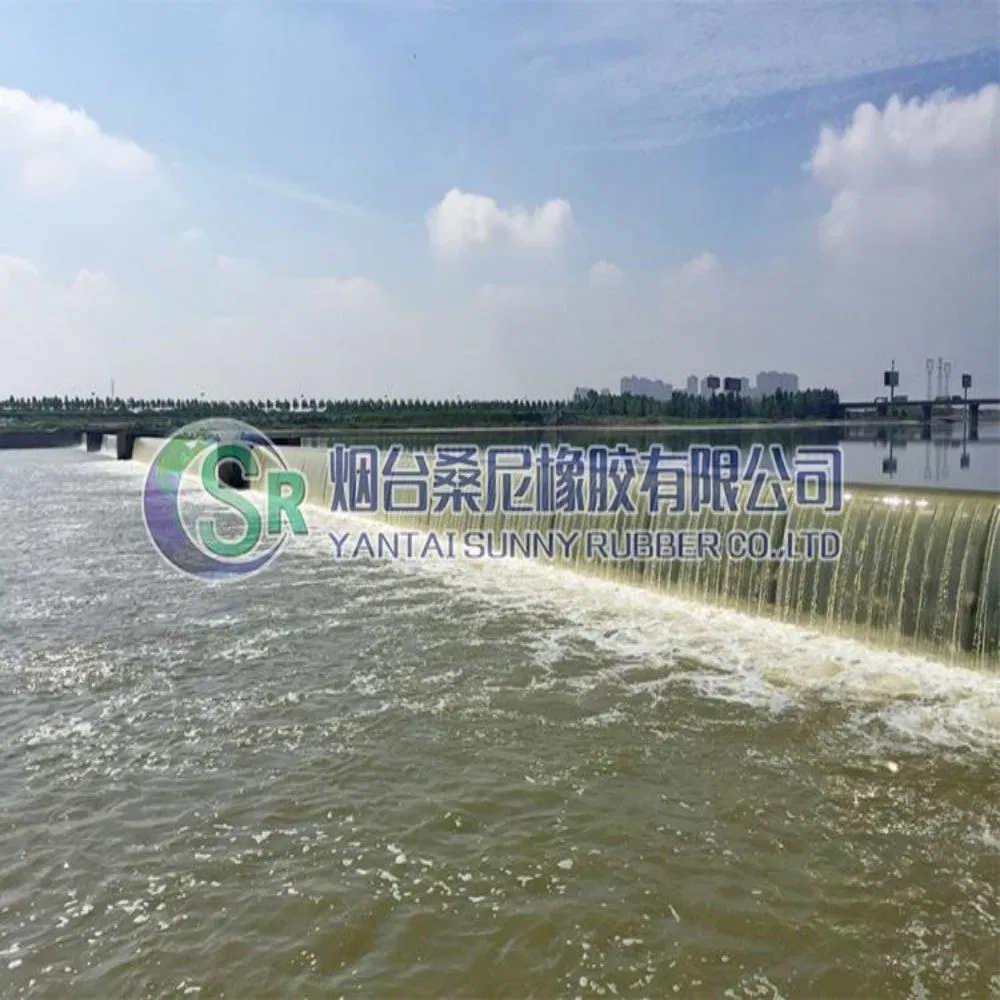

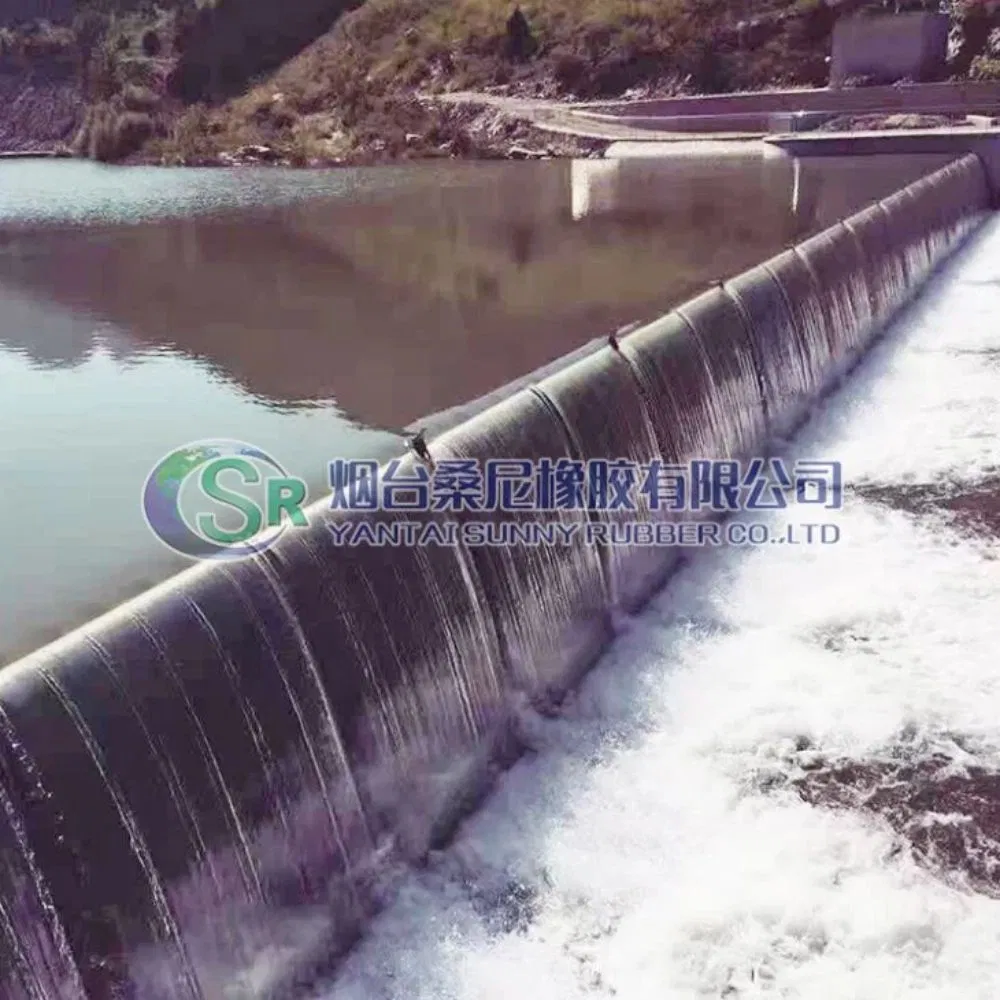

- Overflow: When water level exceeds the gate panel height, flow crosses the panel; air bladder and support systems are hidden safely underneath.
- Height Adjustment: Support angles are managed by adjusting inflation pressure to control required water retaining height.
- Dam Collapse: By discharging the air bladder, the gate lies flat on the riverbed, protected from sharp floating objects.
- Dual Control: All operations are equipped with manual and automatic "dual control" systems.

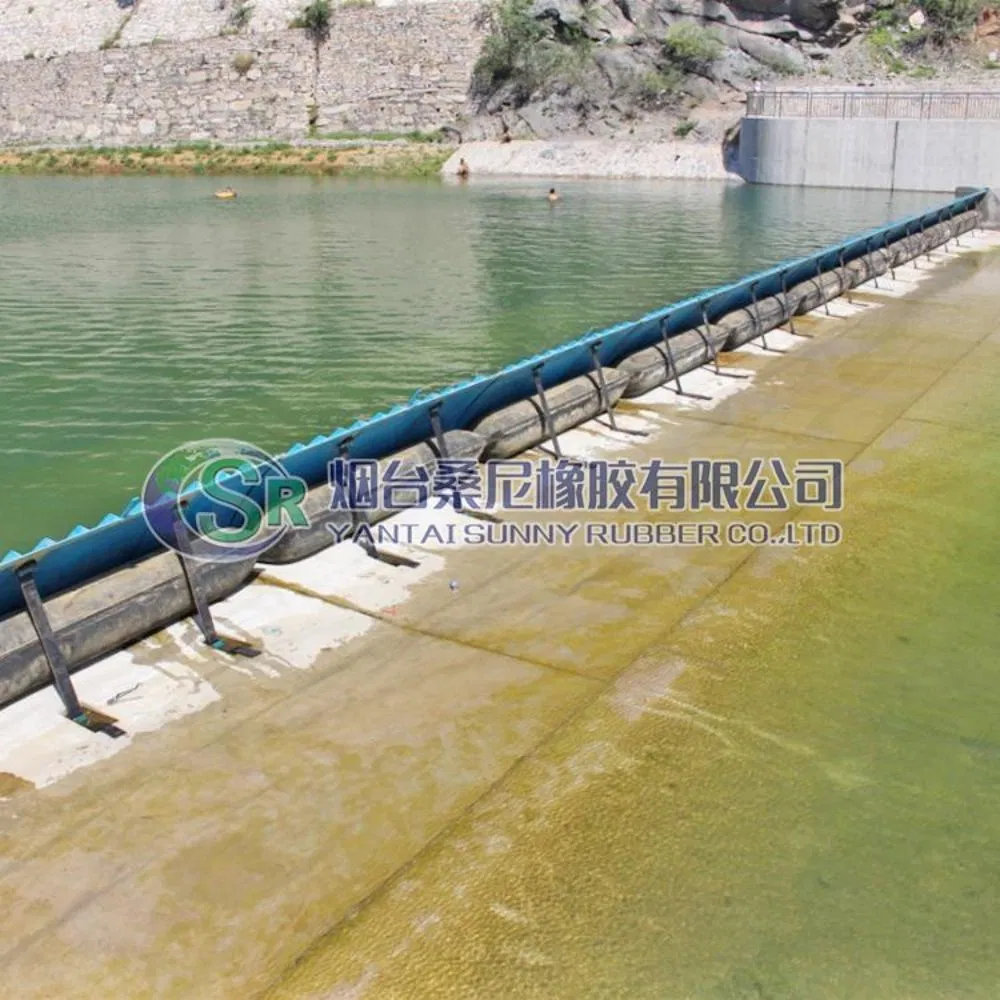

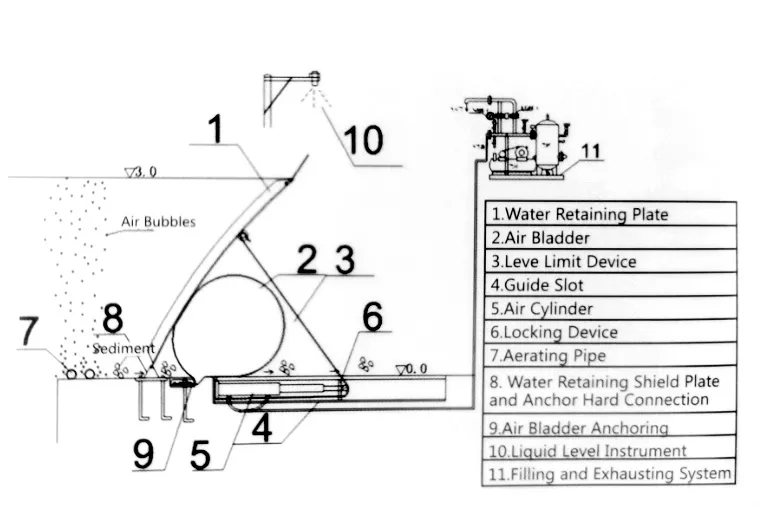

Structure & Key Features

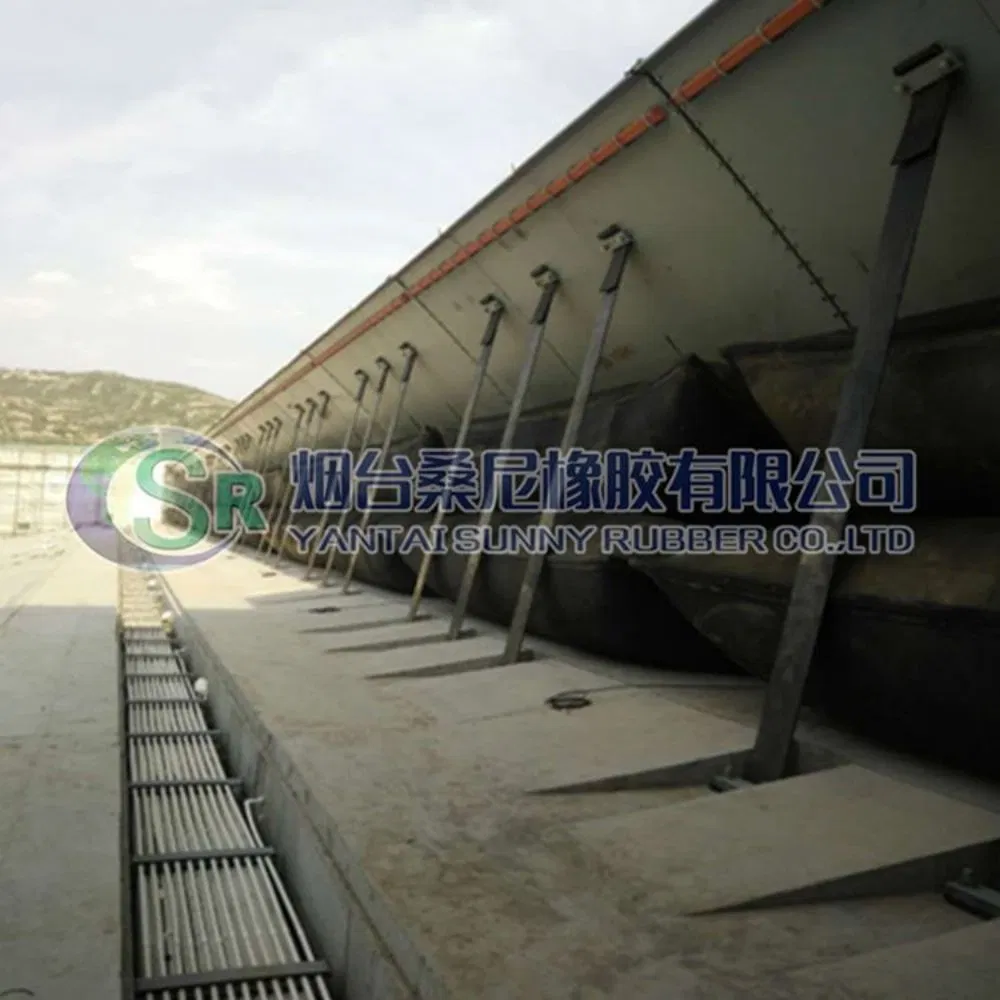

The ecological spillway gate includes water retaining gate panels, air bladders, connection strips, hinge flap connection strips, control systems (pneumatic and electric), and anchoring systems. It features gate height adjustment, aeration devices to remove sediment, and biological channels for environmental protection.
Detailed Components

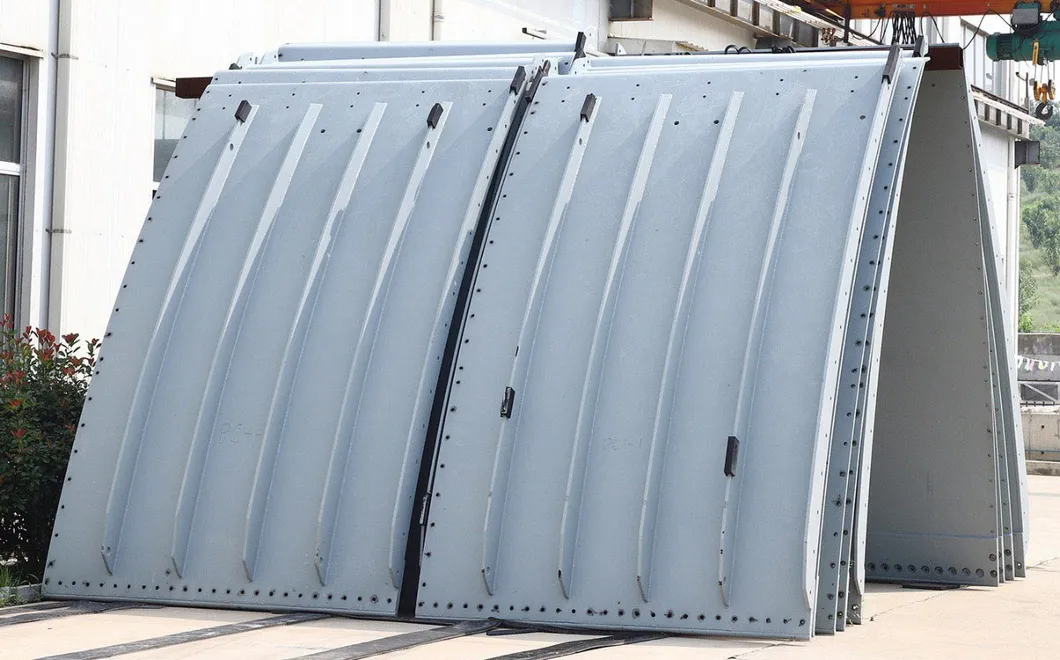

Gate Panel
Material: Stainless steel, carbon steel
Structure: Made of steel panel above 16mm thickness, arc, reinforced ribs on the surface.
Corrosion Protection: Thermal spray zinc and seal coating or polyurea material.

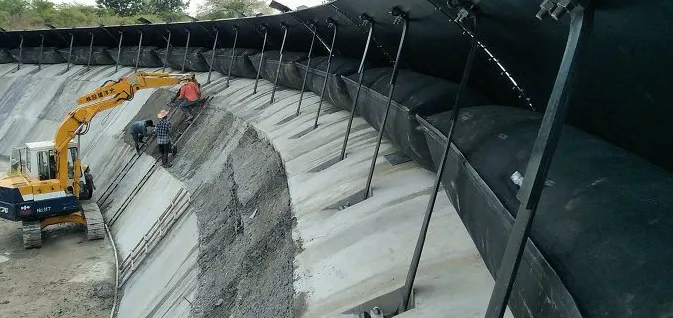

Air Bladder
Material: Made of tyre fabrics and special rubber.
Performances: W.P. 0.07-0.20MPa, designed pressure 1.0MPa, safety factor 8-10 times, EPDM outer layer, aging resistant over 30 years.

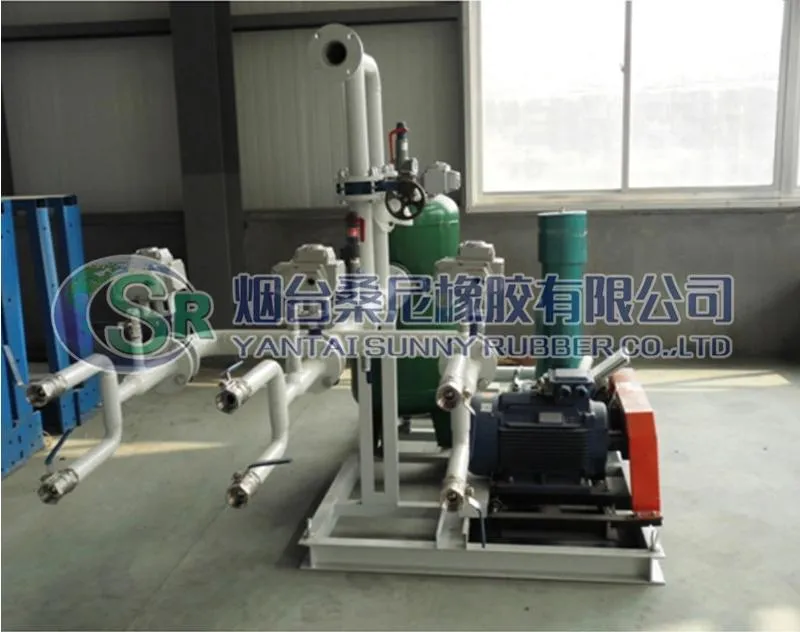

Intelligent Control System
- Real-time dynamic display of operation status.
- Intelligent fault alarm for easy repair.
- One-key start-stop simple operation.
- Mobile App monitoring and remote unmanned control available.

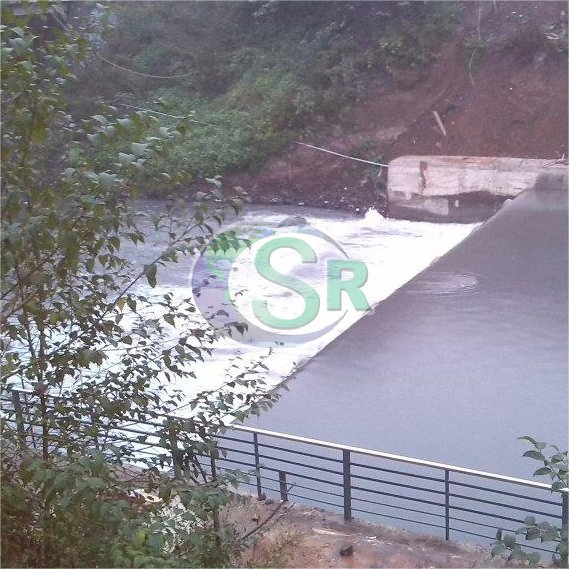

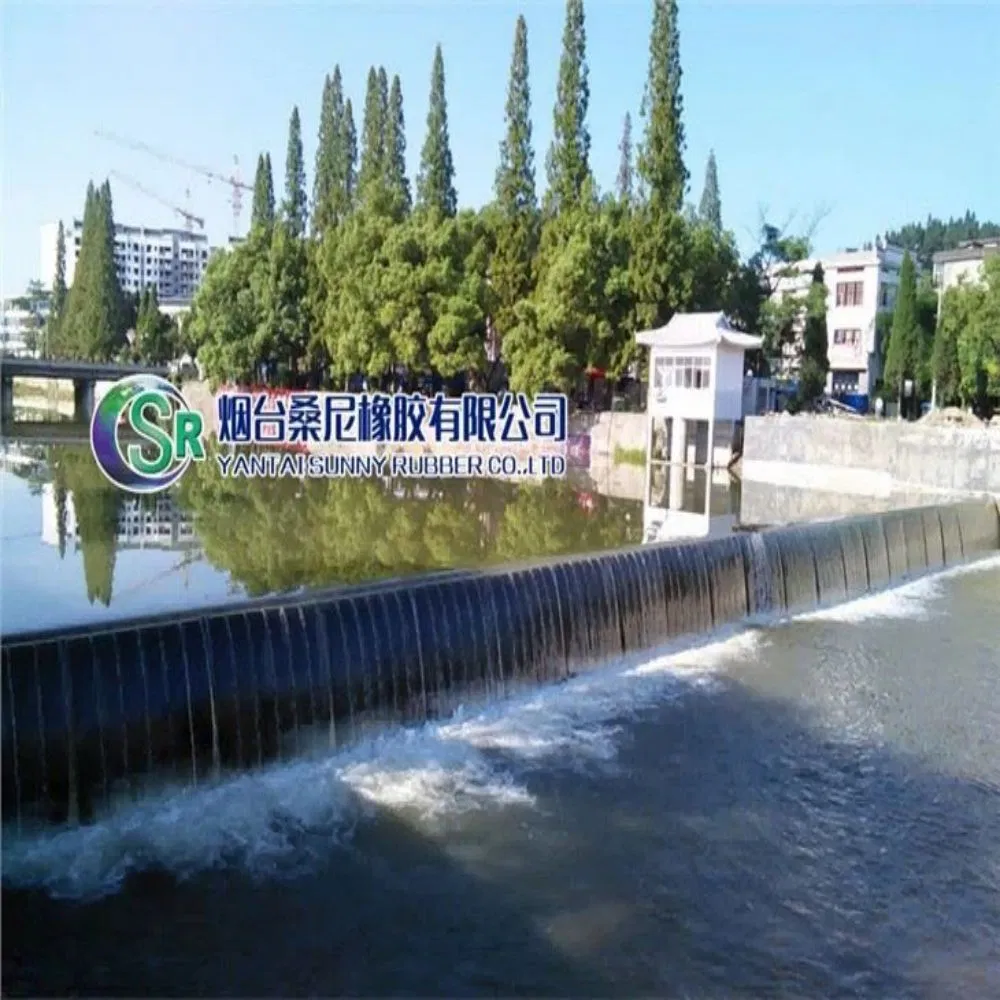

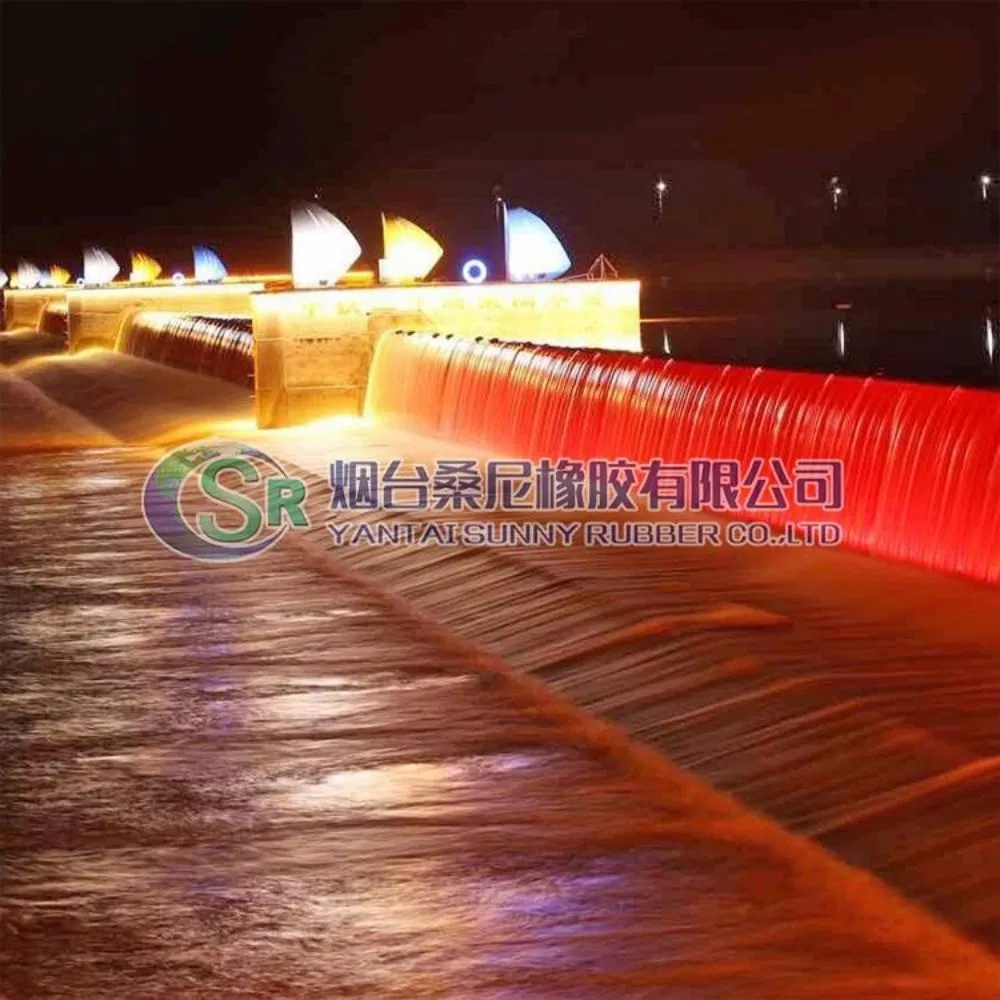

Successful Projects

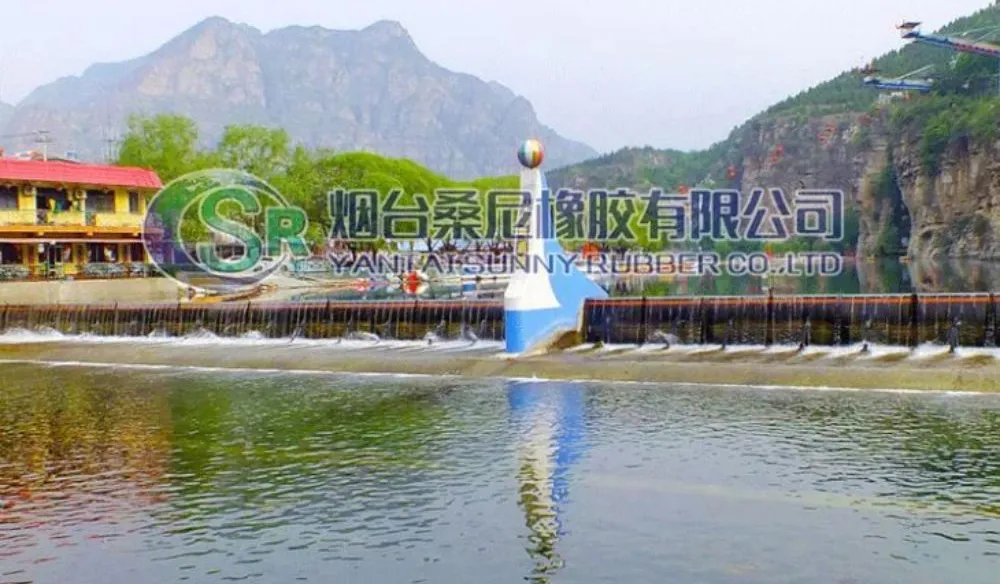

Shidu Steel Rubber Gate
Address: Beijing
Spec: 2 span, 2.1m height, 60m length
Xianyang Lake Phase II
Address: Shaanxi
Spec: 4 span, 4m height, 300m length
Yangling Flood Control
Address: Shaanxi
Spec: 5 span, 3.5m height, 450m length
Jinggangshan Gate
Address: Jiangxi
Spec: 1 span, 2.5m height, 55m length

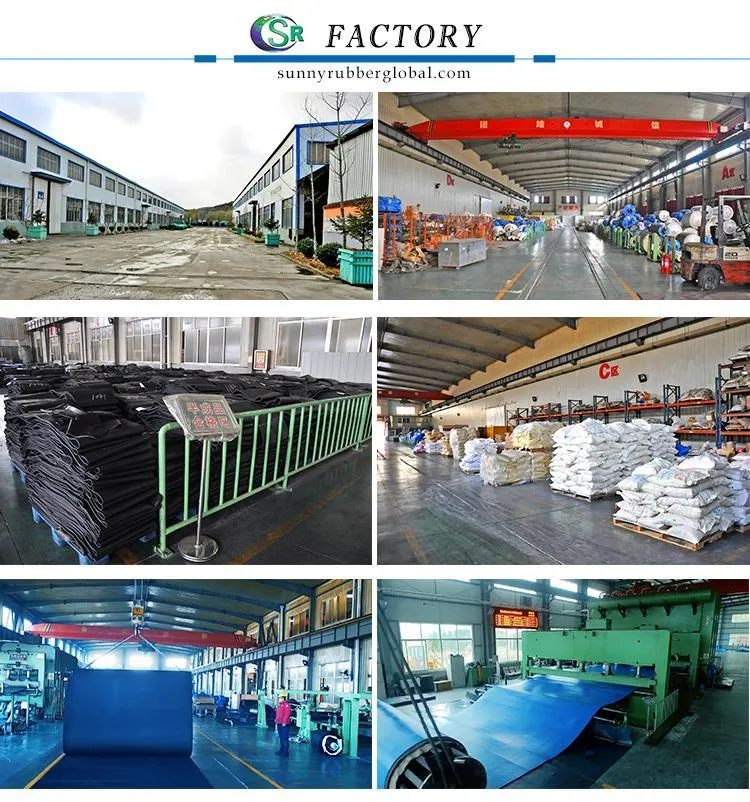

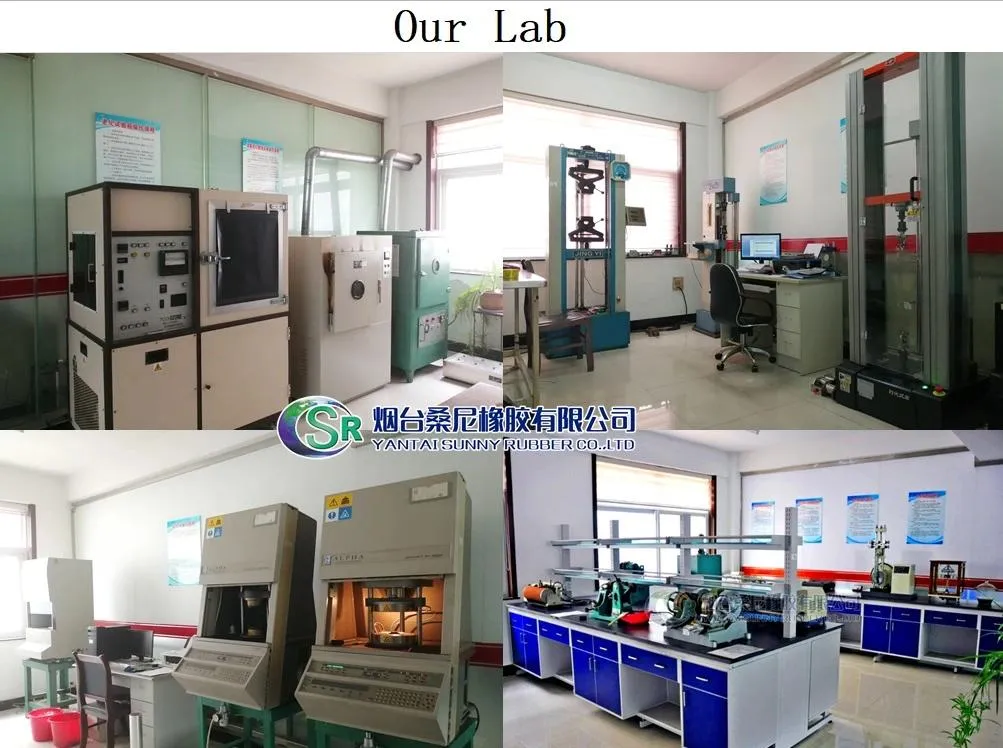

Factory & Production
Frequently Asked Questions
Q: What is the expected service life of the spillway gate?
A: The system is designed for a service life of approximately 30-50 years.
Q: What materials are used for the clamp plate and bolts?
A: Clamp plates are available in cast steel, carbon steel, and stainless steel. Bolts are typically made from carbon steel or SUS304.
Q: How many patents support this technology?
A: There are more than 30 patents including 11 for invention and 18 for utility.
Q: What is the maximum height and span of these gates?
A: Gates can be designed to meet requirements of 1-6m in height and spans typically ranging from 1m to 100m.
Q: Can the gate be installed on existing foundations?
A: Yes, it can be directly reconstructed on old foundations such as rubber dams or concrete flap dams, reducing project costs.
Q: What is the safety factor for the air bladder?
A: The air bladder is designed with a safety factor of 8-10 times the working pressure.
