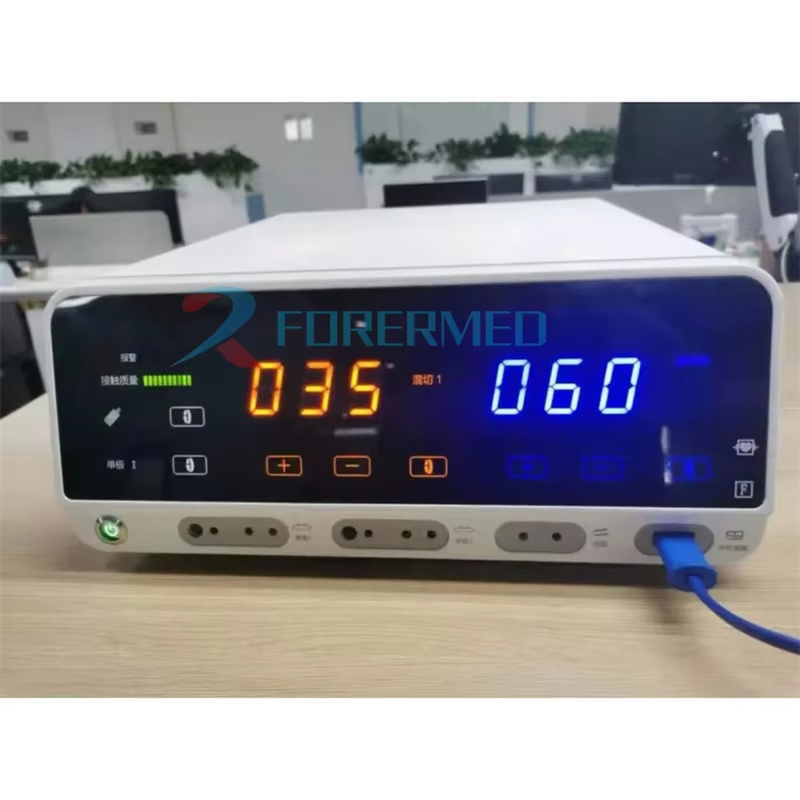

Electrosurgical Unit Surgical System (Plasma) Electrosurgical Generator Portable Electrotome Knife

Customization: Available
Certification: CE, ISO13485
Instrument Classification: Class II

Product Description

Basic Specifications

Model NO.:YJ-E800B
Power Source:Electricity
Shelf Life:1 year
Quality Certification:CE
Safety Standard:En 149 -2001+A1-2009
Name:High-Frequency Electrosurgical Unit (ESU)
Application:Surgical Operation
Working Frequency:300kHz
Input Power Voltage:220 Volts, 50Hz
Packing Size:56*50*30cm
Gross Weight:8kg

Product Description

A high-frequency electrosurgical instrument designed to replace the mechanical scalpel for tissue cutting. It heats up the tissue by contacting the body with high-frequency and high-voltage current generated by the tip of the electrode to achieve separation and coagulation of body tissue, facilitating cutting and hemostasis.

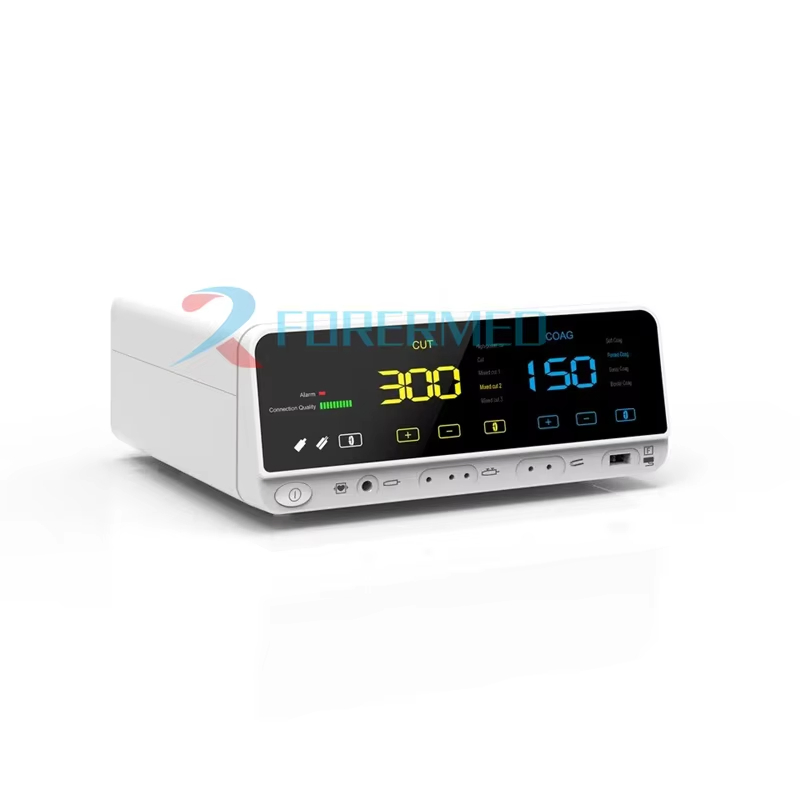

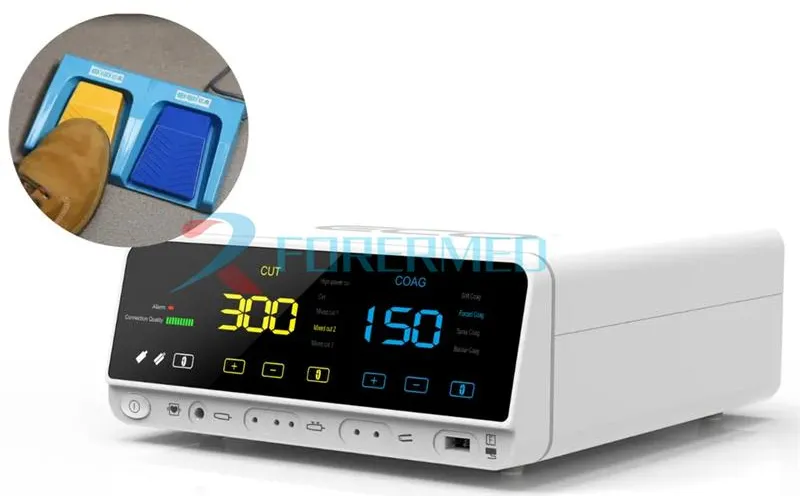

High-frequency Electrosurgical Unit YJ-E800B

Key Features

  • Automatic control technology with accurate and fast adjustment of parameters.
  • Superior operation visual field with reduced smoke and smell during procedures.
  • People-oriented low-risk design with comprehensive monitoring systems to ensure safety.

Applicable Departments

General surgery, orthopedics, obstetrics and gynecology, urology, cardiothoracic surgery, anorectal surgery. Also available in Neurosurgery, microsurgery, ENT, and plastic surgery under low power mode. Compatible with endoscopes, laparoscopes, and cystoscopes for minimally invasive surgery.

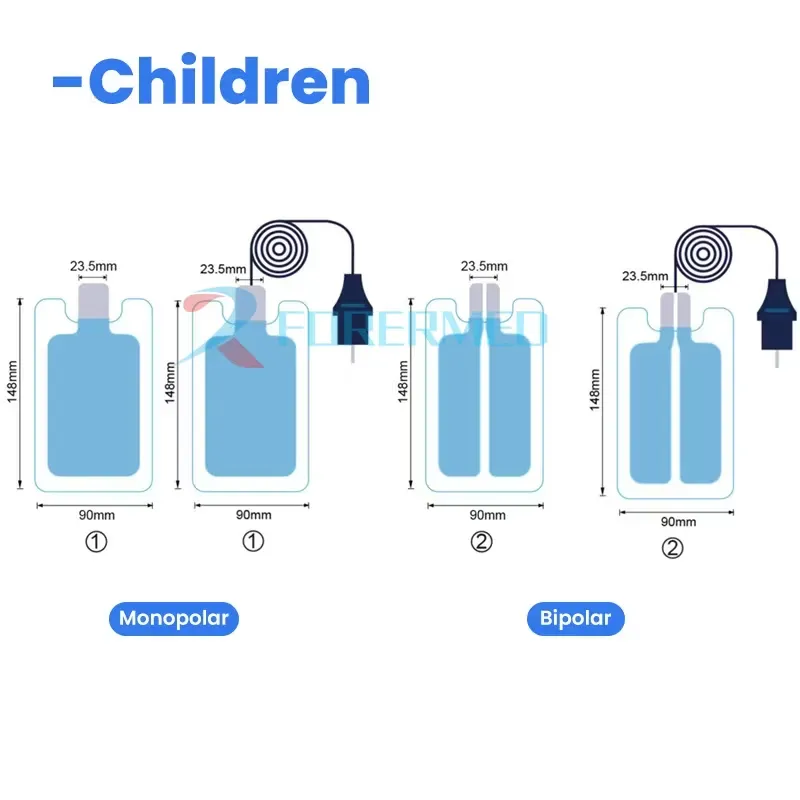

ESU Detail 1

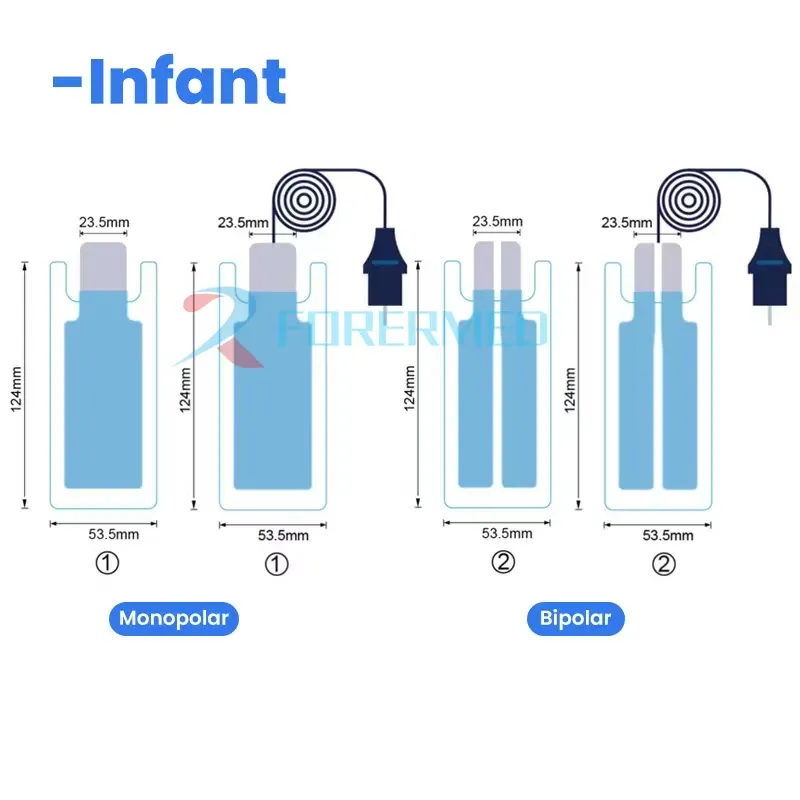

ESU Detail 2

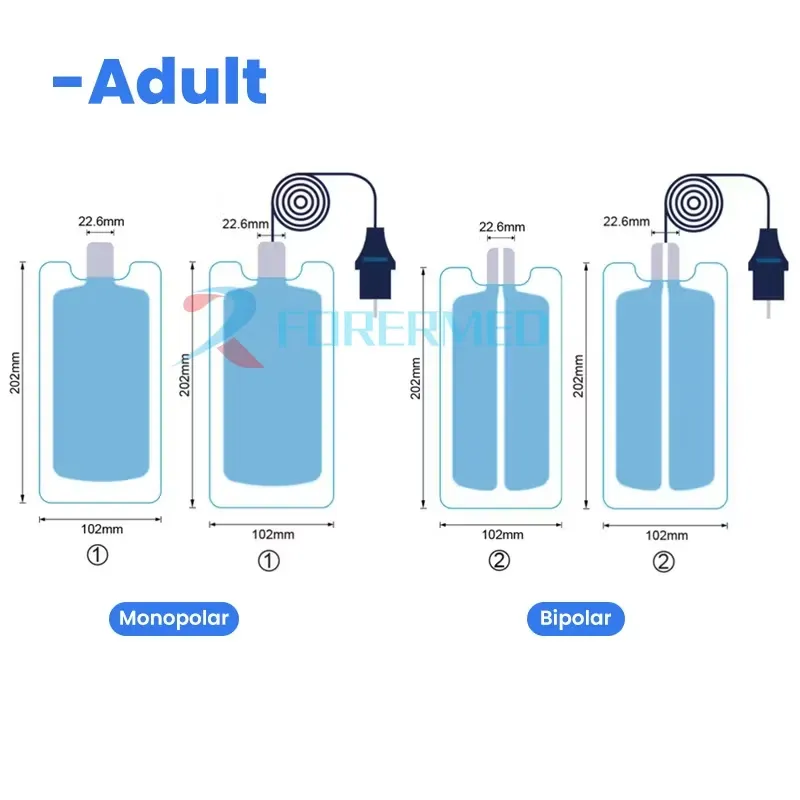

ESU Detail 3

Technical Specifications

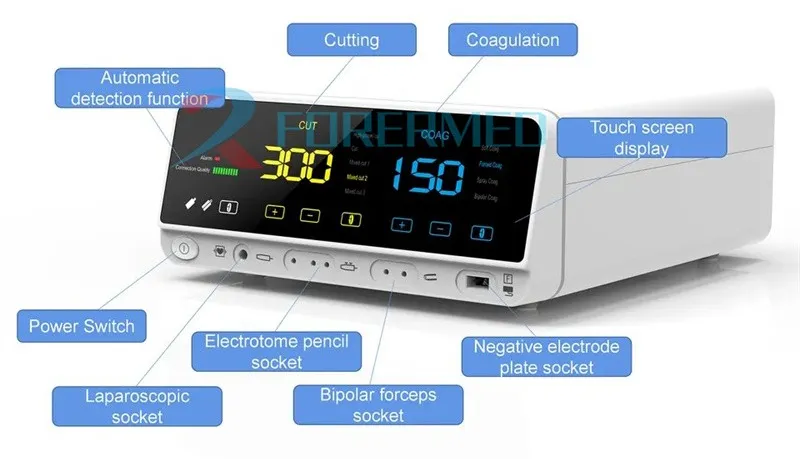

Technical Specifications Chart
Technical Parameters
Input Voltage100-240V
Input Frequency50/60Hz
Working Frequency512KHz, 300KHz
Working ModesHigh cut, pure cut, blended cut, endoscopically cut, soft coagulated, forced coagulated, jet coagulated, bipolar coagulated

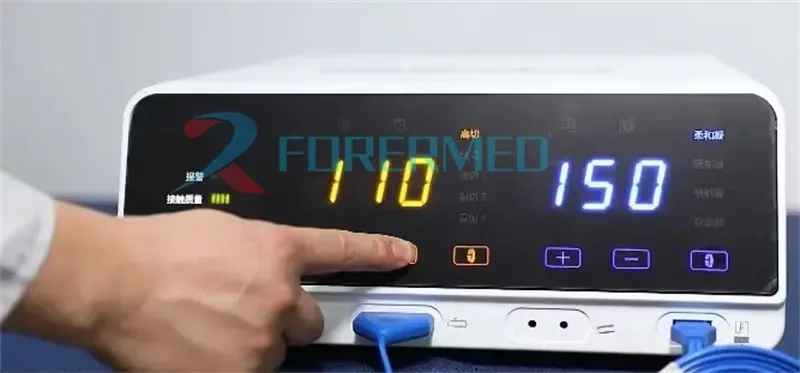

Mode display 1

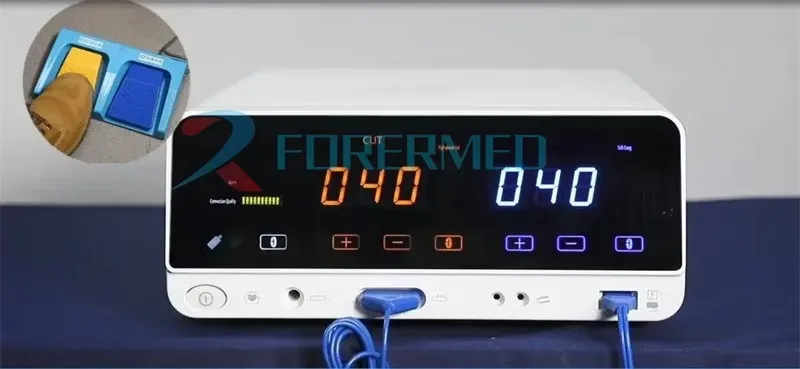

Mode display 2
Working Mode Max Power Load Resistance
Hyper Cut300W400Ω
Pure Cut250W400Ω
Mixed Cut 1150W400Ω
Mixed Cut 2120W400Ω
Mixed Cut 380W400Ω
Soft Coagulation150W400Ω
Forced Coagulation120W400Ω
Spray Coagulation100W400Ω
Bipolar Coagulation80W50Ω

Operational Modes

Intelligent Cutting

  • High-temperature Resection: Ideal for underwater vaporization resection.
  • Pure Resection: Accurate non-destructive cutting similar to a real scalpel.
  • Mixed Resection: Combines cutting with a coagulation process.

Intelligent Coagulation

Forced Coagulation: Point coagulation for efficient contact hemostasis. Spray Coagulation: Area coagulation without tissue contact, suitable for large surfaces.
Bipolar Coagulation: Achieving vascular coagulation between two forceps for neurosurgical procedures. Soft Coagulation: Rapid contact coagulation, ideal for endoscopic healing and accuracy.
Mode Illustration

Detailed Photos

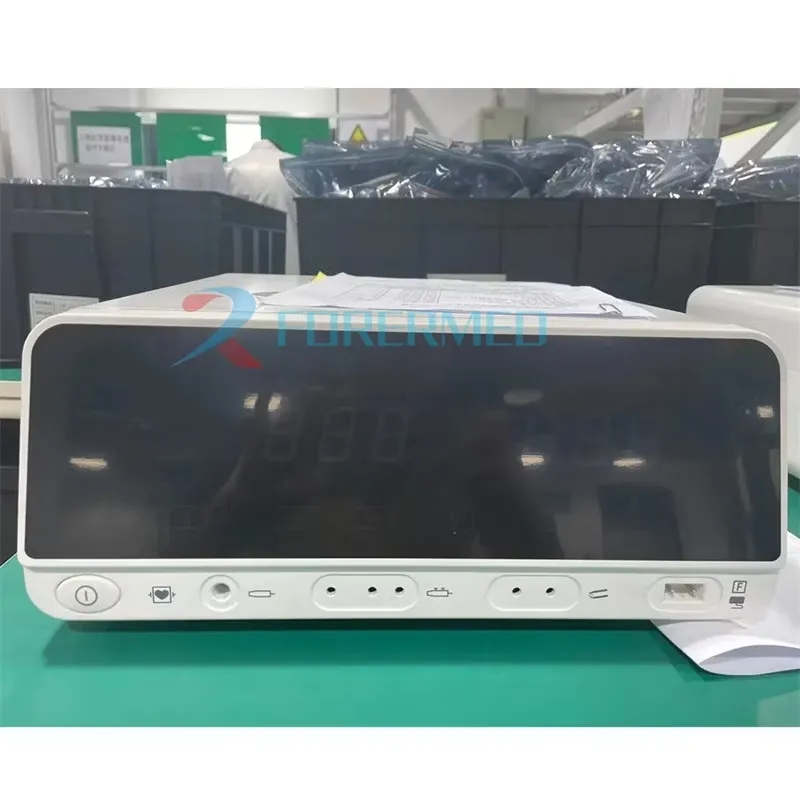

Photo 1
Photo 2
Photo 3

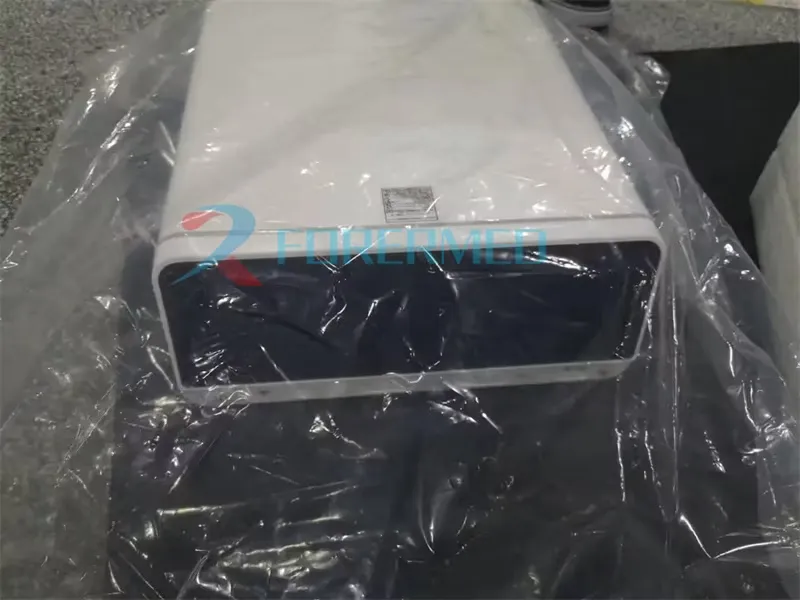

Photo 4

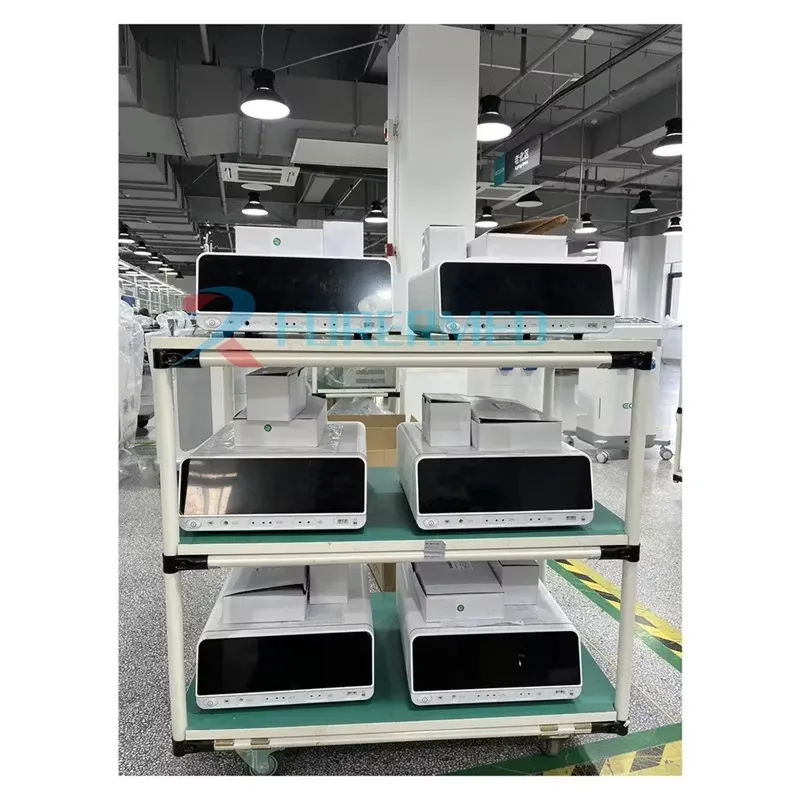

Photo 5

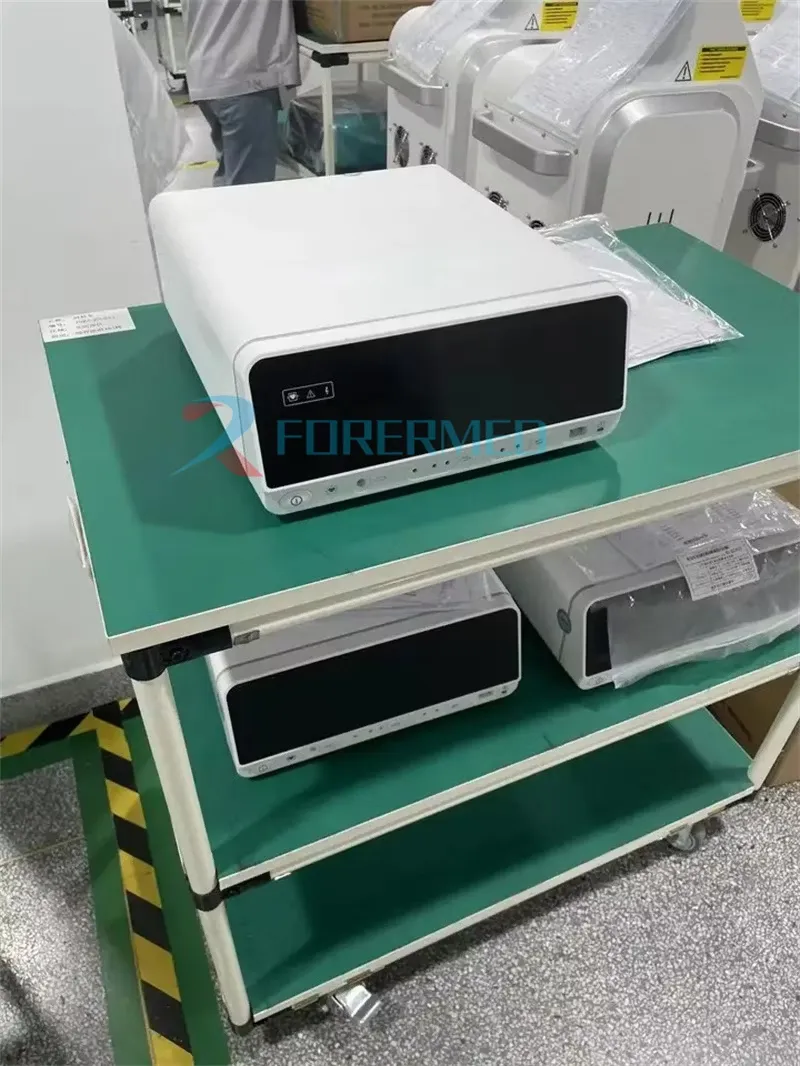

Photo 6

Workflow & Quality

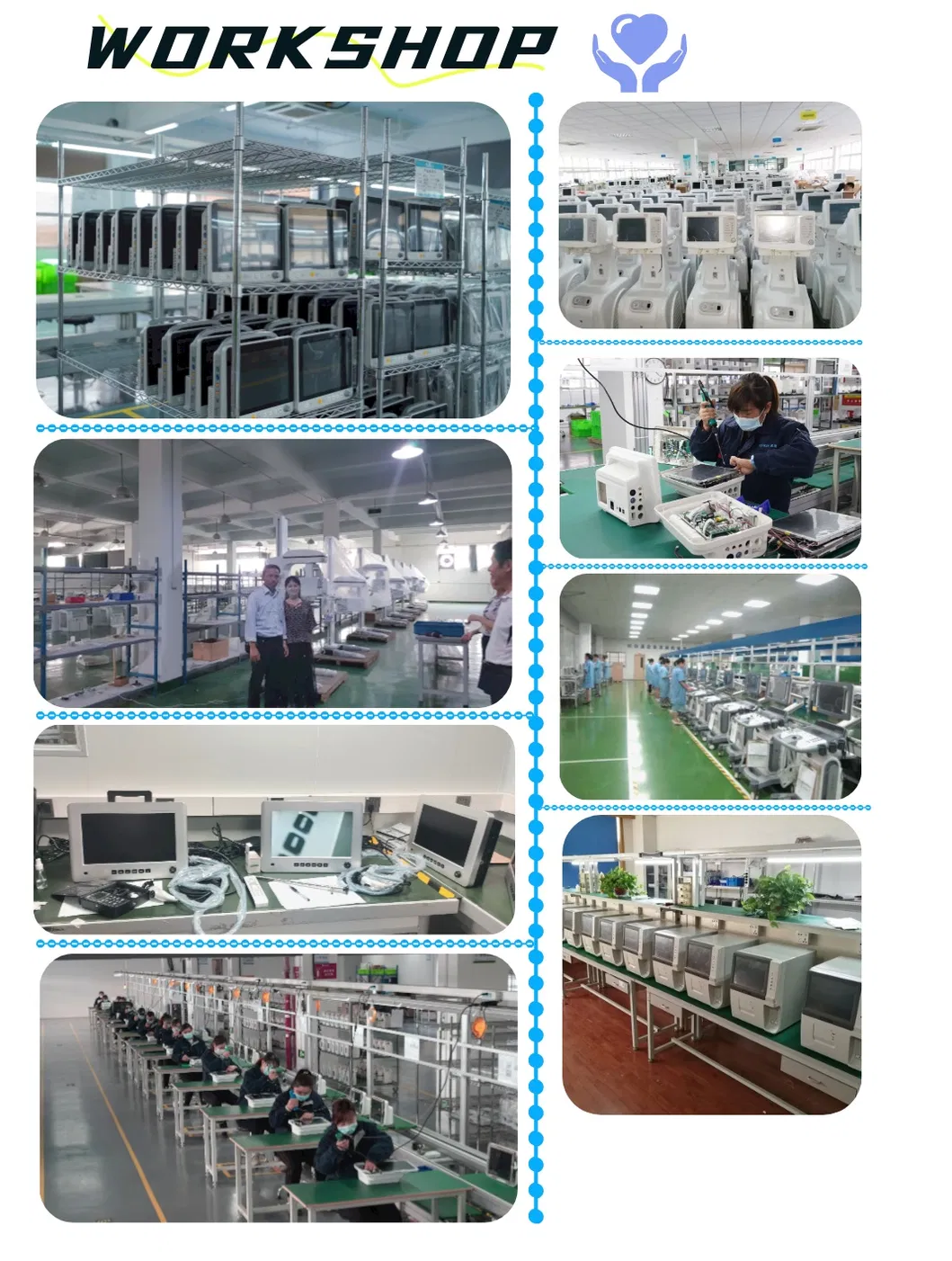

Workflow 1 Workflow 2 Certifications Packaging

Frequently Asked Questions

What is the primary function of the YJ-E800B Electrosurgical Unit?
It is used to replace mechanical scalpels for tissue cutting and coagulation. It uses high-frequency current to achieve precise separation of tissues and effective hemostasis.
Does this unit support bipolar operation?
Yes, it features a Bipolar Coagulation mode with a maximum power output of 80W, specifically designed for neurosurgical or general bipolar procedures.
Which medical departments is this equipment suitable for?
It is widely applicable in general surgery, orthopedics, urology, gynecology, cardiothoracic surgery, and can be used with endoscopes or laparoscopes.
What are the safety features included?
The unit utilizes automatic control technology and various monitoring systems to ensure accurate parameter adjustment and reduce surgical risks.
What is the power requirement for the ESU?
The device is compatible with a wide input voltage range of 100-240V at 50/60Hz, making it suitable for various power standards globally.
How many cutting modes are available?
The system offers multiple intelligent cutting modes including Pure Cut, Hyper Cut, and three levels of Mixed Cut to suit different tissue types.
