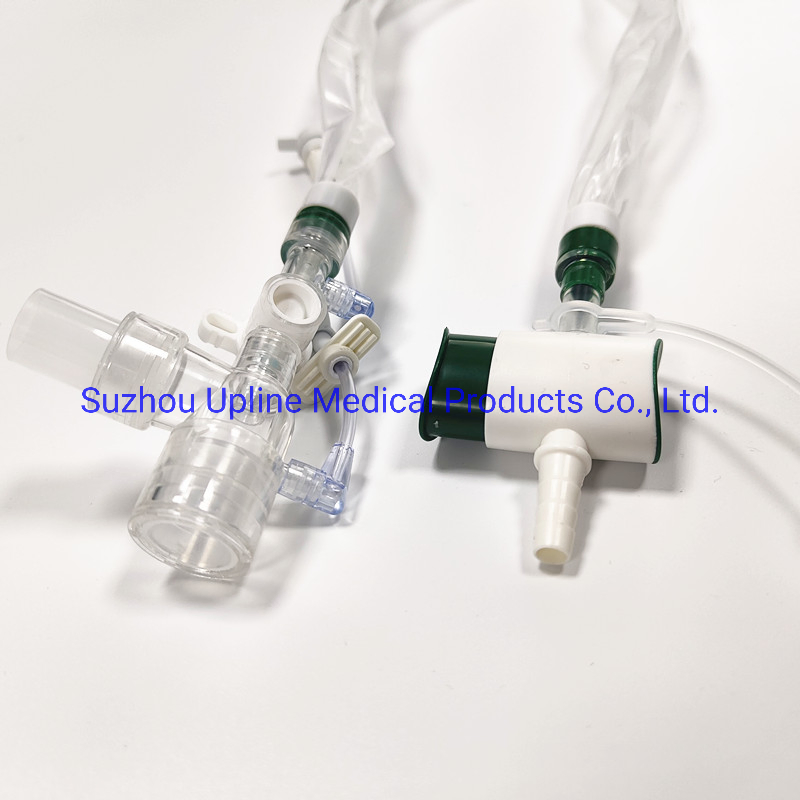

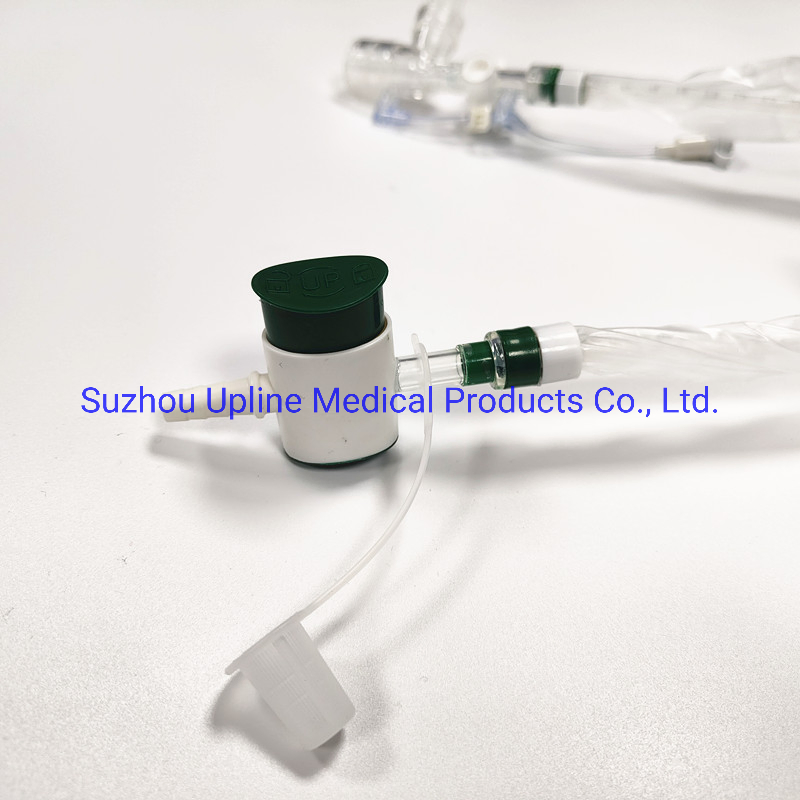

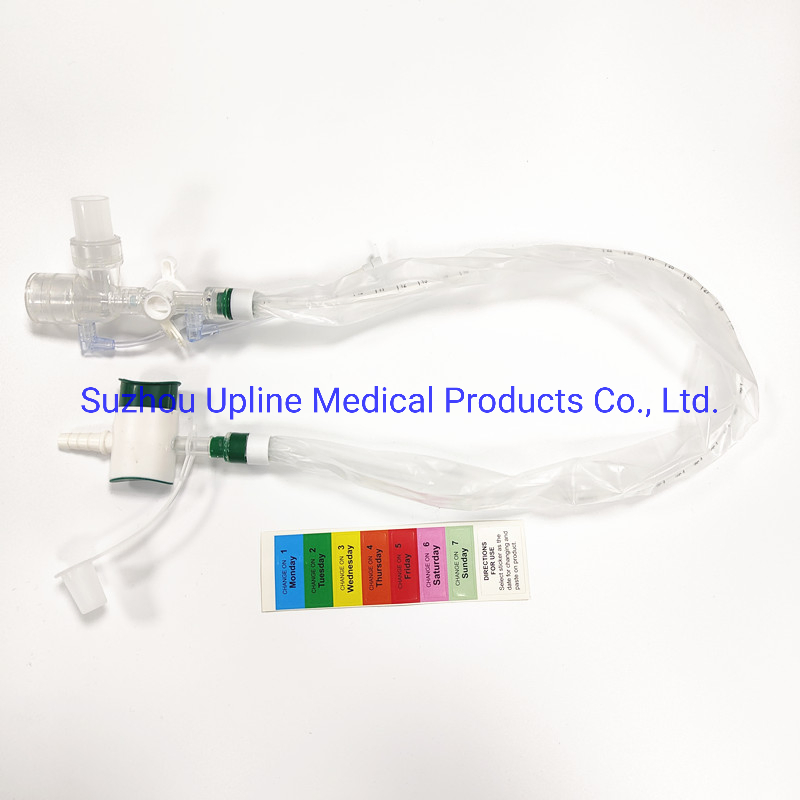

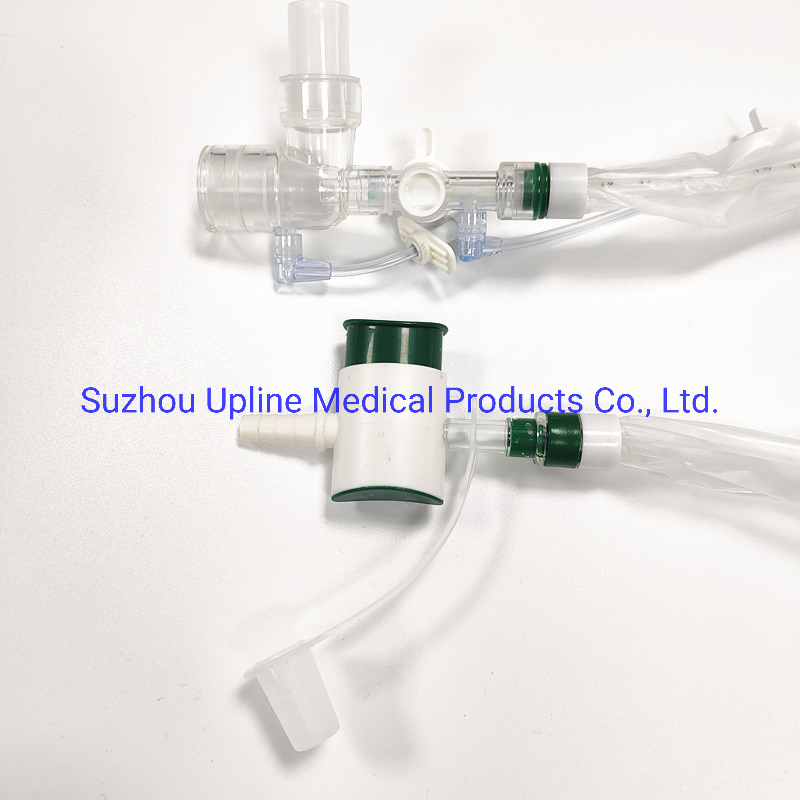

Endotracheal Suctioning System with Lock/Swivel Adaptor

1 / 5

Endotracheal Suctioning System with Lock/Swivel Adaptor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

UP-1223

Application

Clinical

Material

Plastic

Certification

CE, ISO13485

Group

Adult

Transport Package

OEM Available

Product Description

PRODUCT INFORMATION
Name	Closed Suction System with Lock/Swivel Adaptor
Size	4.67mm(14F)X550mm
Material	PVC
Packing	Individual Pack
Certificate	CE/ISO13485
Function	Suction System
OEM Service	Available

Set Up Instructions

Remove Closed Suction System from pouch.
Attach Control Valve to vacuum source through suction tube.
Depress Control Valve and set the suction flow at desired level.
Connect the Swivel Adaptor to Endotracheal tube or Tracheostomy tube.
For patients with ventilator circuit, attach ventilator socket to the 15-Male port on the swivel adaptor.
Attach proper date sticker to Control Valve.
Dispose Closed Suction System after 24 hours.

Suction Procedure

Grip Swivel Adaptor and insert catheter to desired depth.
Depress the Control Valve intermittently to apply suction.
Inject distilled water or saline through Lavage port if secretions are thick.
Withdraw catheter slowly until Black Marking is visible in the sleeve.
Flush catheter by injecting solution through Irrigation port.
Lock the Control Valve by turning the Thumb piece 180°.

⚠️ Caution:

Do not use for more than 24 hours.
Do not resterilize.
Replace immediately if plastic sleeve is damaged.

Professional Display

Frequently Asked Questions

1 What is the main application of the Closed Suction System?

It is primarily used for clinical suctioning in patients with endotracheal or tracheostomy tubes, allowing for secretion removal without disconnecting the ventilator.

2 What are your primary medical products?

Our range includes disposable feeding bags, urine bags, surgical drapes, non-woven gowns, face masks, suction catheters, and other clinical consumables.

3 Can I request a product sample?

Yes, samples for certain models are available. Costs may vary depending on the specific style and customization requirements.

4 What advantages do you offer?

We provide competitive pricing, high-quality manufacturing standards, one-stop purchasing convenience, and professional technical support for all inquiries.

5 What is the typical delivery timeframe?

Standard production usually takes within 30 working days. For items currently in stock, we can often arrange delivery within 3 days.

6 Are OEM services available for packaging?

Yes, we support OEM services for transport packaging and product details based on the style and quantity ordered.
