Product Description

📋

Basic Information

Model NO.

HSD8213

Material

PVC / TPU

Capacity

150L - 1,000,000L

Thickness

0.5mm - 1.5mm

Life Time

10 Years or More

Flame Retardant

B1, B2, M1, M2, NFPA701

Temperature

-30°C to +70°C

Application

Industrial / Agriculture / Firefighting

💧

Product Description

Factory OEM/ODM: PVC Water & Liquid Storage Bladder Tanks

We manufacture collapsible liquid storage tanks from durable PVC-coated polyester fabric. Available in capacities from 50L to 100,000L and thicknesses from 0.6mm to 1.5mm, our self-supporting tanks are built for demanding applications. Ideal for storing rainwater, chemicals, firefighting water, and agricultural liquids.

Key Features:

Frameless design for compact storage and easy deployment.
Multi-layer, reinforced fabric for superior puncture and tear resistance.
Fusion-welded seams ensure leak-proof integrity.
Top surface design minimizes evaporation and oxidation.

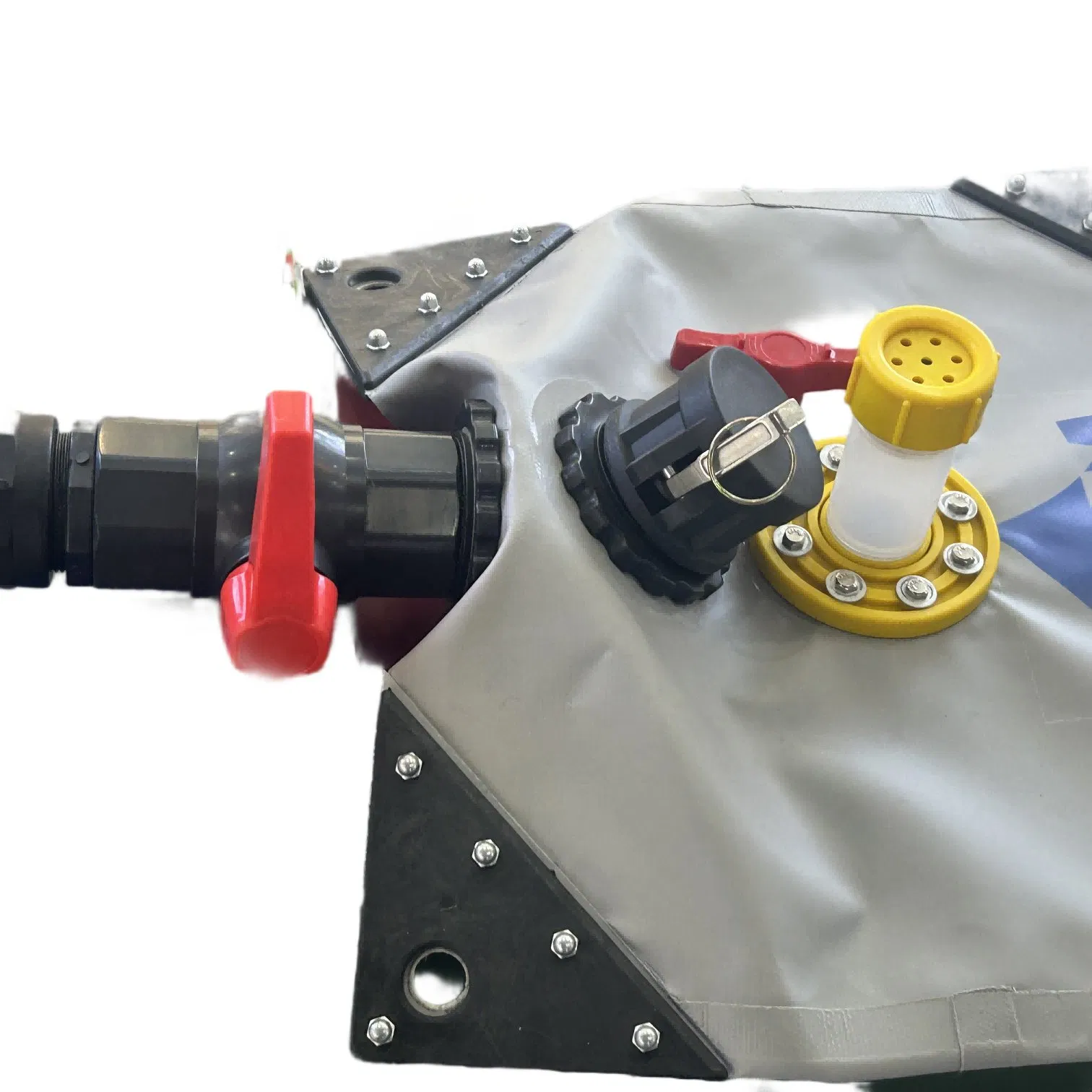

Customizable fittings, sizes, and groundsheets.
Interconnectable systems for expanded storage capacity.

🖼️

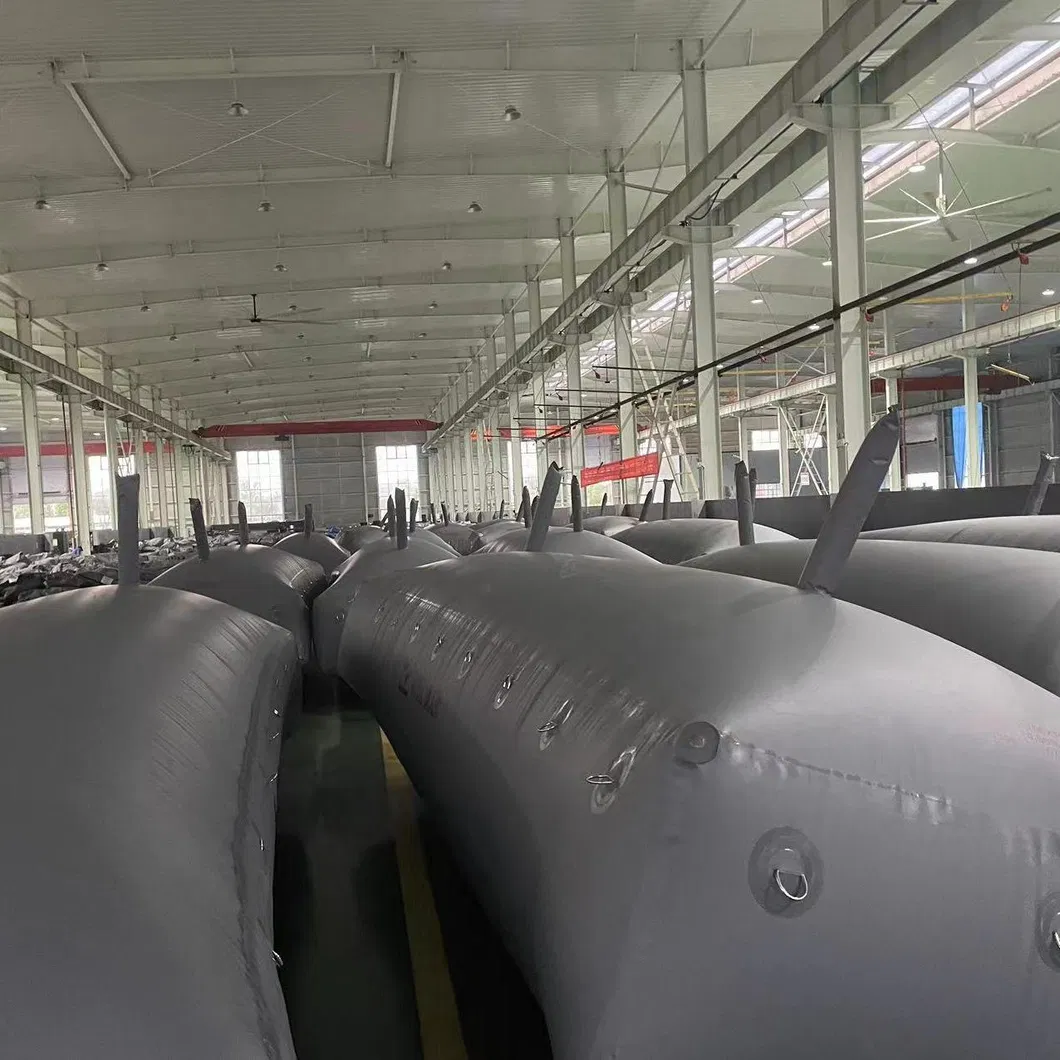

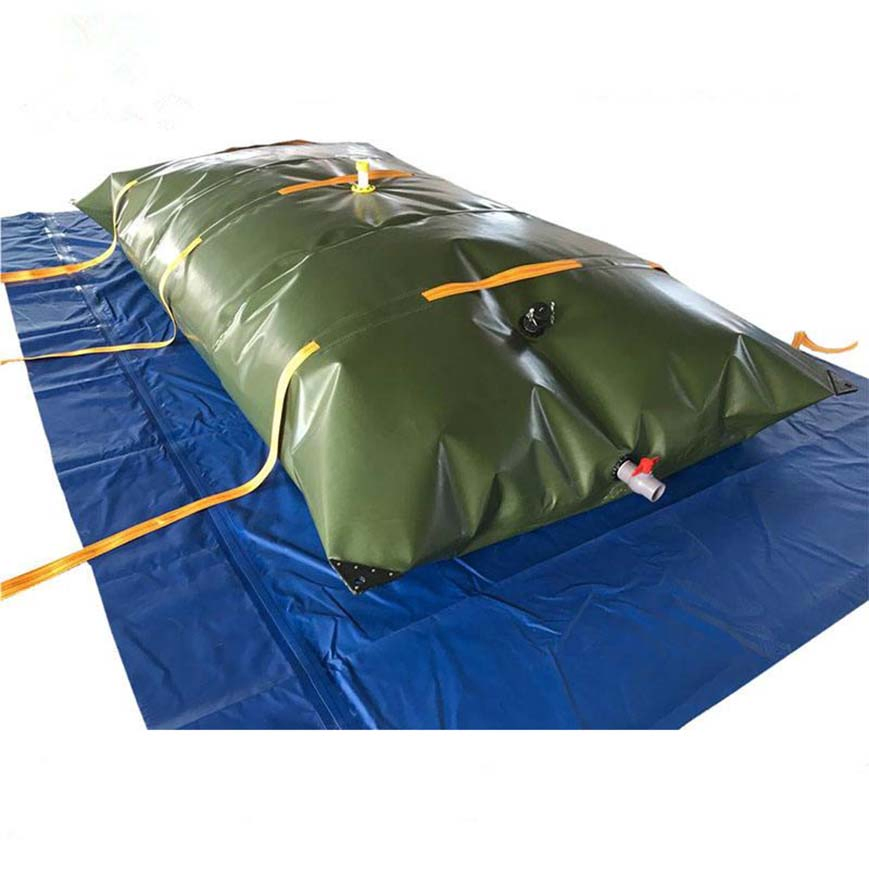

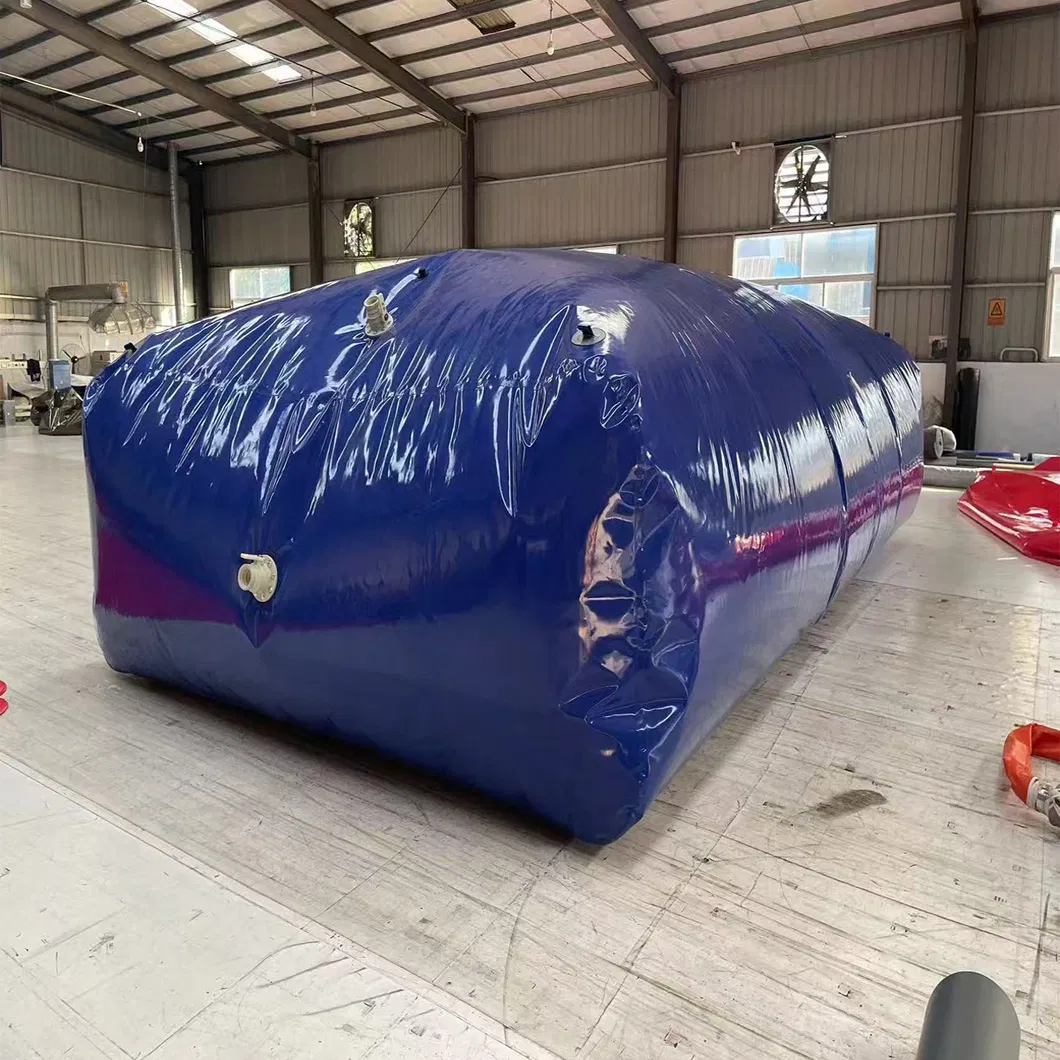

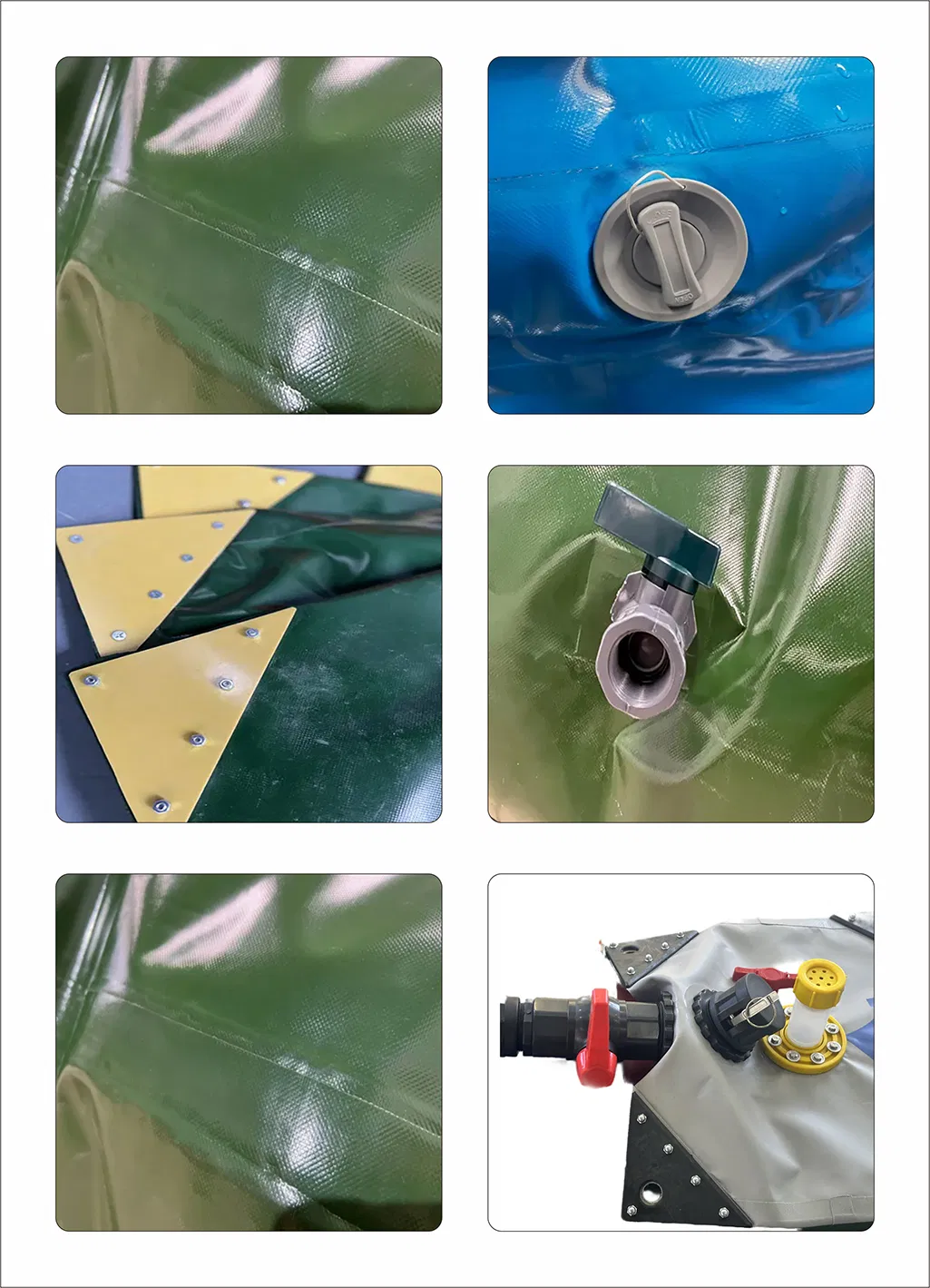

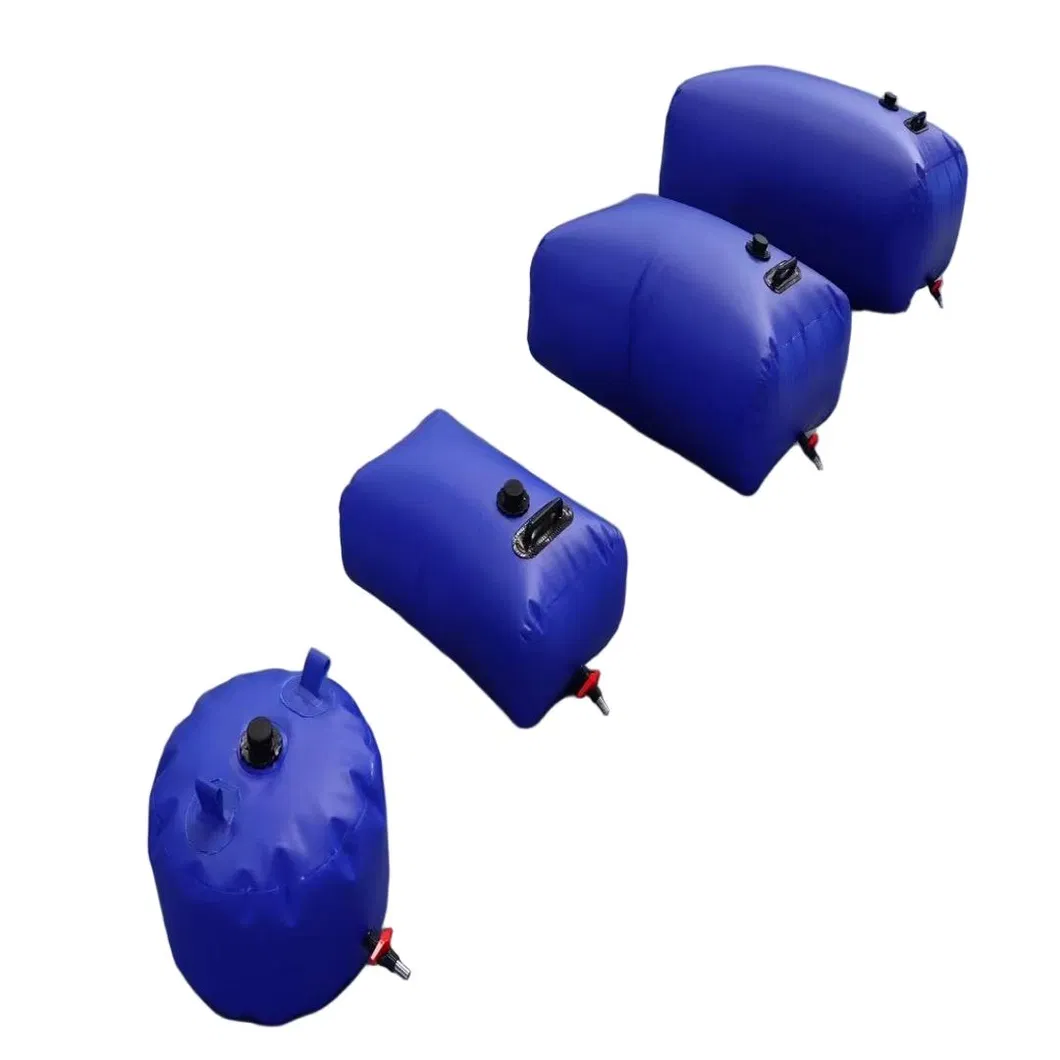

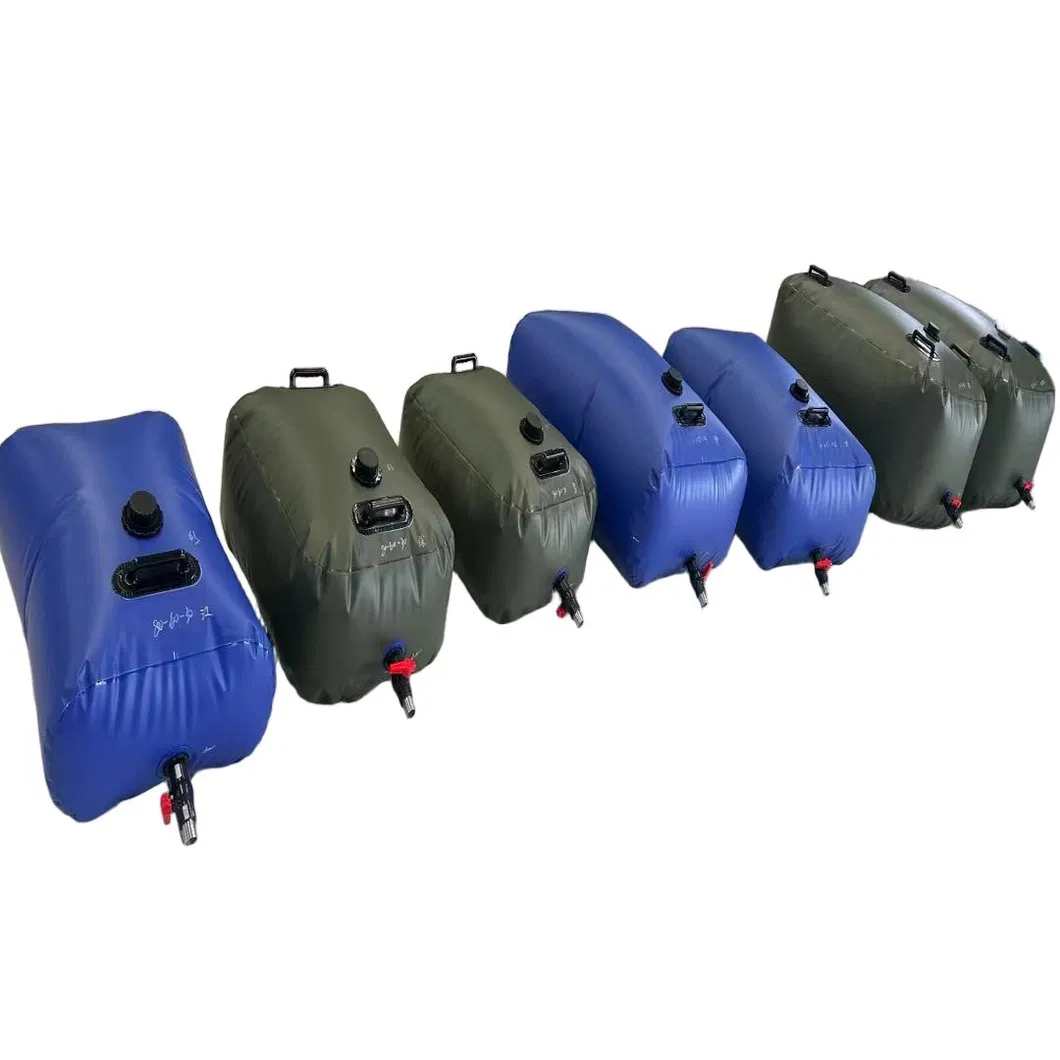

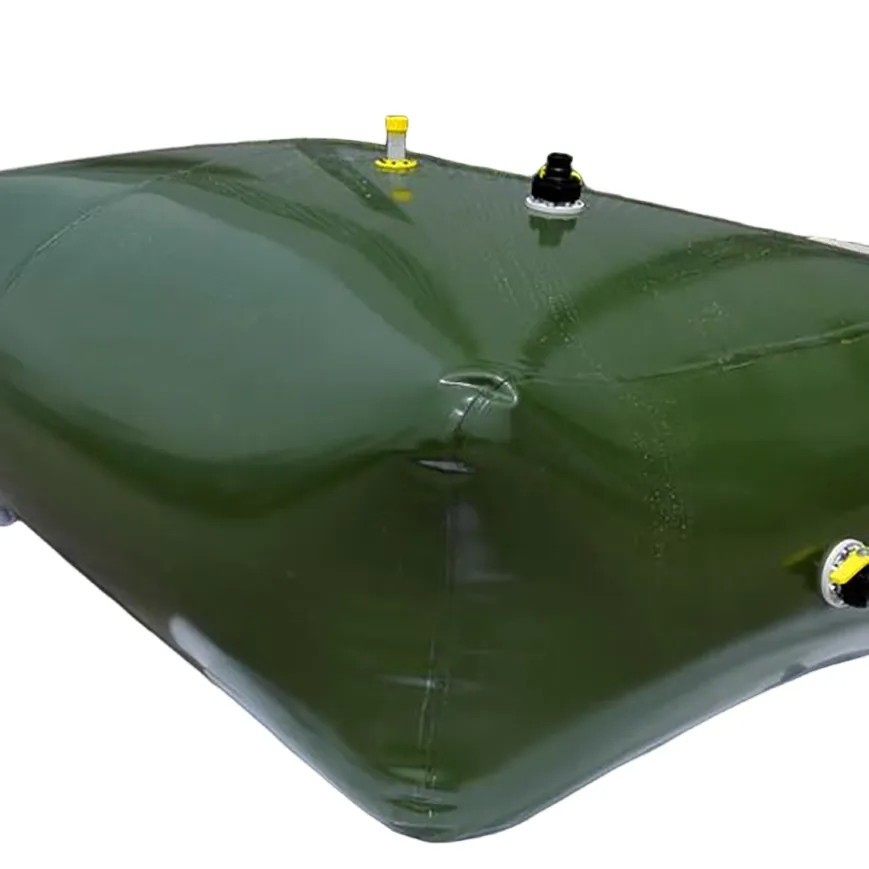

Detailed Product Photos

📏

Product Parameters

Capacity (L)	Thickness (mm)	Material Weight (GSM)	Filled Size (Approx)	Empty Weight (KG)
500	0.65	750	L:1.4M * W:1.3M * H:0.3M	3.95
1000	0.65	750	L:2.0M * W:1.8M * H:0.3M	7.11
5000	0.90	1100	L:3.6M * W:2.8M * H:0.5M	29.22
10000	0.90	1100	L:4.5M * W:3.8M * H:0.6M	66.24
50000	0.90	1100	L:10.0M * W:5.1M * H:1.0M	198
100000	1.20	1500	L:12.0M * W:7.1M * H:1.2M	324
