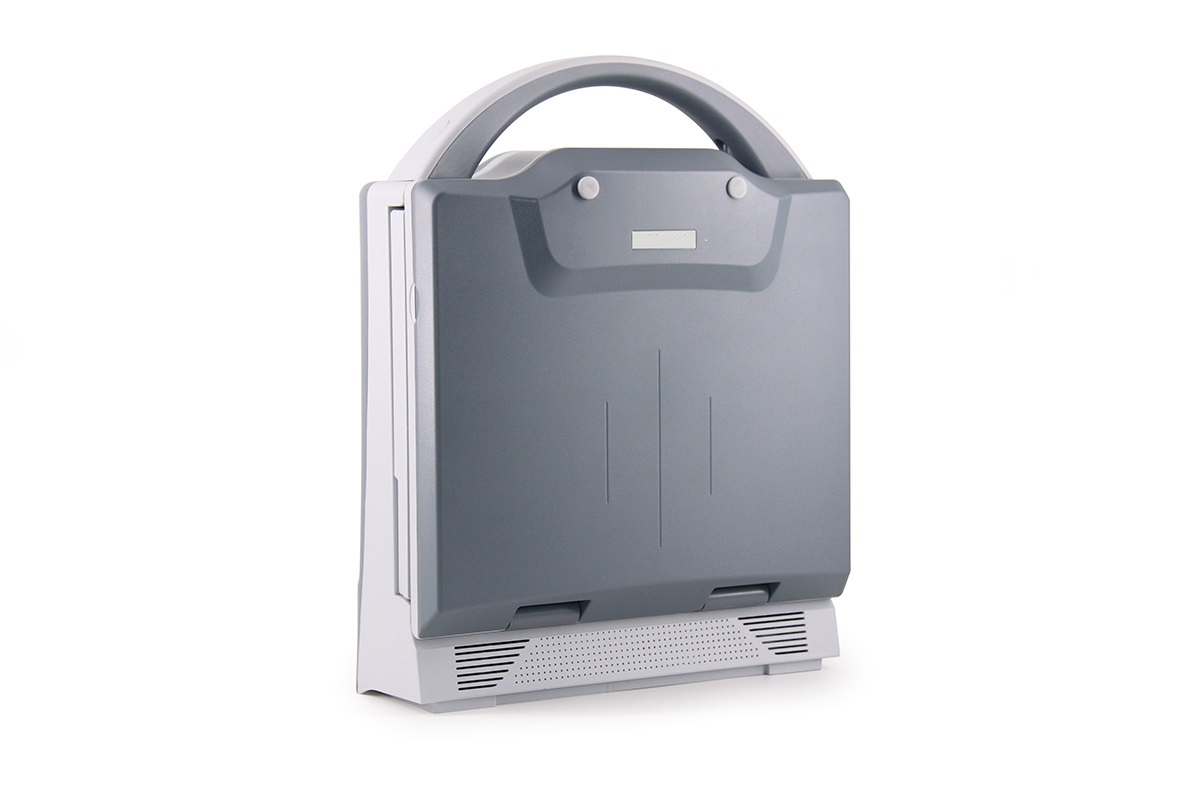

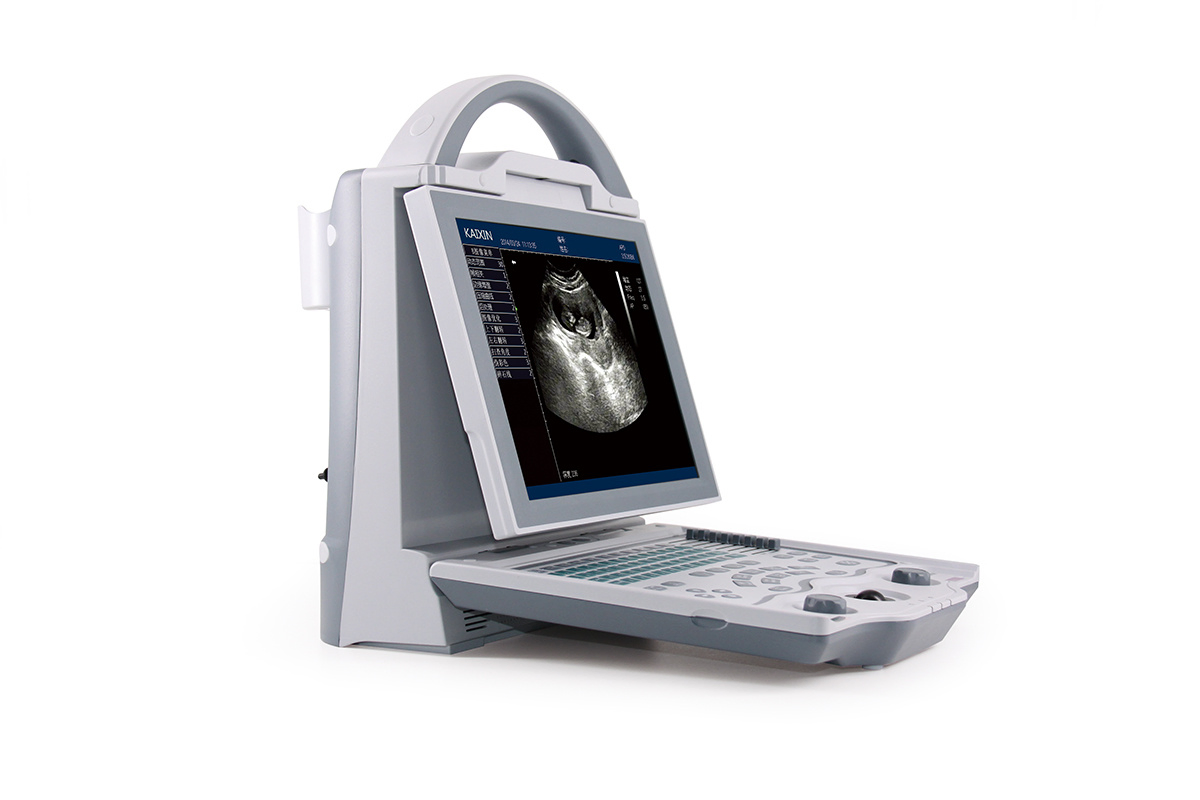

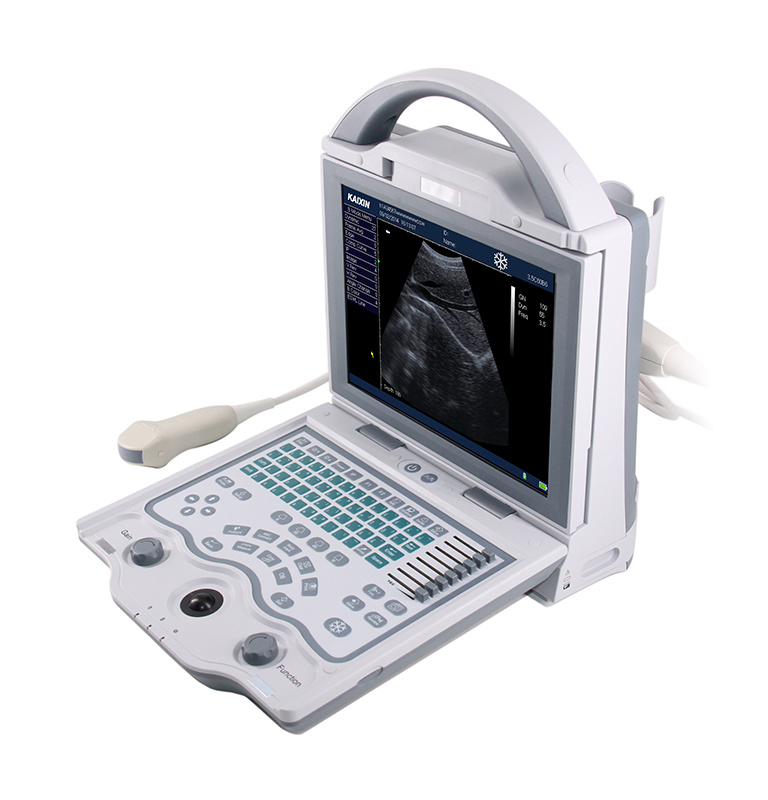

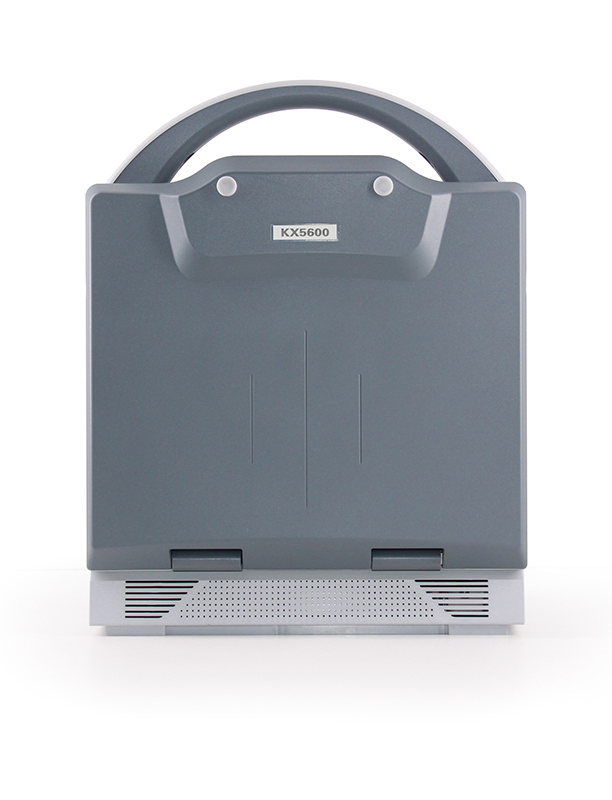

KX5600 Human B/W Ultrasound Scanner (New Portable LED Model)
Technical Specifications:
- 10.4-inch high-resolution color LED backlight display featuring high contrast and an expansive viewing angle;
- User-friendly menu operation system with multi-language support including Spanish, English, French, Russian, and Portuguese;

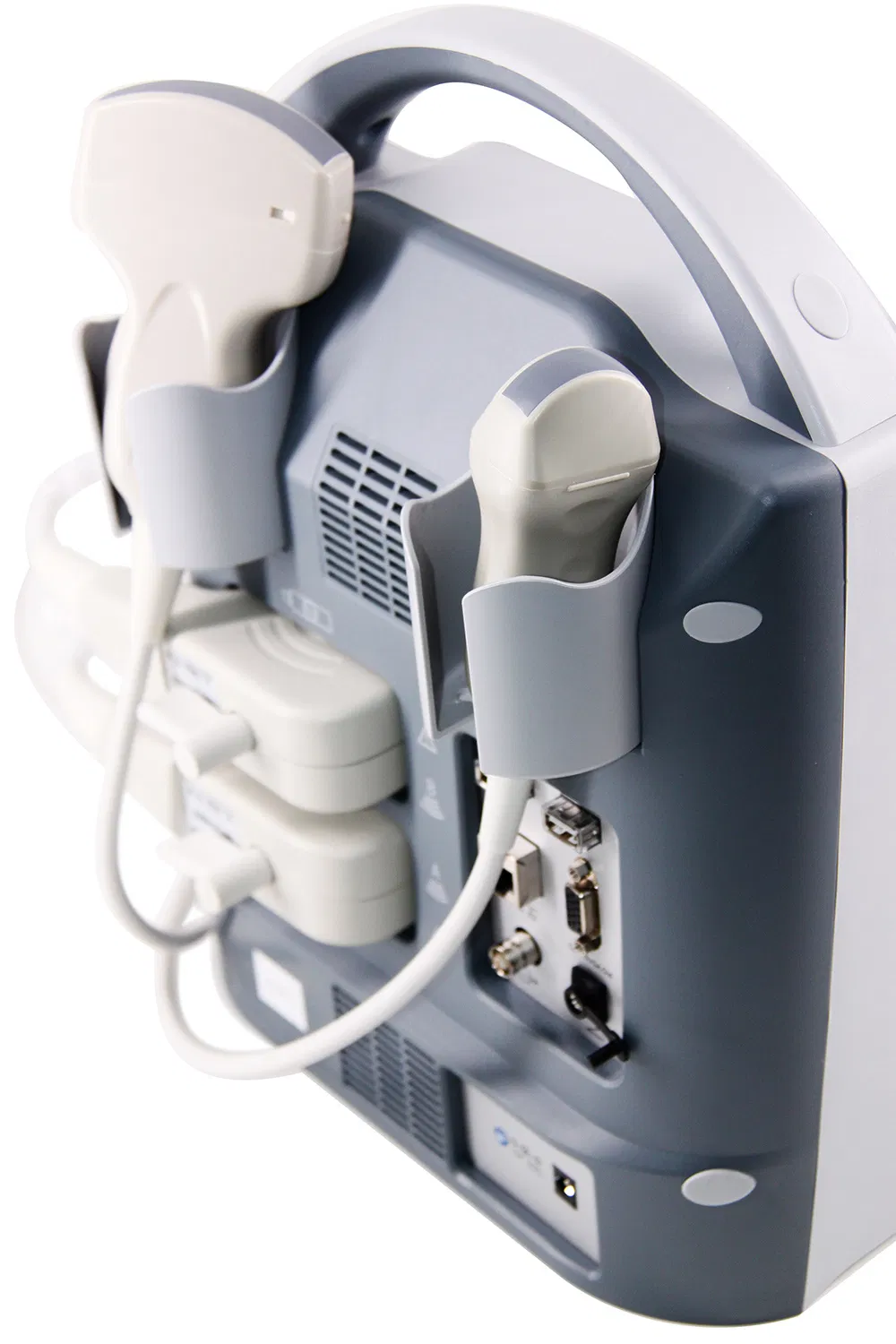

- Equipped with two probe sockets, capable of auto-identifying different optional probes;
- 64 body marks in total to indicate probe positions;
- Display modes: B, 2B, 4B, B/M, M;
- Adjustable depth settings with 10 grades, reaching a maximum depth of 236mm;
- Gain range: 0~127dB; Contrast range: 27~90dB;
- 256 levels of gray scale and 8 types of pseudo colors;
- Image storage capacity: 4G hard disk capable of permanently storing approximately 5000 frames of images;
- Comprehensive Measurement: Routine, Cardiological, Gynecological, Obstetric, and Urological measurements and analysis;
- One-key functions: Store, Review, Print, and Transfer for immediate report generation;
- Unique one-key-light keyboard function for use in dark rooms;
Frequently Asked Questions
What are the primary clinical applications for the KX5600?
The KX5600 is highly versatile and suitable for Abdomen, Gynecology (Gyn), Obstetrics (Ob), Urology, and Cardiological examinations.
Is the device portable for field use?
Yes, it features a compact portable design with a net weight of only 4.5kg and a built-in large capacity Li-battery, making it ideal for mobile medical environments.
How many images can the system store internally?
The scanner is equipped with a 4G hard disk that can permanently store approximately 5,000 frames of images without data loss when powered off.
Does the KX5600 support different languages?
Yes, the system supports English, Spanish, French, Russian, and Portuguese for global accessibility.
Can I connect multiple probes at the same time?
The unit is standardly equipped with two probe sockets and features an auto-identification system for various optional probes.
How is the display quality in different lighting conditions?
The 10.4-inch high-resolution LED backlight display provides high contrast and wide viewing angles. Additionally, it features a unique one-key-light keyboard for easy operation in dark rooms.
