Product Overview

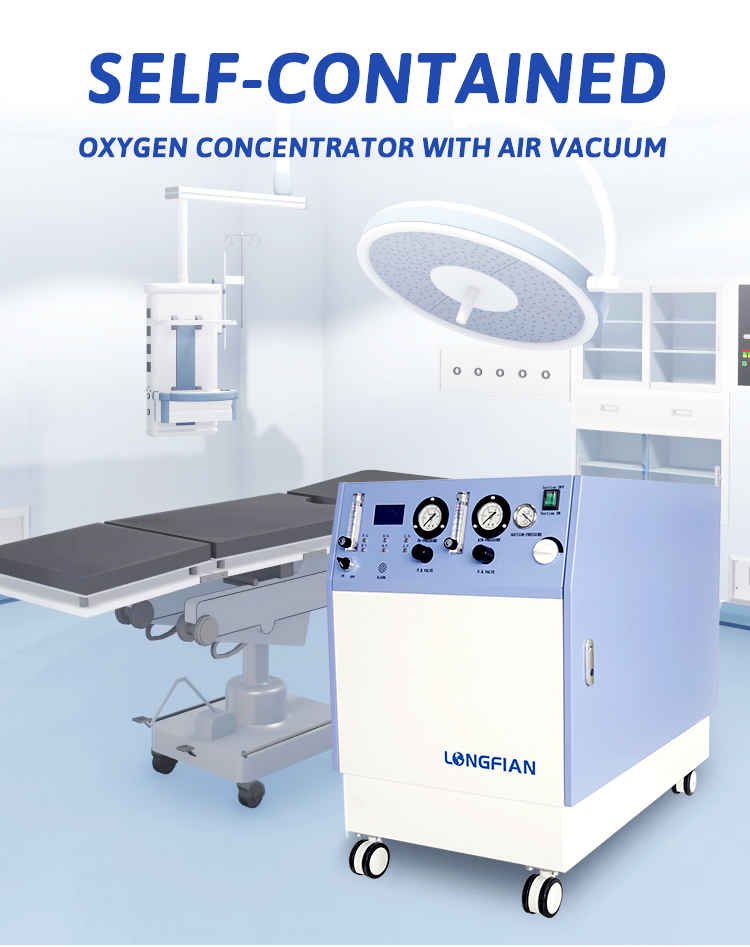

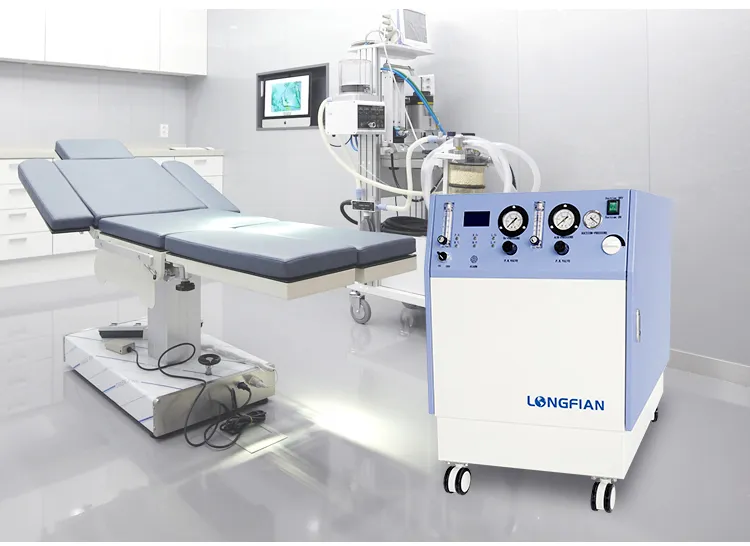

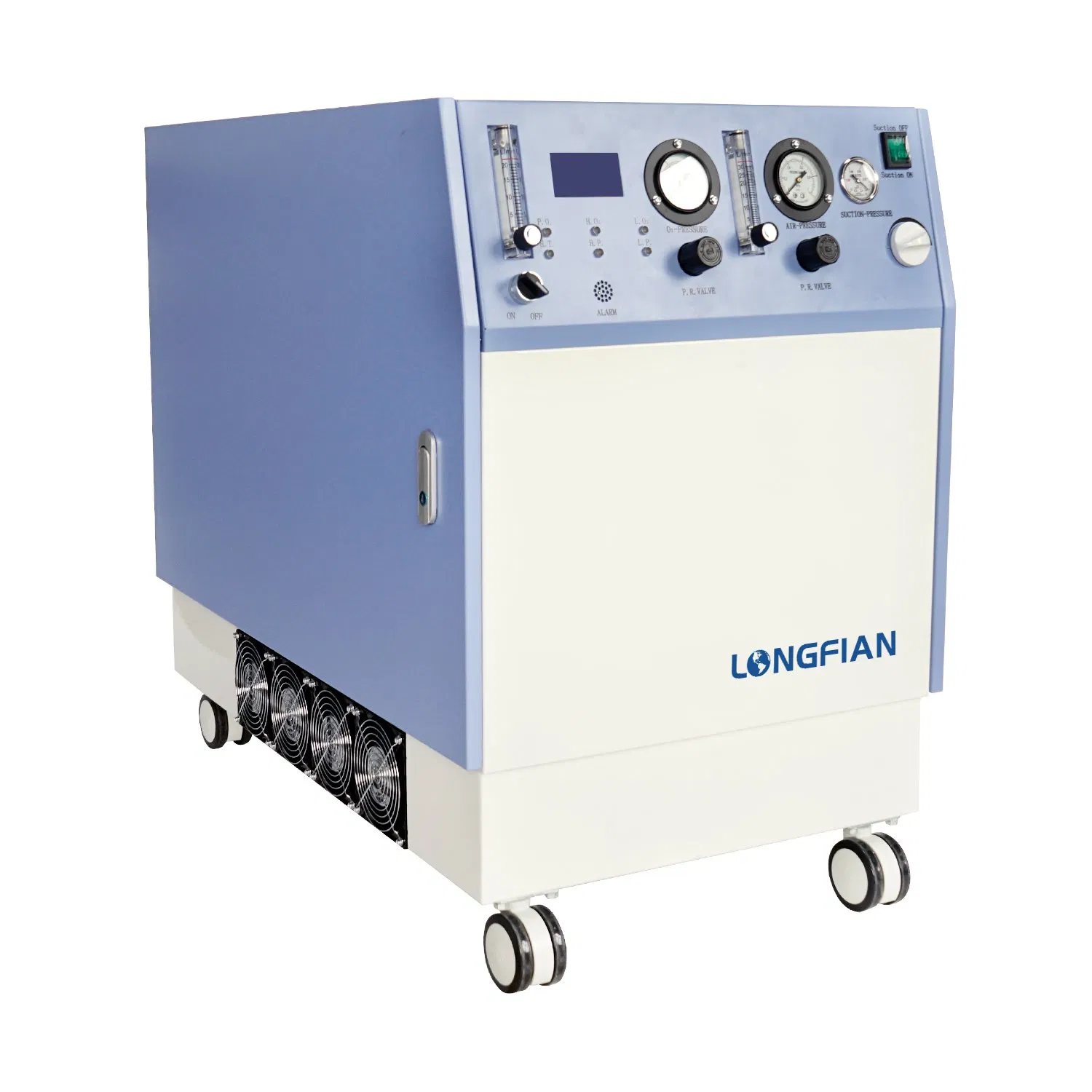

O2 Air System Produce Compressed Air and Vacuum for Ventilators and Anesthesia Machines
This self-contained oxygen concentrator offers a more advantageous alternative compared to the delivery of containers with gas and centralized gas supply. It produces compressed air with a decrease in the condensation temperature, equipped with a roller fan and a condensed water separator with a fine filter. Using state-of-the-art medical device technology, it guarantees a continuous supply of oxygen and compressed air thanks to its extreme reliability and the highest quality standards.

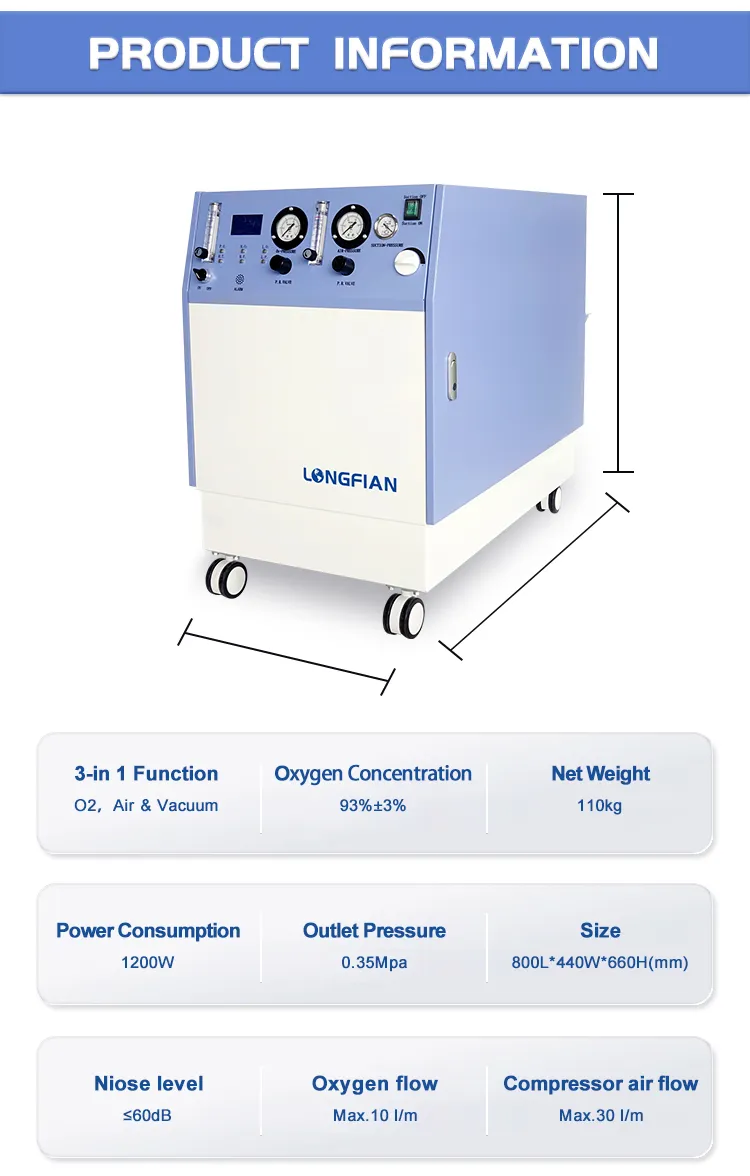

| Model | JAY-2A |
| Oxygen Flow rate | 1-10LPM |
| Oxygen purity | 93±3% |
| Outlet pressure | 0.35MPA |
| Air flow | 1-30LPM |
| Vacuum | 0-0.7bar |
| Noise level | ≤60db |
| Power consumption | ≤1200W |
| Alarms | Low purity, High/Low pressure, High temperature, Power failure |
⭐High oxygen performance
⭐Low noise level
⭐Minimal care and maintenance
⭐Convenience and versatility
⭐Self-contained air compressors
⭐Low operating cost
⭐Advanced Engineering
⭐Time-proven reliability
Working Principle & Characteristics

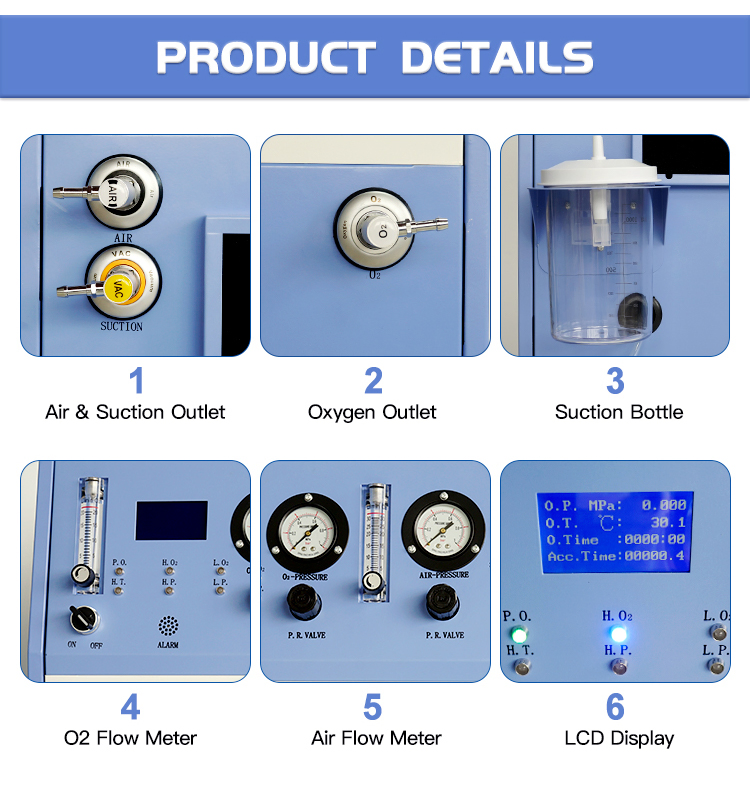

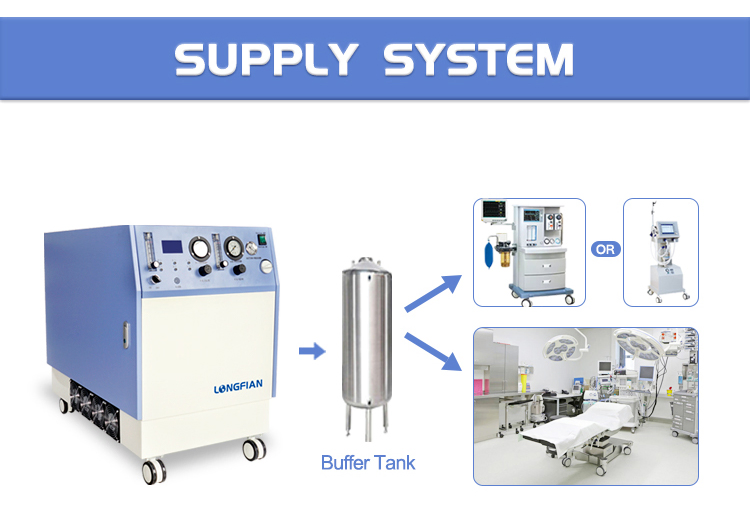

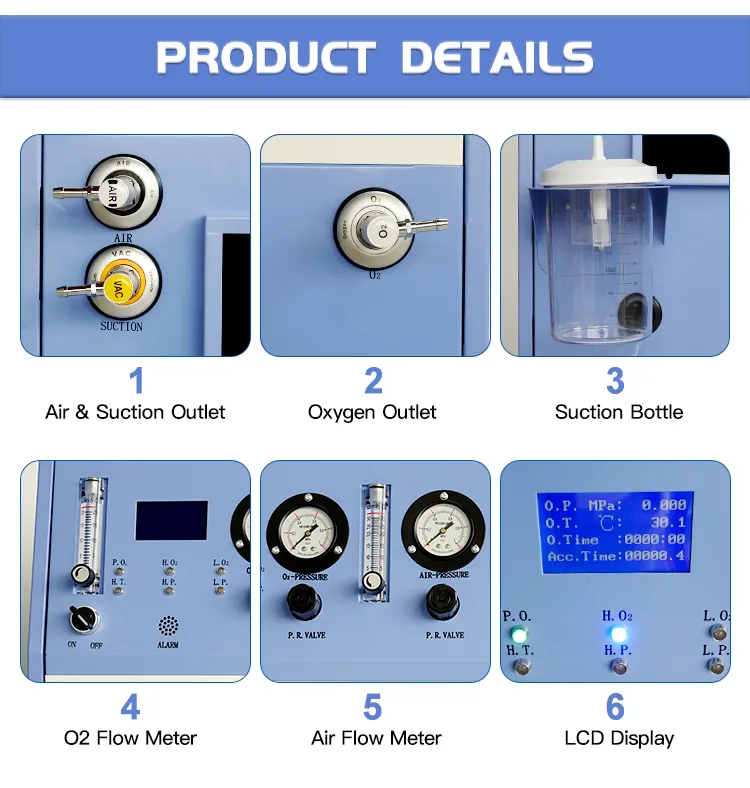

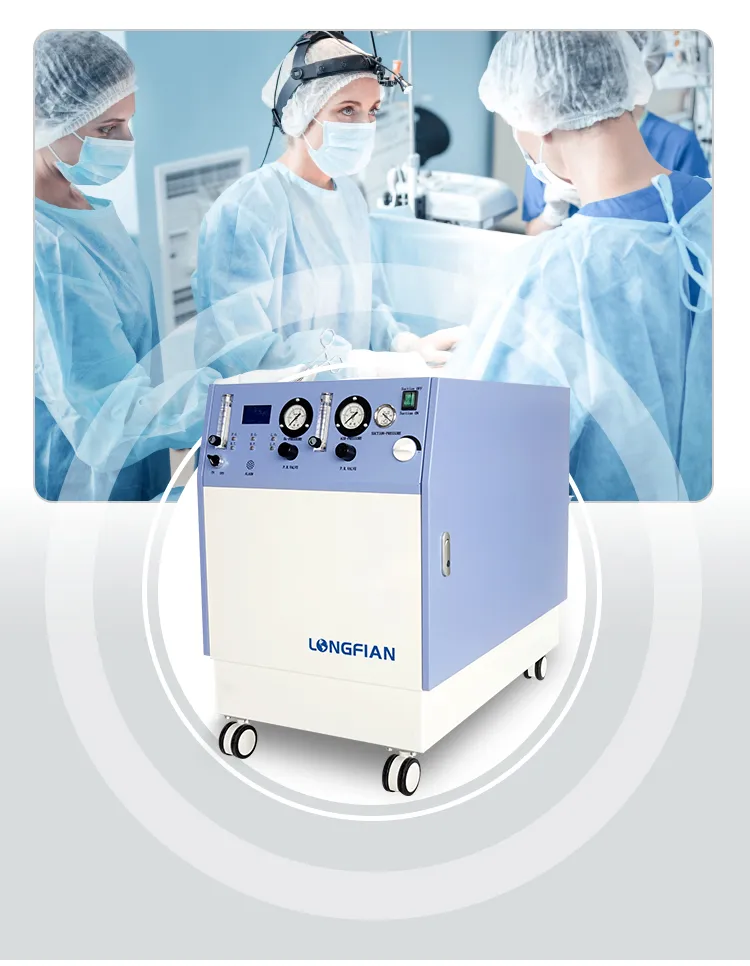

The system is a rugged double metal cased device that supplies compressed air and oxygen to anesthesia and ventilation systems. The air passes through a coarse filtration system, a porous bacterial filter, and ultrafine filtration. The control panel includes a power switch, pressure gauge, LCD screen, and flow meter.

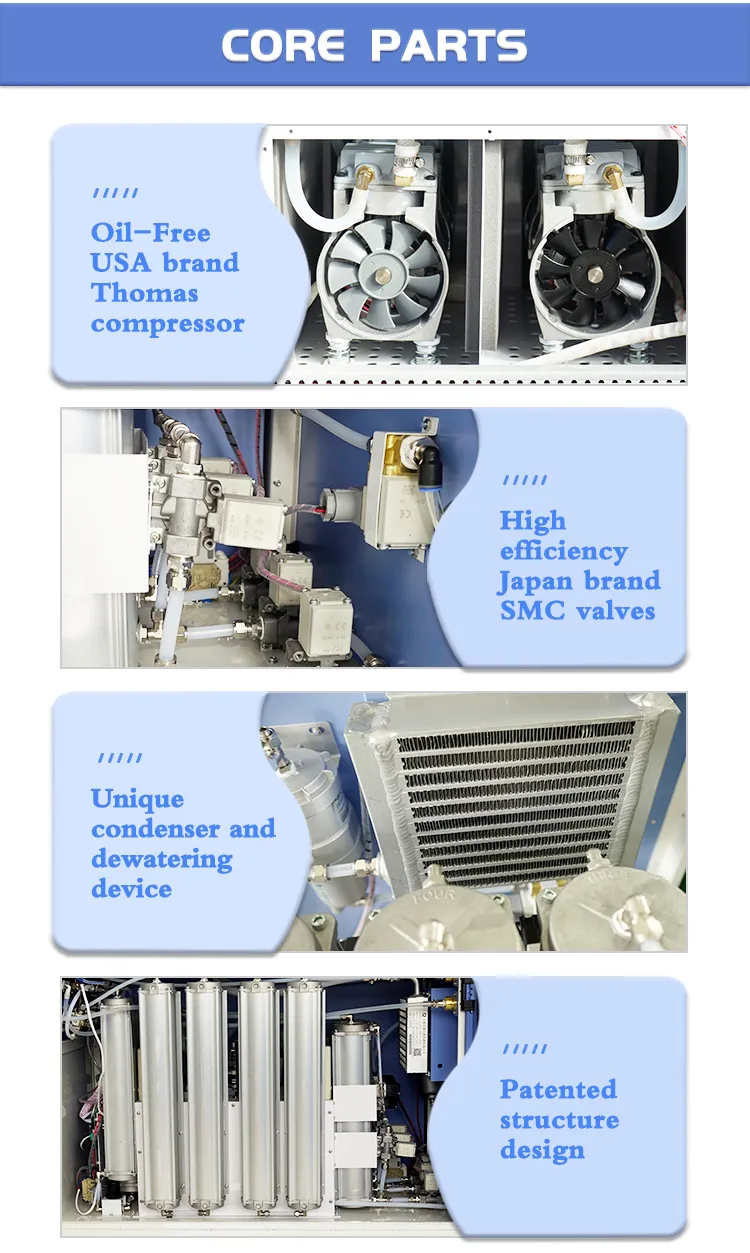

The principle of oxygen production is based on the adsorption effect of the molecular lattice. Environment air is filtered, compressed, and treated in a drying chamber before entering adsorption tanks. Nitrogen is retained while oxygen passes into the tank for use. The work is controlled by an electronic system, reaching up to 93%±3% oxygen concentration within minutes.
Frequently Asked Questions
What is the oxygen purity level of this system?
The system provides medical-grade oxygen with a concentration of 93% ± 3%.
Can this device be used with anesthesia machines?
Yes, it is specifically designed to produce compressed air and oxygen for both ventilators and anesthesia systems.
Is the equipment mobile?
Yes, it is a mobile type unit designed for easy relocation within medical facilities.
What kind of maintenance is required?
The device is engineered for minimal care and maintenance during operation, which significantly reduces long-term maintenance costs.
Does the system include an alarm for safety?
Yes, it includes a comprehensive alarm system for low purity, high/low pressure, high temperature, and power failure.
What are the available payment terms?
We accept various payment methods including T/T, L/C, Visa, MasterCard, and other digital payment platforms.
