Holtop Factory Wholesale Phi Mechanical Ventilation System with Heat Recovery Heat Recuperators

1 / 5

Holtop Factory Wholesale Phi Mechanical Ventilation System with Heat Recovery Heat Recuperators

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

CFA 250T

Certification

ISO9001, ROHS, CE

Fan Motor Type

EC Motor

Bypass

Yes, Auto-Bypass

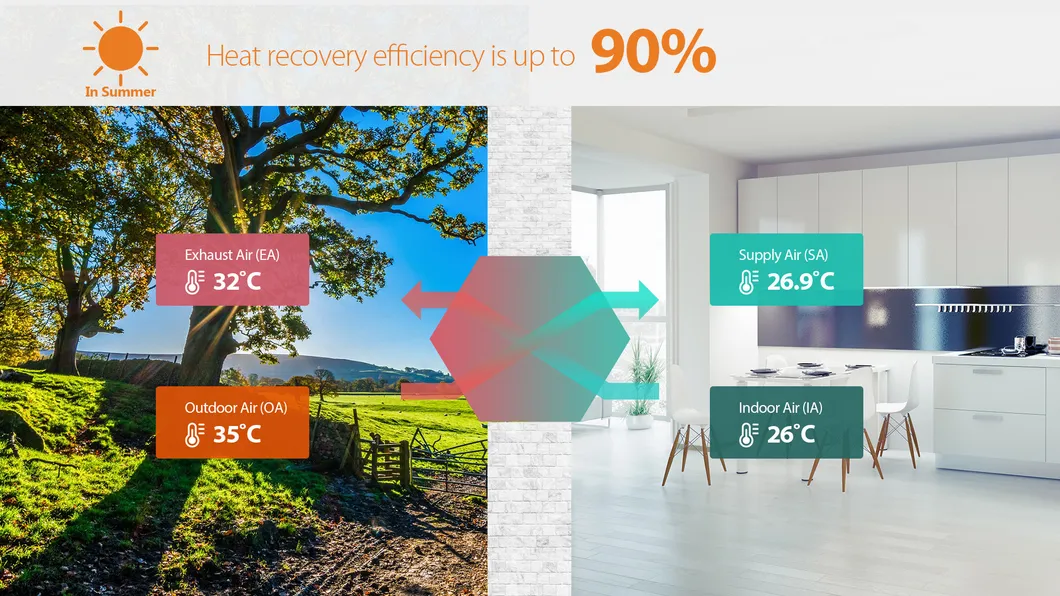

Temp. Efficiency

Up to 95%

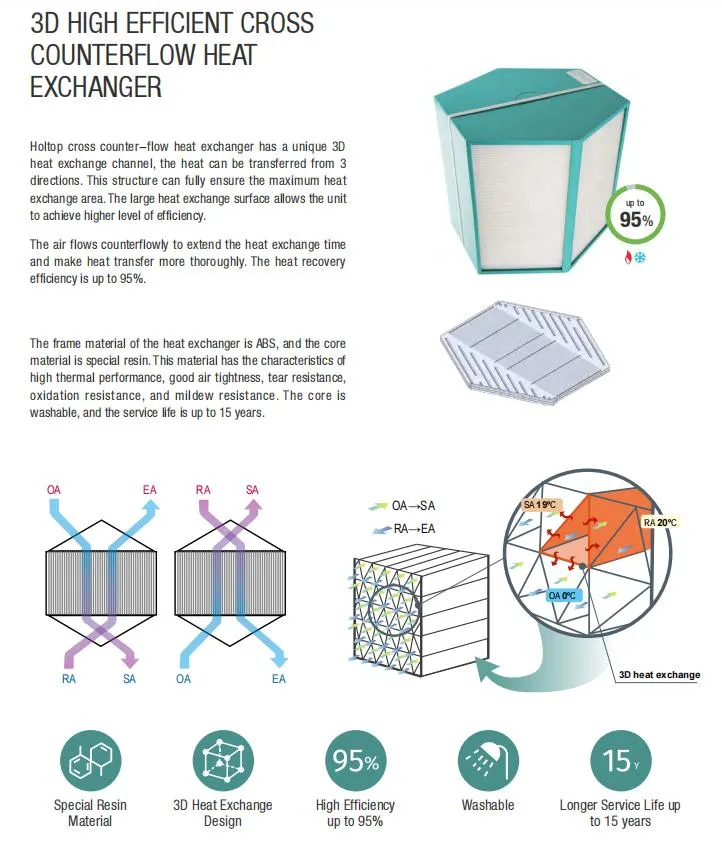

HRV Core

Washable Counterflow Heat Exchanger

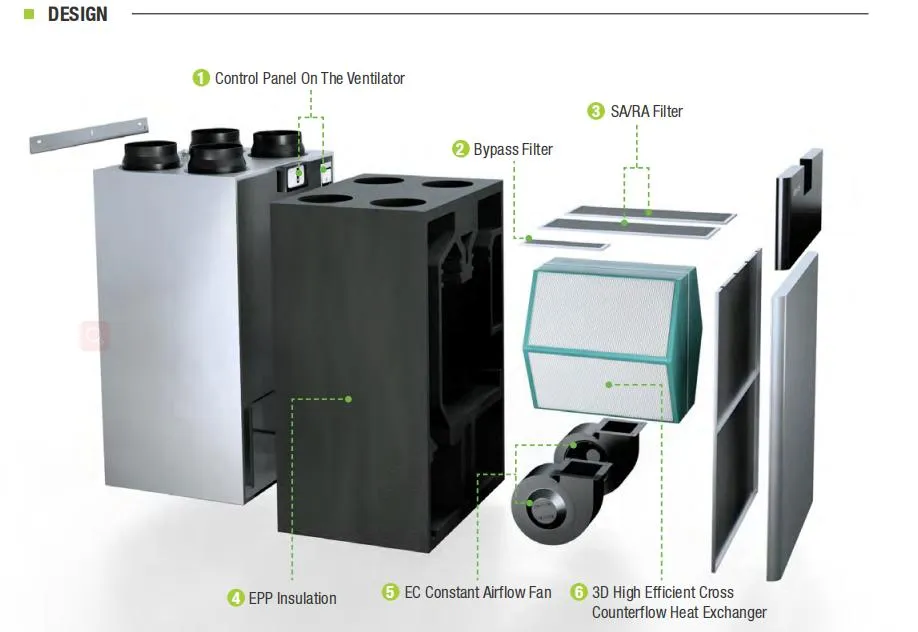

Inner Construction

EPP Material

Installation

Wall Mounted or Floor Standing

WiFi Function

Optional WiFi Module

Usage

Villa, Apartment, Club, Gym

Capacity

250CMH (350/500CMH optional)

HS Code

8414593000

Product Description

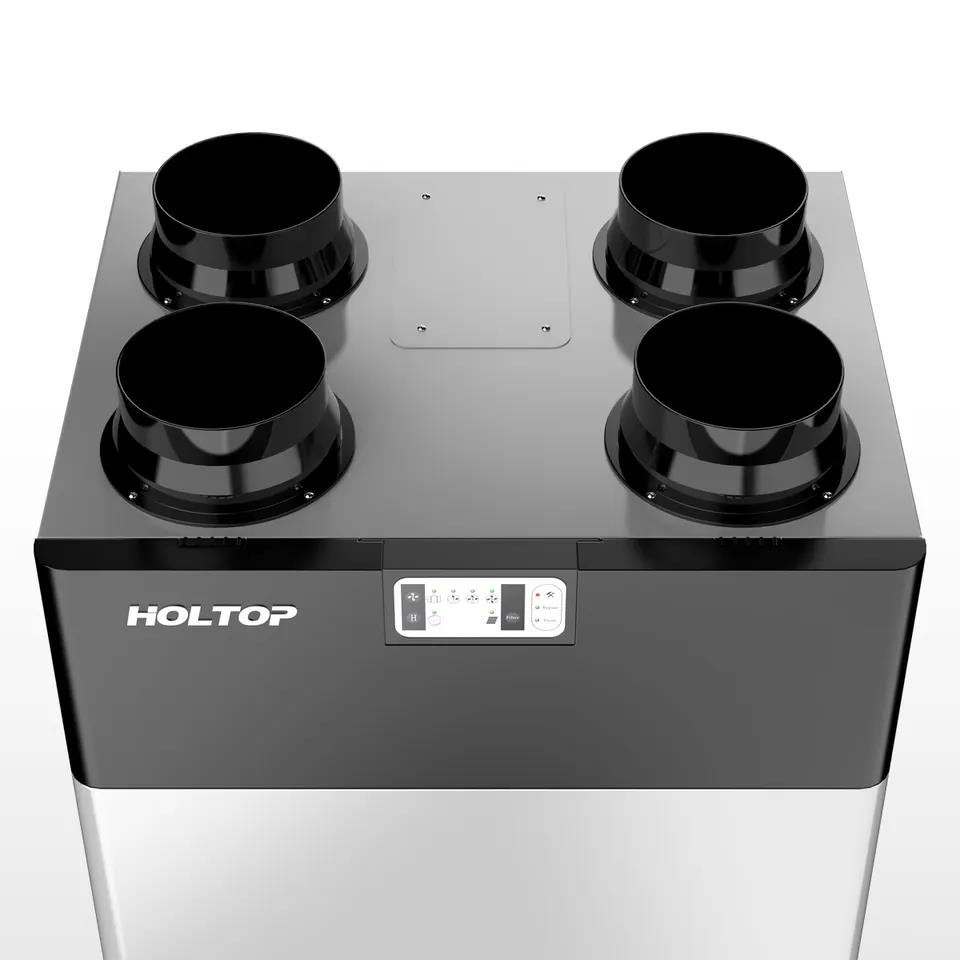

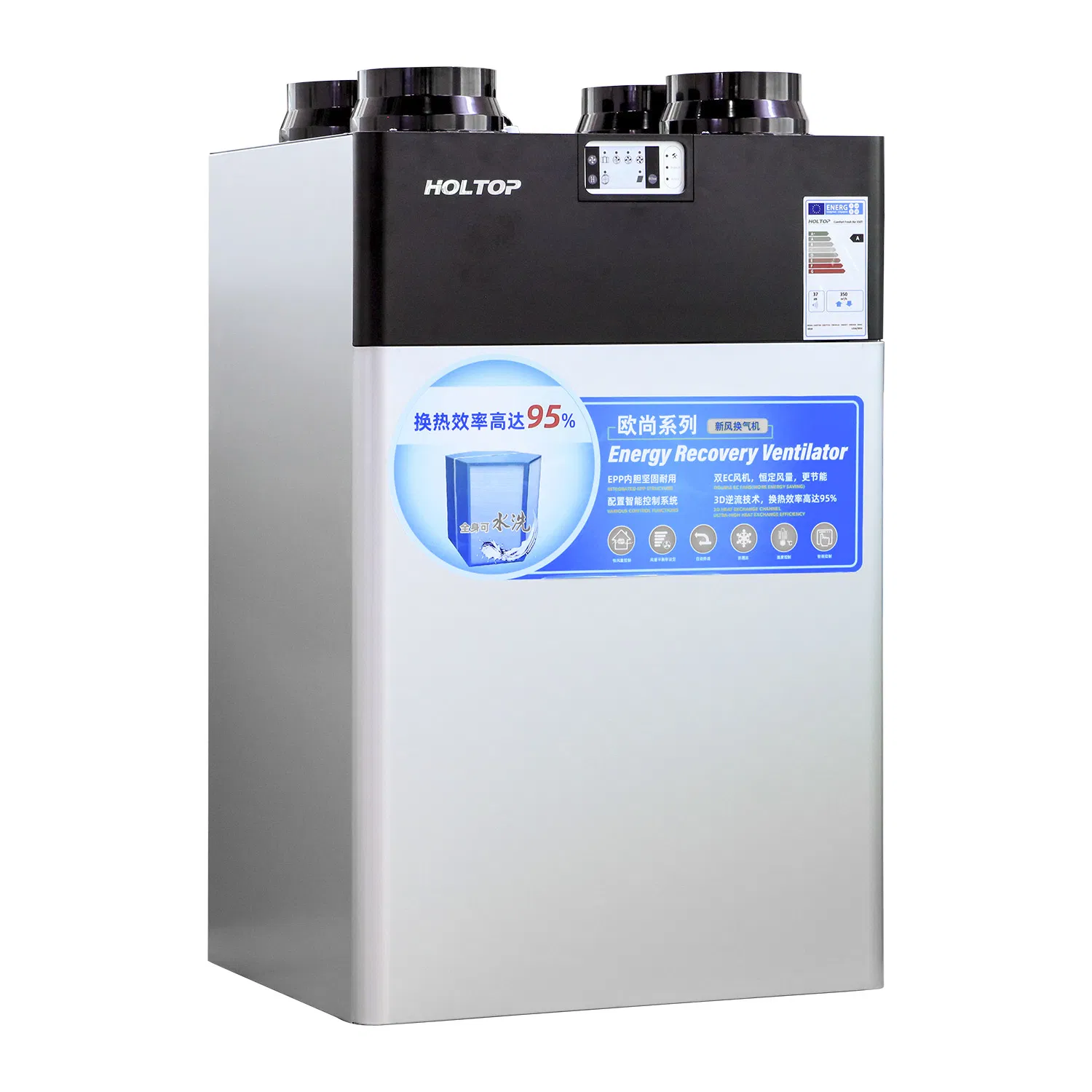

Compact HRV High Efficiency Heat Recovery Ventilator — Top port, compact unit, ideally suited for tight installations.

Enjoy the refreshing effect of opening a window or door while preserving indoor comfort and system efficiency. This ERV offers the ability to remove moisture from incoming air during hot, steamy months and can supply a refreshing infusion of outdoor air all year long. It's the perfect addition to your modestly-sized home.

Technical Specifications

MODEL No.	CFA250T	CFA350T	CFA500T
Airflow [ m³/h ]	250	350	500
External Static Pressure [ Pa ]	130	150	160
Temperature Efficiency [ % ]	85	85	85
Max Temp Efficiency [ % ]	95	95	95
Rated Power [ W ]	170	320	480
Noise [ dB(A) ]	35	37	39

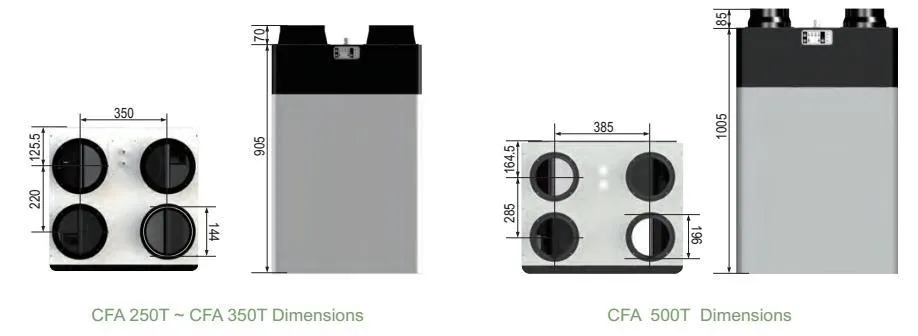

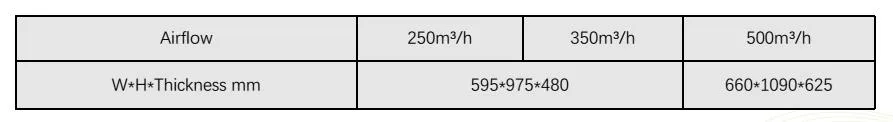

Dimensions & Details

The manufacturing facility has established business relationships with major countries in Asia, Europe, and North America, providing reliable energy-saving products. With over 20 years of research and development, these units are designed to ensure people's health and reduce environmental pollution through advanced air-to-air heat recovery technology.

Frequently Asked Questions

What is the difference between HRV and ERV?

HRV (Heat Recovery Ventilator) recovers sensible heat, while ERV (Energy Recovery Ventilator) can also manage humidity by recovering latent heat. This unit primarily uses a sensible heat core, but an enthalpy core is optional.

Is the heat exchanger core washable?

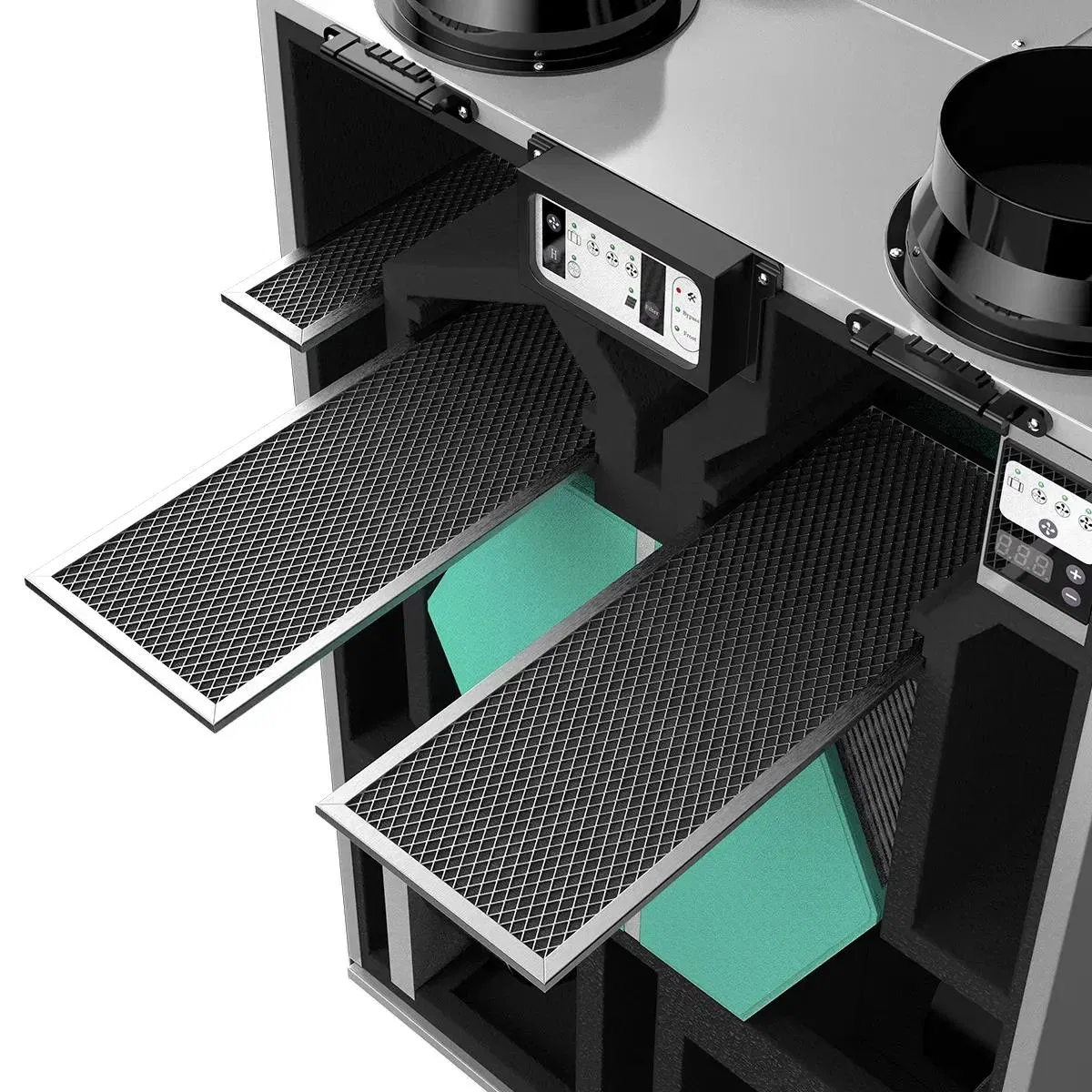

Yes, the counterflow heat exchanger core is designed to be washable, which helps maintain high efficiency and long-term hygiene of the ventilation system.

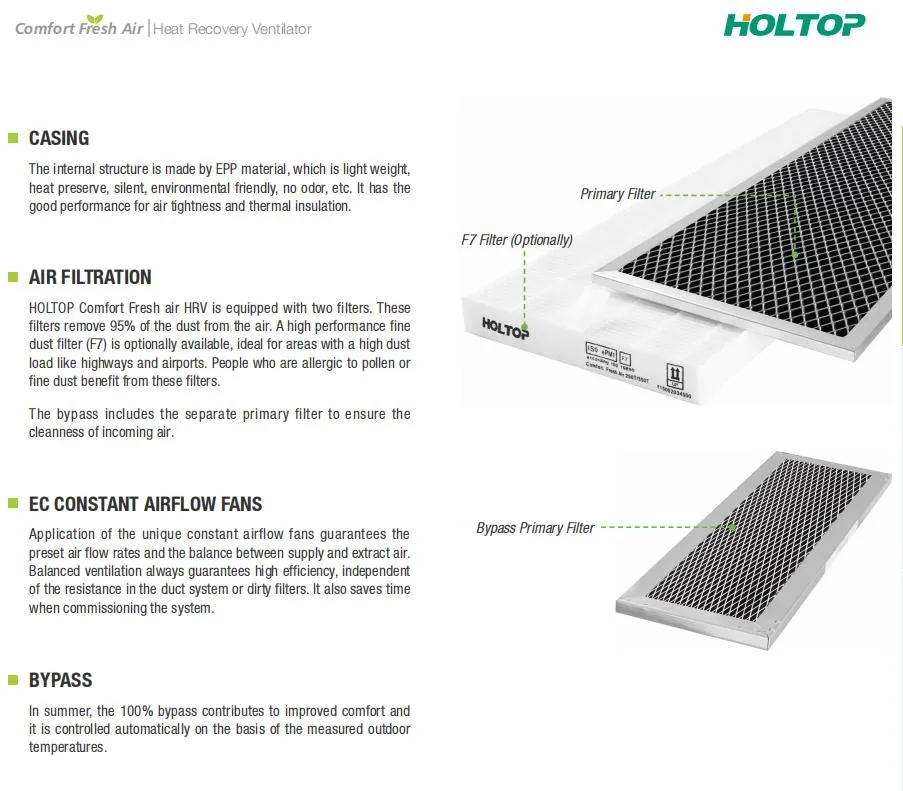

What are the benefits of the EPP inner construction?

EPP (Expanded Polypropylene) provides excellent thermal insulation, noise reduction, and a lightweight yet durable structure that prevents air leakage and condensation.

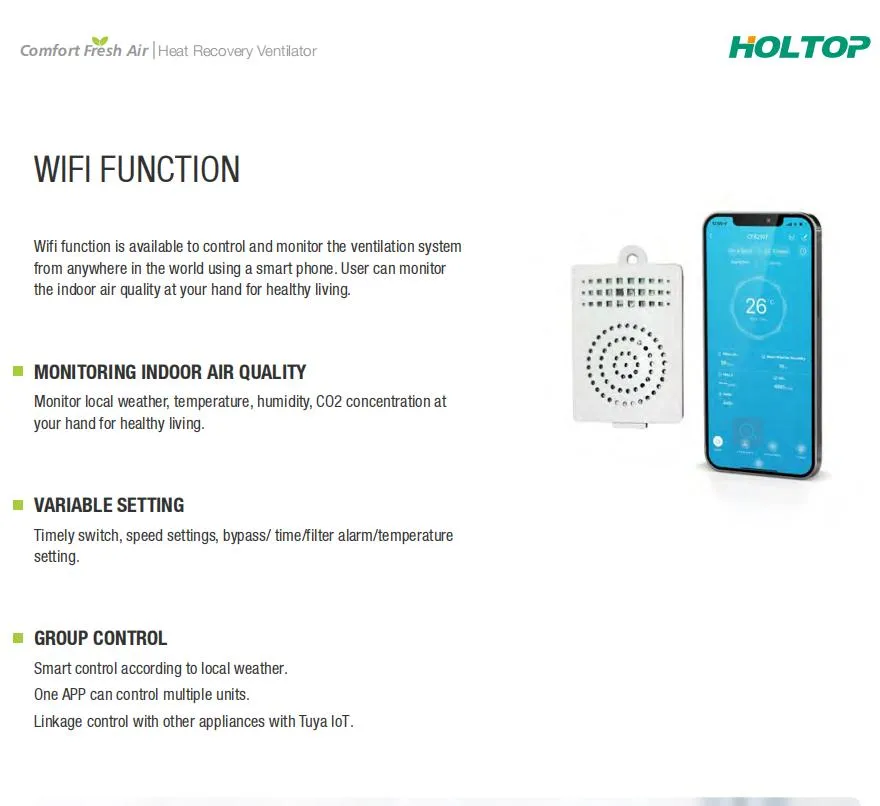

Can this unit be controlled remotely?

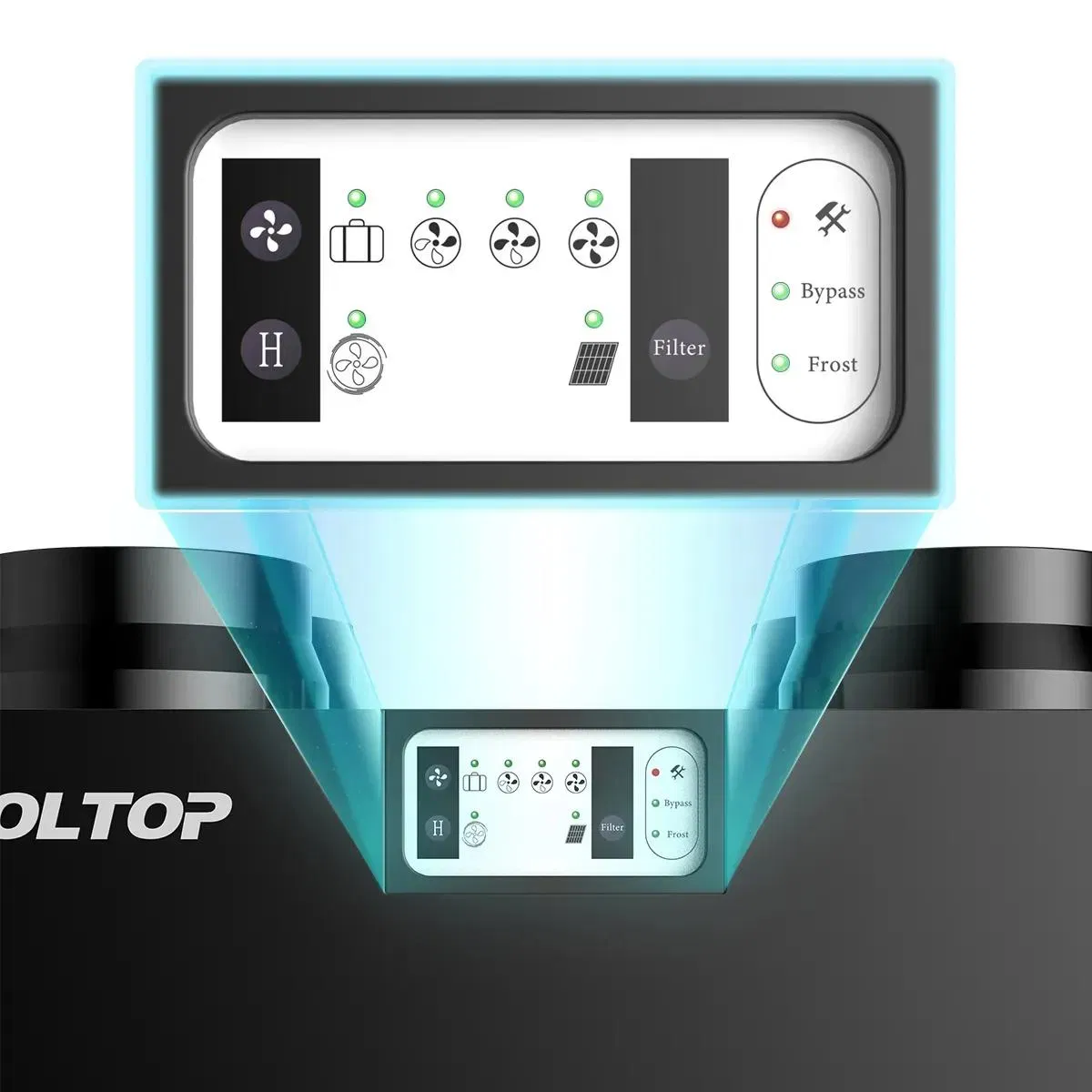

Yes, the unit features a double body control panel, and it supports an optional remote control and a WiFi module for smart operation through mobile devices.

How does the auto-bypass function work?

The auto-bypass allows outdoor air to enter the room directly without heat exchange when the outdoor temperature is favorable (e.g., during summer nights), helping to cool the indoor space naturally.

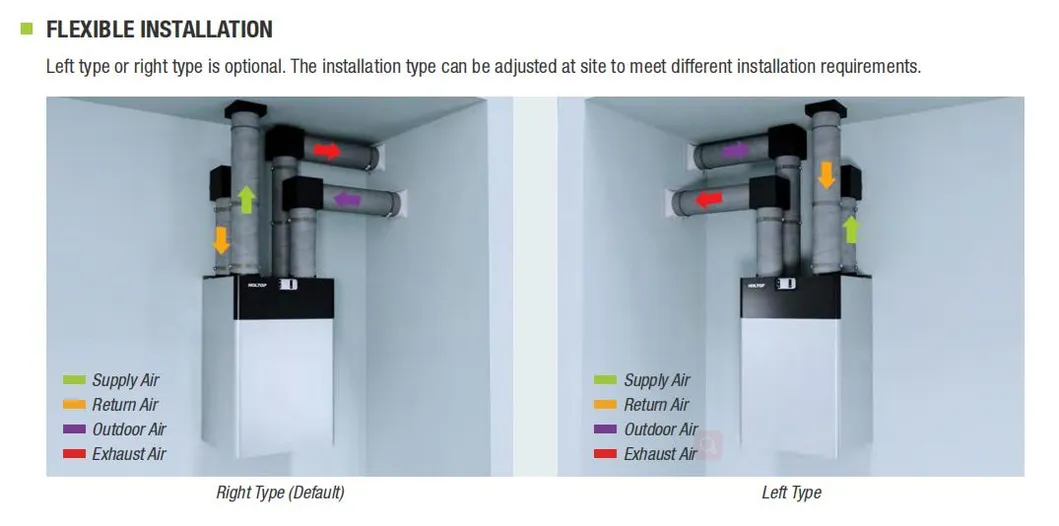

Where can this HRV be installed?

Due to its compact top-ported design, it is ideal for tight spaces in villas, apartments, clubs, or gyms. It supports both wall-mounted and floor-standing installations.
