Basic Specifications
Certification
ISO9001, ROHS, CE
Installation
Wall Mounted, Left/Right Optional
Controller
Machine Body + Remote Control
Application
Residential, Villa, Club, House
Capacity
250CMH / 350CMH / 500CMH

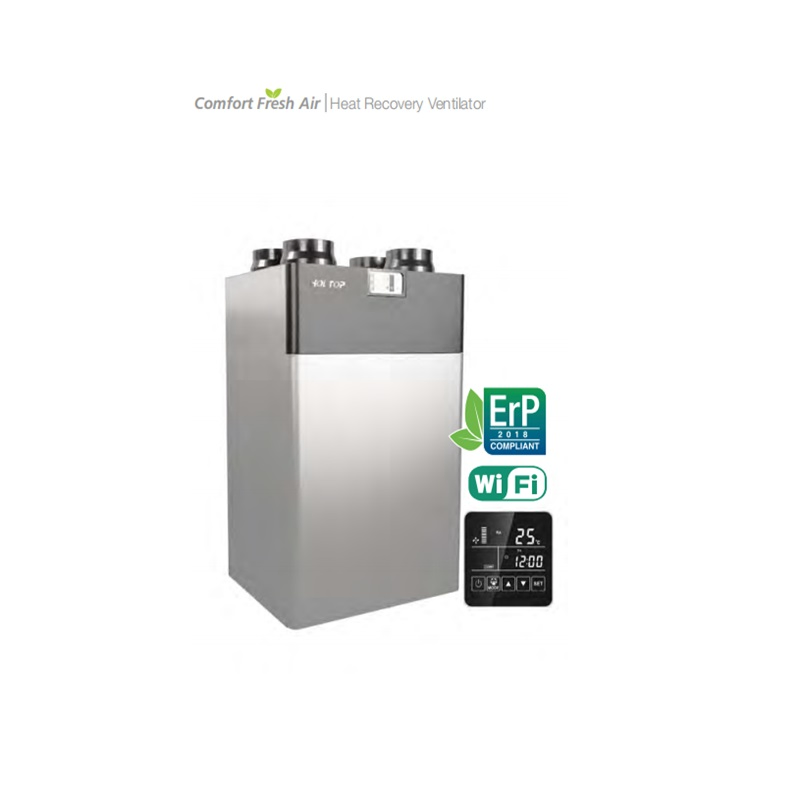

Compact HRV High Efficiency Heat Recovery Ventilator
Top port, compact unit – Ideally suited for tight installations.
Enjoy the refreshing effect of opening a window or door while preserving indoor comfort and system efficiency. This ERV offers the ability to remove moisture from incoming air during hot, steamy months and can supply a refreshing infusion of outdoor air all year long. It's the perfect addition to your modestly-sized home.
Core Features
- Top Ported, compact design
- Control included with 4-modes operation
- Top air inlets/outlets
- EPP inner structure

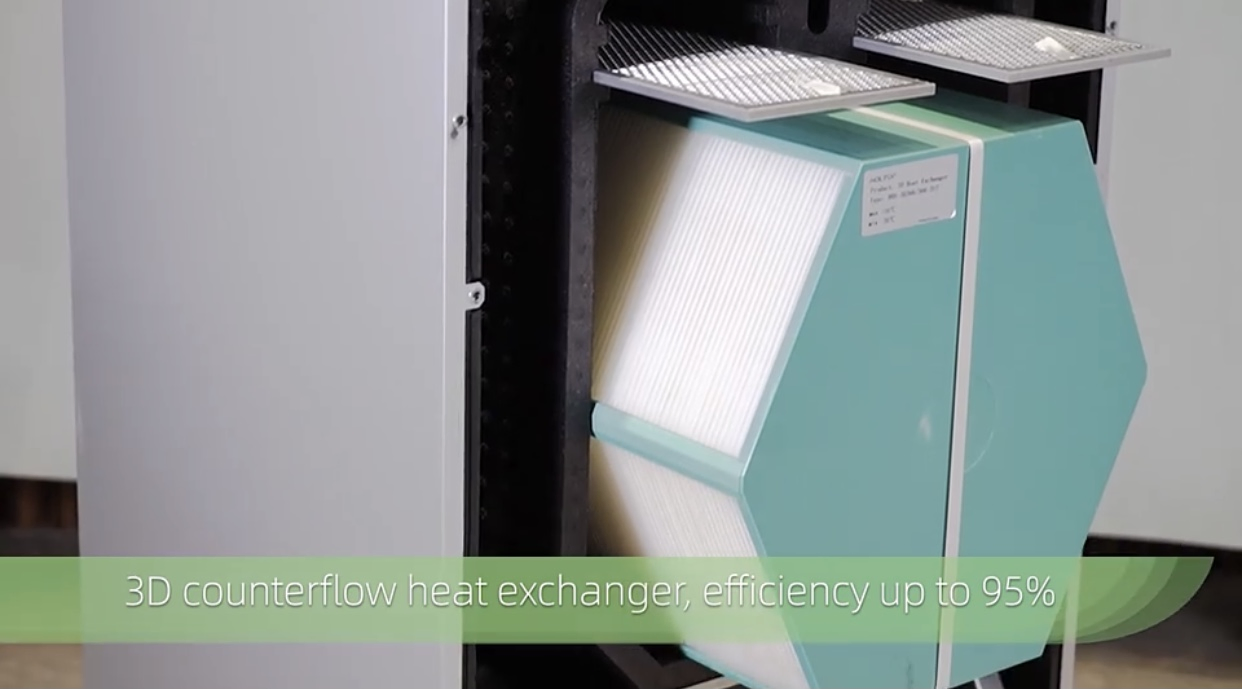

- Counterflow heat exchanger
- Heat recovery efficiency up to 95%
- High-efficiency EC fans
- Automatic Bypass function
- Optional CO2 Sensor & WiFi Adaptor

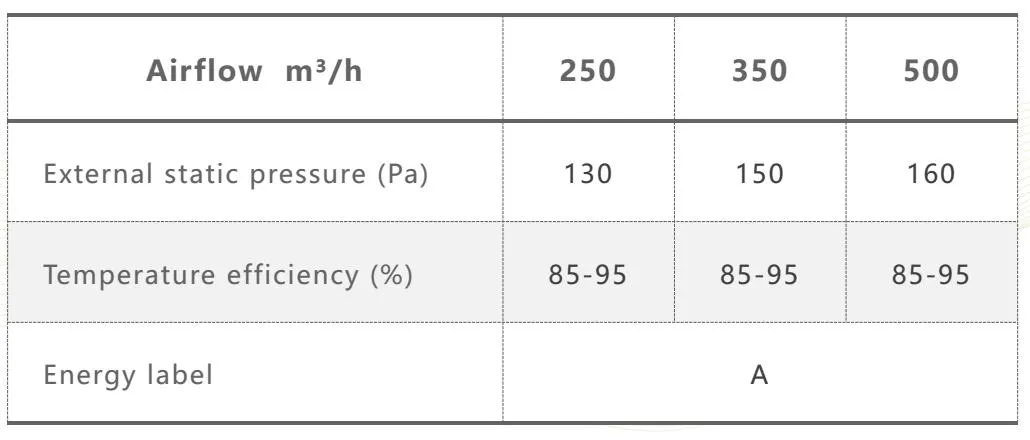

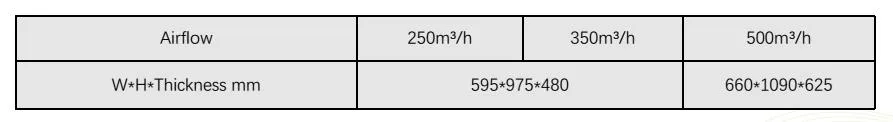

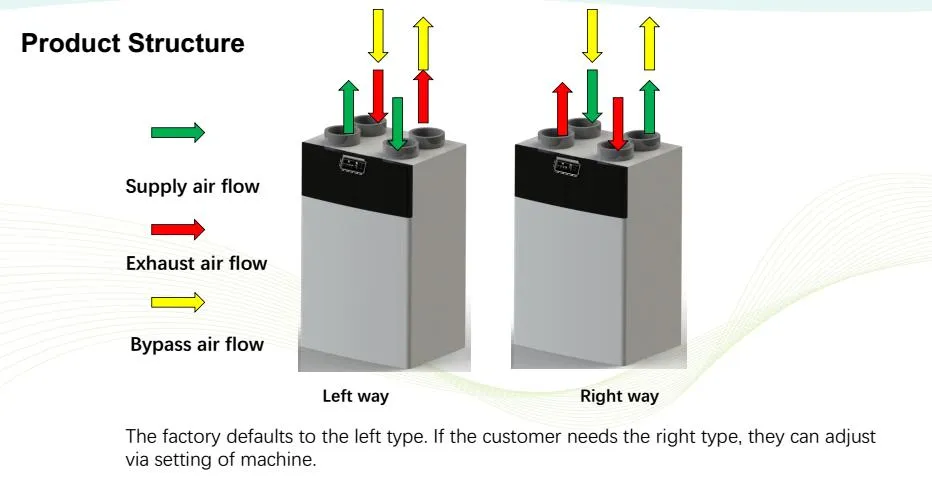

Product Dimensions & Structure

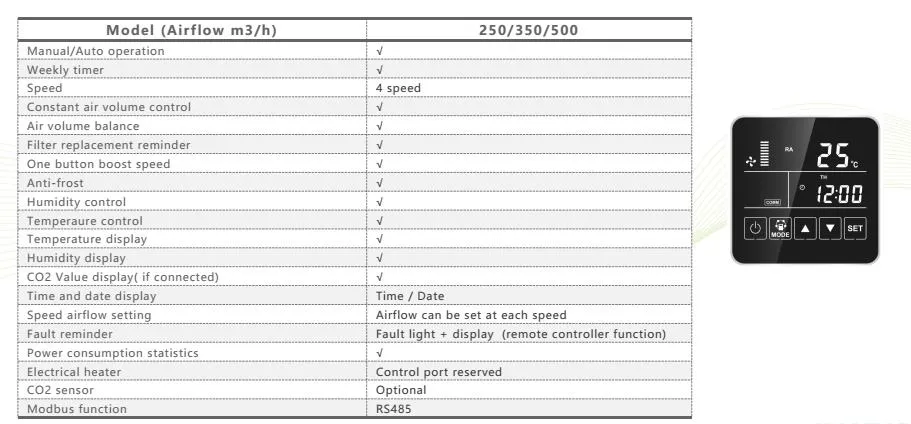

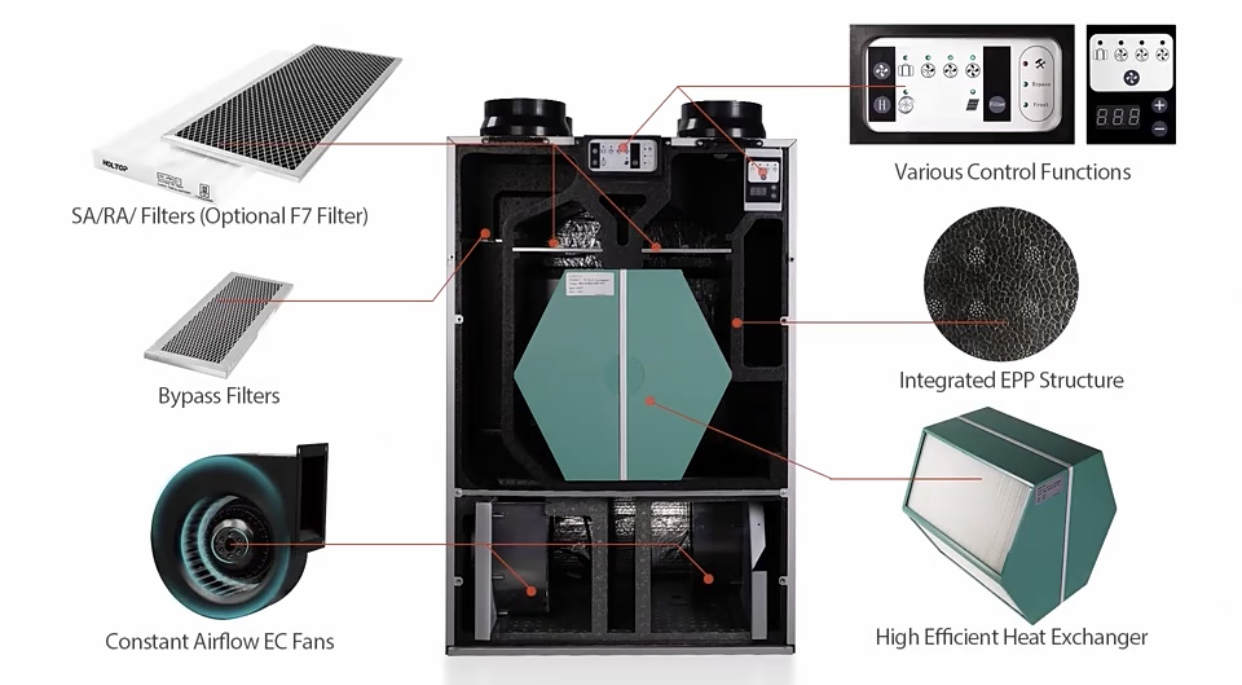

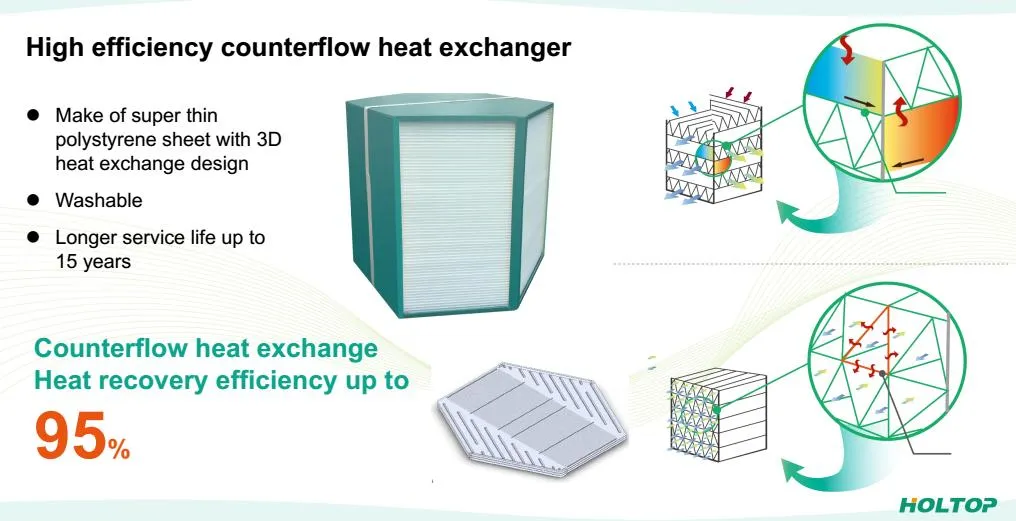

Heat Exchanger & Control System

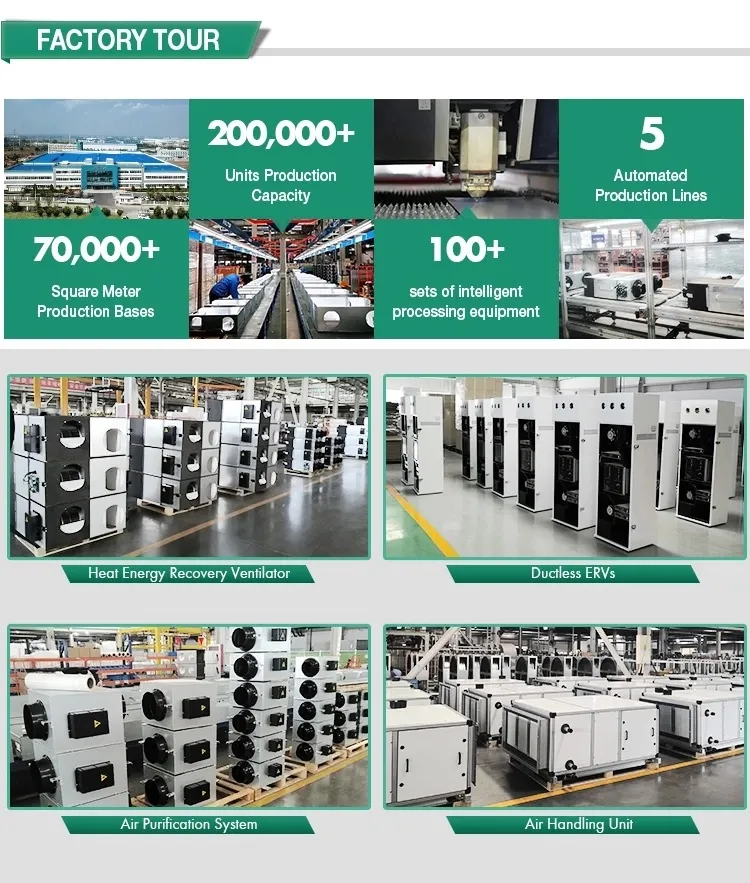

Manufacturing & Quality
Frequently Asked Questions

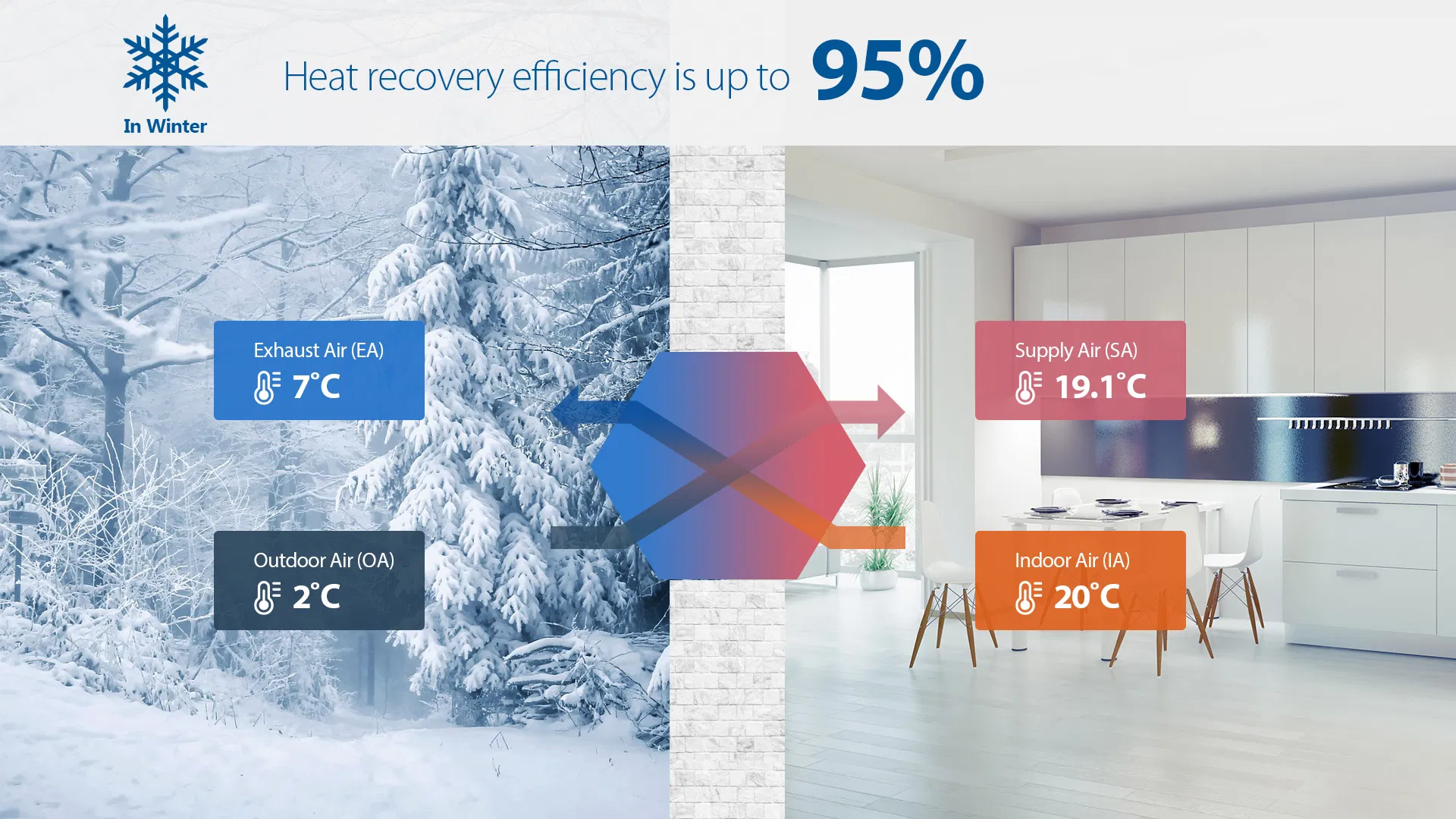

1. What is the maximum heat recovery efficiency of this HRV?
The system utilizes a counterflow heat exchanger, achieving a heat recovery efficiency of up to 95%, ensuring minimal energy loss during ventilation.
2. Does the unit support smart controls?
Yes, it comes with machine body control and remote control. Additionally, it offers optional WiFi adapters for remote management and CO2 sensors for automated air quality control.
3. What are the installation requirements for this model?
The unit features a compact, top-ported design, making it ideal for tight spaces. It is a wall-mounted type and offers both left and right installation options.
4. What makes the EC fans better than standard fans?
The EC (Electronically Commutated) fans used in this unit provide higher efficiency, lower noise levels, and more precise airflow control compared to traditional fans.
5. Is there a bypass function for cooling in summer?
Yes, the unit includes an automatic bypass function, which allows for fresh outdoor air to bypass the heat exchanger when the outdoor temperature is favorable, helping with natural cooling.
6. What capacities are available for different home sizes?
We offer three main specifications: 250CMH, 350CMH, and 500CMH, suitable for various residential projects including villas and apartments.
