| Standard Hardware Includes: |
| S30 main unit |
| 19" High Resolution LED color monitor |
| 8" High Resolution Touch Screen |
| Four transducer connectors |
| One CW transducer connector |
| DVD-RW/ USB 2.0/ Hard Disk 500 G |
| ECG Module |
| Standard Software Includes: |
| Imaging modes: B/ 2B/ 4B/ M/ THI/ CFM/ PDI/ DirPDI/ PW/ HPRF/ CW |
| Pulse Inversion Harmonic / Trapezoidal Imaging / Compound Imaging |
| Freehand 3D Imaging / μ-Scan: 2D speckle reduction technology |
| Multi-beam technology |
| Advanced cardiovascular kit: TDI/ Color M/ IMT/ Steer M |
| DICOM 3.0: Transmission/ Worklist/ Print/Storage Commitment/MPPS |
| Stress Echo / M-Tuning: one button image optimization |
| Standard Configured Transducers: |
| 192 elements linear array L742 (Vascular, Small parts, MSK etc.), 4-16MHz/38mm |
| 64 elements phased array 2P1 (Cardiac, Transcranial), 1-6MHz |
| 192 elements convex array C353 (Abdominal, Obstetrics, Gynecology), 2-6.8MHz/ R55mm |
| 192 elements endocavity 6V3 (Gynecology, Obstetrics, Urology), 3-15MHz/ R10mm |

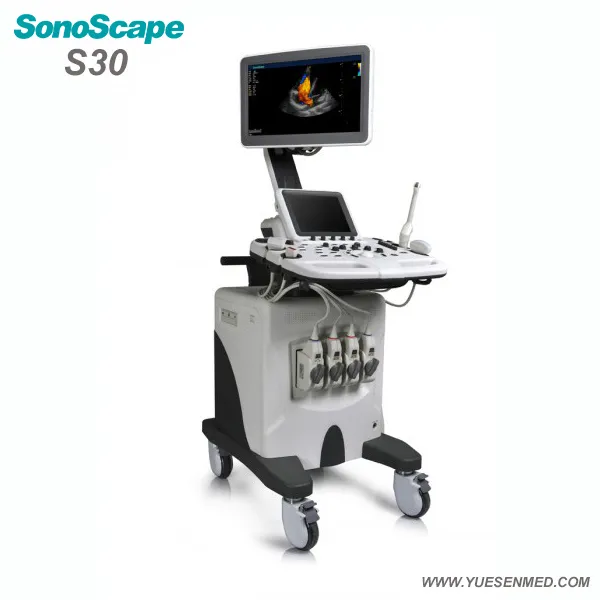

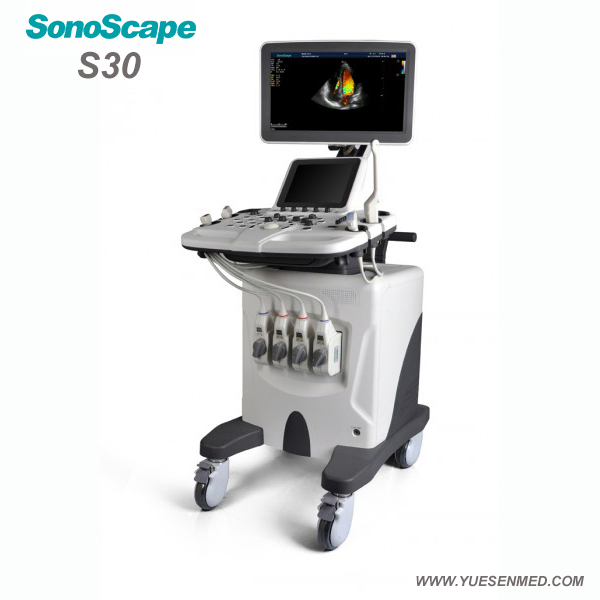

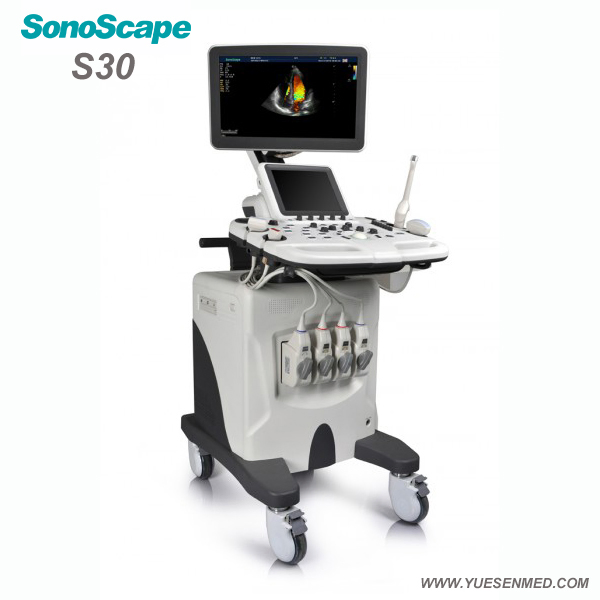

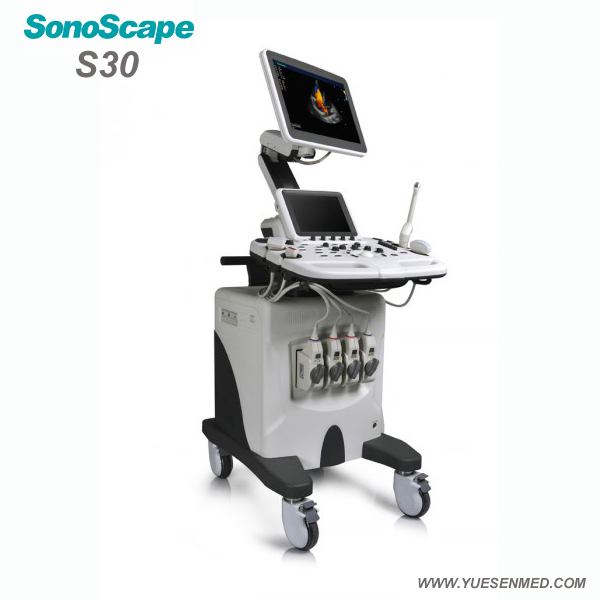

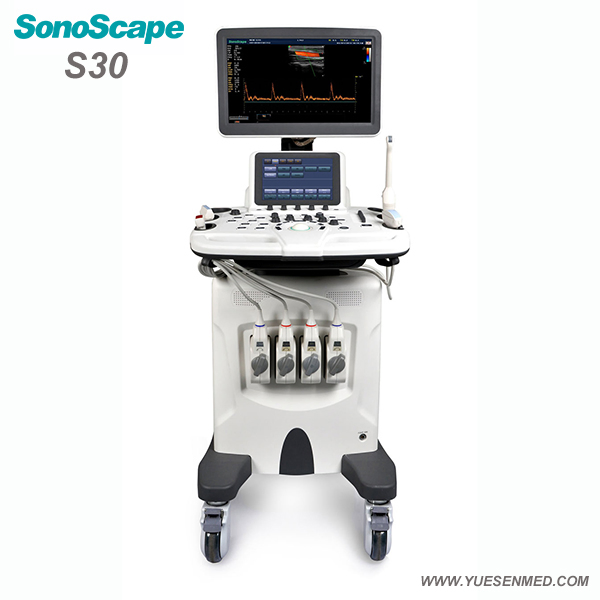

The S30 is a powerful and versatile general imaging system designed to meet a wide variety of clinical needs. The sleek console slips easily into tight spaces, yet is packed with powerful technology that delivers excellent diagnostic images with quality, speed, and precision.
