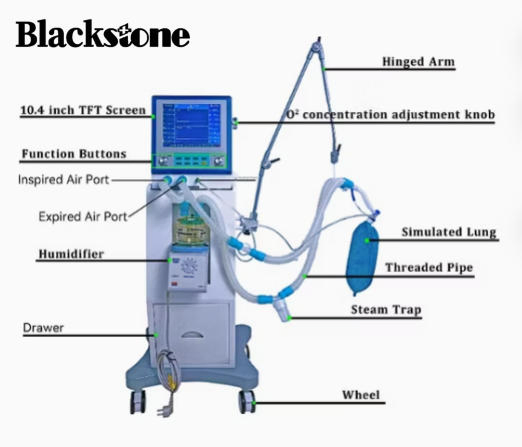

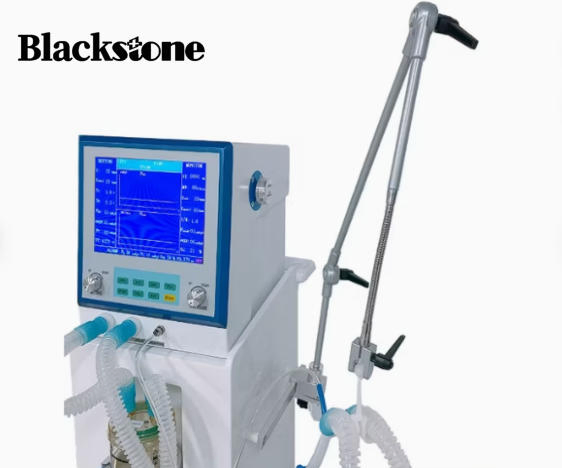

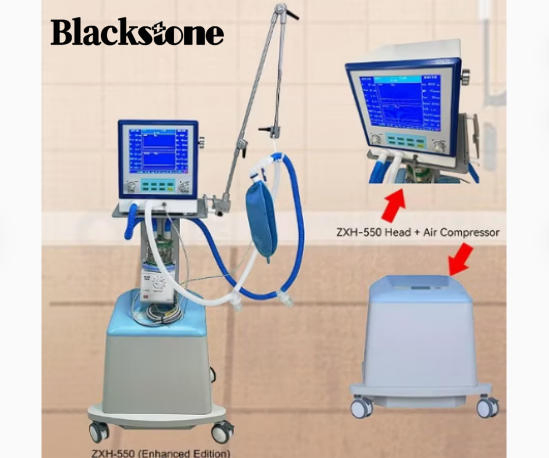

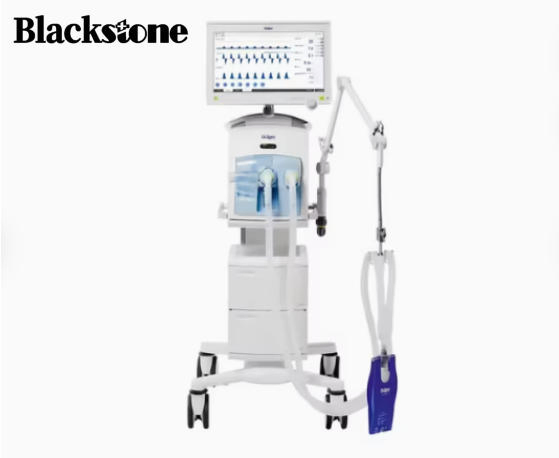

Intelligent Respiratory Support Ventilation System
Intelligent Respiratory Support Ventilation System
Intelligent Respiratory Support Ventilation System
Intelligent Respiratory Support Ventilation System
Intelligent Respiratory Support Ventilation System
1 / 5
Intelligent Respiratory Support Ventilation System
Intelligent Respiratory Support Ventilation System
Intelligent Respiratory Support Ventilation System
Intelligent Respiratory Support Ventilation System
Intelligent Respiratory Support Ventilation System

Intelligent Respiratory Support Ventilation System

Customization: Available
Type: Breathing
Function: Breathing
Send Inquiry

Product Description

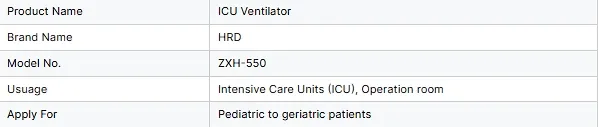

Basic Specifications
Model NO.
ZXH-550
Theory
Breathing
Certification
CE, ISO13485
LCD Display
With LCD Display (10.4")
Group
Adult
Product Name
Ventilator Machine
Work Mode
A/C, Simv, Psv, Pcv, Mmv, Ippv, Sigh, Ppep, CPAP
Tidal Volume
0-2000ml
Oxygen Concentration
21%-100%
Trigger Pressure
-2 Kpa ~ 2kpa
Origin
China
Production Capacity
1000 Sets / Per Month
Product Features
✔ Pneumatic electric control with advanced microcomputer management.
✔ Versatile design suitable for both invasive and non-invasive respiratory management.
✔ High-definition 10.4" LCD display for real-time monitoring.
✔ Integrated humidifier with temperature control and automatic over-temperature power-off protection.
✔ Mobile standard trolley design for easy transport within clinical settings.
✔ Multi-parameter monitoring: Tidal volume, minute ventilation, peak airway pressure, P-T waveform, and more.
✔ Support for optional air compressor and UPS backup power supply.

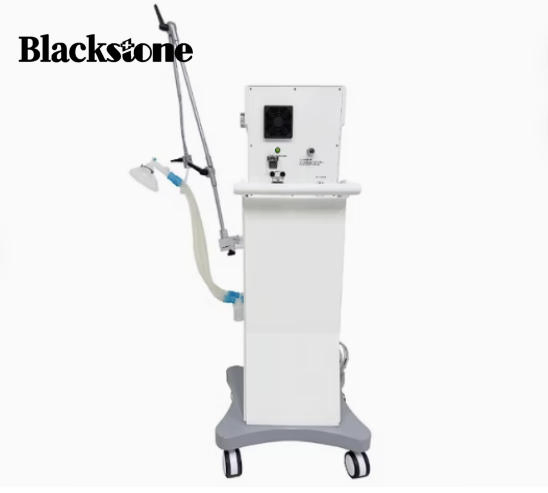

Intelligent Respiratory Support Ventilation System

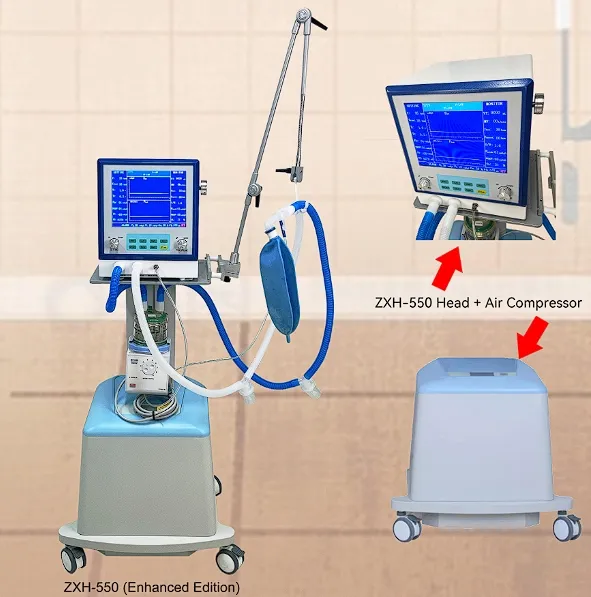

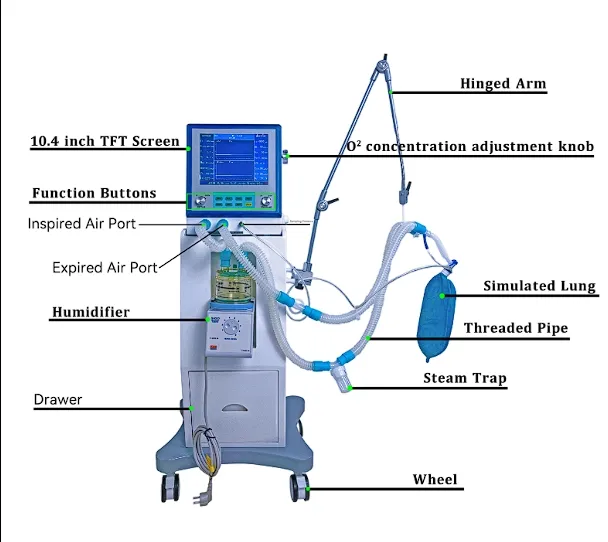

Ventilation System Detail 1 Ventilation System Detail 2 Ventilation System Detail 3

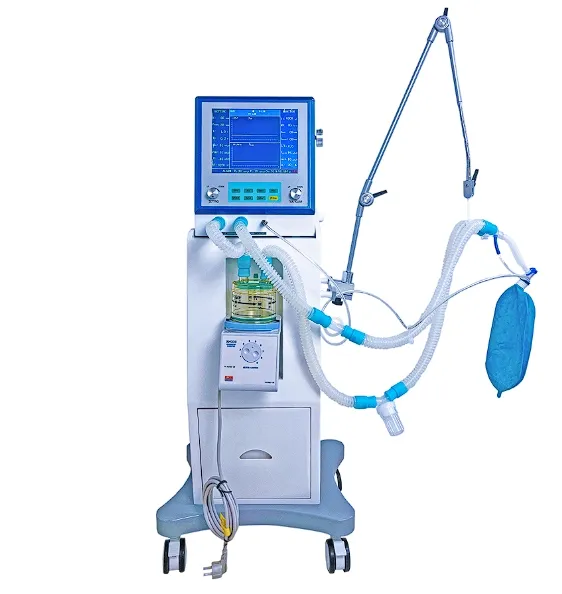

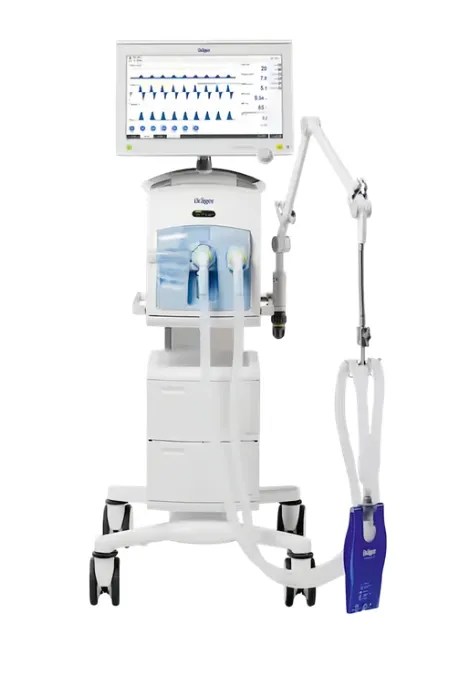

Ventilation System Detail 4 Ventilation System Detail 5
Technical Specification

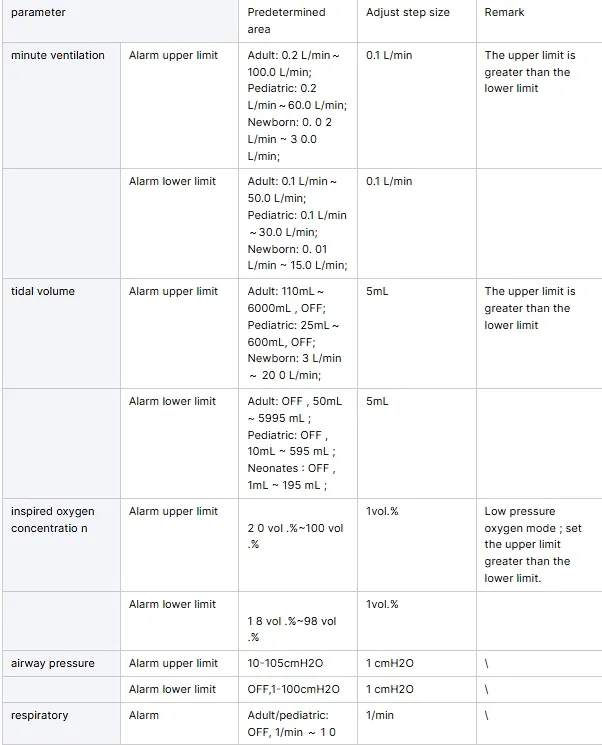

Technical Specification Table
Packing & Delivery
Selling Units Single item
Single Package Size 55 X 65 X 120 cm
Single Gross Weight 62.000 kg
Package Type Standard Protective Wooden Case
Frequently Asked Questions
Is the ZXH-550 suitable for non-invasive ventilation?
Yes, this model is designed to handle both invasive and non-invasive respiratory management effectively.
What safety protections are built into the humidifier?
The humidifier includes precise temperature adjustment and an automatic power-off protection feature to prevent over-heating, ensuring patient safety during long-term use.
What parameters can be monitored on the 10.4" LCD screen?
Users can monitor tidal volume, minute ventilation, respiratory rate, peak airway pressure, oxygen concentration, trigger pressure, and P-T waveforms.
What is the tidal volume range of this machine?
The tidal volume is adjustable within a range of 0 to 2000ml, making it suitable for a wide range of adult patient needs.
Does the system come with a backup power supply?
The standard configuration includes a trolley; an air compressor and a UPS backup power supply are available as optional additions.
What quality certifications does this product hold?
The ventilator machine is fully certified with CE and ISO13485 standards, meeting international medical equipment requirements.
