Klarity Triniti Radiotherapy Patient Positioning System

1 / 5

Klarity Triniti Radiotherapy Patient Positioning System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Klarity TRINITI

Product Name

Triniti Radiotherapy Patient Positioning System

Measurement Precision

0.25mm, 0.1°

Max. Load

200 Kg

Frequency

25Hz

Scale

Medium

Lateral Axis

-40mm~+40mm

Longitudinal Axis

-40mm~+40mm

Optional Modules

SRS/ Sbrt

Trademark

Klarity TRINITY

Origin

China

Specification

800*1200*800mm

Product Description

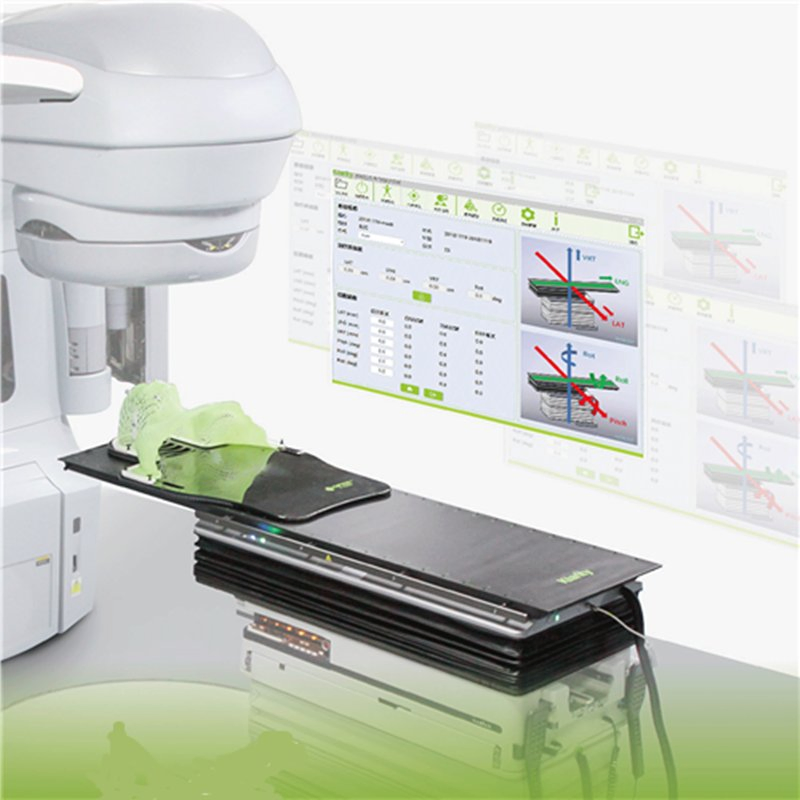

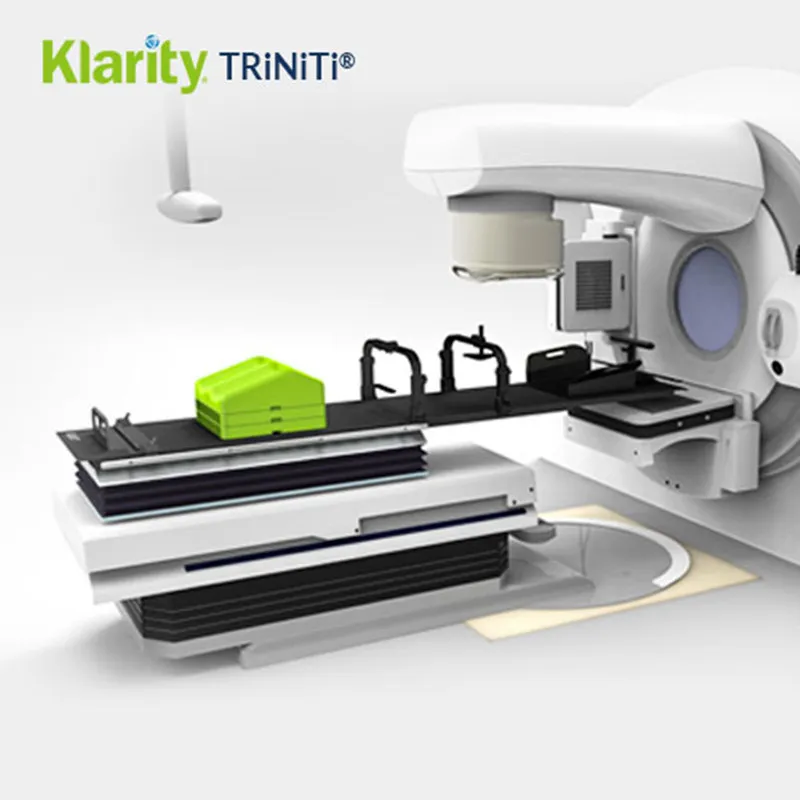

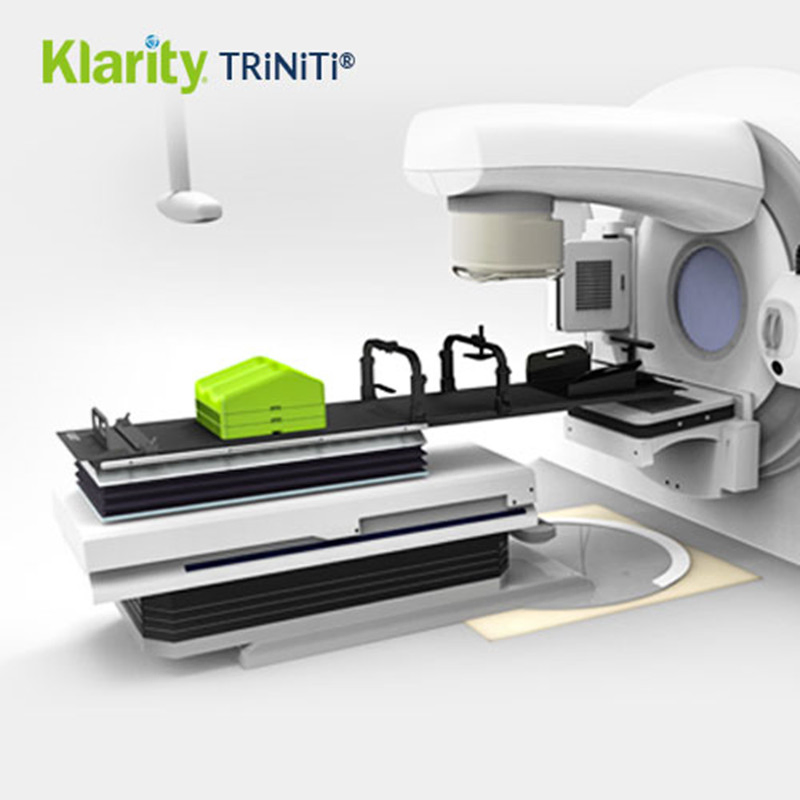

Klarity TRINITI Radiotherapy Patient Positioning System

Klarity TRINITI® is a high-end solution for radiotherapy consisting of three subsystems designed to work independently or together:

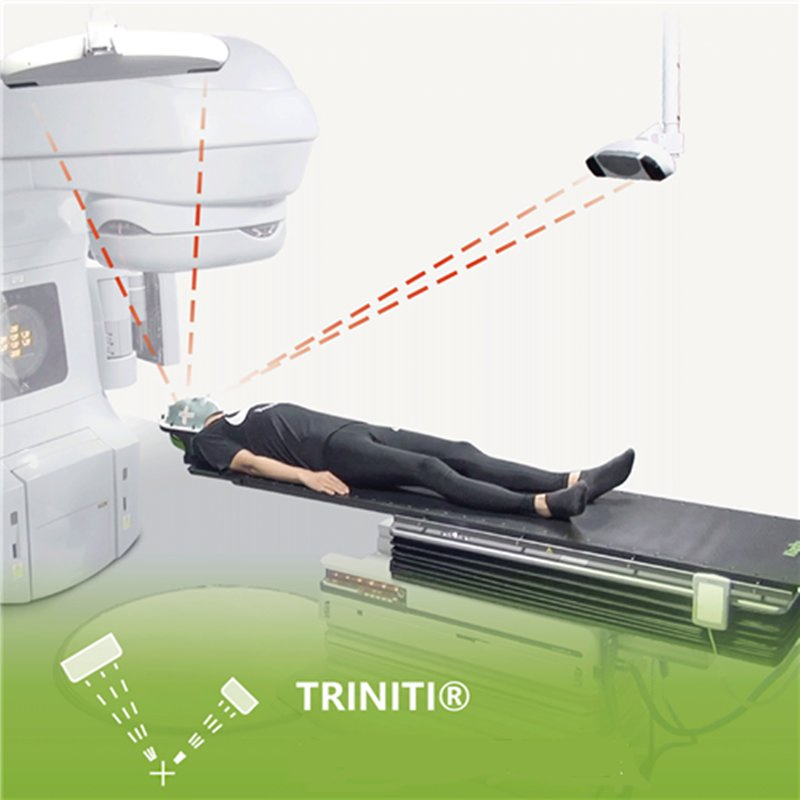

Surface Tracking with IR technology: Precise sub-millimeter tracking.

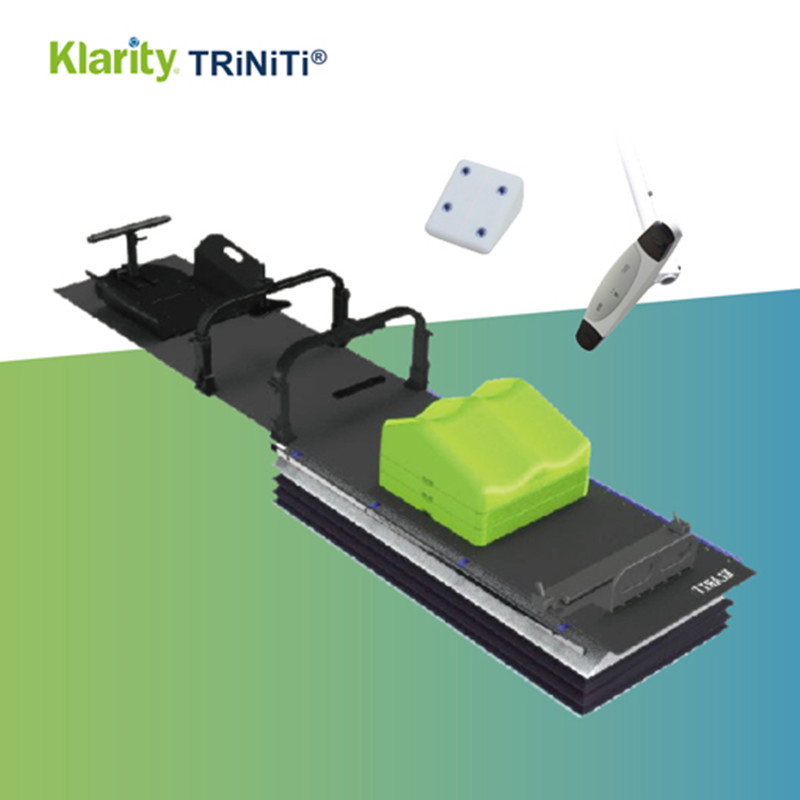

6 DoF Robotic Couch: Advanced positioning flexibility.
Respiratory Gating: Management of patient motion during radiation delivery.

The system ensures high-precision patient setup, providing intrafraction motion monitoring and management, as well as tracking the patient's respiratory cycle during simulation and treatment coordination.

Detailed Photos

Company Profile

Klarity Medical Products manufactures and distributes a variety of products serving the needs of radiation therapists, occupational therapists, hand therapists, and other medical specialists. With global facilities, Klarity is a leader in developing thermoplastics and positioning devices. All items are produced with strict ISO 13485 certification and comply with CE and international regulations.

Frequently Asked Questions

Q1: What is the main purpose of the Klarity TRINITI system? A: It is designed to ensure high-precision patient setup and positioning in Radiotherapy, providing motion monitoring and respiratory gating during treatment.

Q2: What is the measurement precision of the TRINITI system? A: The system offers exceptional precision with 0.25mm linear accuracy and 0.1° angular accuracy.

Q3: What are the three core subsystems of the TRINITI? A: The system consists of Surface Tracking with IR technology, a 6 DoF Robotic Couch, and a Respiratory Gating module.

Q4: What is the maximum weight capacity of the system? A: The Klarity TRINITI system is built to support a maximum load of up to 200 Kg.

Q5: Does the system support specialized treatments like SRS or SBRT? A: Yes, optional modules for SRS (Stereotactic Radiosurgery) and SBRT (Stereotactic Body Radiation Therapy) are available.

Q6: Are Klarity products certified for international use? A: Yes, all products are manufactured under strict ISO 13485 certification and comply with CE and other international medical regulations.
