Product Name
Closed Suction Catheter
Sterilization
Ethylene Oxide (EO)
Guarantee Period
Five Years
Relative Type
24h/72h/Child/Adult
Certificates
ISO13485 / FDA
Package
1PCS/Pouch, 10 Pouches/Box
Specification
10fr/12fr/14fr/16fr

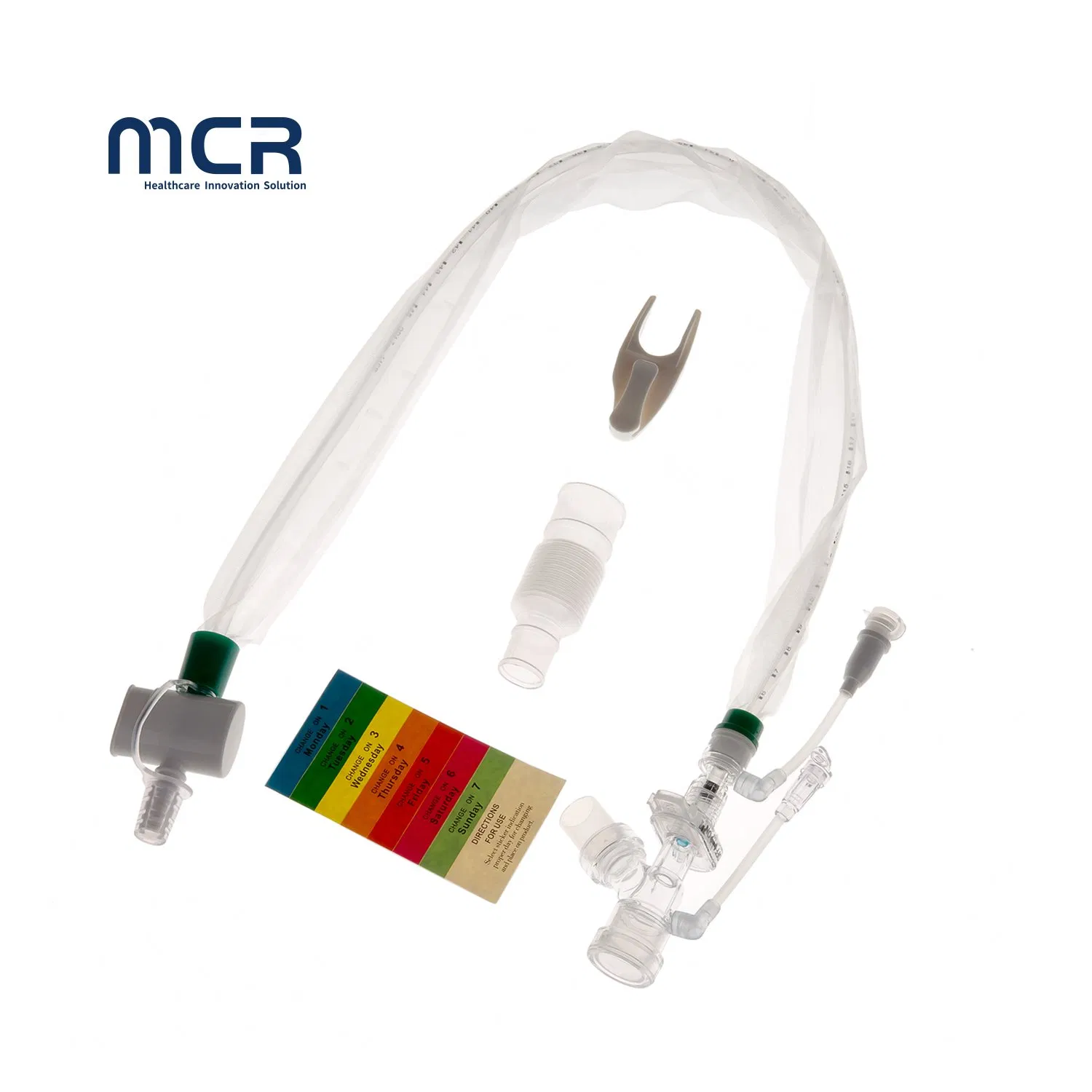

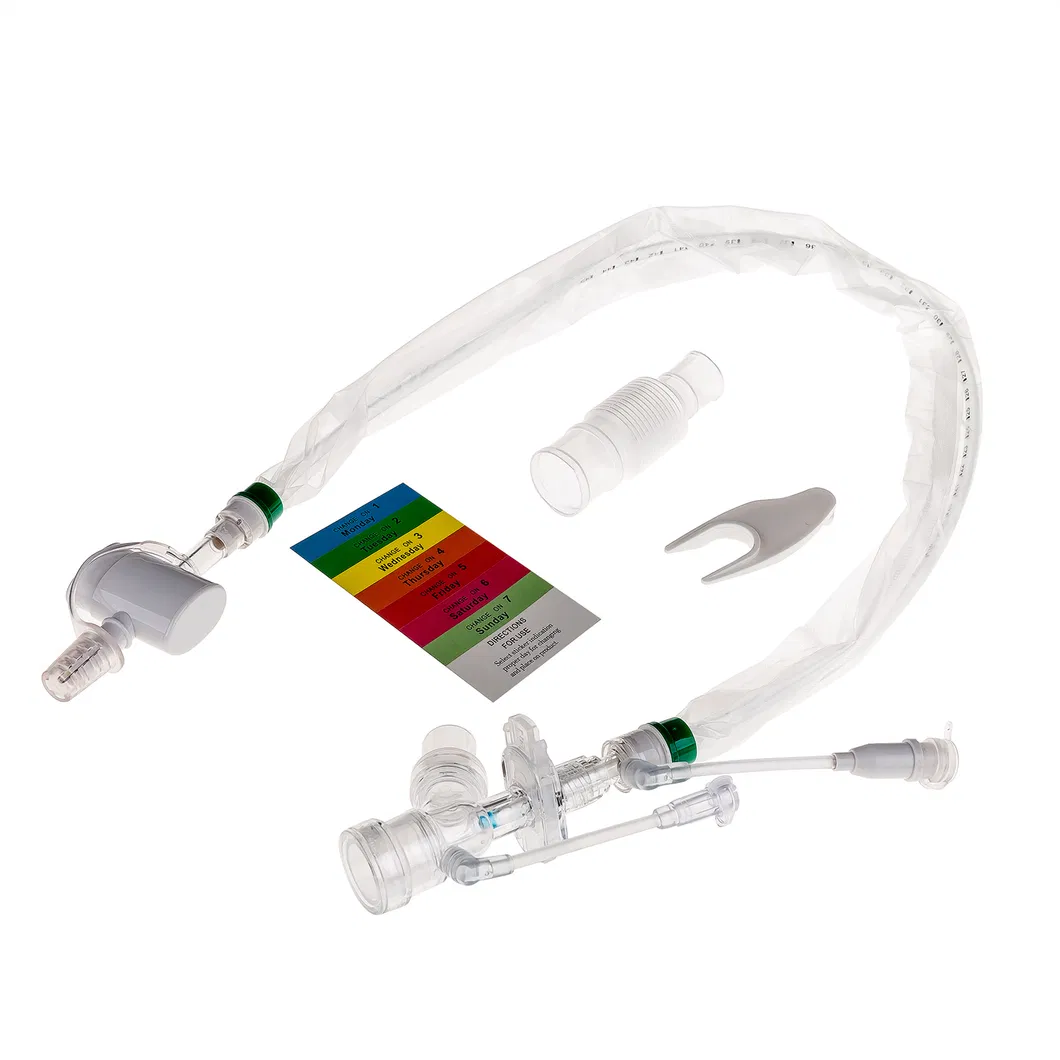

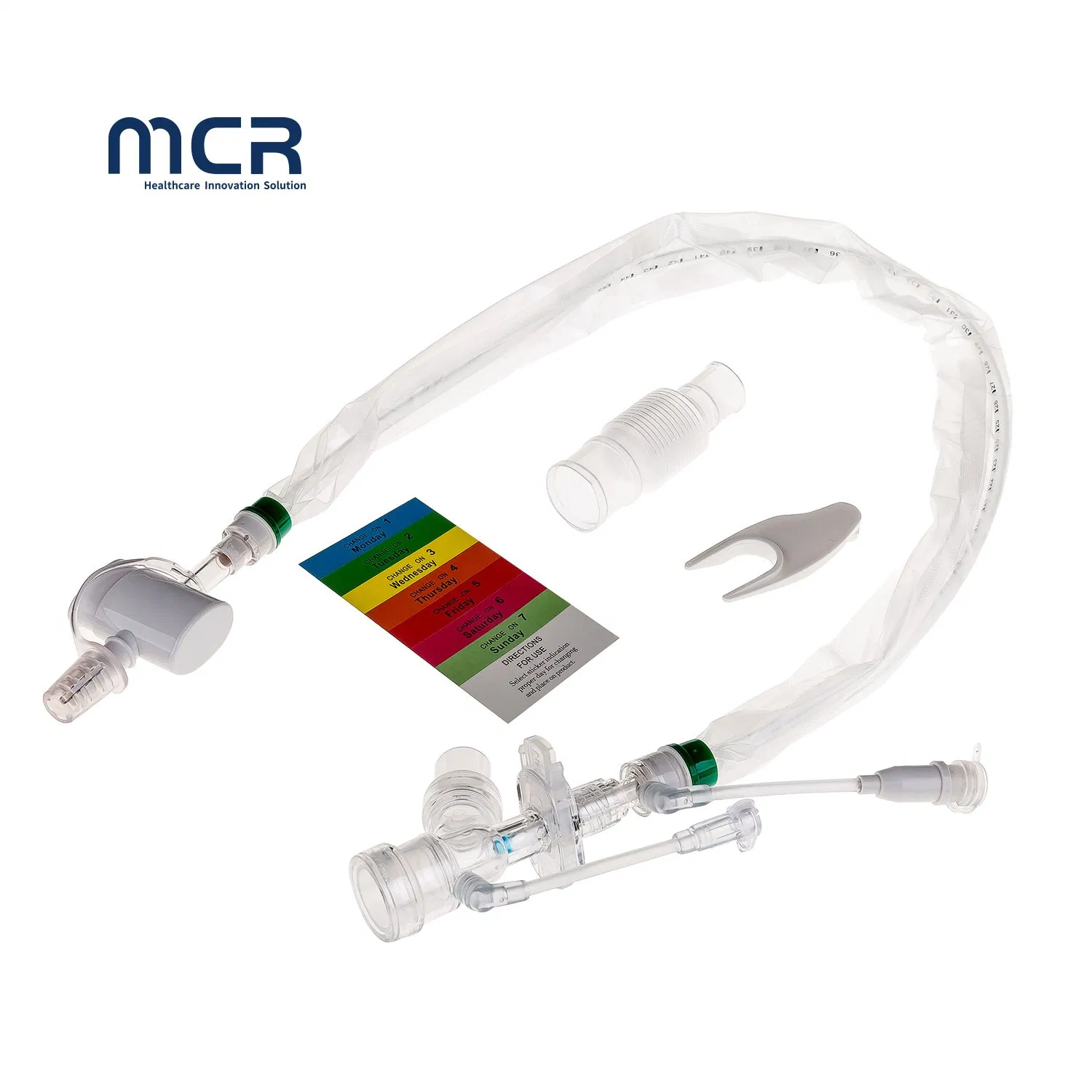

Closed Suction Catheter (Y-Piece) 72 hours for Adult, Push Switch & Luer Lock Type
Designed with a protective sleeve to isolate germs inside and help caregivers avoid cross-infection. Simultaneous ventilation design allows suctioning without stopping air ventilation.

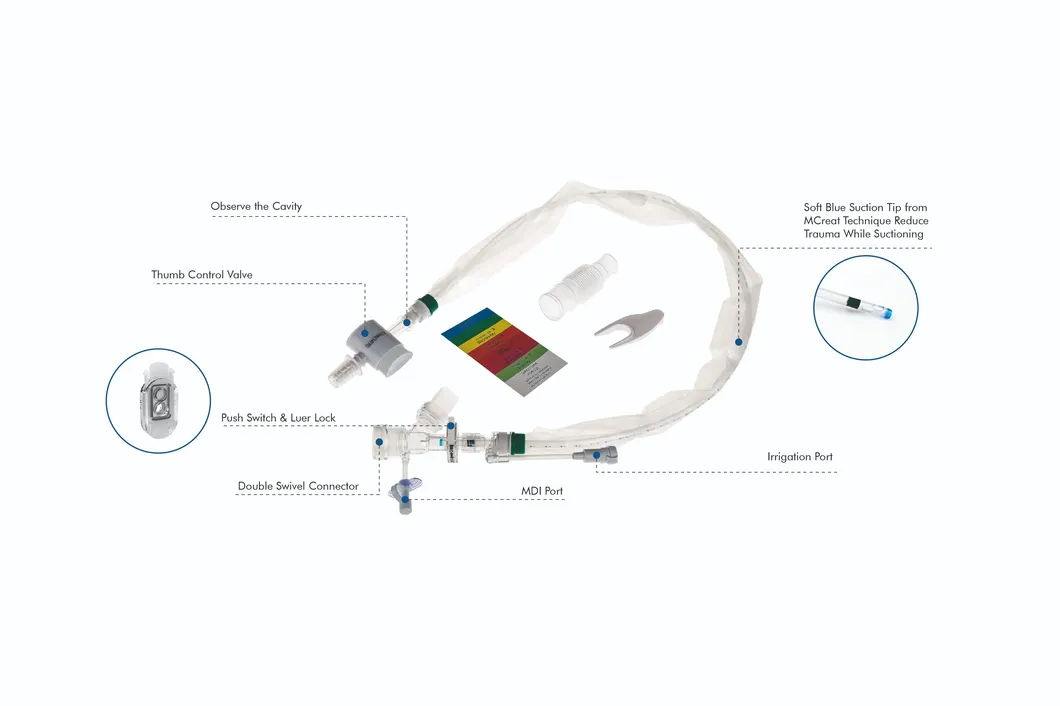

Key Features
Continuous Breathing
Simultaneous ventilation allows for patient comfort during the suctioning process.
Soft Blue Suction Tip
Reduces damage to the patient while suctioning; easier for irrigational cleaning.

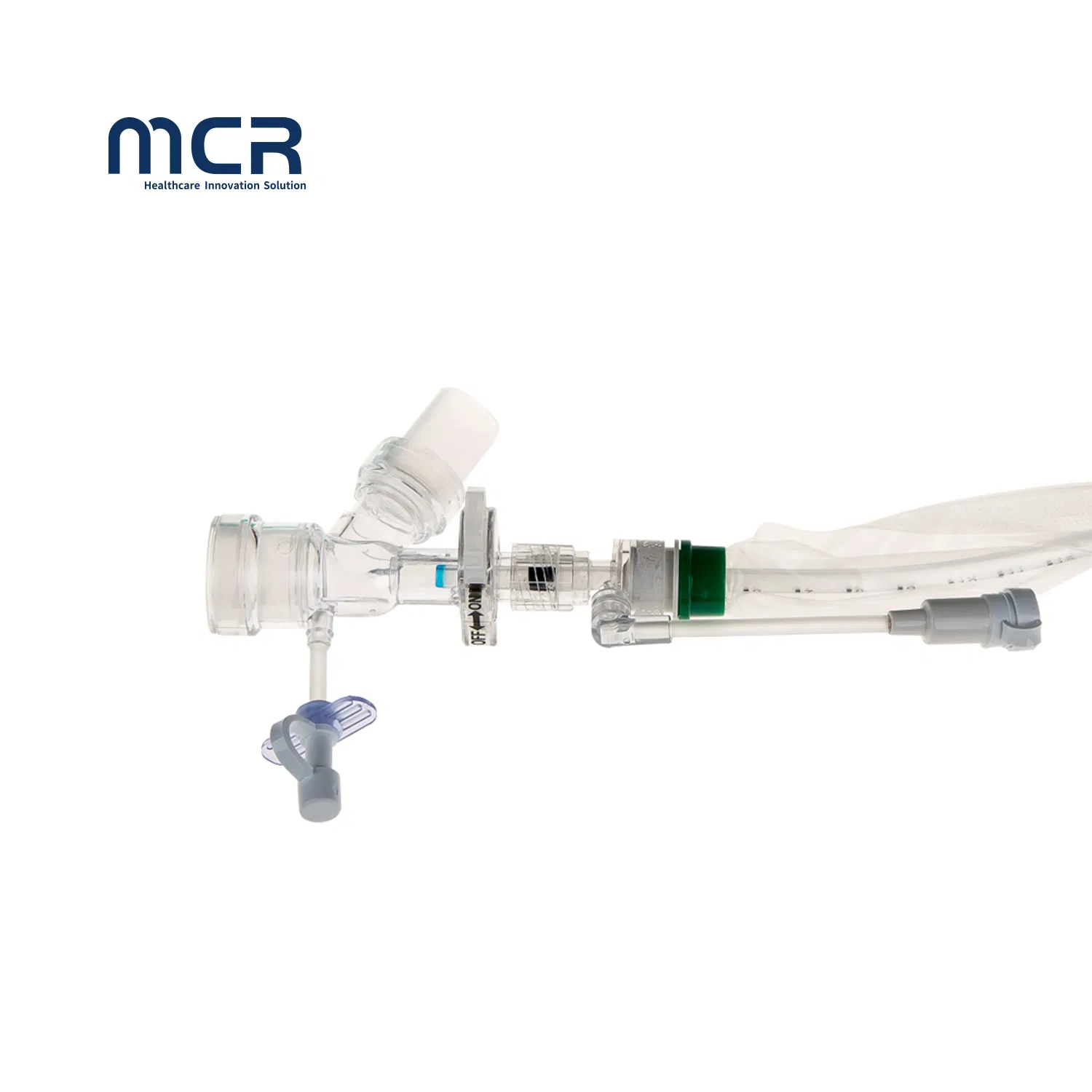

Double Swivel Connector
Equipped with a 15mm Double Swivel connector for better maneuverability.
Push Switch & Luer Lock
Isolates the cleaning chamber and prevents spray back, reducing VAP risk.
Disconnecting Wedge
Multi-functional wedge designed for both disconnecting and clipping.
Cross Infection Prevention
Protective sleeve isolates bacteria to ensure caregiver and patient safety.

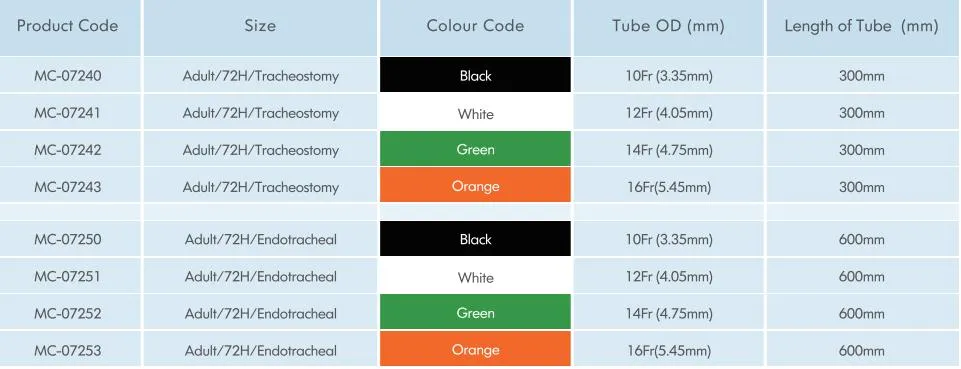

Product Data Sheet
Instructions for Use
Step 1: Set up Procedure
- Inspect product and package integrity before use.
- Connect to Endotracheal/Tracheostomy Tube and Ventilator Connector.
- Attach date label to the color ring.
- Ensure MDI Port and Irrigation Port caps are closed.
- Slide on-off valve to the open position before suctioning.
Step 2: Suctioning Procedure
- Grip the three-way adaptor and feed the catheter to the required depth.
- Depress the vacuum control valve to begin suctioning.
- Remove the catheter until the protective sleeve is straight.
- Repeat as necessary according to clinical requirements.
Frequently Asked Questions
Q: What is the maximum usage duration for this catheter?
A: This specific model is designed for 72-hour continuous use for adult patients.
Q: Does the suctioning process interrupt patient ventilation?
A: No, the simultaneous ventilation design allows for continuous air ventilation during the suctioning procedure.
Q: How does the product help in preventing infections?
A: It features a protective sleeve that isolates bacteria and a cleaning chamber design that prevents spray back, significantly reducing the risk of VAP.
Q: What sizes are available for the Closed Suction Catheter?
A: We provide a range of specifications including 10fr, 12fr, 14fr, and 16fr to suit different patient needs.
Q: Is the suction tip safe for the patient?
A: Yes, it is designed with a soft blue suction tip to minimize mucosal damage during the procedure.
Q: What certifications does the product hold?
A: The product is manufactured under strict quality standards and holds ISO13485 and FDA certifications.
