Flexible and Easy to Use

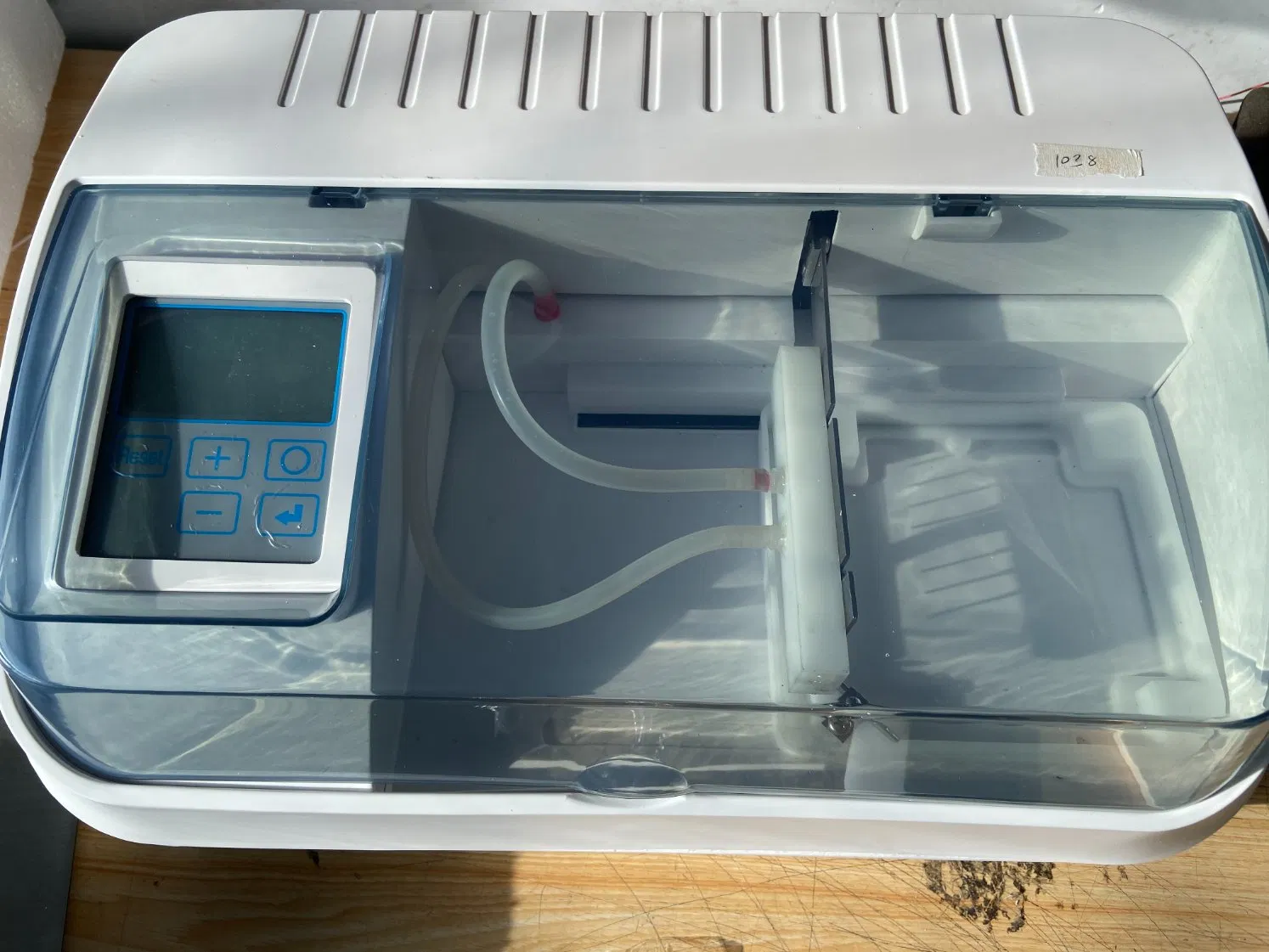

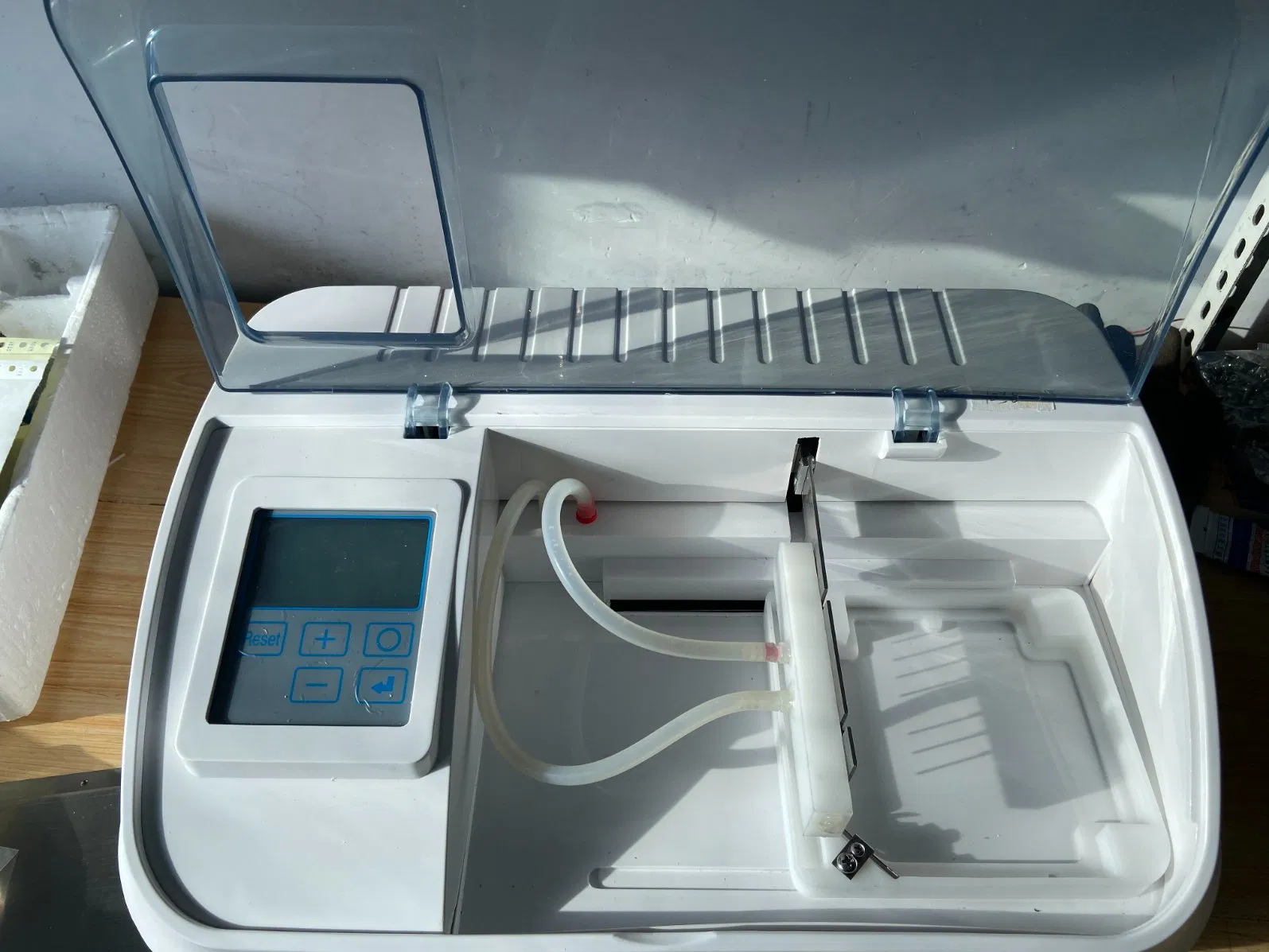

- Large and high brightness LCD display, intelligent software, easy to operate.
- Pre-washing function to avoid tubes plugging.
- Self calibration and accident alarm function.
- New protection design, no liquid spilling.
- Two groups of needles on washing head to minimize carryover.
- Large memory to store up to 100 programs; 10 different shape plates acceptable.
- Several washing channels for use.
Advanced Washing System and Intelligent Software
- Residual volume ≤2uI, ensure thorough washing.
- Applicable to 48-/ 96-well U-/ V-/ Flat-bottom plates or strips.
- Support multiple suction mode, reduce air bubbles.
- Strong washing function, bottom washing and two positions aspiration to achieve thorough washing.
- Washing pressure, volume & time adjustable, washing times, soaking time pre-settable.
- Whole plate, single strip or arbitrary washing acceptable.
- 8-channel or 12-channel washing head interchangeable, detachable and easy to maintain.
- Plate shaking and soaking function, time and speed is adjustable.
- Needle positions adjustable and up to 10 different needle positions pre-settable.
- 5 positions of needles adjustable, fit for multi-kind of plates.
Main Specifications
- Plate Format: 48/96 well and strips (U, V, plate bottom)
- Residual Volume: <2μl
- Dispense Volume: adjustable from 50-900μl
- Wash Cycles: 1-16 (optional)
- Wash Mode: From 1 to 12 (row and rank selectable)
- Soak Time: up to 990s (adjustable)
- Shake Time: up to 990s (adjustable)
- Display: large LCD display

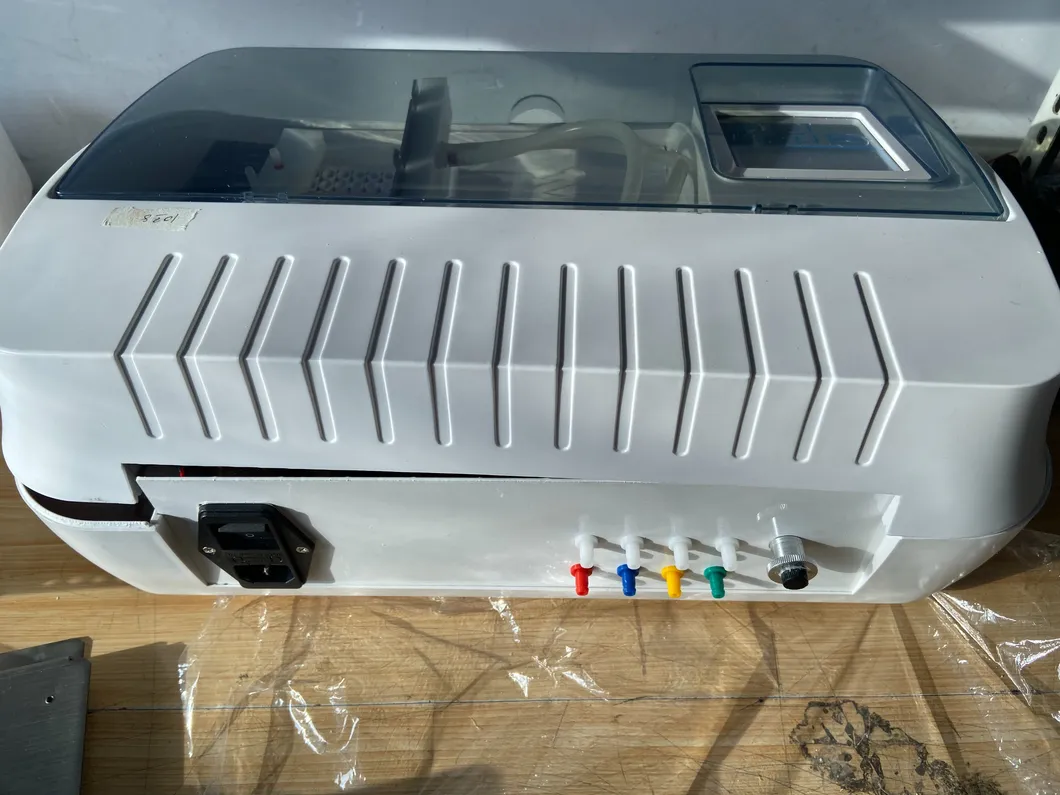

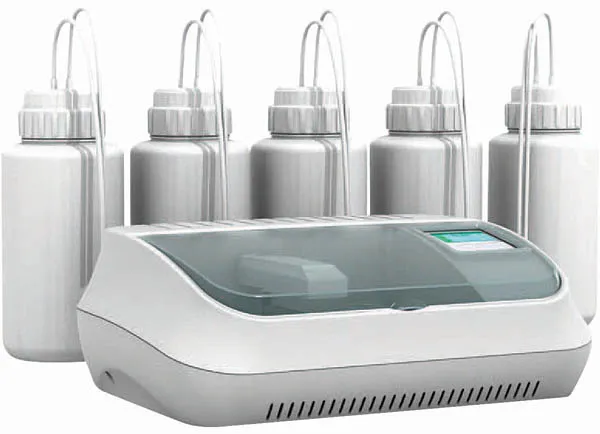

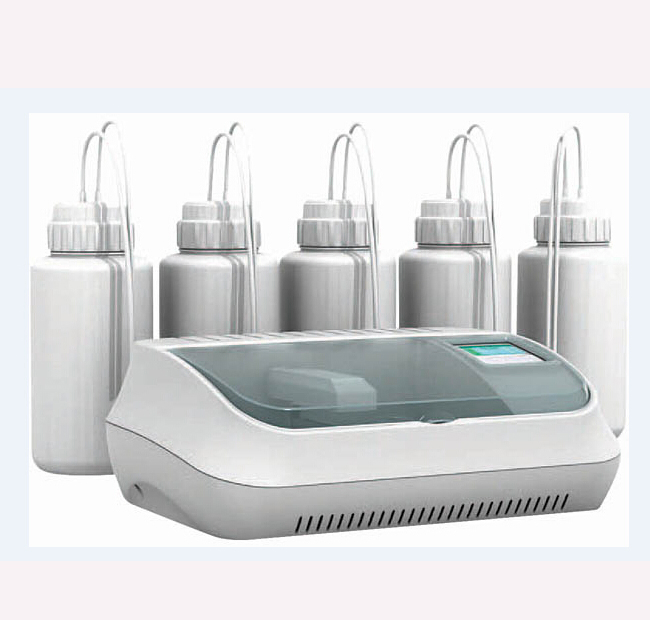

- Channel: 3 channels for washing liquid, 1 channel for waste liquid
- Storage Capacity: store up to 100 programs
- Connectivity: RS232
Frequently Asked Questions
What types of microplates are compatible with this washer?

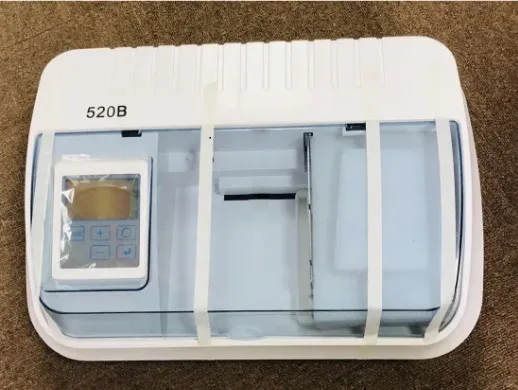

The CK-MW520B is compatible with 48-well and 96-well plates, including U-bottom, V-bottom, and Flat-bottom strips or plates.
How much residual volume is left after a wash cycle?
The system is highly efficient, ensuring a residual volume of less than 2μl per well for thorough washing.
Can I program custom washing protocols?
Yes, the device features a large internal memory that can store up to 100 different user-defined washing programs.
Is there a risk of the needles getting clogged?
The washer includes a specialized pre-washing function designed specifically to prevent tube plugging and maintain consistent performance.
What kind of maintenance does the washing head require?
The inside of the washing head is detachable, making it very easy to clean and maintain. Both 8-channel and 12-channel heads are interchangeable.
Does it support plate shaking?
Yes, both shaking and soaking functions are integrated, with adjustable time and speed to ensure effective processing without interference.
