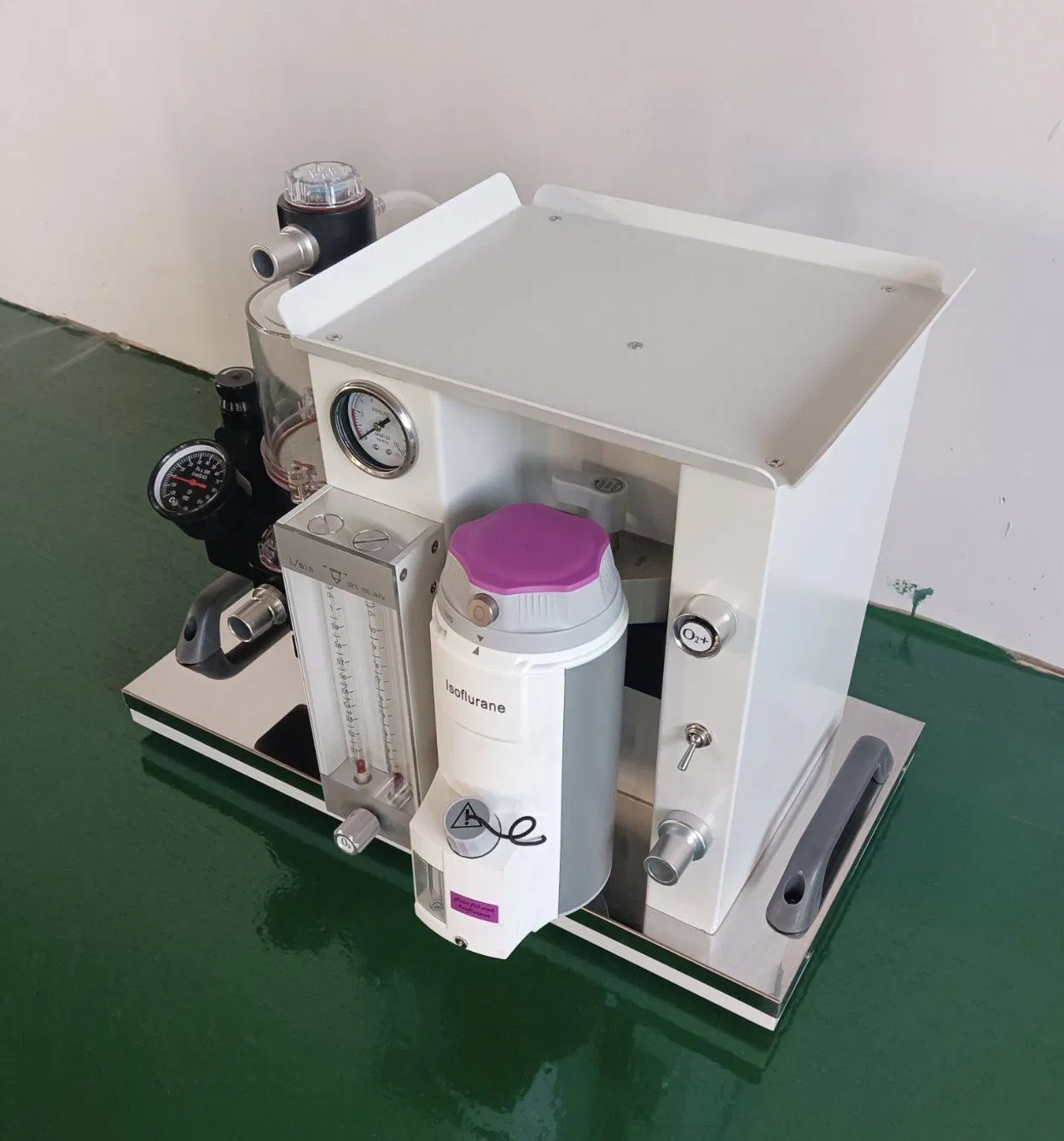

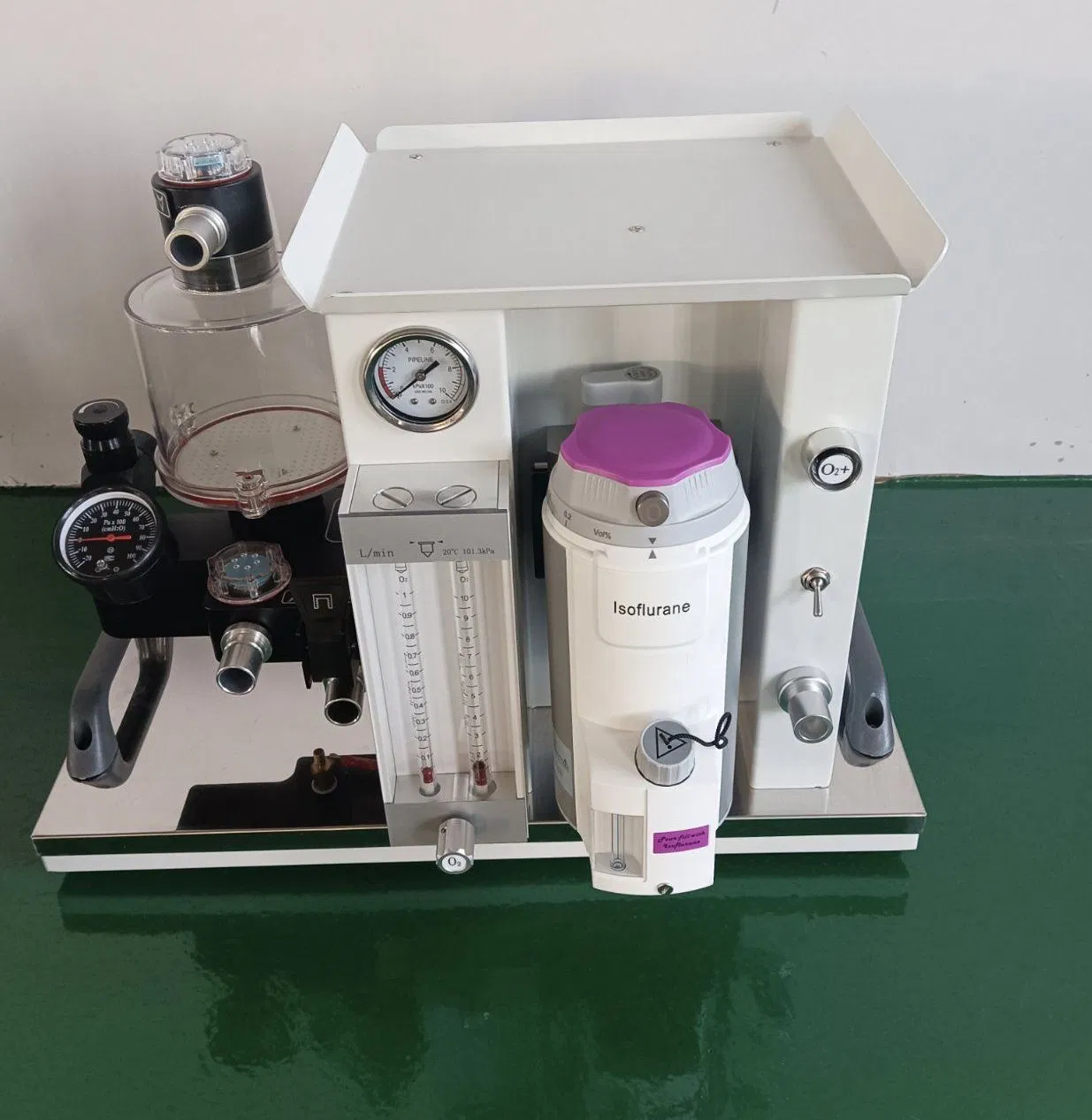

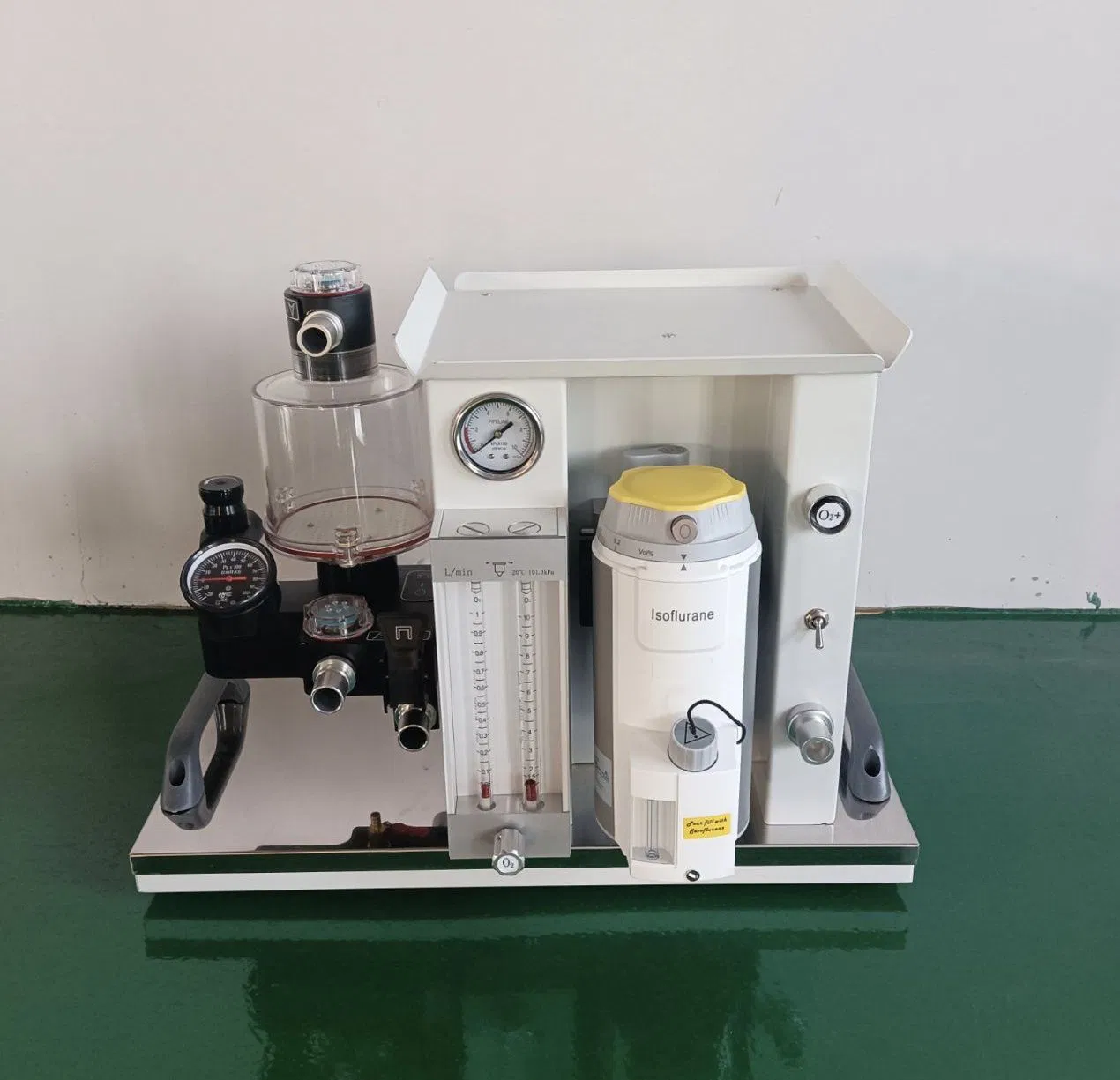

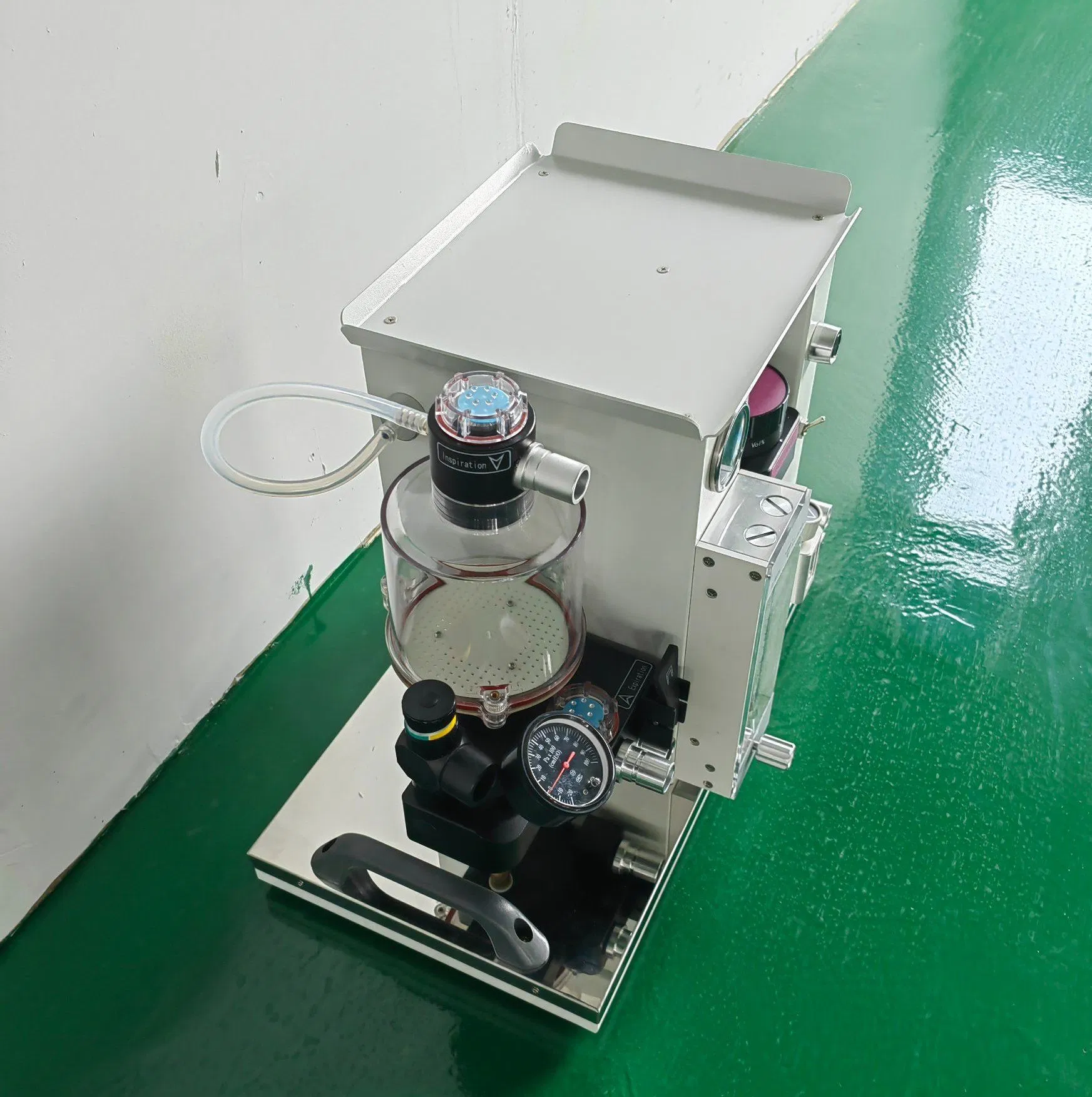

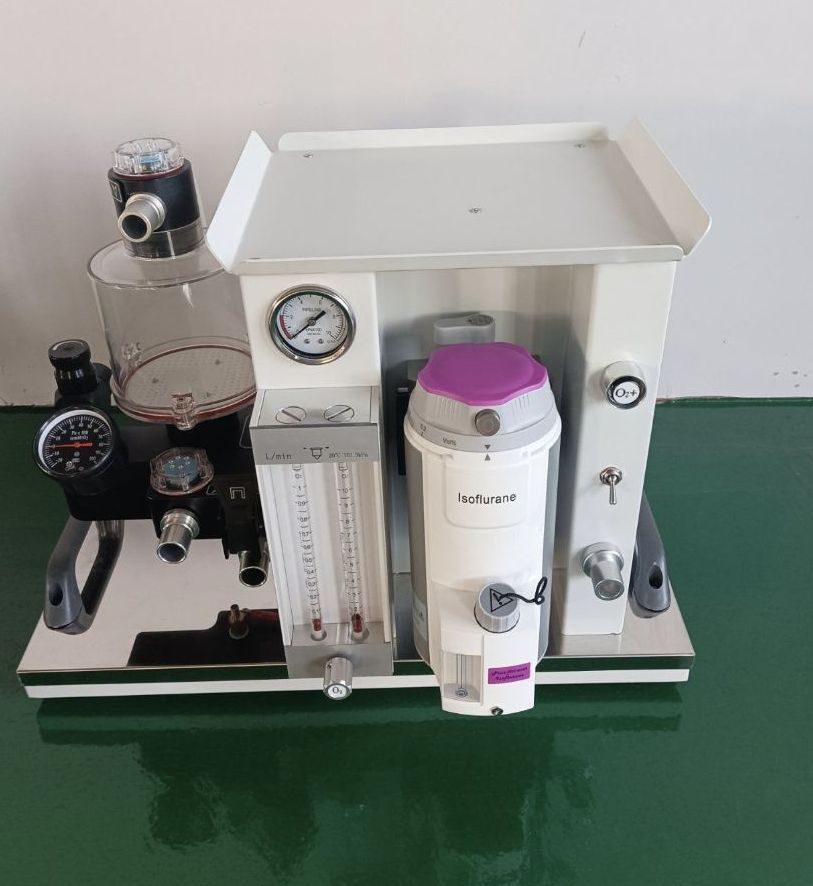

Minor Surgical Small Anesthesia Machine Mini Respiratory Anesthesia System

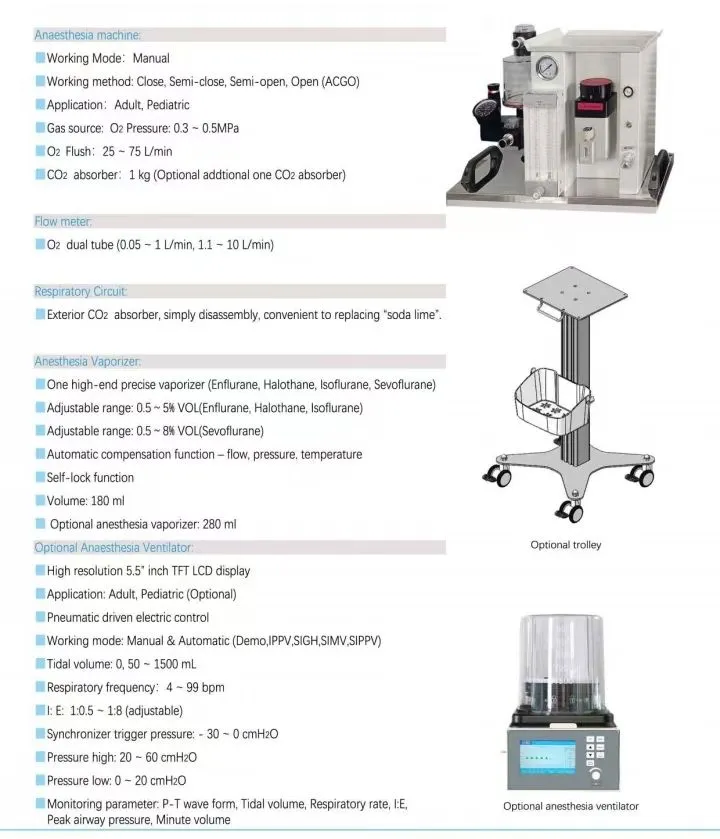

Anaesthesia machine Specifications:
Working Mode: Manual
Working method: Close, Semi-close, Semi-open, Open (Bain circuit)
Application: For veterinary use
Gas source: O2 Pressure: 0.3~0.5MPa
O2 Flush: 25~75 L/min
CO2 absorber: 1 kg (Optional additional one CO2 absorber)

Flow meter:
O2 dual tube (0.05~1 L/min, 1.1~10 L/min)

Respiratory Circuit:
Exterior CO2 absorber, simple disassembly, convenient to replacing "soda lime"

Anesthesia Vaporizer:
One high-end precise vaporizer (Isoflurane, Sevoflurane)
Adjustable range: 0.5~5% VOL (Isoflurane)
Adjustable range: 0.5~8% VOL (Sevoflurane)
Automatic compensation function-flow, pressure, temperature
Self-lock function
Volume: 250 ml

Optional Anaesthesia Ventilator:
High resolution 5.5" inch TFT LCD display
Application: Veterinary use
Pneumatic driven electric control
Working mode: Manual & Automatic (Demo, IPPV, SIGH, SIMV, SIPPV)
Tidal volume: 0.50~1500 ml
Respiratory frequency: 4~99 bpm
I:E: 1:0.5 ~ 1:8 (adjustable)
Synchronizer trigger pressure: -30 ~ 0 cmH2O
Monitoring parameter: P-T wave form, Tidal volume, Respiratory rate, I:E, Peak airway pressure, Minute volume
