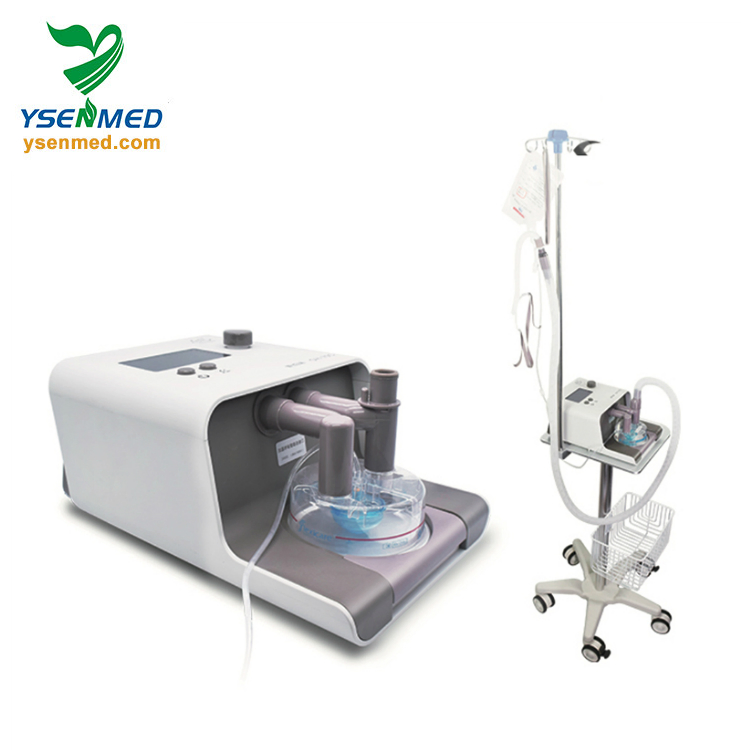

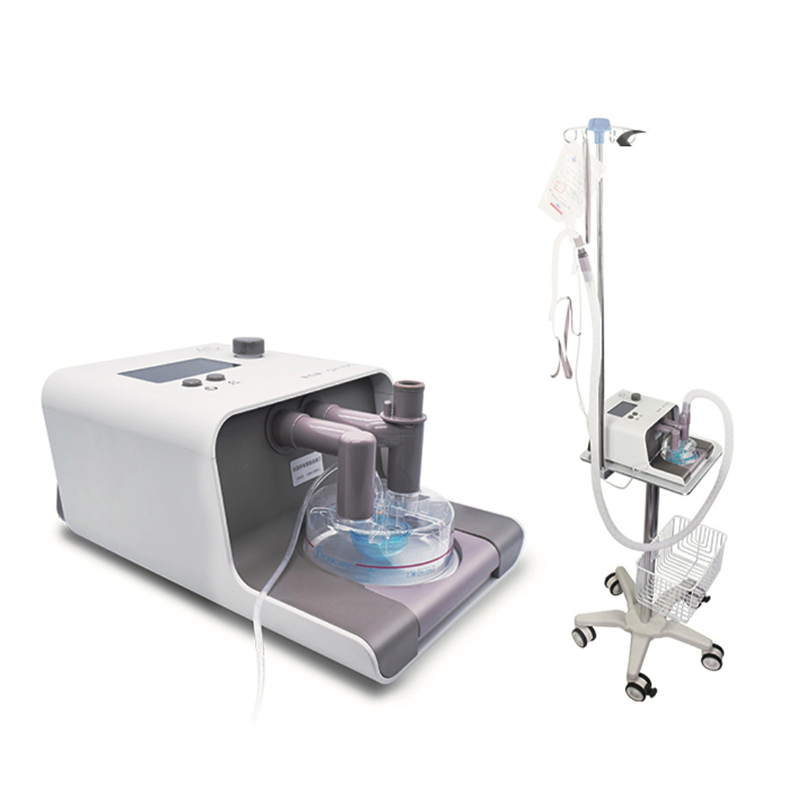

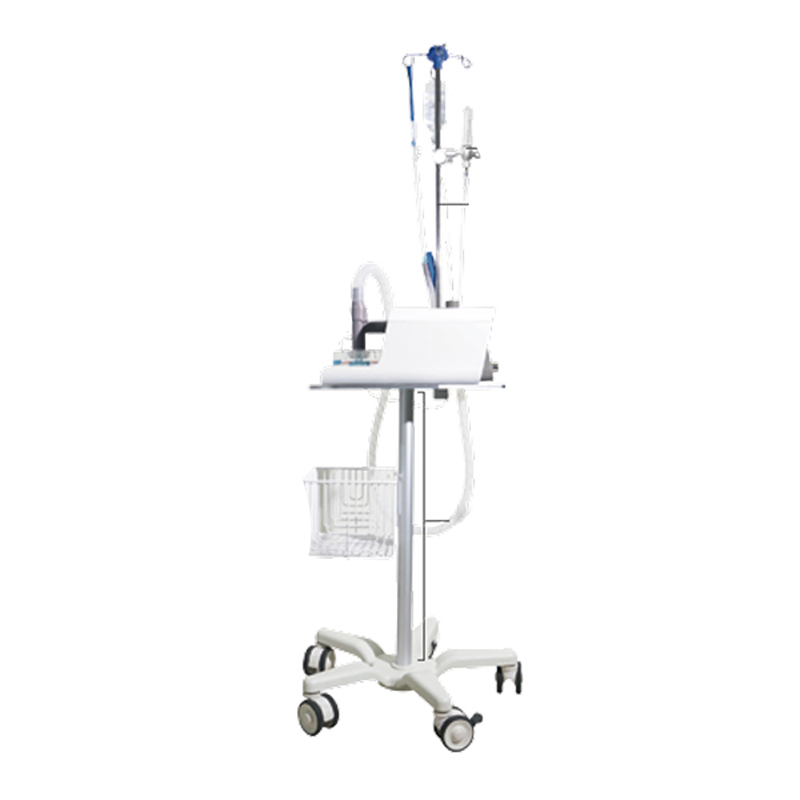

Non-Invasive High Flow Nasal Cannula Oxygen Ventilator
The YSAV-OH70C non-invasive ventilator is the perfect option for severe patients requiring high flow respiratory assistance. It provides heated and humidified oxygen therapy (HFNC) to support clinical efficiency across multiple departments.
Main Features
✓
Precise Oxygen Control: High-precision proportional valve controls 21%-100% concentration with 1% accuracy. No manual adjustment required.
🔥
Intelligent Humidification: Provides gas at 37ºC and 100% relative humidity, mimicking the human body's core conditions for optimal mucus cilia function.
🛡️
Safe-Airway Design: Unique safety design prevents patient gas from returning to the host. No machine disinfection is required, preventing cross-infection.
📱
Large Color Display: 4.3-inch screen with multi-function knob for easy monitoring of treatment data and clinical efficiency.
| Parameters |
Description |
| Flow Settings | Adult Mode: 10-70L/min; Children Mode: 2-25L/min |
| Oxygen Concentration | 21%-100% (adjustable by 1%) |
| Temperature Range | 31ºC - 37ºC (adjustable by 1ºC) |
| Trend Review | 1 day, 3 days, 7 days data storage |
| Dimensions | 340 × 228 × 162mm |
| Weight | 3.3kg |
Frequently Asked Questions
What is the main advantage of the YSAV-OH70C HFNC system?
The YSAV-OH70C provides stable, high-flow oxygen therapy with precise concentration control and an intelligent humidification system that matches the human body's core temperature for maximum comfort and clinical efficacy.
Can this ventilator be used for pediatric patients?
Yes, it features a dedicated Children Mode with a flow range of 2L/min to 25L/min, alongside a specialized pediatric nasal cannula interface.
Does the machine require complex disinfection between patients?
No. Thanks to the innovative safe-airway design, the patient's gas does not return to the host unit. Combined with disposable heating water boxes and pipelines, cross-infection is prevented without needing internal disinfection.
How accurate is the oxygen concentration monitoring?
The system features built-in real-time monitoring with a 1% adjustment accuracy. It uses high-precision proportional valves, eliminating the need for manual external adjustments.

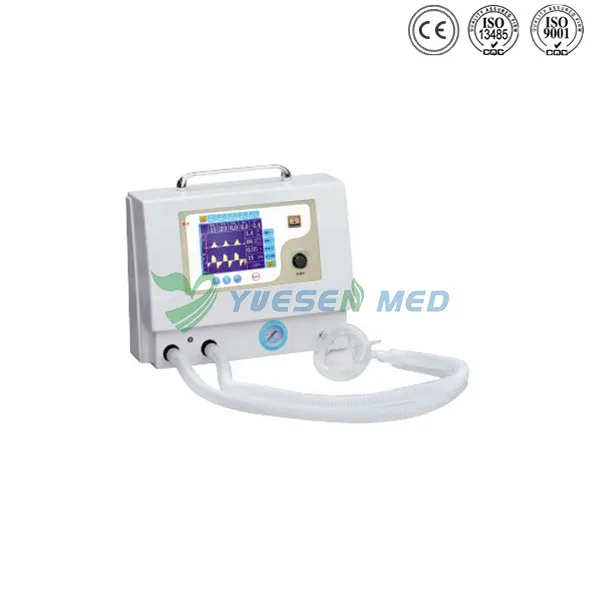

What ventilation modes are available for the veterinary model?
The veterinary ventilator supports multiple modes including IPPV, SIPPV, SIMV, PEEP, MANUAL, and SIGH, making it suitable for a wide variety of animal sizes and conditions.
Is the system portable for hospital use?

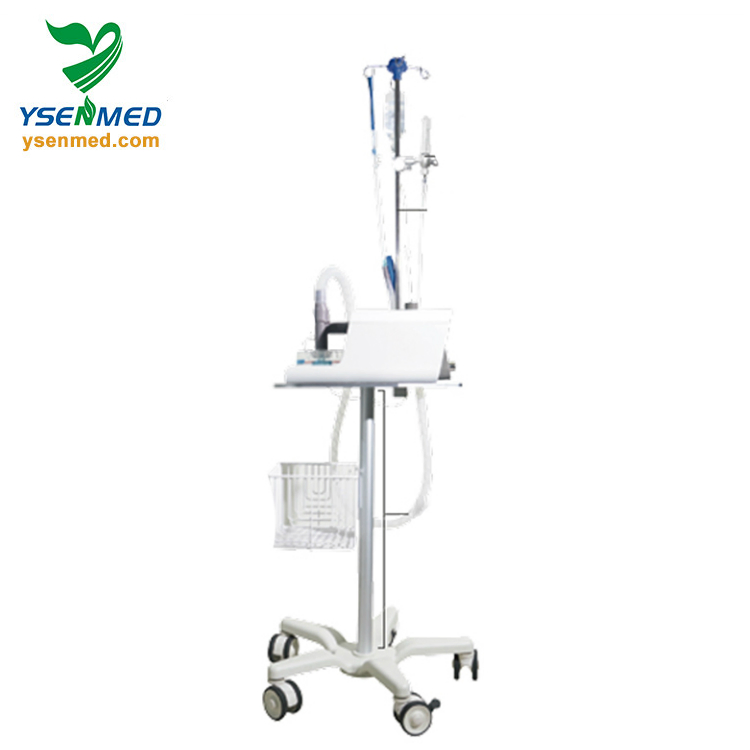

Yes, it comes with an integrated trolley and boom design, allowing for easy movement and one-handed operation during bed-to-bed treatment.
