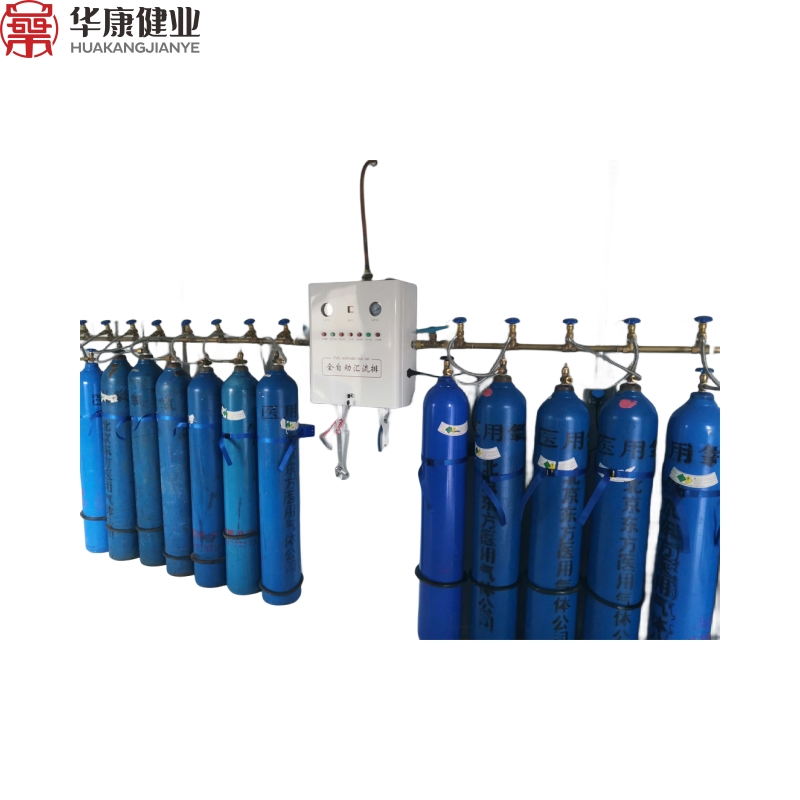

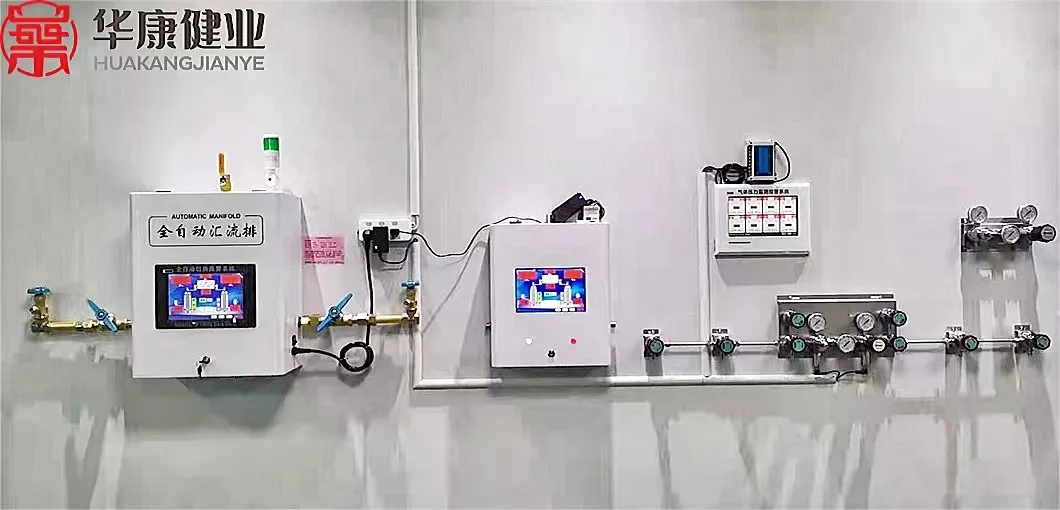

Oxygen Manifold System Price and Design

Customization:	Available
Application Fields:	Medical
Certification:	RoHS, UR, ISO, CE, CCC

i

Basic Specifications

Model NO.

HKYL-HLP-I

Condition

New

Noise Level

Low

Purpose

Gas Manufacturing

Type

Oxygen Supply System

Product Name

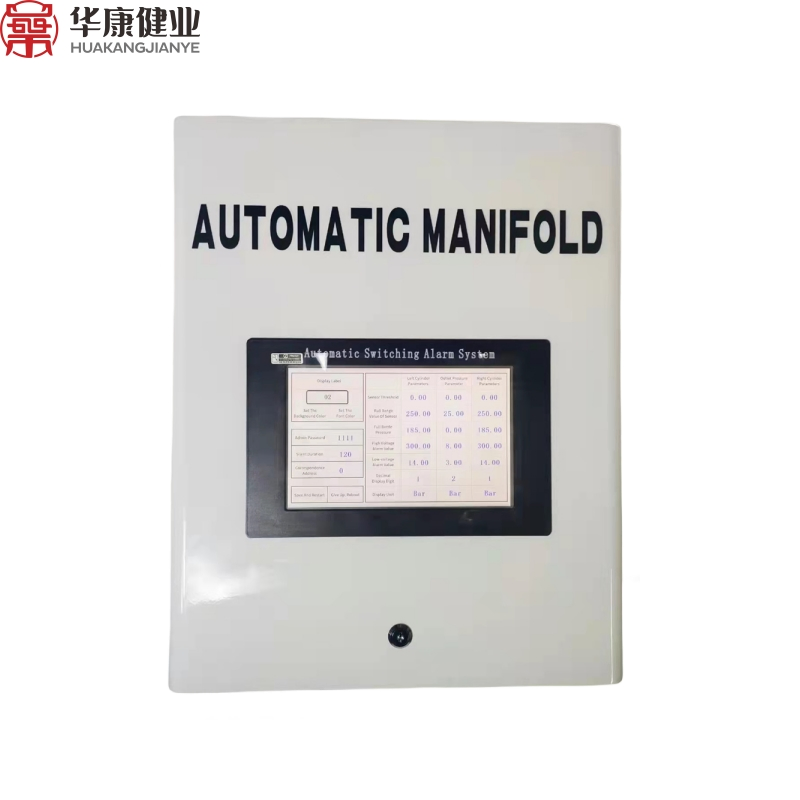

Automatic Manifold System

Input Pressure

15.0 MPa

Max. Output Flow

100nm3/Hour

Warranty

5 Years

Output Pressure

0.4MPa (4bar) ~ 0.8 MPa

Output Signal

4~20mA

Usage

Hydrogen, Nitrogen, Oxygen, Ozone

!

Product Description

A medical gas manifold is a specialized type of gas manifold system used in healthcare facilities to control the distribution of medical gases to various patient care areas, such as operating rooms, intensive care units, and patient rooms. A manifold system in hospital plays a critical role in patient care, as they are used for a range of medical purposes, including anesthesia, respiratory support, and medical procedures. Medical gas manifolds ensure the safe and reliable delivery of these gases to the points of use.

⚙

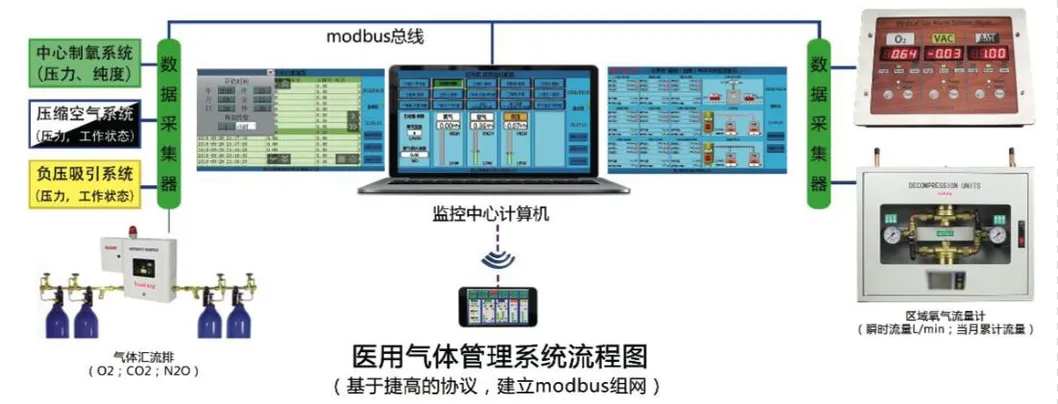

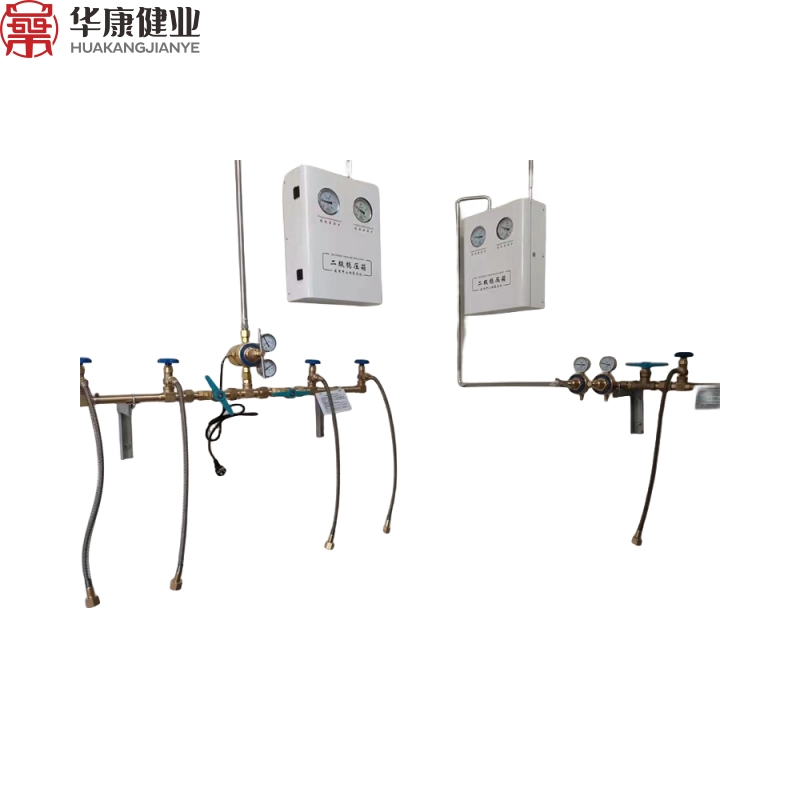

System Composition

Manifold systems are often made up of a variety of parts to power a system that supplies gas and air accurately and efficiently:

Piping and tubing
Fittings and Connectors
Expanding Chambers and Valves
Control Instruments (such as pressure gauges)

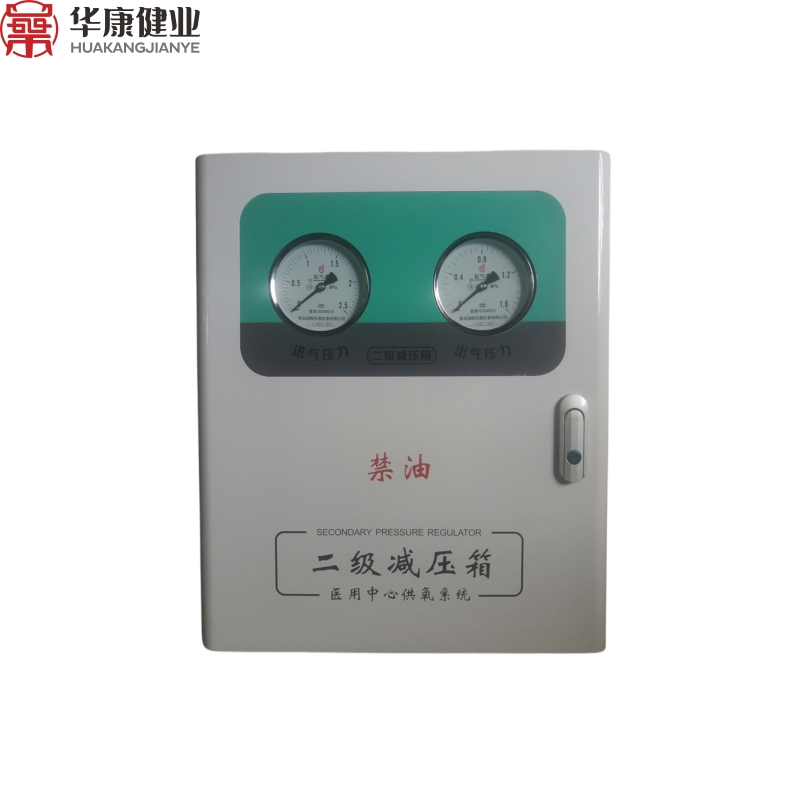

Stainless Steel Diaphragm type Oxygen Regulator

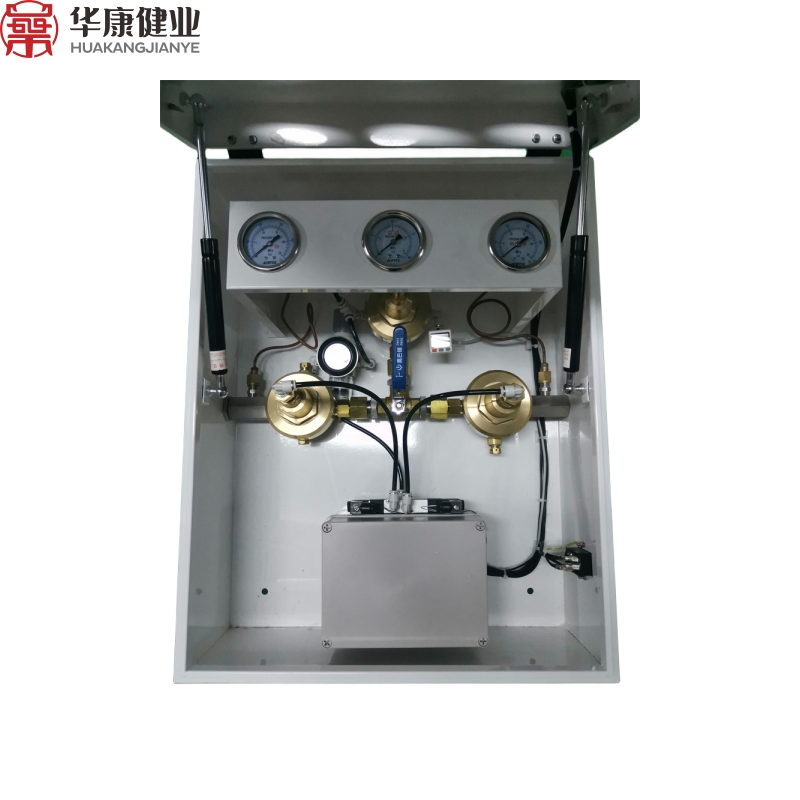

Full enclosed metal Automatic Turn-Over control box

📊

Technical Parameters

Parameter	Specification
Applicable Gas	Oxygen, etc.
Input Pressure	0.4 ~ 15Mpa
Outlet Pressure	0.4 ~ 1.0Mpa (Adjustable)
Nominal Flow	> 100M3/h
Switching Pressure	0.6 ~ 1Mpa (Adjustable)
Switch Time	3 Seconds
Operating Voltage	AC24V
Relief Valve Opens Pressure	1.25Mpa

📋

Series Specifications

Series	Gas Source	Inlet Pressure	Delivery Pressure	Flow Rate
5400X	Oxygen	15MPA	0.07-1.4MPA	90 m3/h
5400Q	Air	15MPA	0.07-1.4MPA	100 m3/h
5400F	Propane	3MPA	0.03-0.85MPA	30 m3/h
5400C	Carbon Dioxide	15MPA	0.03-0.85MPA	60 m3/h

🔍

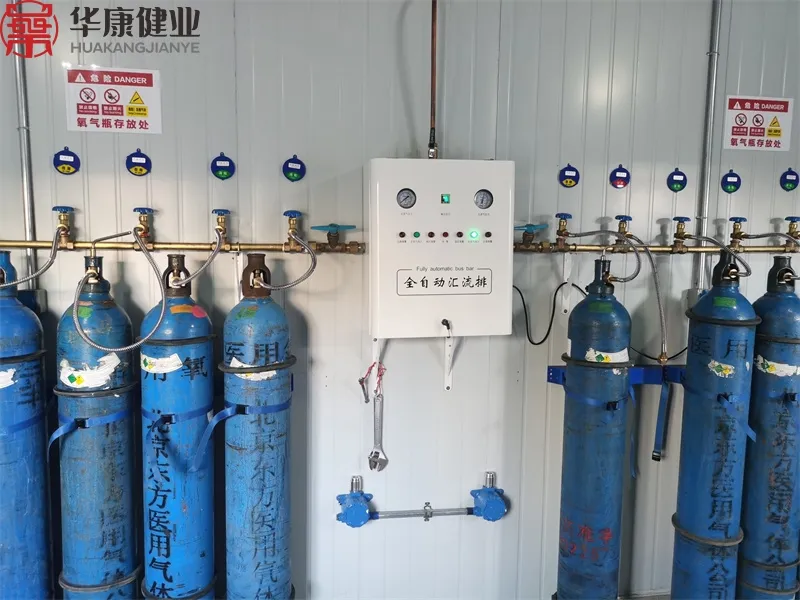

Direction for Use & Details

Digital Displayer for system service status.
With Sound / Light alarm system; Network Remote Alarm function optional.
Open design for cylinder connecting pipes for future expansion.
100% passed pressure testing before delivery.

✚
