Customization: Available
After-sales Service: Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Type
Gravity Classify Destoner
Application
Flour, Beans, Wheat
Voltage
380V
Condition
New
Key Selling Points
High-Accuracy
Core Components
Engine, Bearing, Motor
Capacity
500 Sets Per Month
HS Code
8437109000
Product Description
Gravity Classification Destoning System
Type Shape Size (L x W x H) Power (KW) Capacity (t/h) Aspiration Volume (m3/h) Sieve Width (cm) Weight (kg)
TQSF601450x876x18002x0.253-5450060280
TQSF801450x1046x18002x0.255-7600080340
TQSF1001500x1246x19002x0.257-98000100400
TQSF1251470x1496x19002x0.259-1110200125500
TQSF1501580x1746x19002x0.2511-1412000150600
Working Principle
The material falls onto the guide plate from inlet and covers evenly on the entire width of the upper sieve due to the vibratory action of the machine. The combined action of vibration and air flow makes the material on the upper sieve classify automatically according to its specific gravity and granular size. Light material is discharged from the machine tail, while heavy material, stones, and sand fall to the lower sieve. Vibration and air flow move heavy material toward the tail and stones toward the head for separate discharge.

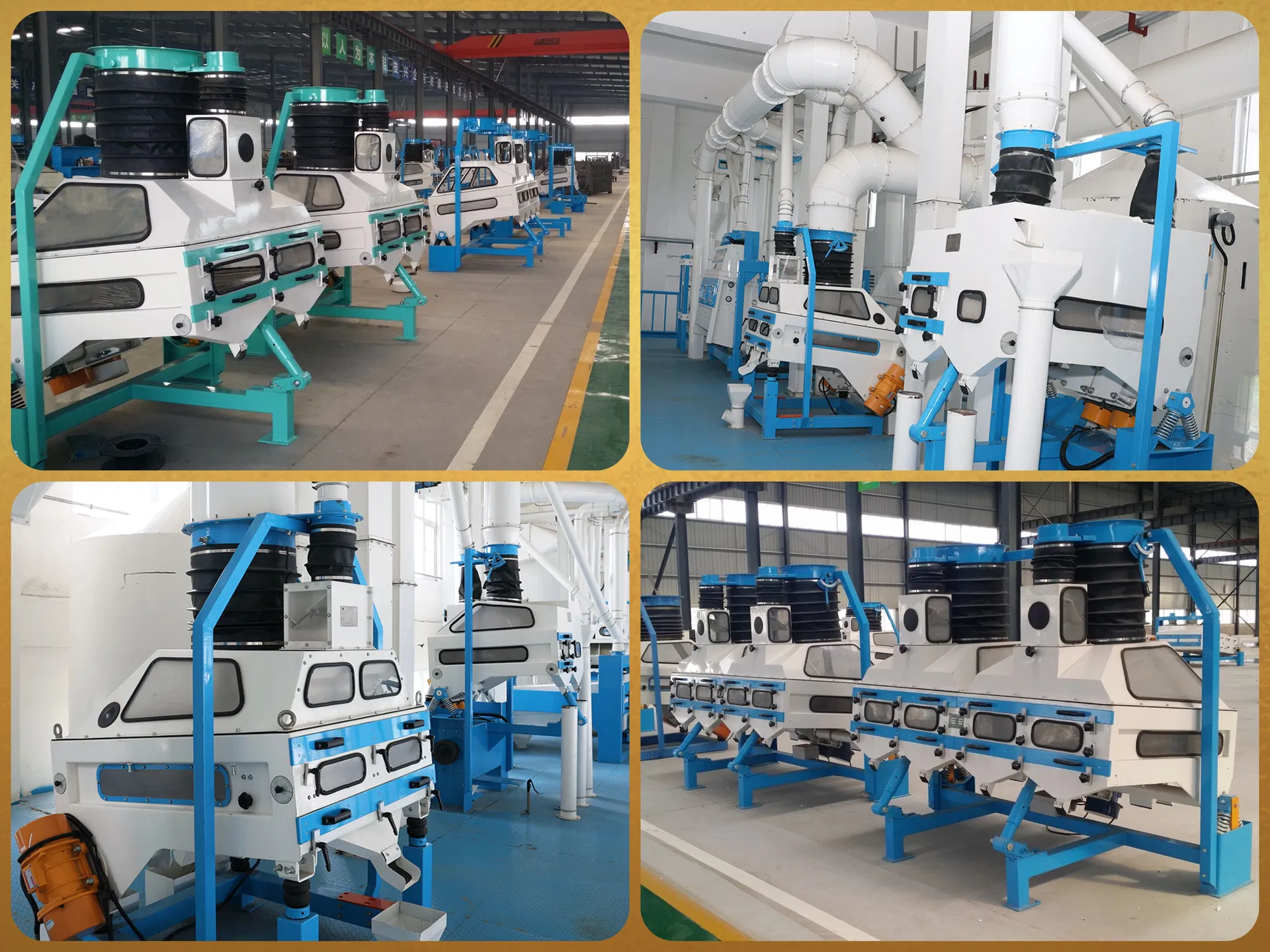

Working Principle Diagram
Internal Mechanism
Key Features
  • ✔ Reliable and excellent classifying and de-stoning.
  • ✔ Negative pressure operation, no dust sprays out.
  • ✔ High production capacity with efficiency.
  • ✔ Easy operation and low maintenance requirements.
  • ✔ Versatile use for grain cleaning and stone removal.

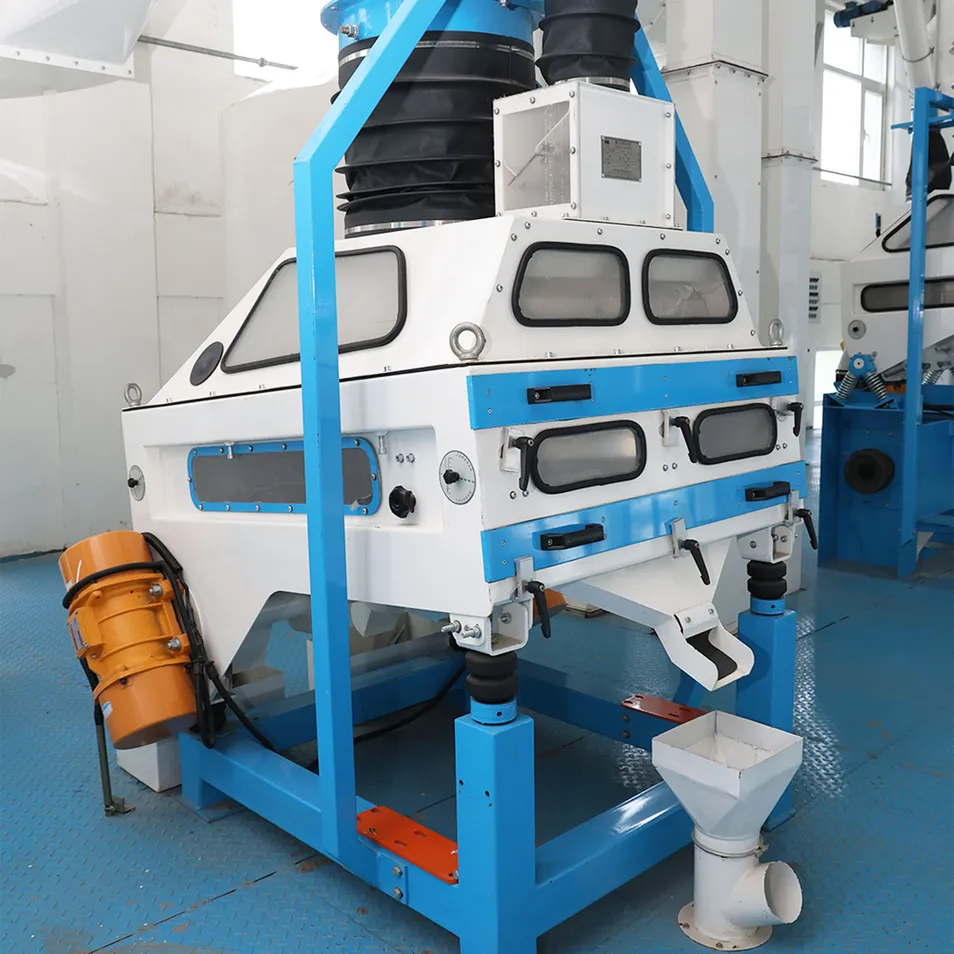

Feature Display 1

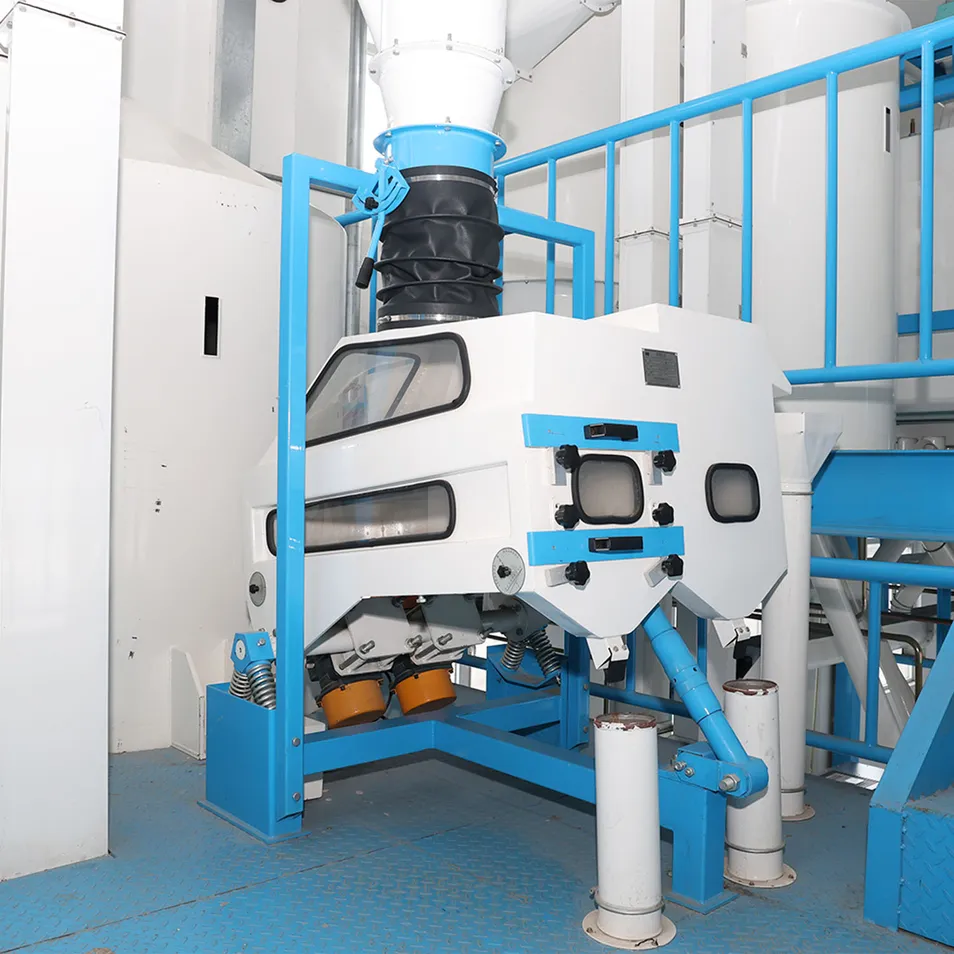

Feature Display 2
Manufacturing & Workshop
Specializing in the production of grain machinery, feed machinery, and rice milling machinery for more than 20 years. We offer customized surface colors, lengths, and thicknesses to match your requirements, ensuring smooth operation at high speeds through advanced design and precise dimensions.
Main Product

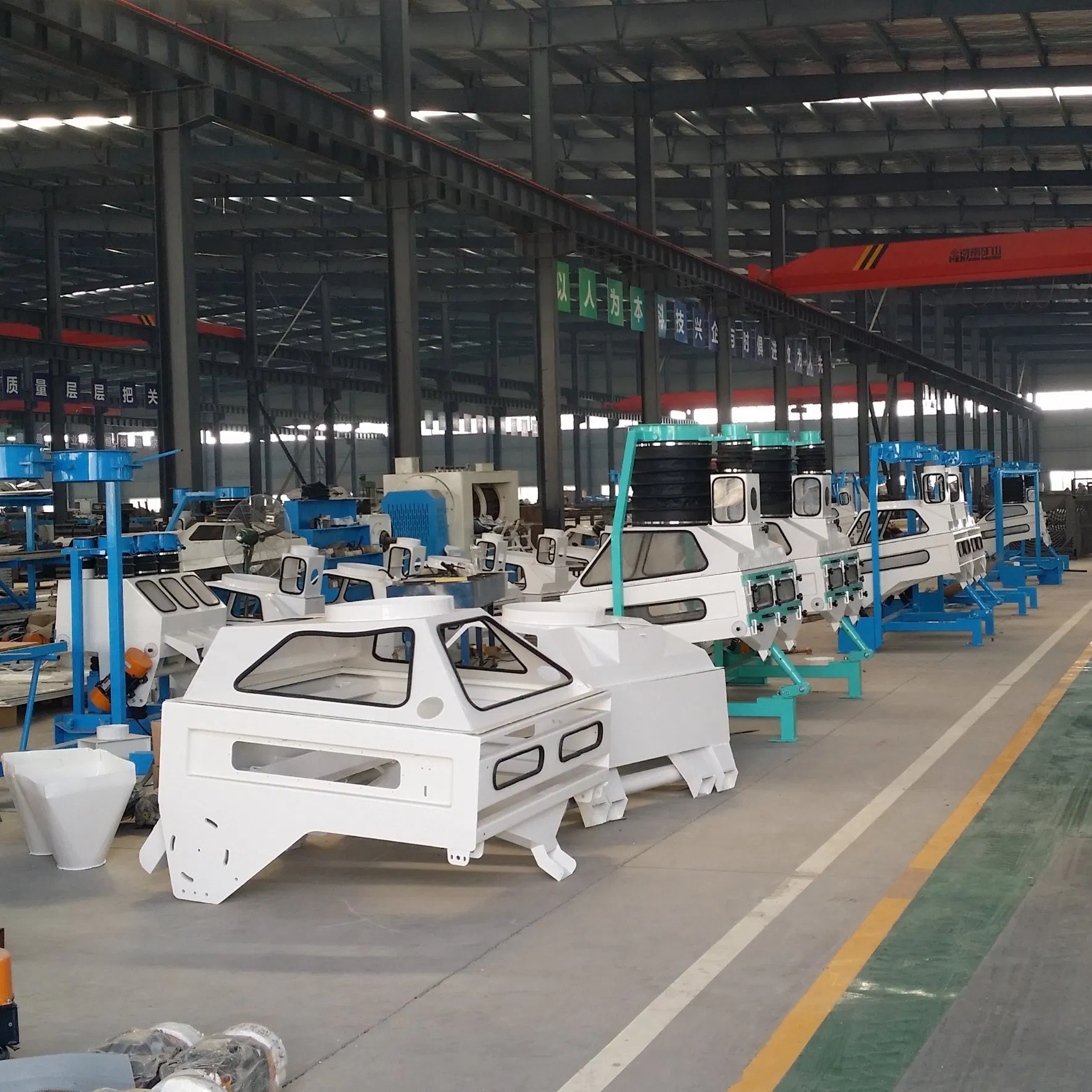

Workshop

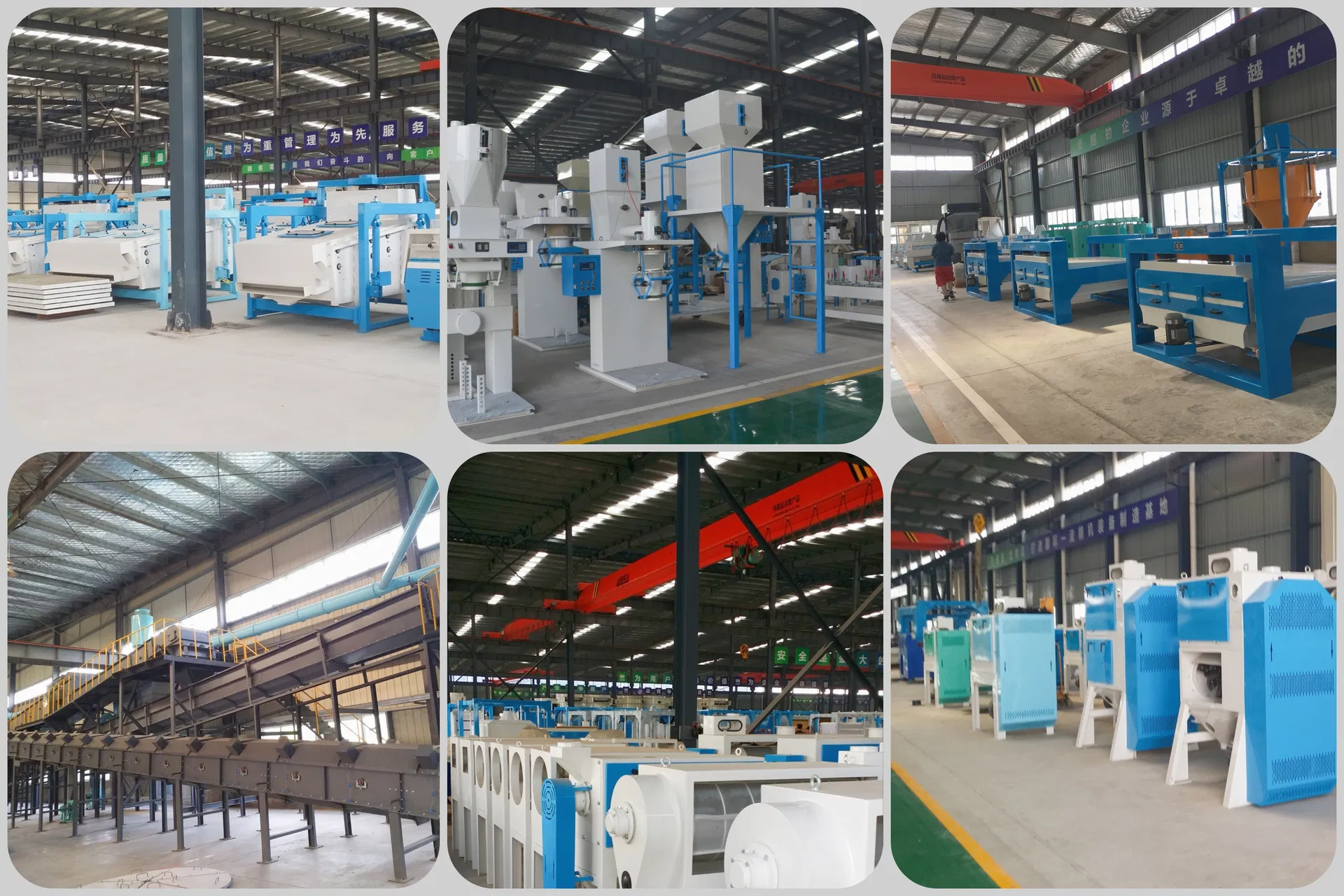

Production Line
Quality Assurance
Exhibition
Certification
Packaging & Shipping
Packaging
Frequently Asked Questions
Are you the manufacturer?
Yes, we are professional manufacturers specializing in flour milling and grain machinery with over 20 years of experience.
Will you help to install the machines?
Yes, our engineers can provide guidance for installation, test running, and training local operators. After-sales service is available overseas.
Do you accept small orders?
Yes, we accept small orders. The Minimum Order Quantity (MOQ) is 1 set.
How do I make payment for my order?
Payment can be made via T/T (bank transfer) or L/C based on the proforma invoice provided.
What is the warranty period?
Our standard warranty time is 12 months, ensuring high quality and reliable performance for all our machinery.
Can product specifications be customized?
Absolutely. We can customize the surface color, length, and thickness of components to perfectly match your existing equipment.
