Premium High Flow Suction System for Medical Abortion Use
Premium High Flow Suction System for Medical Abortion Use
Premium High Flow Suction System for Medical Abortion Use
Premium High Flow Suction System for Medical Abortion Use
Premium High Flow Suction System for Medical Abortion Use
1 / 5
Premium High Flow Suction System for Medical Abortion Use
Premium High Flow Suction System for Medical Abortion Use
Premium High Flow Suction System for Medical Abortion Use
Premium High Flow Suction System for Medical Abortion Use
Premium High Flow Suction System for Medical Abortion Use

Premium High Flow Suction System for Medical Abortion Use

Customization: Available
Feature: Reusable
Application: Clinical
Send Inquiry

Product Description

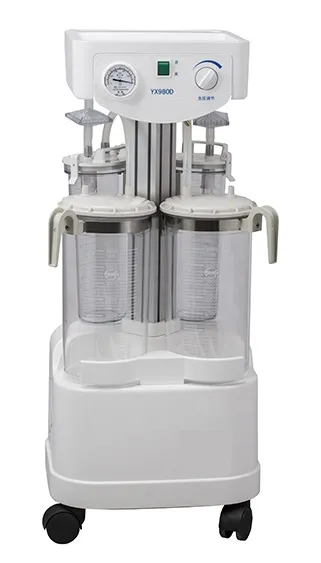

Mobile Suction Machine
⚡ Basic Information
Model NO.
YX980D
Material
ABS
Certification
CE, ISO13485
Power Type
Electric
Group
Adult
Product Name
Suction Machine
Warranty
1 Year
Flow
≥ 80L/Min
Bottle
4000ml*2 + 2000ml*2
G.W. / N.W.
25kg / 22kg
MOQ
5 PCS
Specification
44cm * 50cm * 99.5cm
📋 Technical Specifications
Parameter Item Detailed Specification
Max vacuum≥0.09Mpa (680mmHg)
Vacuum range0.02~0.09MPa (150~680mmHg)
Flow rate≥80L/min
Noise level≤60dB(A)
Jar Capacity4000ml×2 + 2000ml×2 (PC Material)
Power supply~220V, 50Hz
Input power280VA
Packing dimension44cm × 50cm × 99.5cm
🌟 Key Features & Highlights

YX980D Mobile Medical Suction Machine offers high vacuum and high flow with double piston cylinders. It rapidly builds up a powerful vacuum, specifically designed for surgical operations where large quantities of fluid must be suctioned out quickly.

✔
Oil-less Piston Pump: Maintenance-free operation with a flow rate exceeding 80L/min and rapid vacuum rising.
✔
Overflow Protection: Integrated safety device prevents liquid from entering the inner pipe system.
✔
Air Filtration: High-efficiency air filter protects the pump from environmental pollution.
✔
Durable Jars: Transparent, high-intensity polycarbonate plastic jars with high capacity and easy-to-clean design.
✔
Change-over Valve: Quickly select empty containers during operation; includes a rinsing cup for catheters.
✔
Accessory Storage: Built-in box on the back for foot switches and power cords for convenient movement.
📷 Product Gallery
Suction Machine Detail 1

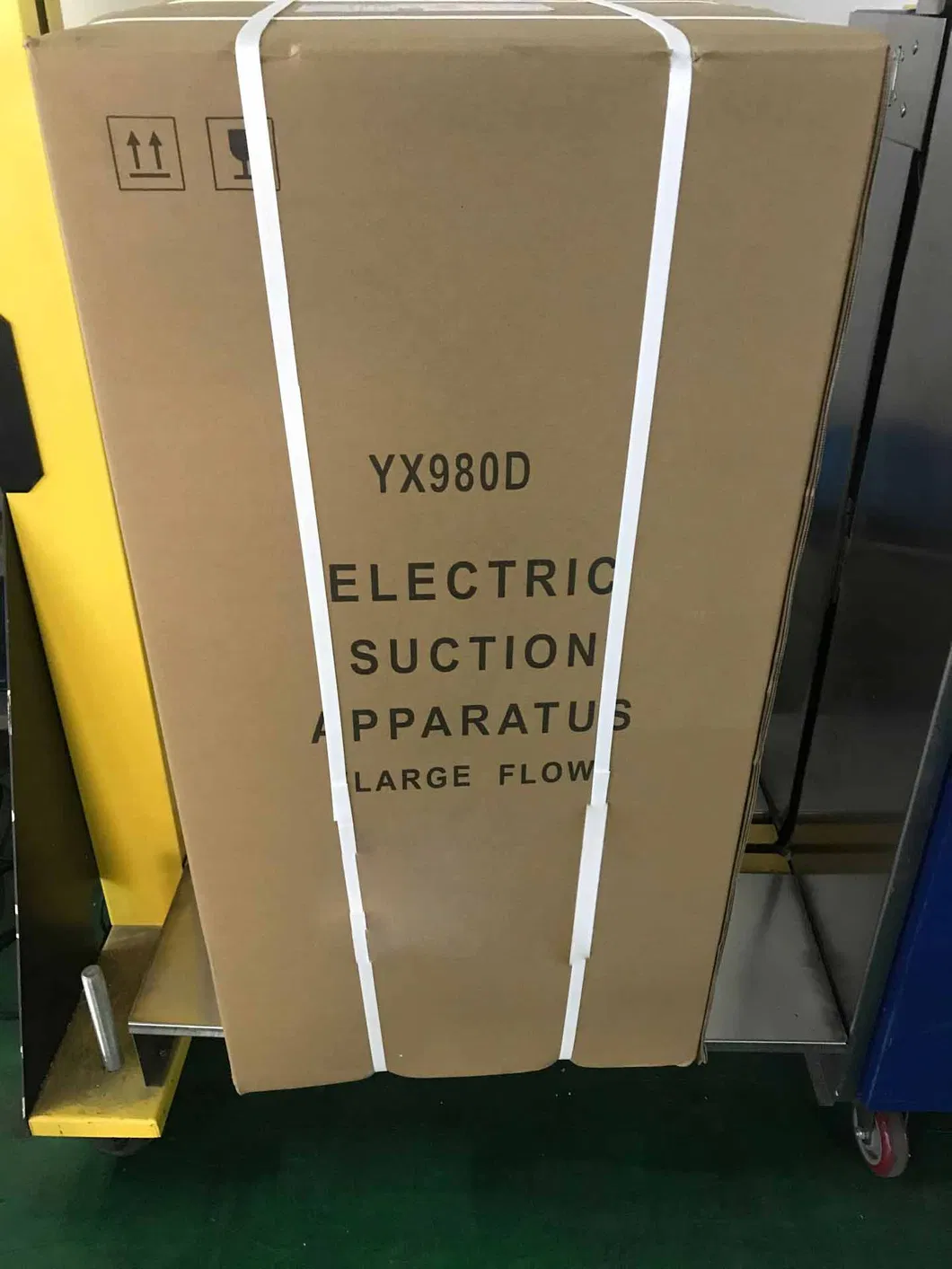

Suction Machine Detail 2

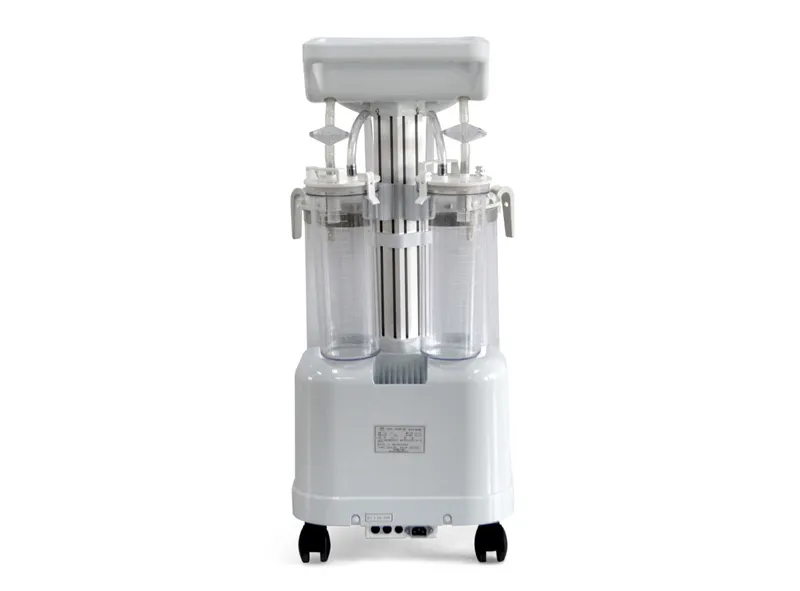

Suction Machine Detail 3
Suction Machine Detail 4

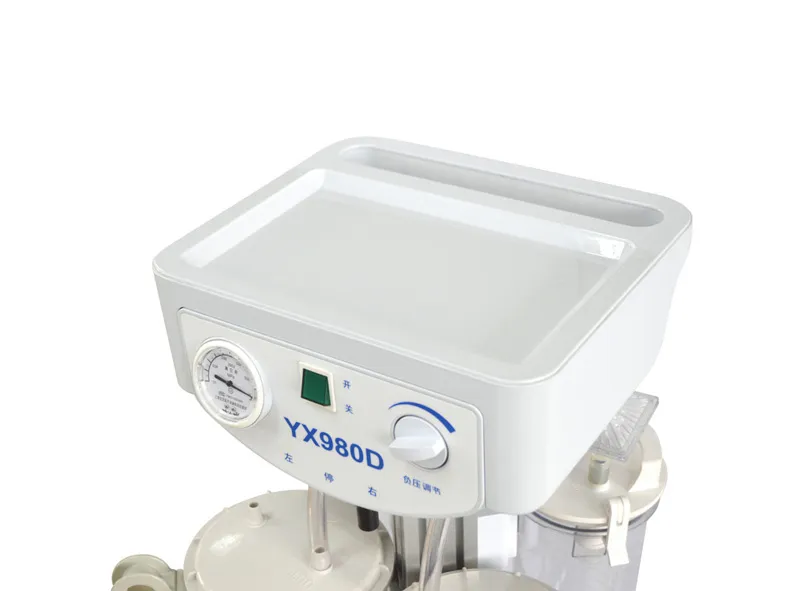

Suction Machine Detail 5
Suction Machine Detail 6
🏭 Production & Quality Control
Production Process 1
Production Process 2
Production Process 3
Quality Certificate
❓ Frequently Asked Questions
What is the maximum flow rate of the YX980D suction machine?
The YX980D model features a high-flow performance reaching over 80 liters per minute (80L/min).
Does this machine require frequent oiling or maintenance?
No, it utilizes an oil-less piston pump, which is completely maintenance-free and prevents oil mist pollution.
What is the total capacity of the collection jars?
The system includes a high-capacity setup with two 4000ml jars and two 2000ml jars, made of durable polycarbonate.
Is the machine loud during surgical procedures?
The device is designed for a quiet clinical environment with a noise level kept below 60dB(A).
What safety features are included to prevent overflow?
It is equipped with an overflow protection device and an air filter to prevent liquids and contaminants from entering the pump.
What certifications does this product hold?
The YX980D mobile suction machine is CE and ISO13485 certified, meeting international medical standards.
