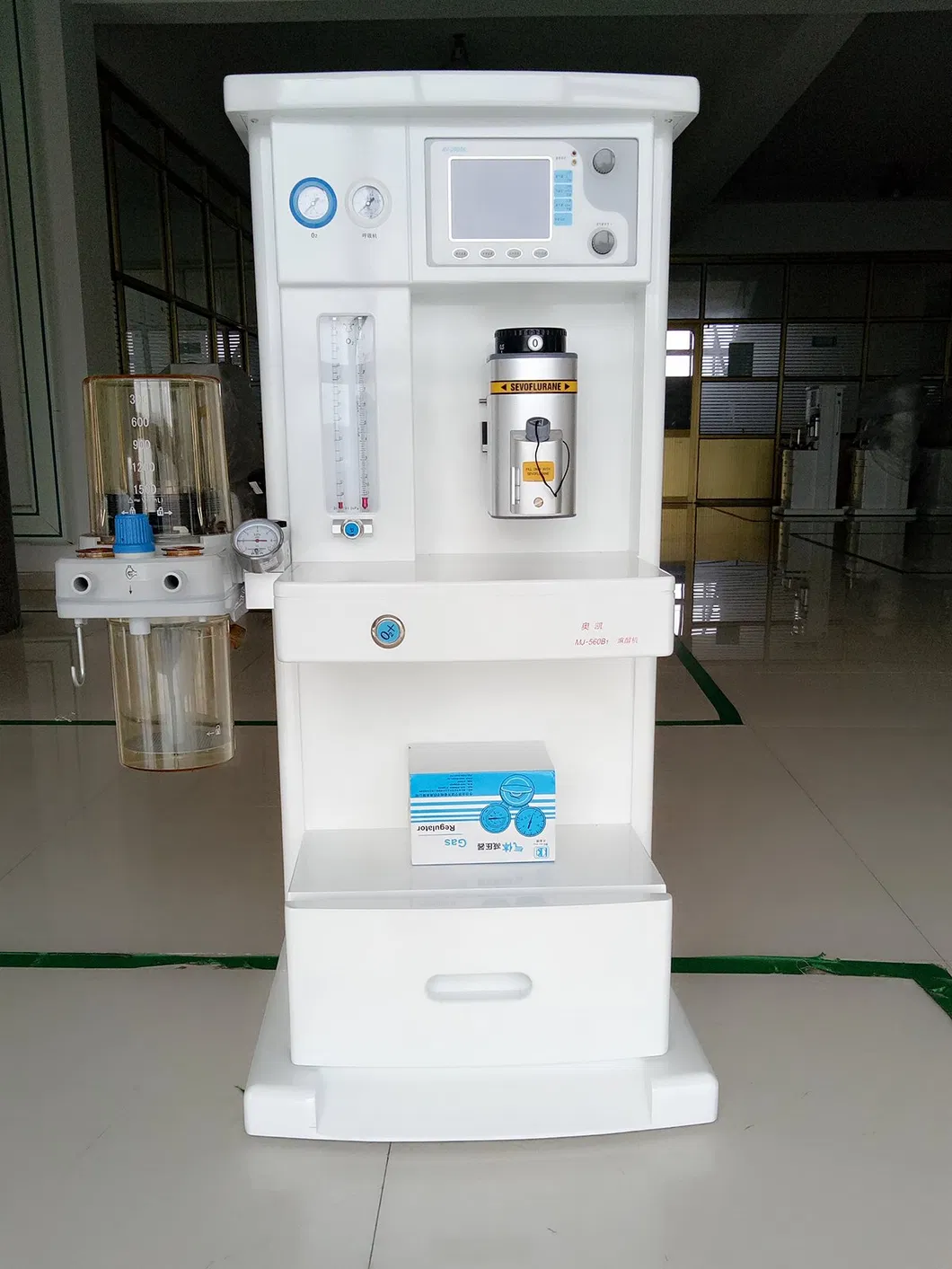

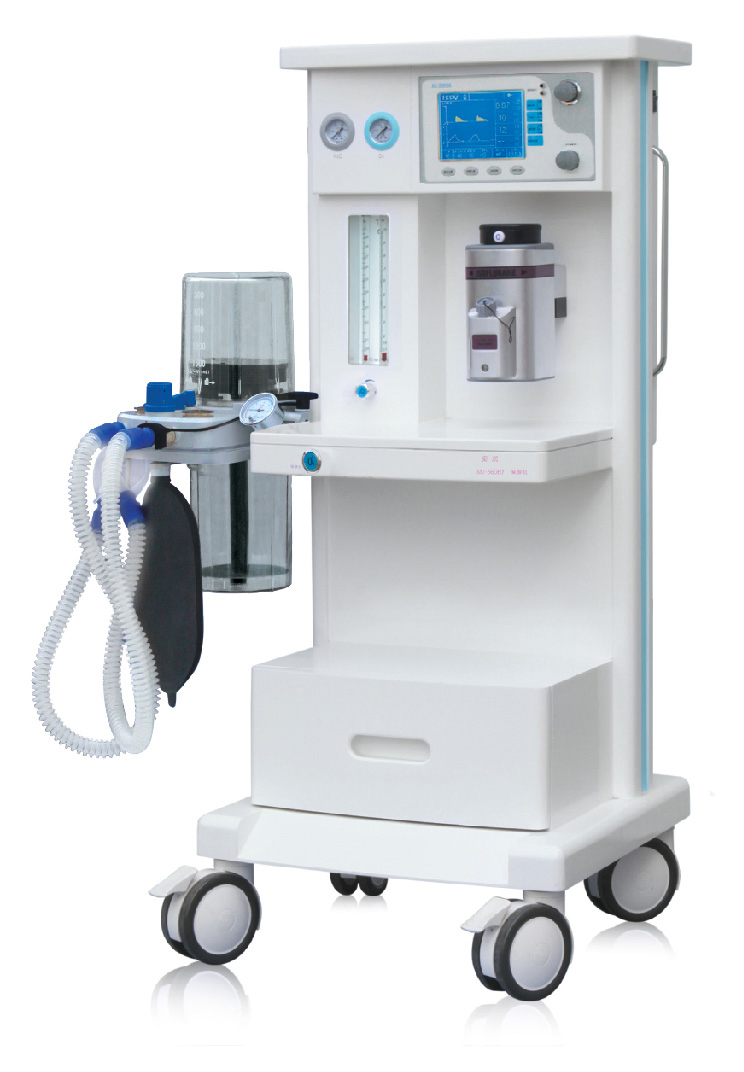

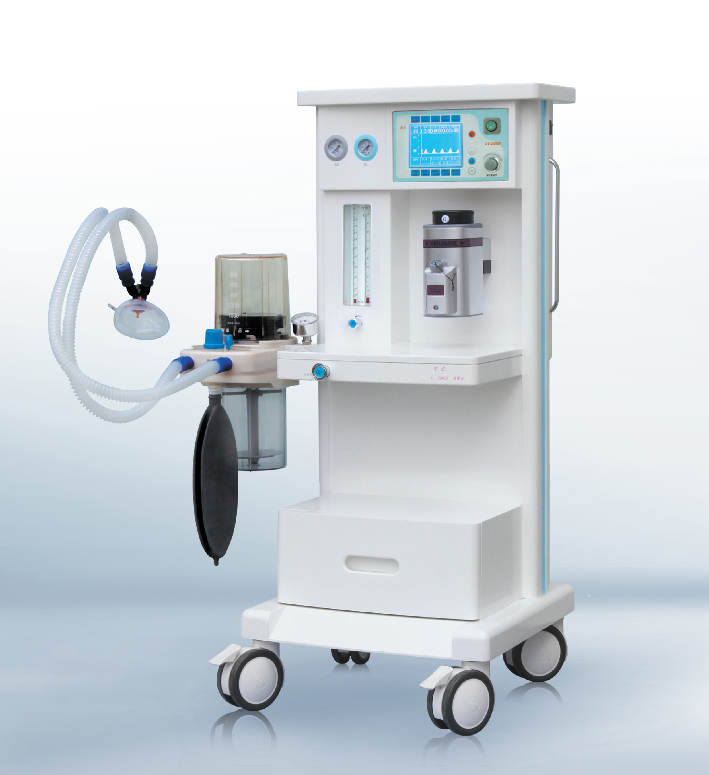

Reliable CE Approved Anesthesia Delivery System with User-Friendly Workstation

Customization:	Available
Type:	Anesthesia Machine
Application:	Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology, Burns

Send Inquiry

Product Description

Basic Specifications

Model NO.

SD-560A1

Material

Plastic

Certification

CE, ISO13485

Tidal Volume

50-1500 Ml

Rate

4-80 Bpm

Pressure Range

1.0-6.0 Kpa

Display Mode

5.7 Inch LCD Screen

Power Supply

AC 100-240V, 50/60Hz

Origin

China

HS Code

9018907010

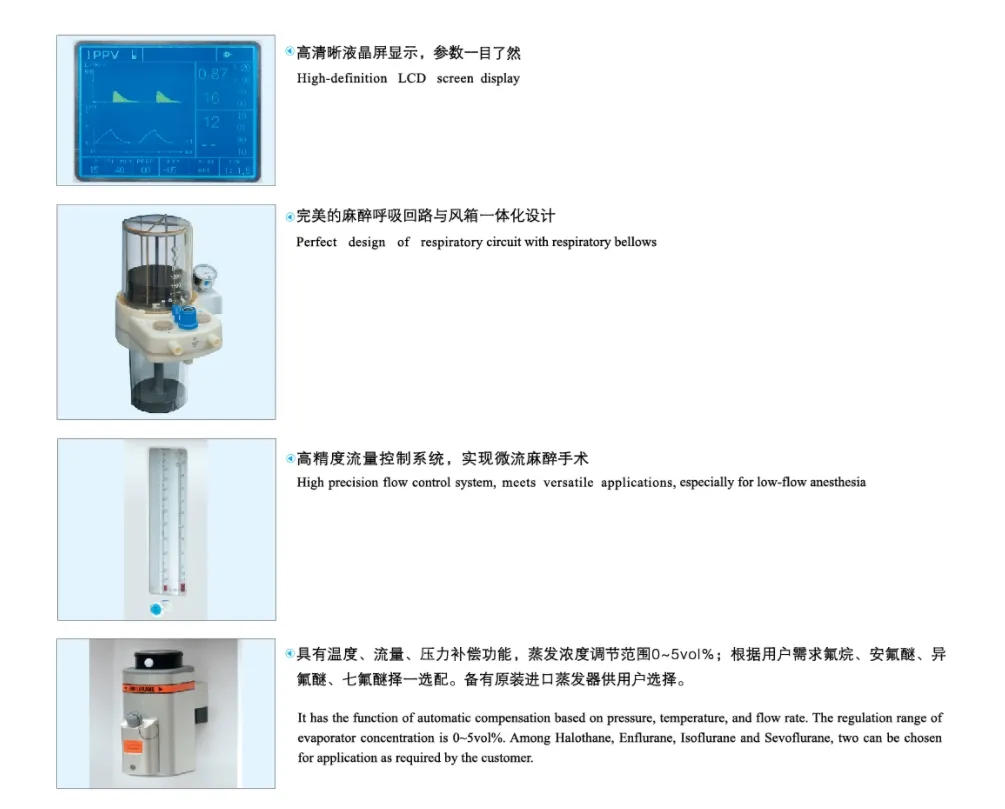

Product Features

Stable and reliable, meeting the basic needs of anesthesia surgery
5.7" high-definition LCD display for clear parameter monitoring
High precision flow control system ensures precise regulation of oxygen
High precision Vaporizer available: Enflurane, Isoflurane, Sevoflurane, and Halothane
Highly integrated breathing circuit with APL valve, providing excellent sealing and safety

Technical Parameters

Main Body	High-strength engineering plastic rack, light and corrosion resistant
Scope of Application	Adult, Child
Gas Source	O2: 0.28~0.6MPa
Flow Meter	O2: 0.05~1.0L/min, 1.1~10L/min
Oxygen Supply Rate	Rapid Supply: 25~75L/min
Vaporizer Range	Concentration regulation: 0~5 vol% (Automatic compensation)
Respiratory Circuit	Working mode: All-close, Semi-close, Semi-open; APL: ≤12.5 kPa

Ventilation Mode	IPPV, MANUAL
Tidal Volume	50~1500 ml
I:E Ratio	2:1 ~ 1:4
Monitoring	Tidal volume, Ventilation volume, IPPV rate, peak airway pressure, pressure-time waveform
