Technical Specifications
Work Conditions
Gas source: O2 | Pressure: 280kpa~600kpa | Voltage: 100V~240V | Frequency: 50/60HZ
Adjusting Parameters
• Frequency: 1 bpm ~ 100 bpm (SIMV: 1-20 bpm)
• Inspiratory Time (Tinsp): 0s ~ 6s
• Tidal Volume (VT): 0 mL ~ 1500 mL
• PEEP / CPAP: 0 cmH2O ~ 20 cmH2O
• O2 Concentration: 45 % ~ 100 %
• SIGH: 1/100 ~ 5/100
• Pressure Limit: 20cmH2O ~ 100 cmH2O
Monitoring & Graphics
• Monitoring: Frequency, VT, MV, Tube Pressure, Inhaled O2 Concentration
• Graphical Display: Tube pressure-time wave line, Air flow-time wave line
Alarm & Protection
AC power off, Low spare power voltage, Ventilation volume high/low, Tube pressure high/low, Suffocation alarm, Pressure safety relief valve (<125cmH2O)
Frequently Asked Questions

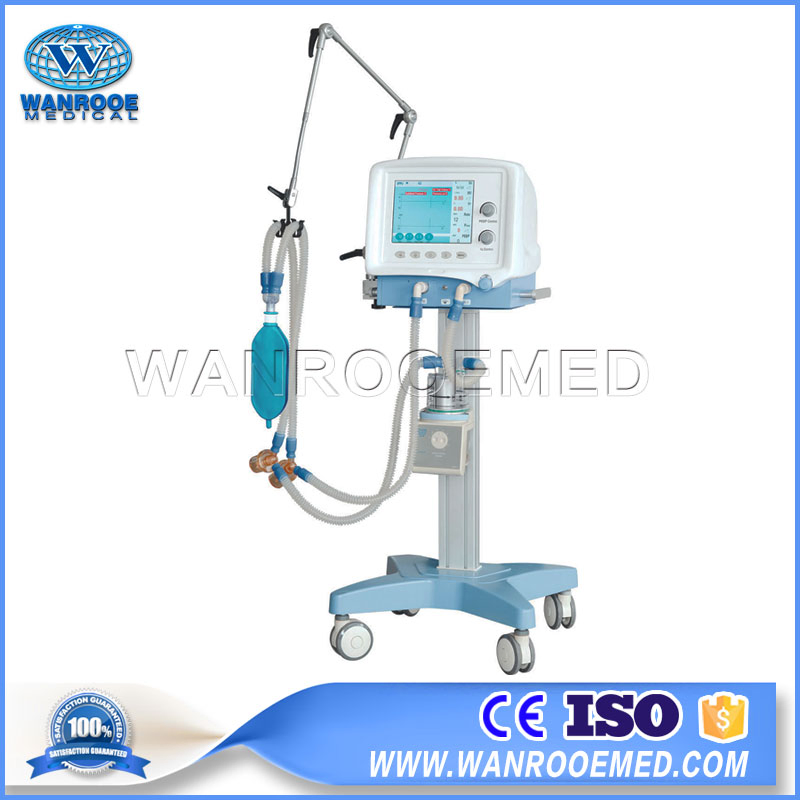

Q1: Which patient groups is the S1600 ventilator suitable for?
The S1600 system is designed to be applicable for both adult and pediatric (child) patients.
Q2: What ventilation modes are supported by this system?
It supports multiple working and ventilation modes including IPPV, A/C, SIMV, SPONT/CPAP, and manual mode (MAUN).
Q3: Does the S1600 include a backup power source?
Yes, it features a built-in spare power source that automatically starts working if the external AC power goes off.
Q4: What information is provided on the graphical display?
The 10.4'' TFT LCD screen provides real-time wave lines for both tube pressure-time and air flow-time.
Q5: What is the adjustable range for Tidal Volume (VT)?
The Tidal Volume (VT) can be adjusted within a range of 0 mL to 1500 mL.
Q6: What safety alarms are integrated into the system?
The system includes alarms for power failure, low battery voltage, high/low ventilation volume, tube pressure issues, suffocation, and O2 concentration levels.
