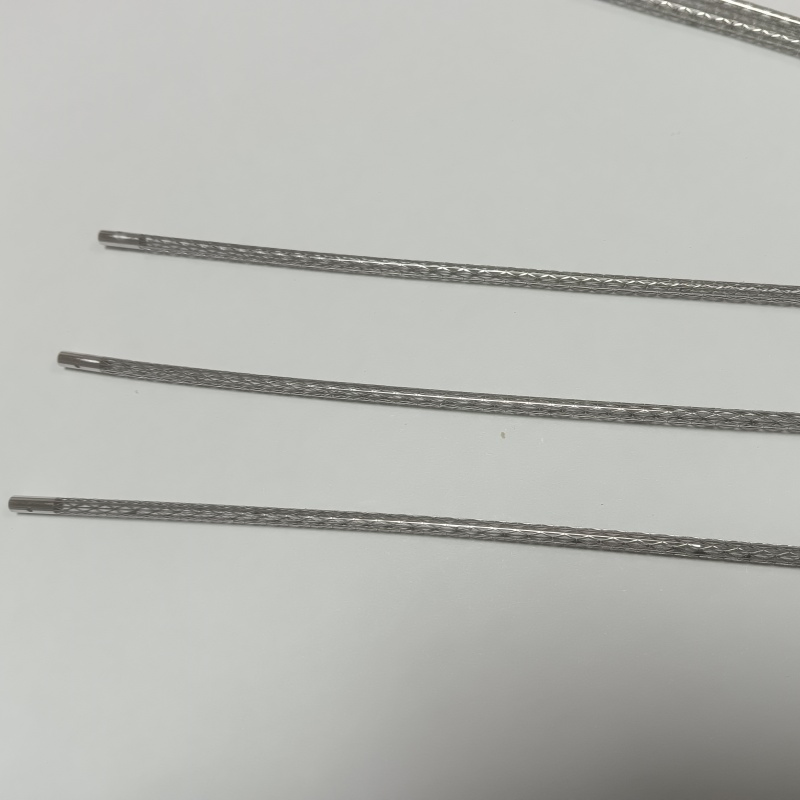

Stainless Steel Capillary Precision Laser Cutting with Outer Diameter of 0.5mm-25mm Slotting and Punching

1 / 5

Stainless Steel Capillary Precision Laser Cutting with Outer Diameter of 0.5mm-25mm Slotting and Punching

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Y520

Condition

New

Certification

ISO9001, ISO13485

Material

Stainless Steel

Processing

Laser Cutting

Appearance

Electropolishing Passivation

Origin

China

Production Capacity

5,000,000 Pieces/Year

Product Overview

Stainless Steel Capillary Tube Precision Laser Cutting (Outer Diameter 0.5mm – 25mm) with Slotting and Perforation is a specialized micromachining service that transforms fine stainless steel tubing into highly functional components with complex geometries. Utilizing advanced CNC-controlled pulsed fiber laser systems, this process creates precise slots, holes, and intricate patterns with minimal heat-affected zones (HAZ).

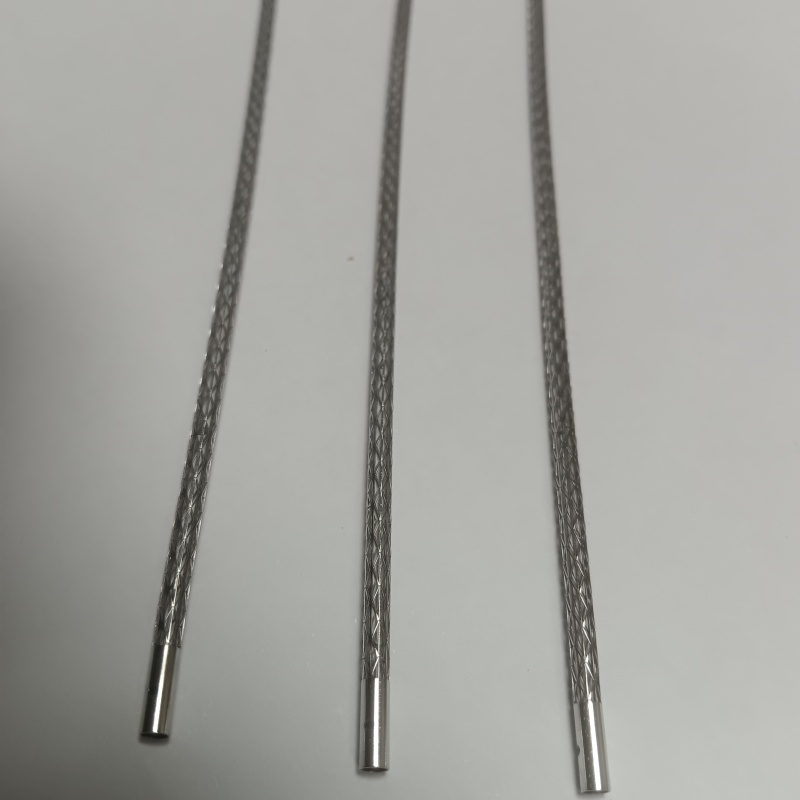

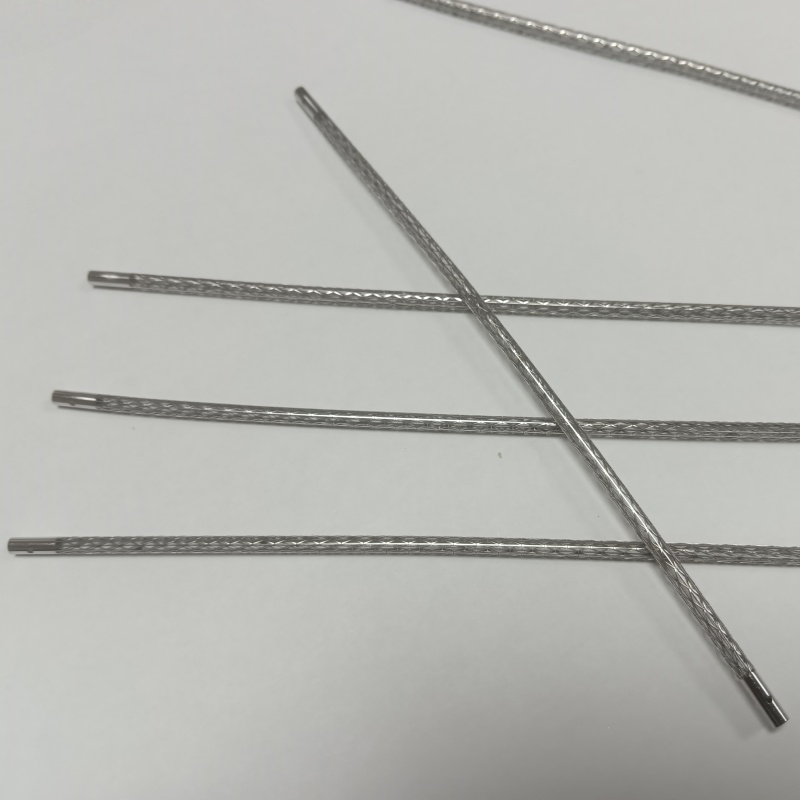

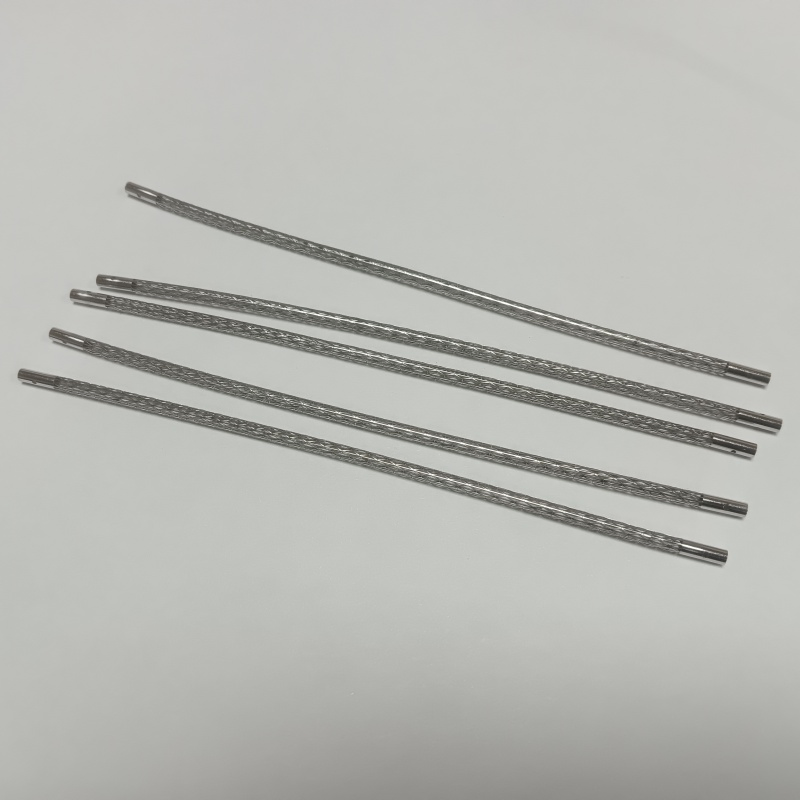

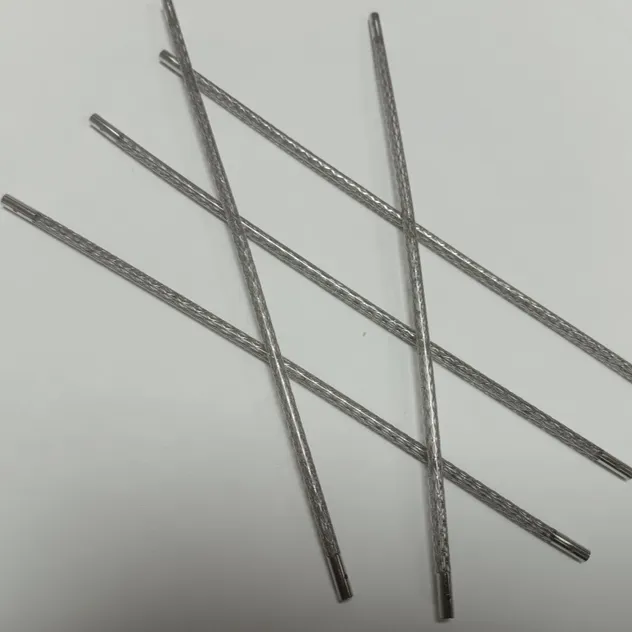

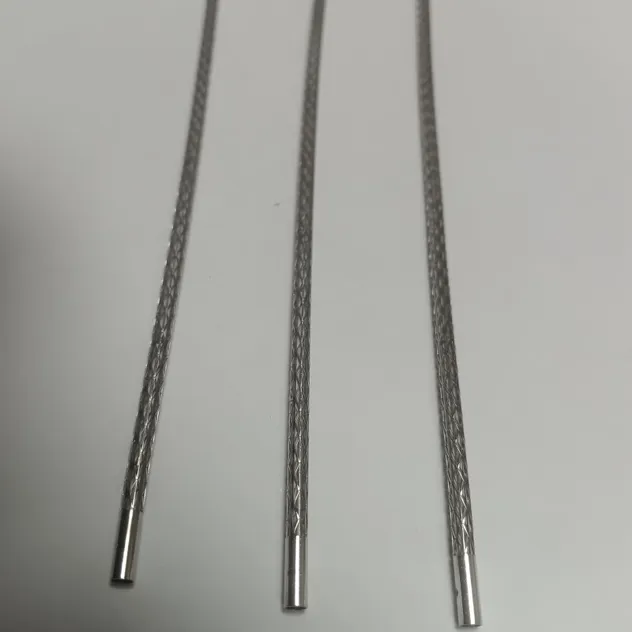

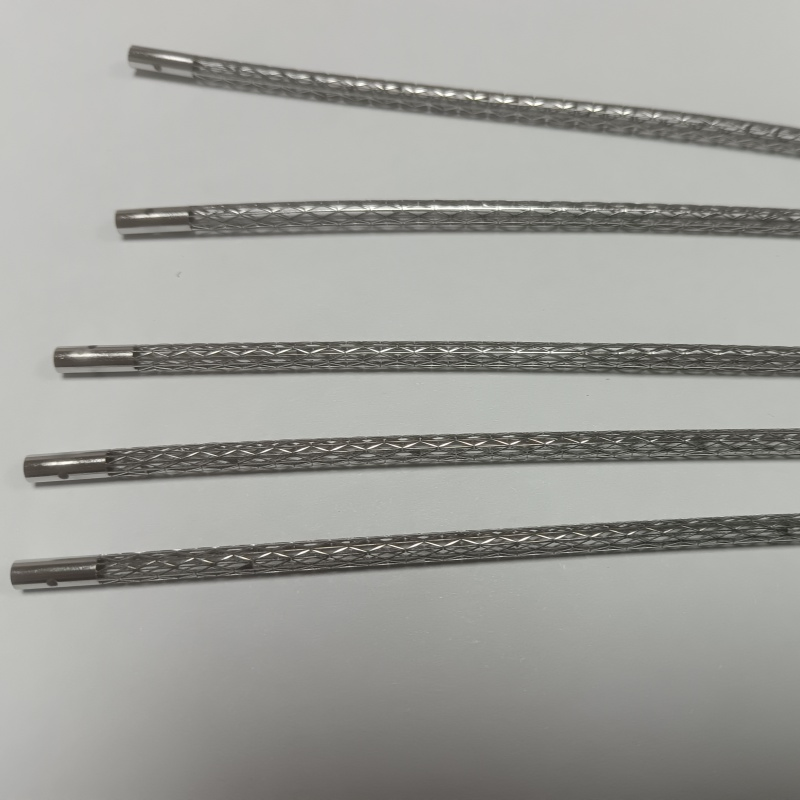

Stainless Steel Capillary Precision Laser Cutting

Key Features & Capabilities

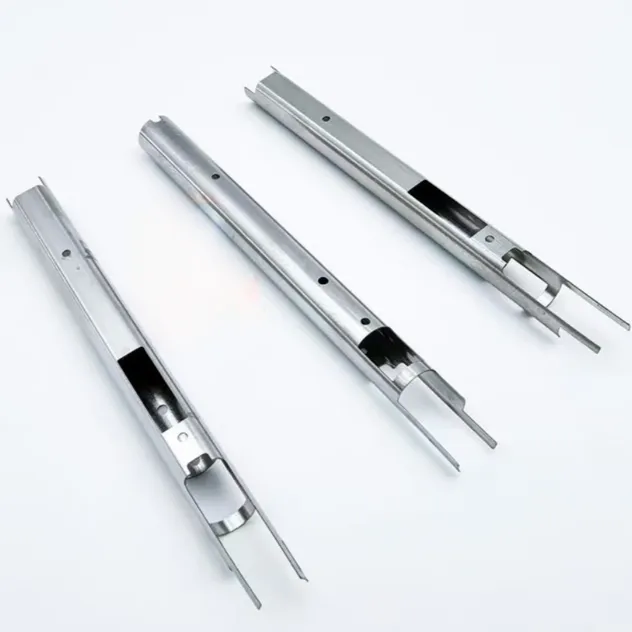

1Precision Micromachining: High-precision pulsed fiber laser systems for slotting and punching.

2Wide Diameter Range: Supports outer diameters from 0.5mm up to 25mm.

3Clean Results: Burr-free cuts that preserve material integrity and corrosion resistance.

4Advanced Materials: Applicable to 304, 316L, 17-4PH, Titanium, and Nitinol.

Technical Parameters

Material Options	Stainless Steel (304, 316L, 17-4PH), Titanium, Nitinol, Inconel
OD Range	0.5 mm – 25 mm
Wall Thickness	0.05 mm – 2.0 mm
Min Slot/Hole Width	0.05 mm (50 μm)
Positional Accuracy	±0.01 mm to ±0.02 mm
Repeatability	±0.005 mm
Laser Type	Pulsed Fiber Laser (1064 nm)
Surface Finishing	Electropolishing, Passivation, Bead Blasting

Industry Applications

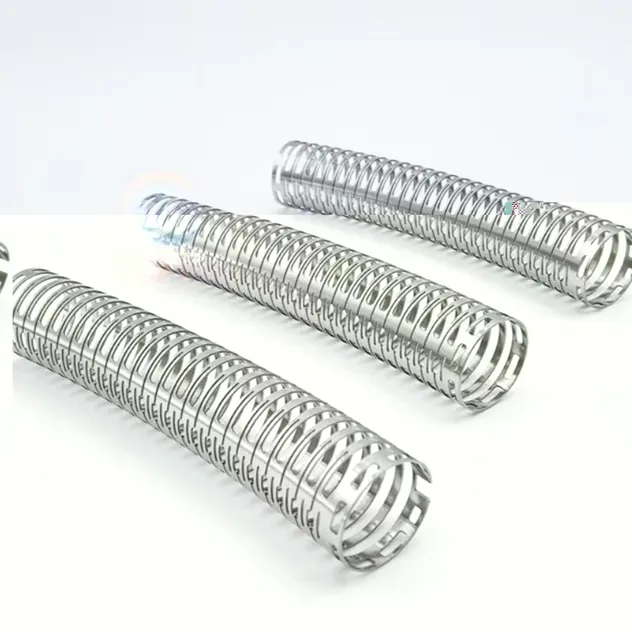

Medical Devices: Stents, biopsy needles, catheter components, drug delivery.

Instrumentation: HPLC/GC columns, laboratory probes, micro-fluidic devices.

Aerospace: Fuel systems, sensor housings, cooling lines.

Semiconductor: Gas distribution nozzles, chemical delivery tubes.

Quality Assurance

Our facility has obtained GB/T 19001-2016/ISO 9001:2015 and GB/T 42061-2022/ISO 13485:2016 medical device quality system certifications. We focus on the research and production of non-standard metal precision parts, utilizing high-precision engraving lathes and CNC equipment to ensure each product meets strict industry standards.

Frequently Asked Questions

What range of tube diameters can you process?

We specialize in capillary tubes with an outer diameter (OD) ranging from 0.5mm to 25mm. Standard wall thicknesses range from 0.05mm to 2.0mm.

What is the precision level of your laser cutting?

Our CNC-controlled pulsed fiber laser systems achieve a positional accuracy of ±0.01mm to ±0.02mm and a repeatability of ±0.005mm.

Can you handle custom patterns and complex slotting?

Yes, we support longitudinal, helical, radial, and staggered patterns, as well as custom CAD designs for specific medical or industrial requirements.

What certifications do your products comply with?

Our manufacturing process is certified under ISO 9001:2015 and ISO 13485:2016, specifically catering to the strict quality requirements of the medical device industry.

What materials are available for processing?

Main materials include various grades of Stainless Steel (304, 316L, 17-4PH), Titanium, Nitinol, Inconel, and Aluminum alloys.

Do you offer post-processing services?

Yes, we provide secondary processing such as electropolishing (achieving Ra ≤ 0.2 μm), passivation, sandblasting, and mechanical deburring.
