Precision Tracheal Tube Cuff Pressure Monitoring System for Hospitals

1 Basic Information

Model NO.:Digital Medical Equipment

Group:Pediatric, Adult

Logo Printing:With Logo Printing

Product Name:Tracheal Tube Cuff Pressure Monitor

Certifications:CE/ISO Compliant

Box Spec:39X23X29 Cm

Storage:Dry, Ventilated and Cool Place

Packaging:1PC/Box, 12 PCS/CTN

Transport:Corrugated Box

Origin:China

HS Code:9026209090

Capacity:100,000 PCS/Month

2 Product Description

Real-time Cuff Monitoring System

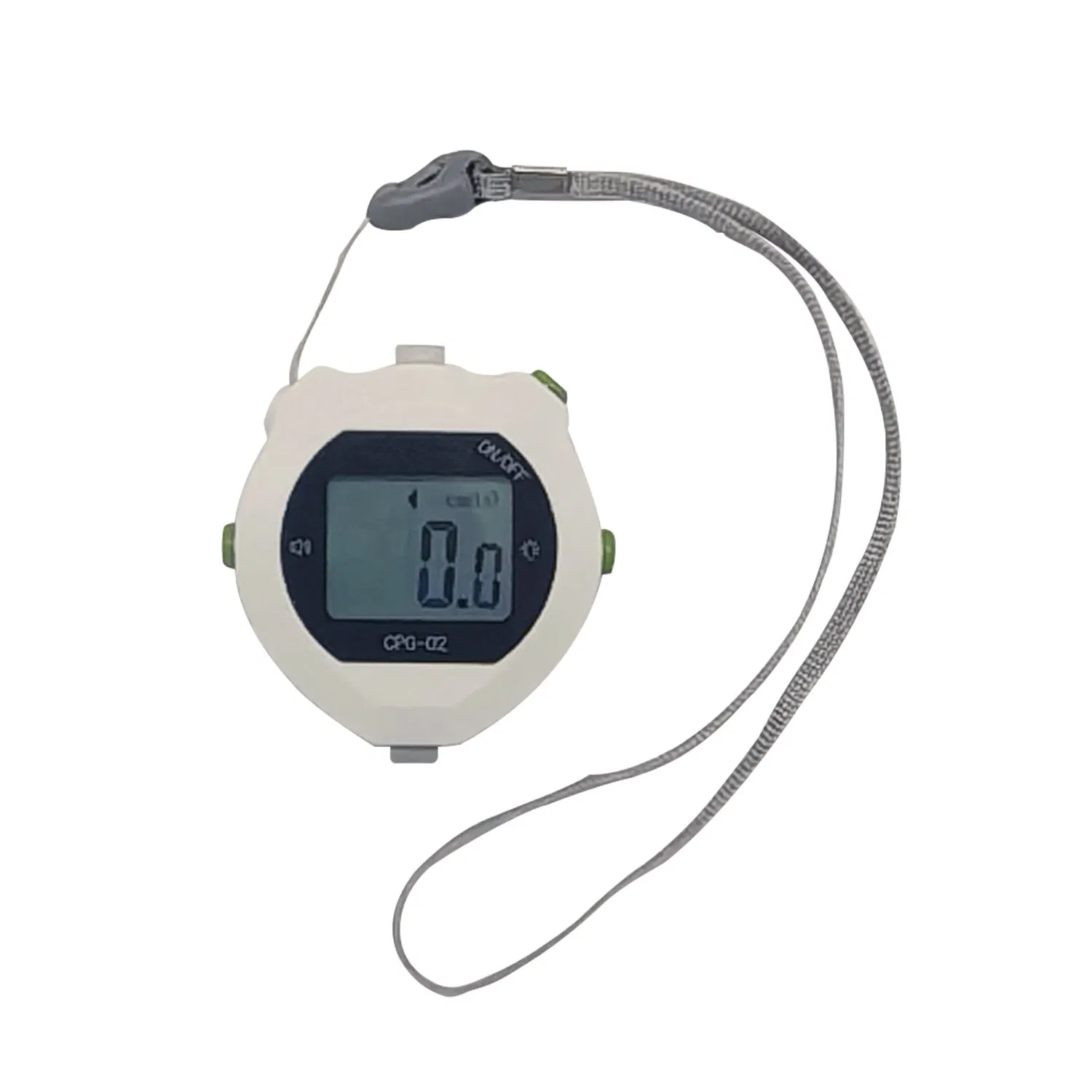

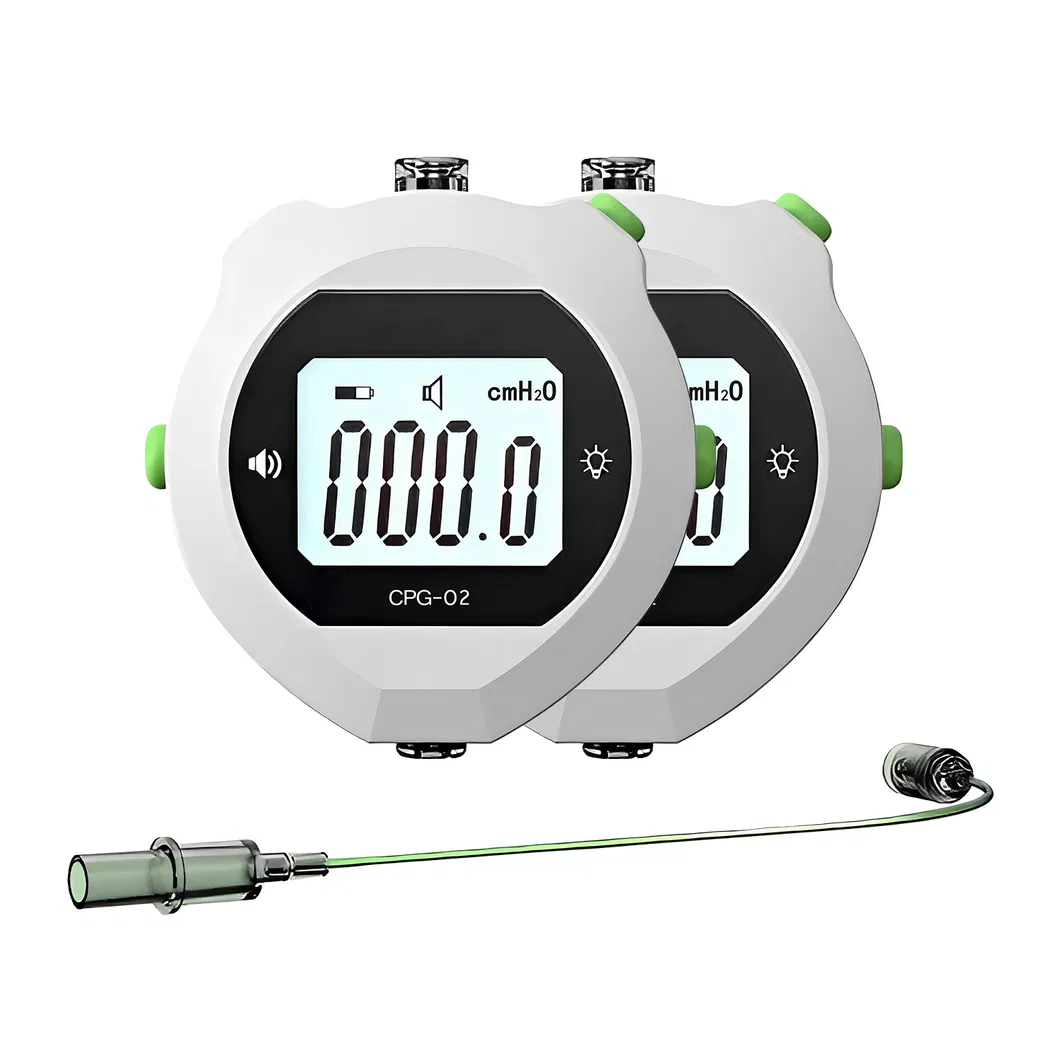

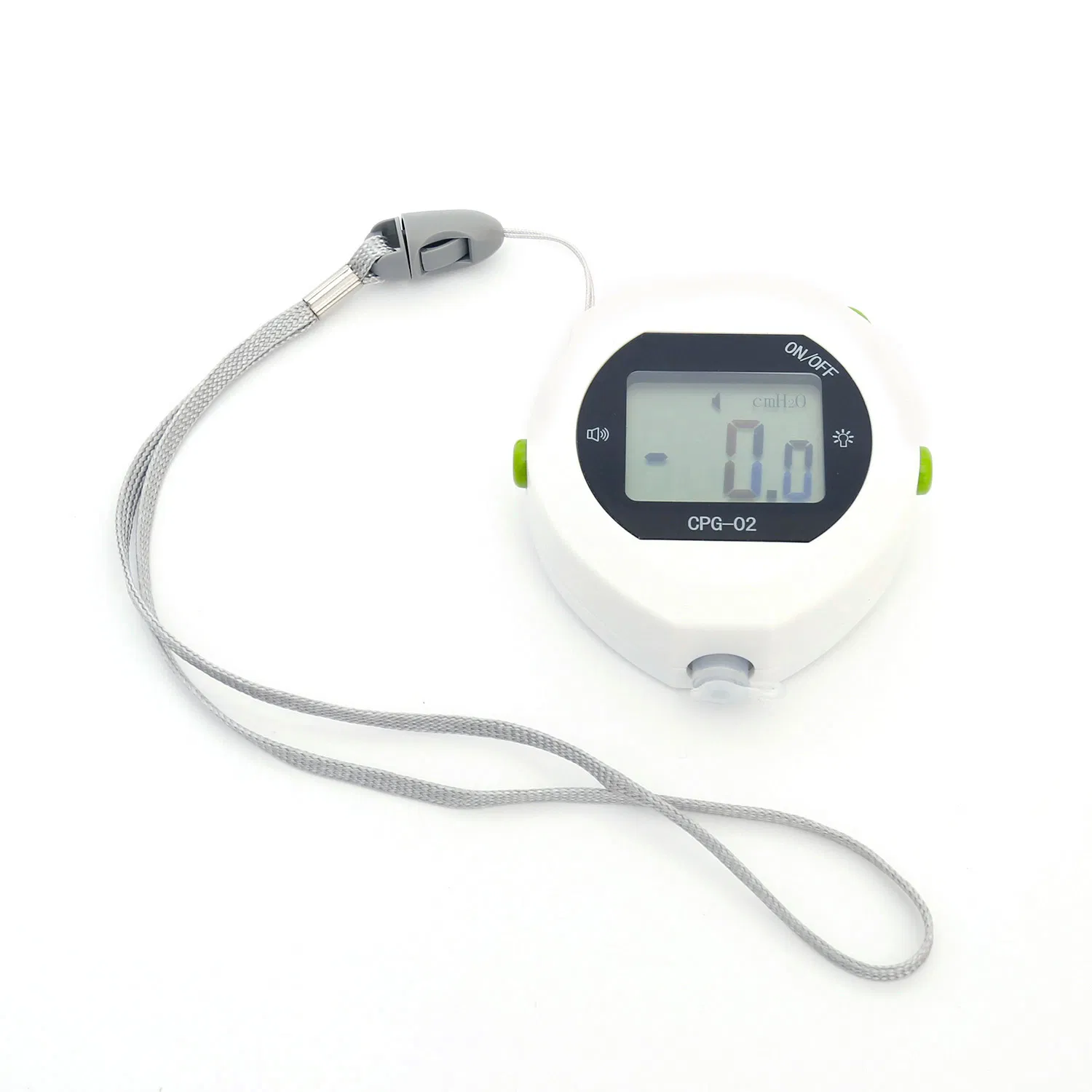

The Bedside Tracheal Tube Cuff Pressure Monitor provides continuous monitoring of endotracheal tubes (ETT) and tracheostomy tubes (TT) pressure. This system identifies pressure deviations promptly with audible and visual alarms, ensuring safety in clinical settings. Its compact, stopwatch-like design allows for high-precision measurement without the need for calibration.

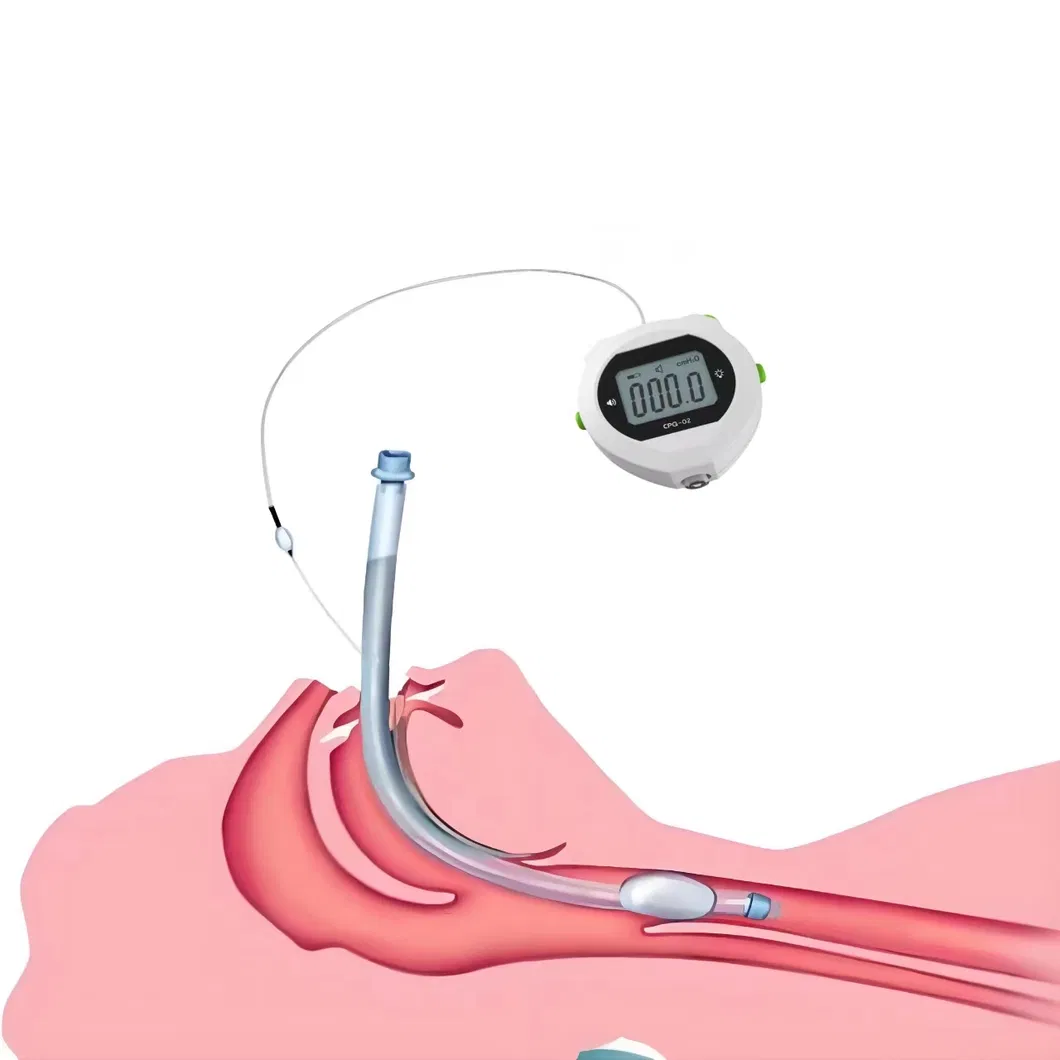

Tracheal Tube Cuff Pressure Monitoring System

3 Key Features

Continuous bedside monitoring reduces manual spot checks.
Audible & visual alarms for immediate deviation alerts.

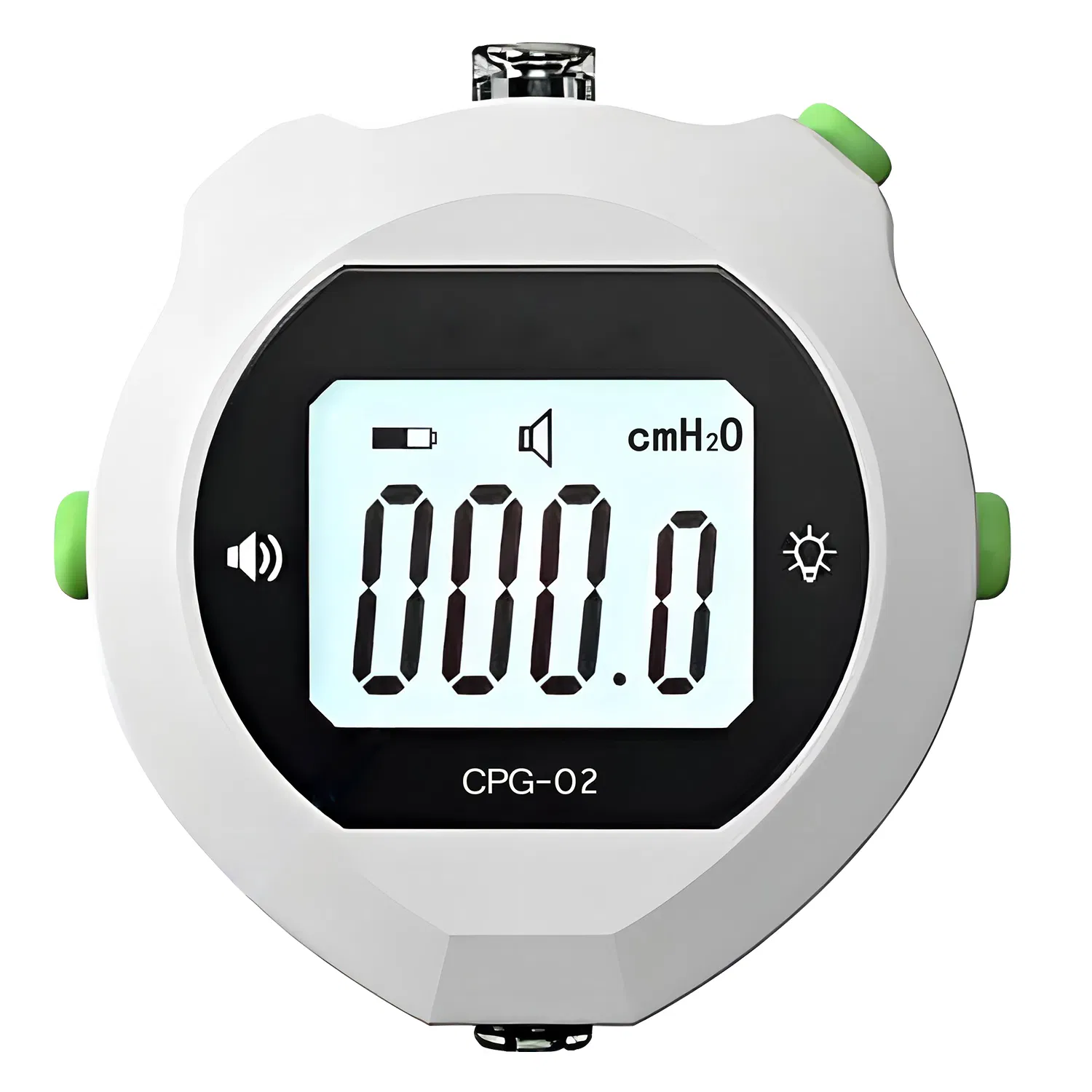

Large LED digital display with backlight for remote observation.
High-precision pressure sensor for accurate measurements.

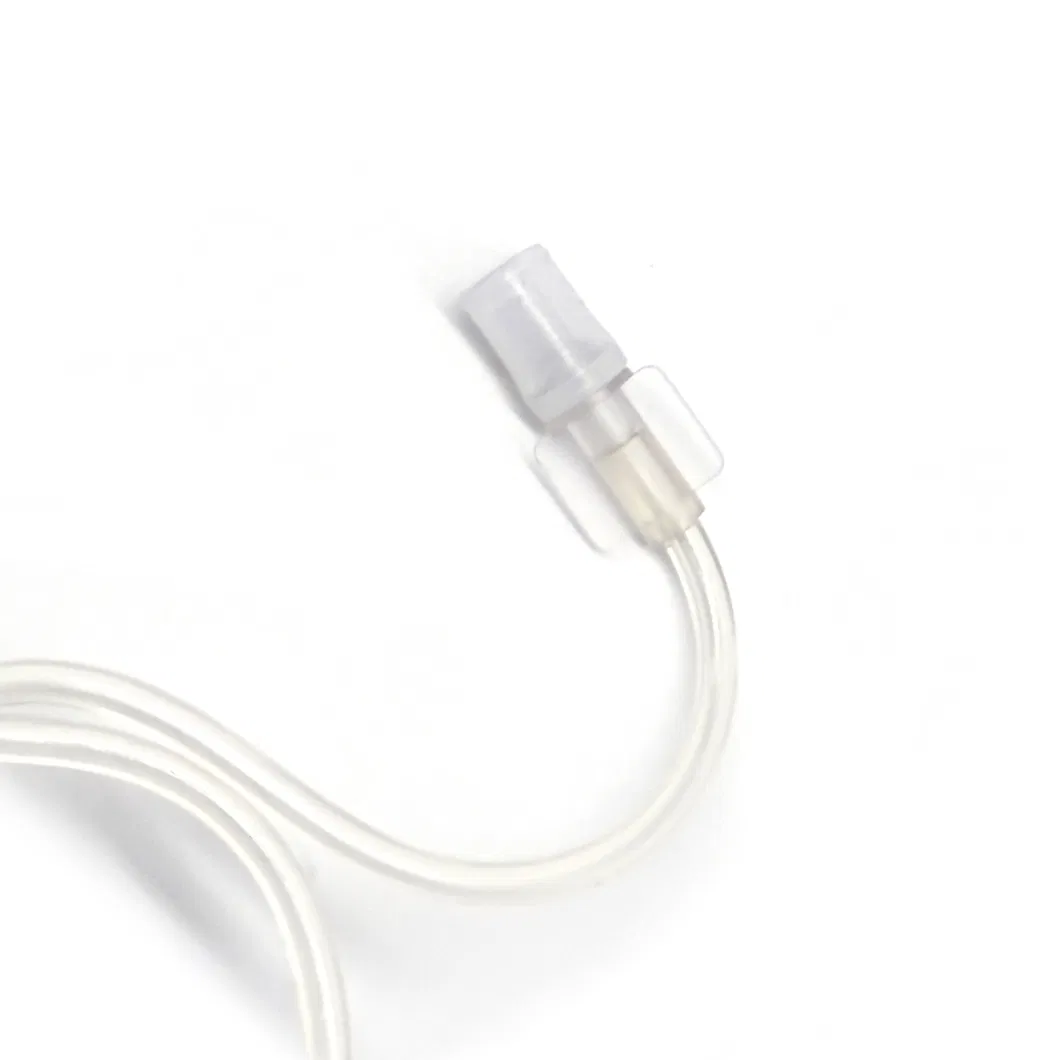

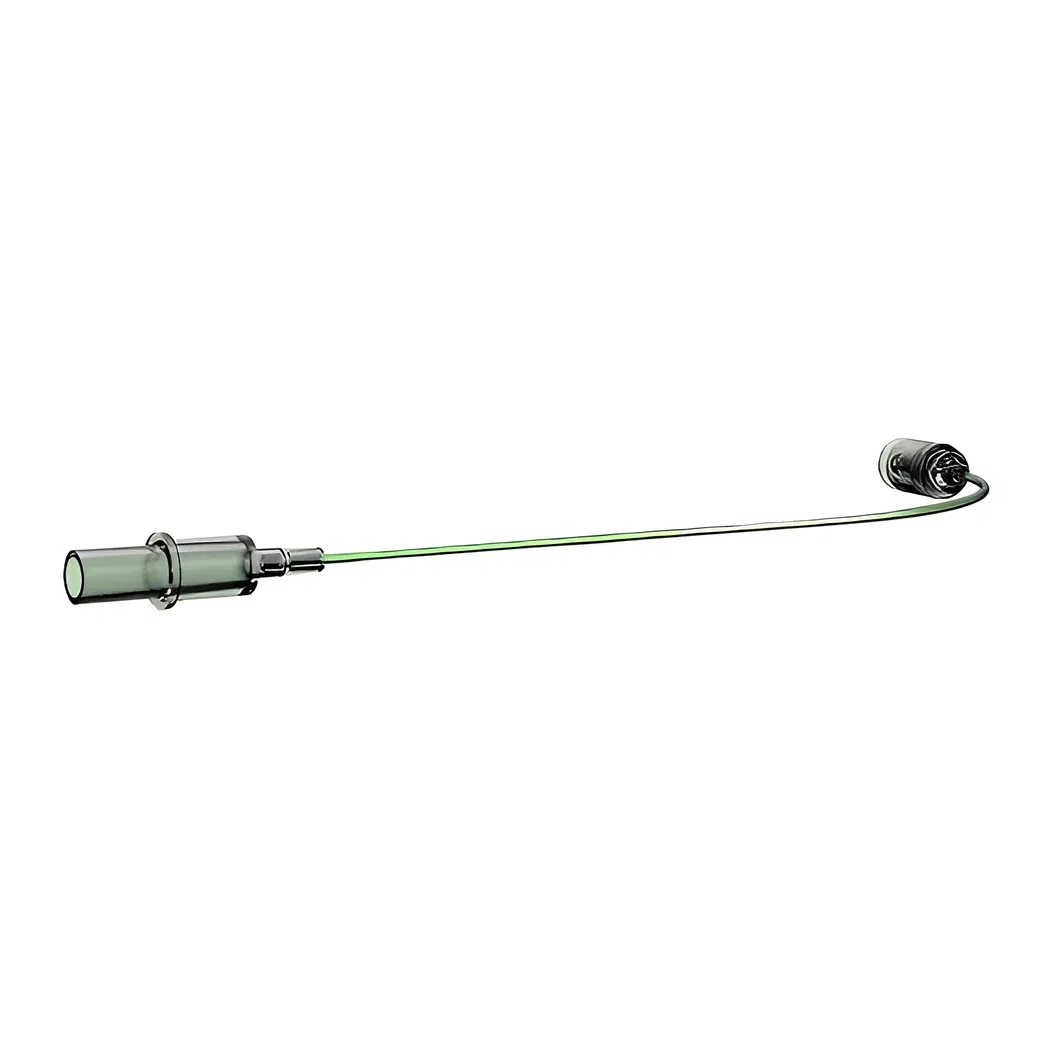

Airtight Luer lock connection to prevent leaks.
Easy regulation via a 2.5/5ml syringe.
Long-lasting battery providing 10-15 days of continuous use.

4 Technical Specifications

Measuring Range	0 ~ 100 cm H2O
Alarm Range	0 ~ 20 cm H2O, 30 ~ 100 cm H2O (Audible & Visual)
Display Mode	LED Digital Display
Operating Temperature	10ºC ~ 40ºC
Relative Humidity	Less than 80% RH
Atmospheric Pressure	700hPa ~ 1060hPa
Protection Rating	IPXO

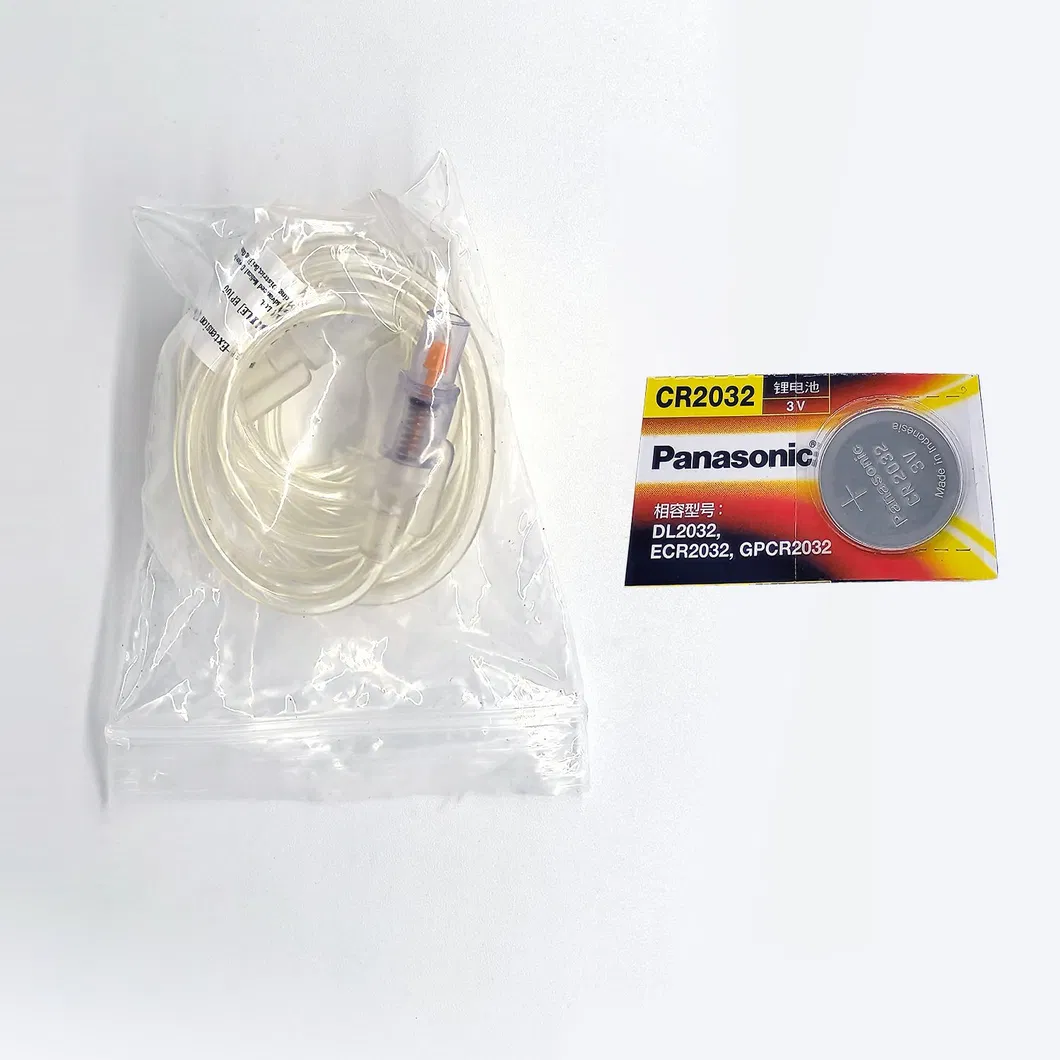

Power Supply	Coin Lithium Battery (CR2032) 3V
