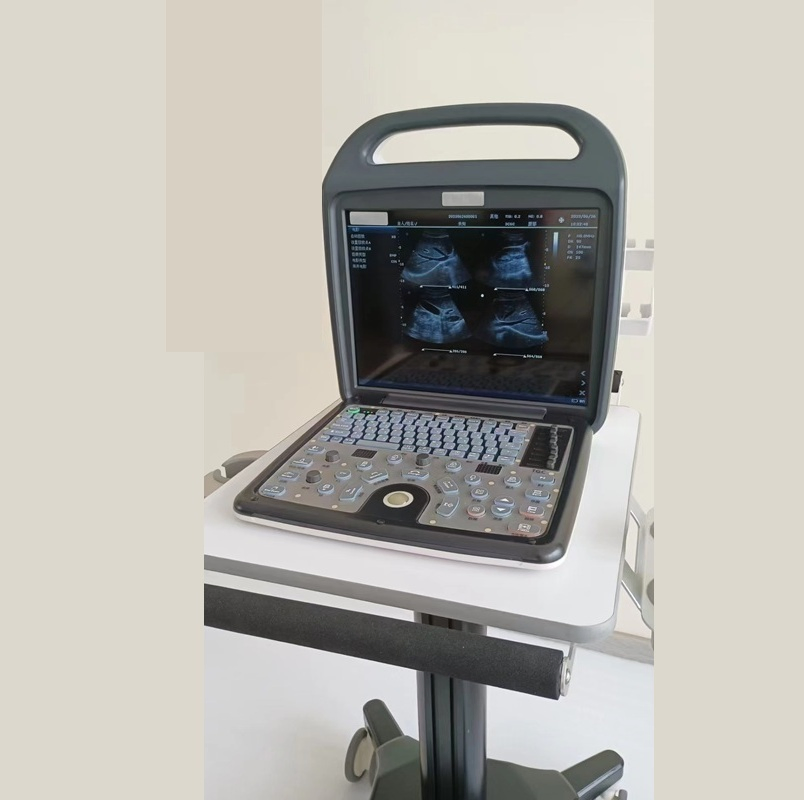

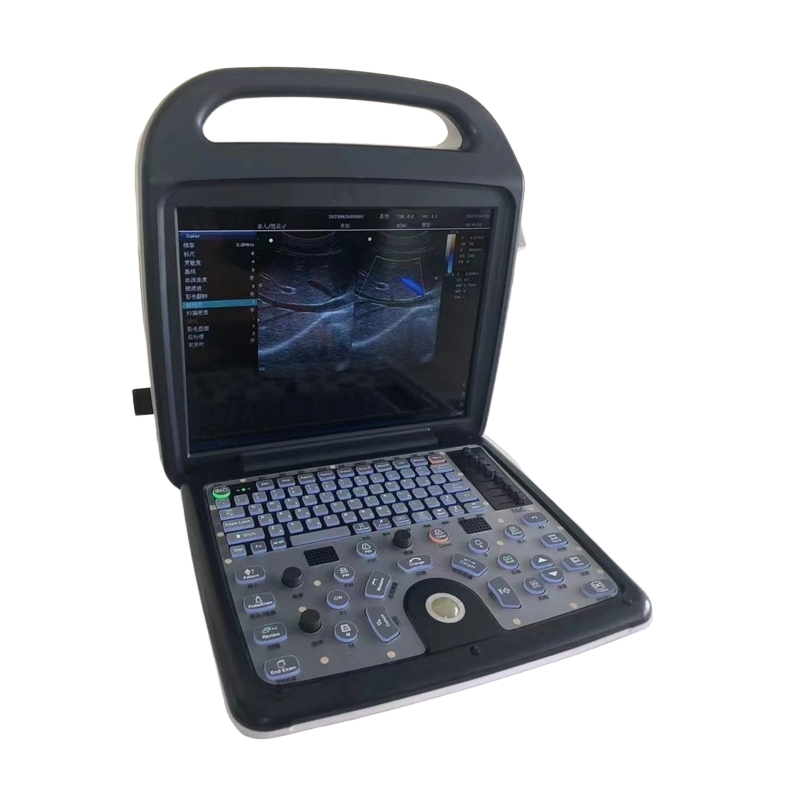

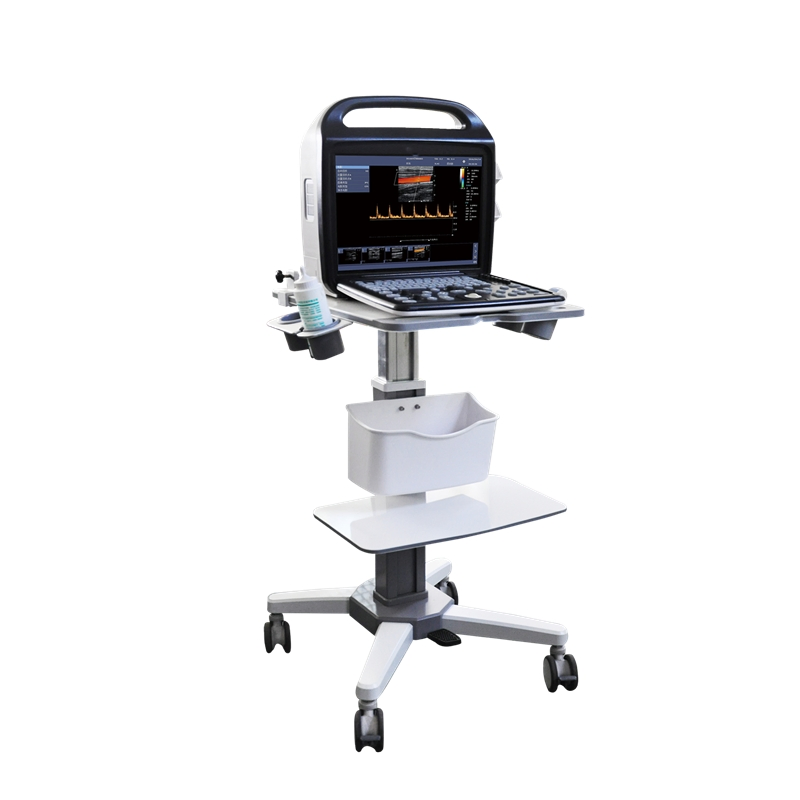

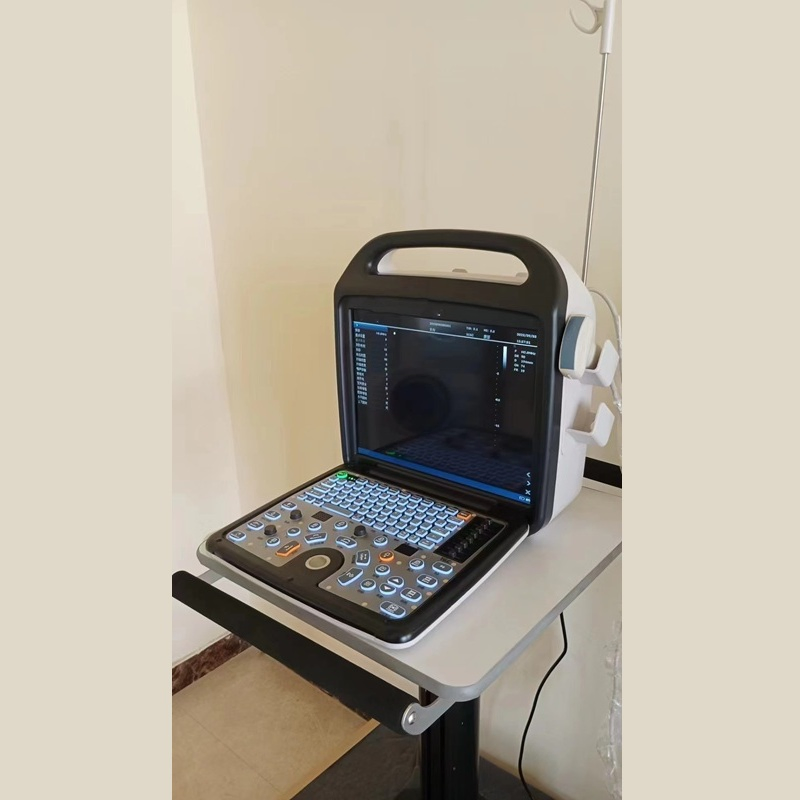

The UMUS069 is a high-end portable color Doppler ultrasound system designed for both human and veterinary use. It offers exceptional imaging performance for abdominal, urological, obstetric, cardiac, and small organ examinations. Its ergonomic design and intuitive interface make it an ideal choice for medical clinics and animal hospitals.
| Attribute | Technical Data |
|---|---|
| Imaging Modes | B, 2B, 4B, M, B+Color, B+PDI, B+PW, B+Color+PW |
| B-Mode Parameters | Grayscale mapping ≥15, Noise suppression ≥8 levels |
| M-Mode Parameters | Sweep speed ≥5 adjustable levels |
| PW-Mode PRF | 0.7kHz-9.3kHz, ≥16 levels | 0.6kHz-11.7kHz, ≥15 levels |
| Output Formats | JPG, BMP, FRM, CIN, AVI |
It is versatile for both human and veterinary diagnostics, including abdominal, obstetric, cardiac, urological, and small organ examinations.
Yes, weighing less than 7.5kg and featuring a built-in battery with over 2 hours of life, it is designed for excellent portability.
The system supports a wide range of probes including micro-convex, convex array, linear array, rectal, and cardiac probes with frequencies from 2.5MHz to 10.0MHz.
The system has a built-in 500GB hard drive. It supports DICOM 3.0 for medical network integration and can export images/videos in JPG, BMP, AVI, and CIN formats.
Standard support includes English, Chinese, and Spanish, with the capability to expand to other languages as needed.
Yes, the system is compatible with USB report printers, as well as black & white or color video printers.
