This product is a highly efficient organic boron complex formed by the reaction of boric acid and various ligands under specific conditions, crosslinking guar gum and its derivatives to form a network gel.
It reduces the concentration of hydroxypropyl guar gum thickener by approximately 40% compared to conventional fluids, while maintaining excellent viscoelasticity and proppant-carrying capacity.
Implementation Standards: Q/029WD 1203-2024
| Item | Specification |
|---|---|

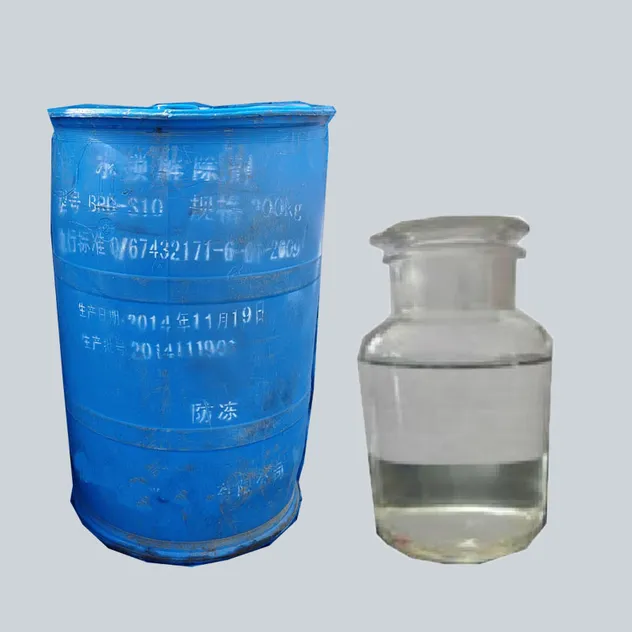

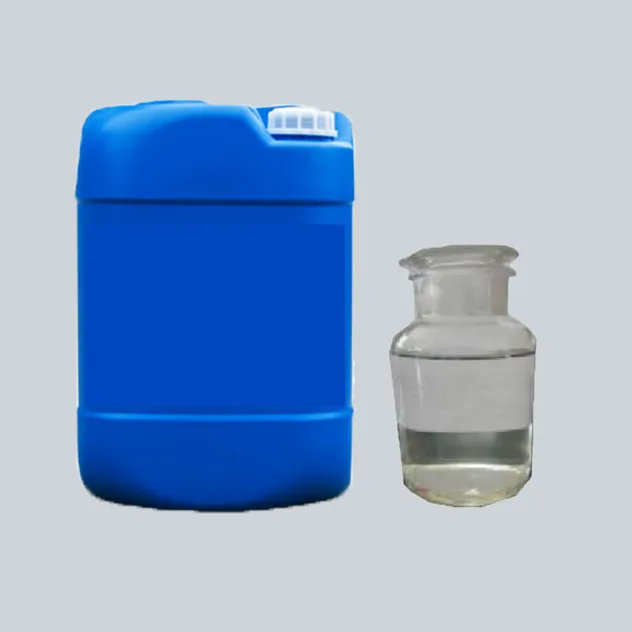

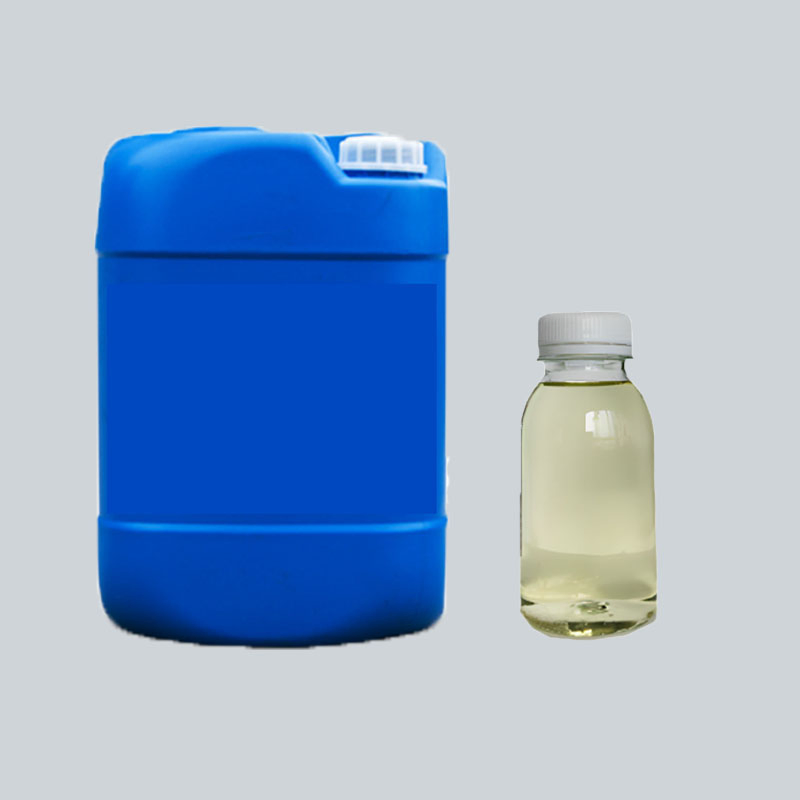

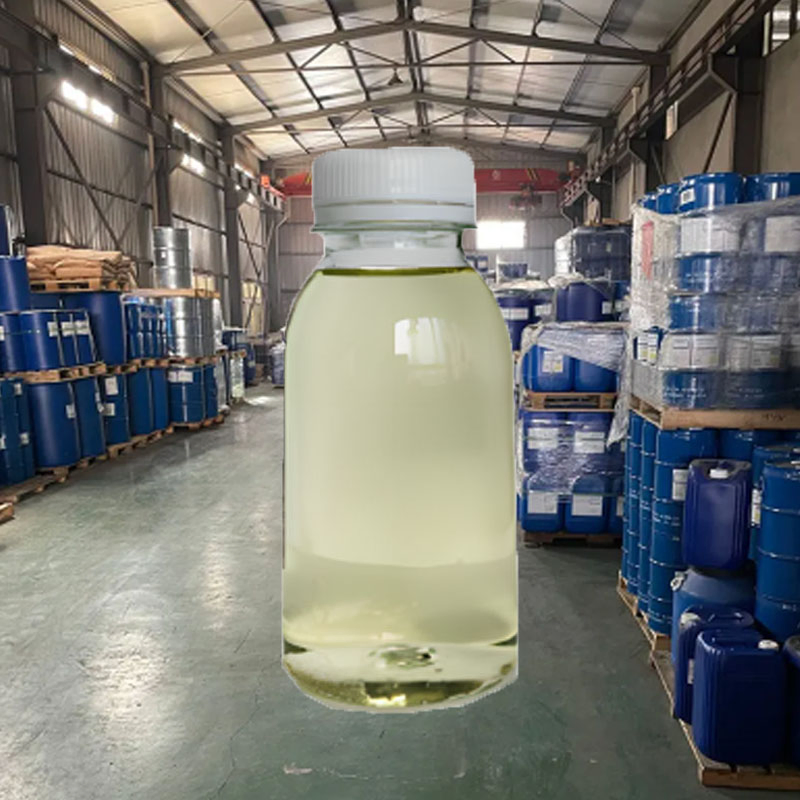

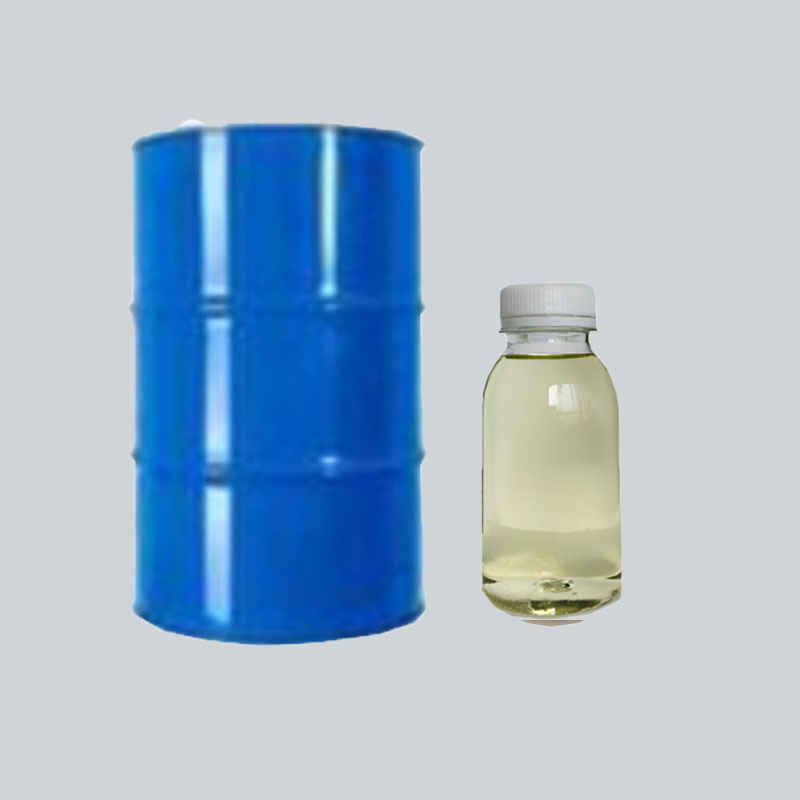

| Appearance | Colorless to yellow liquid |
| Solubility | Miscible with water in any proportion |
| Crosslinking delay time | 1–2 min, adjustable |
| Temp Resistance (0.25% Guar Gum) | ≥70℃ |
| Temp Resistance (0.35% Guar Gum) | ≥100℃ |
| Crosslinking state | Gel adheres to a glass rod upon stirring |
Cross-linked gels possess extremely high viscosity, effectively suspending and transporting high-concentration proppant to deep fractures.
Delayed cross-linking allows pumping as a low-viscosity linear gel, reducing tubing friction and horsepower requirements.
Low filtration loss enables effective pressure transfer, creating wider and longer fractures in target formations.
Maintains stable viscosity in high-temperature deep wells, ensuring safe and effective operation.
